Authorised Distributor

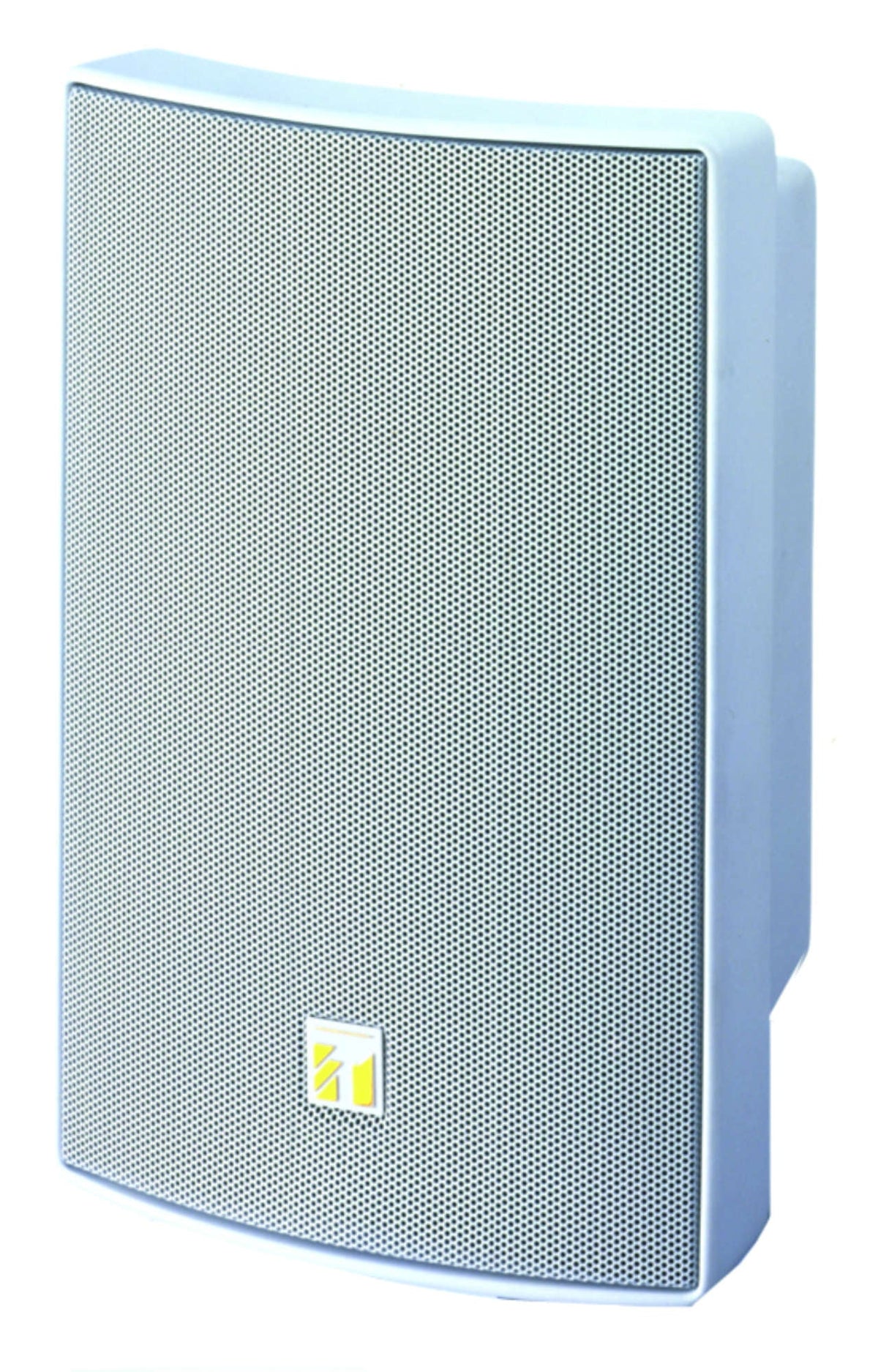

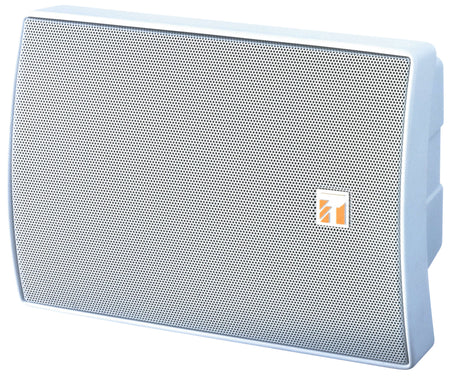

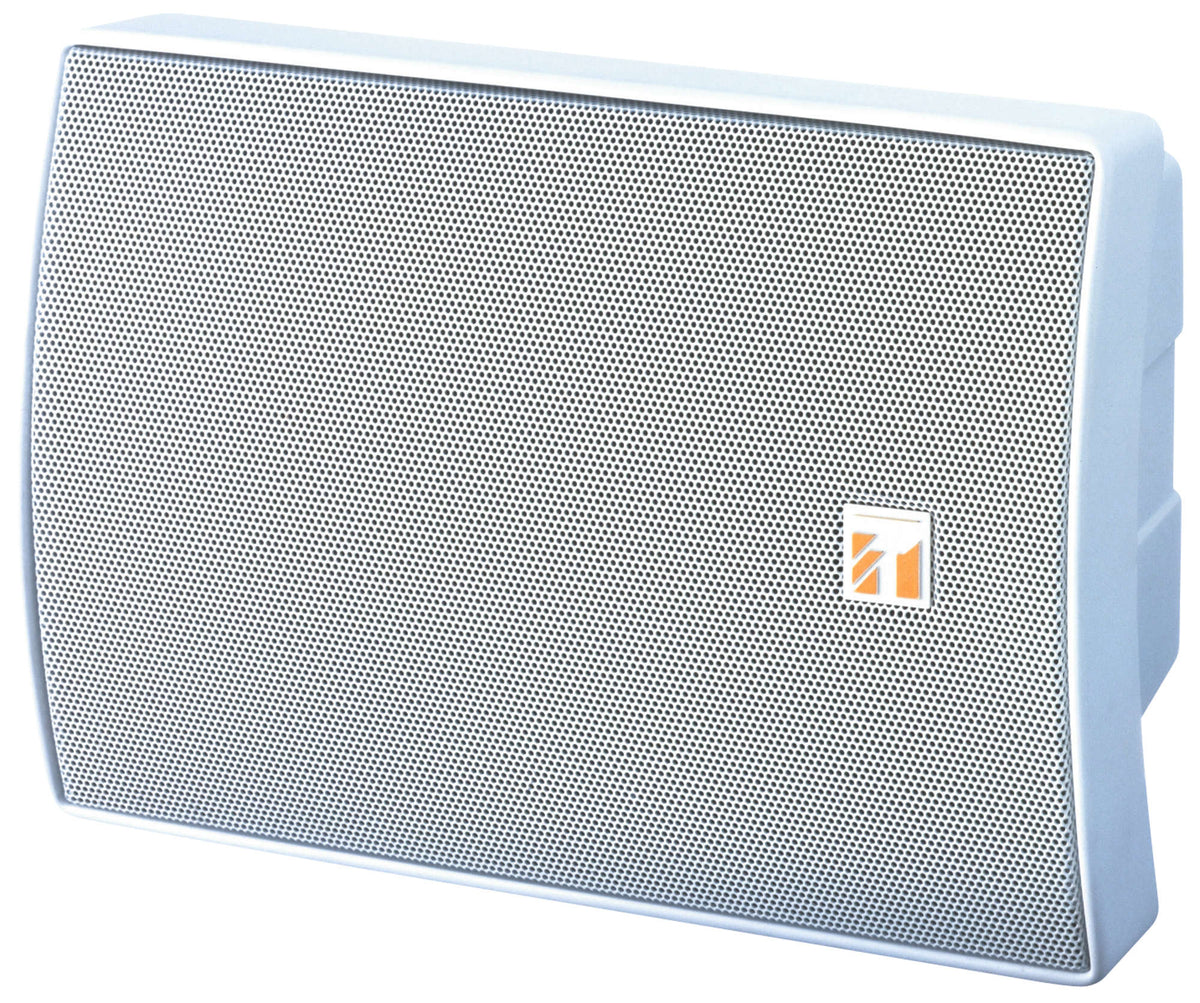

TOA BS-1030W Speaker Wallmount 30W 8ohm, White
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- 2-way bass reflex speaker
- Cost-effective high power PA box speaker
- Various installation options
- Low impedance (8Ω) or high impedance (100V) selectable by rotary switch
- Splashproof construction in compliance with IPX3
DESCRIPTION
The BS-1030W is a small, 2-way bass-reflex type speaker featuring a wide frequency range suitable for use for announcements and music playback. The BS-1030W can be used for both high-impedance and low-impedance applications. The speaker's splash-proof construction permits it to be installed under the eaves where the speaker is not directly exposed to rain.
SPECIFICATIONS
Specification Details Enclosure 2-way bass-reflex type Rated Input 30 W Rated Impedance 8 Ω 100 V Line Taps 330 Ω (30 W), 500 Ω (20 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W) 70 V Line Taps 170 Ω (30 W), 250 Ω (20 W), 330 Ω (15 W), 500 Ω (10 W), 1 kΩ (5 W) Sound Pressure Level 90 dB (1 W, 1 m) Frequency Response 80 Hz – 20 kHz Speaker Component 12 cm cone-type + dome-type Speaker Cable 2-core cabtyre cord with diameter of 6 mm Water Protection IPX4 (can be installed vertically or horizontally*) Operating Temperature -10 ℃ to +50 ℃ Finish Enclosure: ABS resin, white (RAL9010 PURE WHITE), paint
Net: Surface treated steel plate, white (RAL9010 PURE WHITE), powder coating
Bracket: Surface treated steel plate, white equivalent to RAL9010 PURE WHITE, powder coating
TOA
TOA is a global leader in professional PA, voice-alarm, and conference systems. Techniline is the authorised TOA distributor for the UAE & GCC — supplying, specifying, and supporting the full range with regional warranty and manufacturer-backed support.
