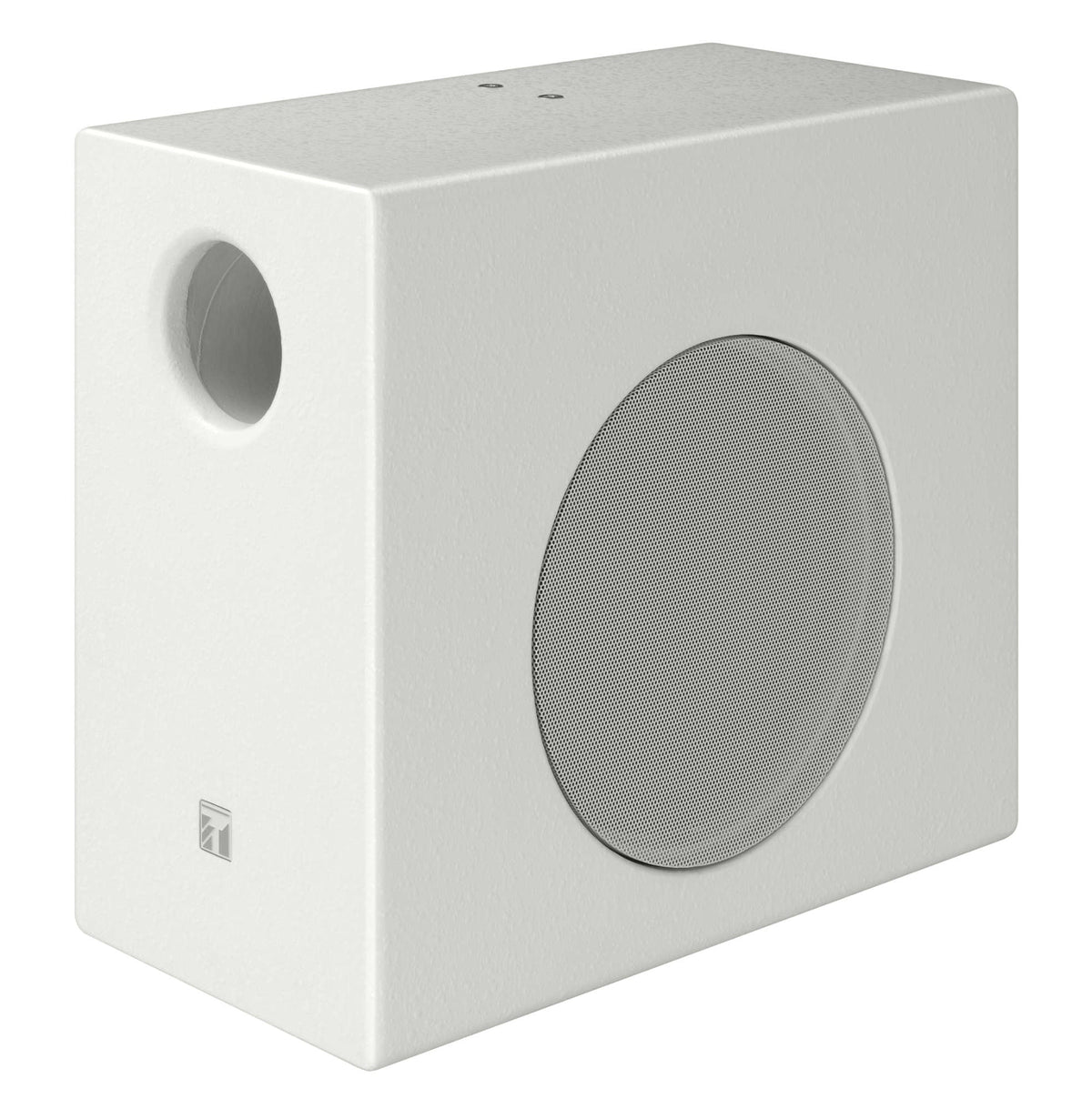

TOA FB08WT Subwoofer System 1x8" 120W White
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
FEATURES
- High-performance 8-inch indoor subwoofer system
- Powerful 20 cm (8") driver for robust bass reproduction
- Built-in crossover network for simplified system setup
- Seamless integration with F-03/05 series speakers without the need for external processors
- Versatile high/low impedance compatibility
- Optional brackets for wall or ceiling mounting
DESCRIPTIONThe subwoofer shall be a bass-reflex type enclosure suitable for ceiling or wall mounting. The low-frequency driver shall be a 20 cm (8") cone-type, and the subwoofer shall have a rated noise power handling capacity of 120 W (8 Ω) and a continuous program power capacity of 240 W (8 Ω). The rated input for the subwoofer shall be 120 W when connected to 100 V or 70 V line systems. The subwoofer shall offer multiple tap settings, including 83 Ω (120 W) and 167 Ω (60 W) for the 100 V line, and 50 Ω (100 W), 83 Ω (60 W), and 167 Ω (30 W) for the 70 V line. The impedance shall be 8 Ω for direct connection.
The subwoofer shall have a sensitivity of 84 dB at 1 W, measured at 1 m distance in a free sound field, and 90 dB at 1 W in a 1/2 free sound field. The frequency response of the subwoofer shall range from 45 Hz to 300 Hz, with a -10 dB variance in a 1/2 free sound field. The crossover frequency shall be integrated to simplify system configuration.
The enclosure shall be constructed of MDF and finished in either black or white. The grille shall be made of surface treated steel plate and finished to match the enclosure color. The subwoofer shall be equipped with M4 screw terminals for input connection.
The subwoofer shall be designed for indoor installation and be capable of operating in a temperature range from -10°C to +50°C (14°F to 122°F). The overall dimensions of the subwoofer shall be 200 mm (W) x 350 mm (H) x 400 mm (D) (7.87" x 13.78" x 15.75"), and the weight shall be 16 kg (35.27 lbs.).
Optional extras:
Subwoofer wall mounting bracket: HY-WM-FB08B/ HY-WM-FB08W
Subwoofer ceiling mounting bracket: HY-CM-FB08B /HY-CM-FB08W
SPECIFICATIONS
Specification Details Enclosure Bass-reflex type Rated Input 120 W (100 V line, 70 V line) Power Handling Rated noise power: 120 W (8 Ω)
Continuous program: 240 W (8 Ω)Rated Impedance 8 Ω
100 V line: 83 Ω (120 W), 167 Ω (60 W)
70 V line: 50 Ω (100 W), 83 Ω (60 W), 167 Ω (30 W)Sensitivity 84 dB (1 W, 1 m) in free sound field
90 dB (1 W, 1 m) in 1/2 free sound fieldFrequency Response 45 - 300 Hz, –10 dB (in 1/2 free sound field) Speaker Component 20 cm (8") cone-type Input Terminal M4 screw terminal (Barrier spacing: 9 mm / 0.35") Installation Environment Indoor installation Recommended Amplifier DA-250DH, DA-250FH, DA-500FH, A-5012 (*2) Operating Temperature -10 °C to +50 °C (14 °F to 122 °F) Finish Enclosure: MDF, white (RAL 9016 equivalent), paint
Grille: Treated steel plate, white (RAL 9016 equivalent), paintDimensions (W x H x D) 200 x 350 x 400 mm (7.87" x 13.78" x 15.75") Weight 16 kg (35.3 lb) Optional Accessories Subwoofer wall bracket: HY-WM-FB08W
Subwoofer ceiling bracket: HY-CM-FB08W
