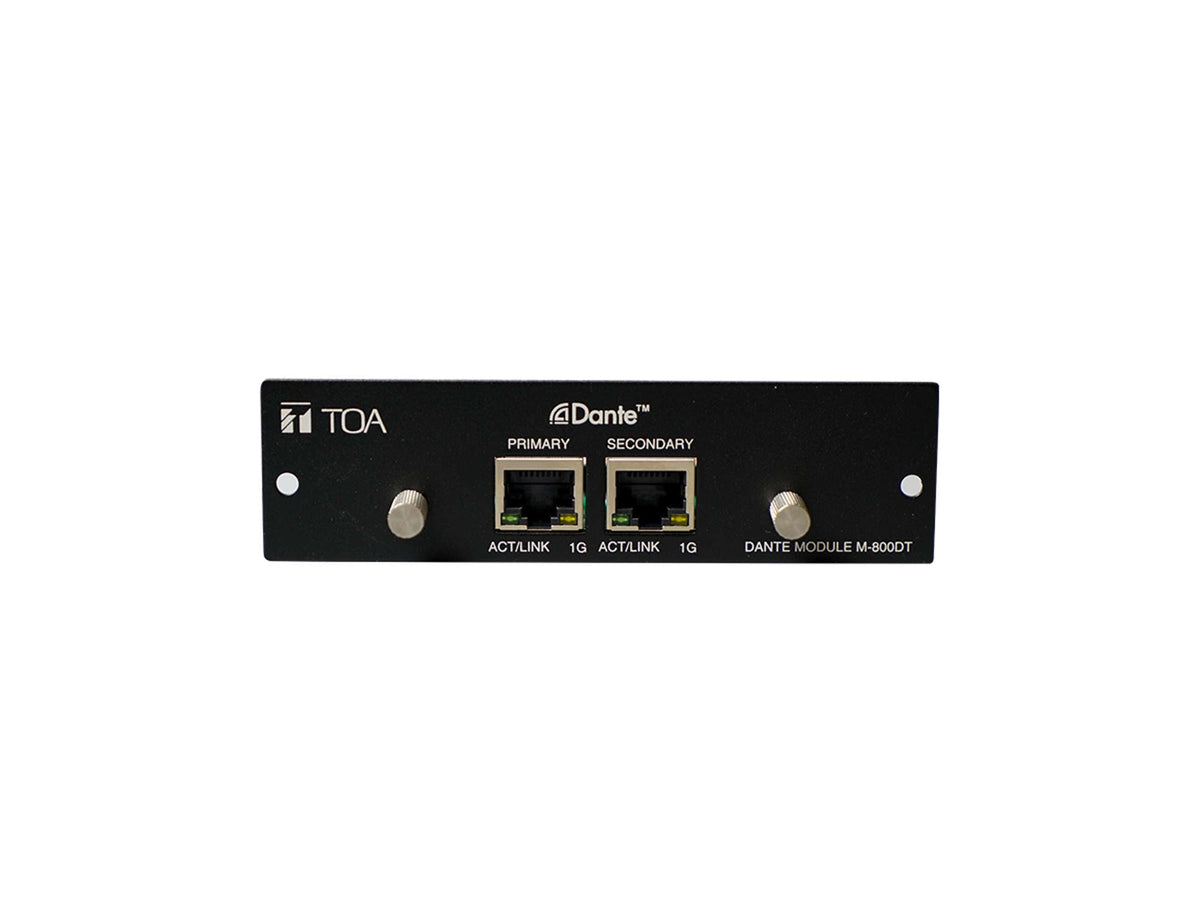

TOA M800DT Dante Module

FEATURES

• Audio transmission and reception via ethernet

• Supports daisy chain or star connection and enables redundant network configuration

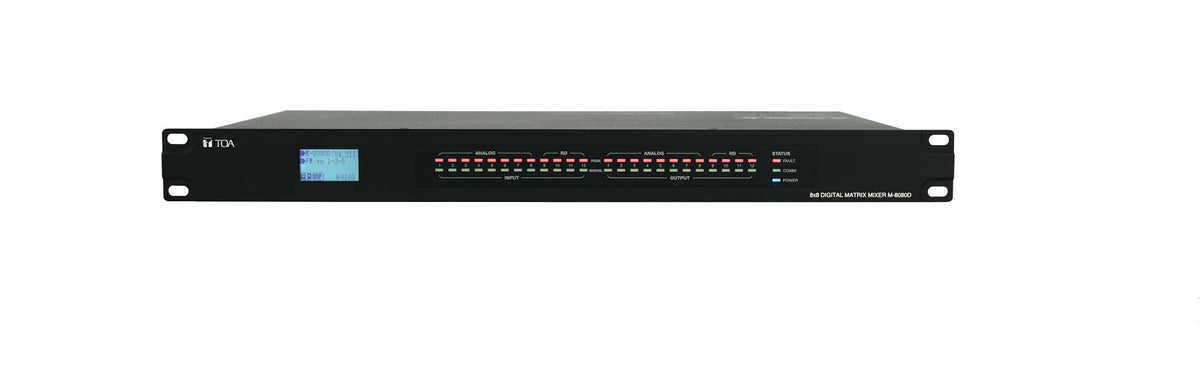

• Connecting up to 16 x M-8080D Matrix Mixer Systems, with up to 192 inputs and outputs
• Ideal for systems with numerous zones/floors such as in large building complexes
• Existing ethernet can be used


DESCRIPTION

Dante Module

The module shall be insertable into the M-8080D matrix mixer by TOA Electronics. It shall support a port speed of 100/1000 Mbps with DHCP functionality. The module shall provide at least 8 Dante channels for bidirectional digital streaming. It shall feature multiple indicators to display the status.

The M-800DT Dante module provides an easy-to-use audio over ethernet connection between up to 16 M-8080D Matrix Mixer Systems. It expands the possibilities of the M-8080D system to a total of 192 inputs and outputs.

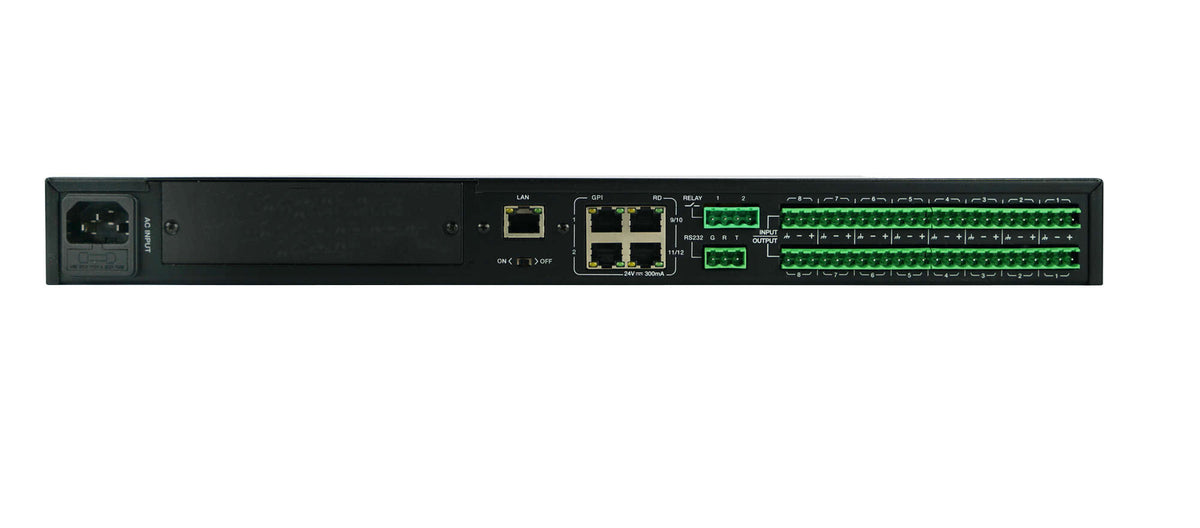

Designed for exclusive use with the M-8080D, the M-800DT Dante Module provides a complete, ready-to-use Dante interface with up  to 8 channels of bidirectional digital streaming. The M-8080D Digital Mixer System is ideal for multi-zone paging, music distribution and now also for decentralized applications.

- Power Source: 5 V DV

- Digital Audio Formats: TDM

- Audio Transport Formats: Dante Audio over IP

- Operating Temperature: 0 °C or less to 40 °C or more

- Operating Humidity: 90 %RH or more

- Finish: Panel: Surface-treated steel plate, black, paint

- Dimensions: 122.2 (W) x 33.5 (H) x 119.5 (D) or less

- Weight: 118 g or less
