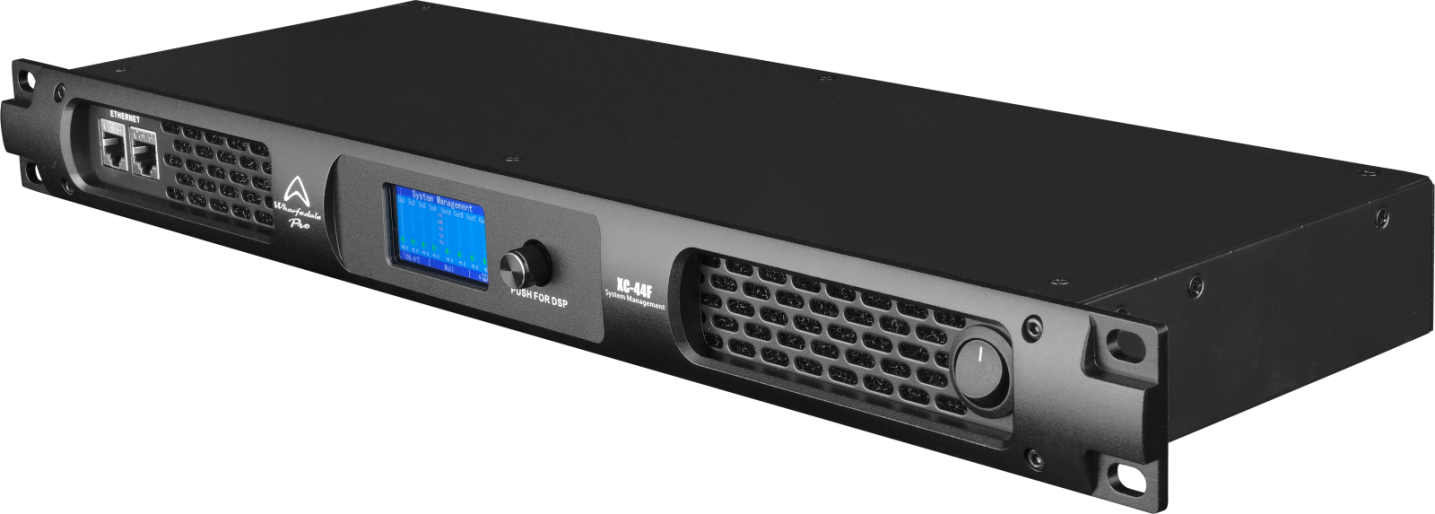

Wharfedale Pro XC44F Digital System Controller with 4-in/4-out DSP, AES/EBU Input
Wharfedale Pro XC44F Digital System Controller with 4-in/4-out DSP, AES/EBU Input
لا يمكن تحميل توافر التقاط
للاستفسارات بالجملة يرجى الاتصال بنا على واتساب
هذا هو موقعنا للبيع بالجملة، ولشراء التجزئة يرجى زيارة موقعنا للبيع بالتجزئة MusicMajlis.co
KEY FEATURES
- 4 in – 4 out DSP control
- Compatibility with DP-F and DP-N amplifier platforms
- Comprehensive FIR preset library
- AES / EBU digital inputs with Link outs.
- Locking XLR input connectors
DESCRIPTION
The XC Series System Management controllers harvest the DSP engine capabilities of our successful DP-F and DP-N amplifiers to deliver both protection and enhanced definition to any system.
Equipped with an extensive loudspeaker preset library, FIR filters and advanced dynamics protection, the XC Series simply improves performance across all applications.
These 4 in – 4 out controllers are available with two interface options. XC-44F with Ethernet and XC-44N with Dante ™ connectivity. Both models are controlled with the Wharfedale Pro DSP Controller software where FIR presets for almost every Wharfedale Pro loudspeaker are available for free download. Both XC Series models feature AES / EBU input and analogue link outputs on Ch 1 and Ch 2.
The Wharfedale Pro ecosystem now allows for users to migrate between DP-F and DP-N amplification platforms to and from the XC platform. Familiar user interfaces and compatible file formats make life easy.
SPECIFICATIONS
| Input / output | 4 x 4 |
| Input type | Analog, AES/EBU, Ethernet |
| Input impedance | 20 kΩ（Balanced，10 kΩ（Unbalanced) |
| Output impedance | 600 Ω |
| Max input level | +20 dBu |
| Max output level | +20 dBu |
| THD+N | <0.02% (1 KHz,0 dB) |
| Frequency response | typical: +0, -1 dB (0 dB, 20 Hz-20 KHz) |
| Cross-talk | <-95 dB（1KHz） |
| SNR | >105 dB（A weighted） |
| Delay | <1.8 ms（Analog input/output，48 KHz） |
| Main power | 100-240 VAC ±10%, 50/60 Hz |
