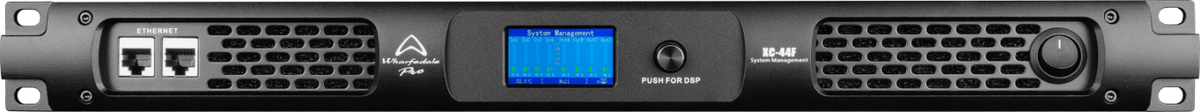

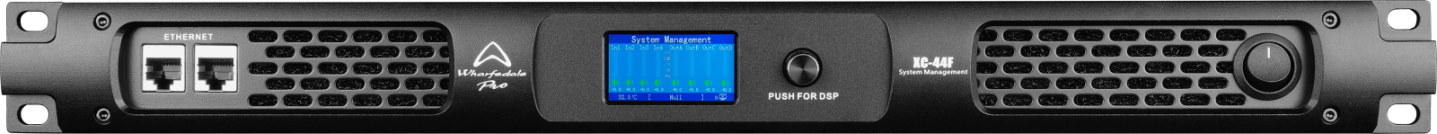

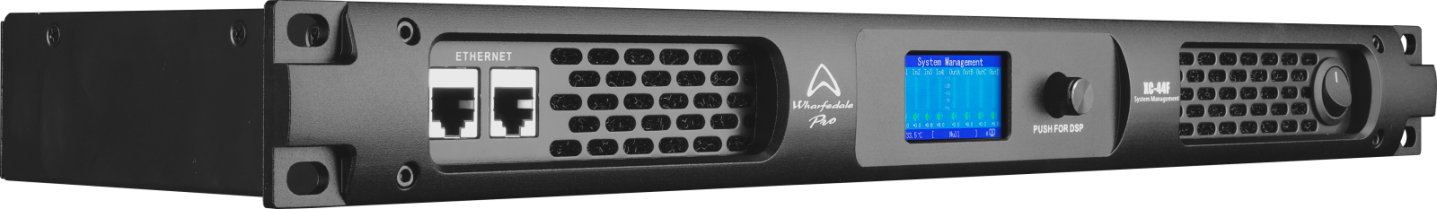

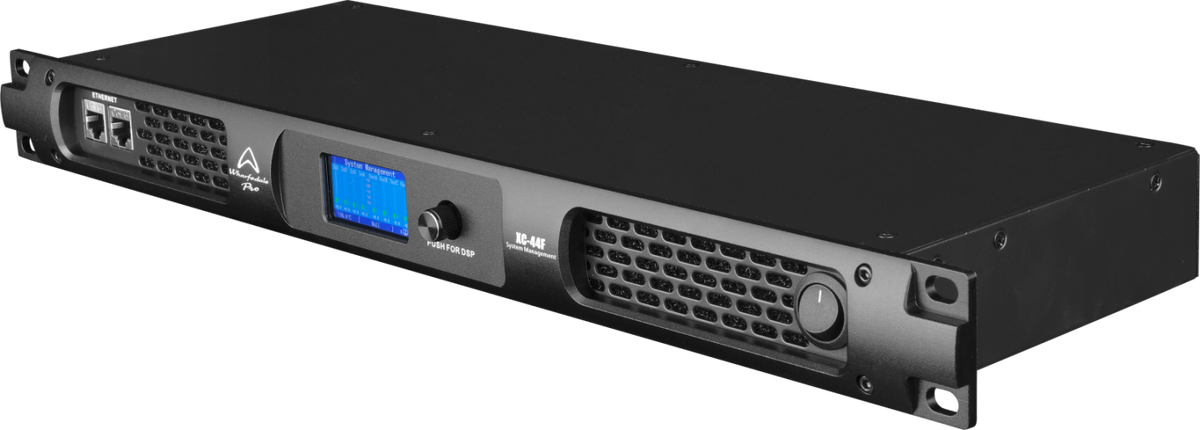

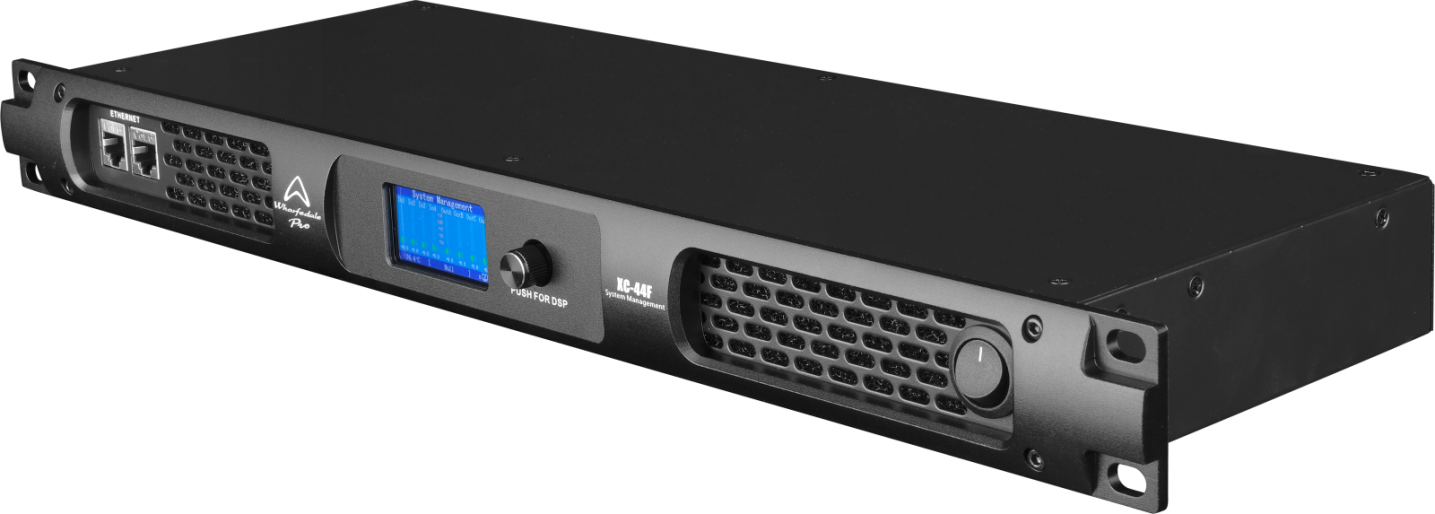

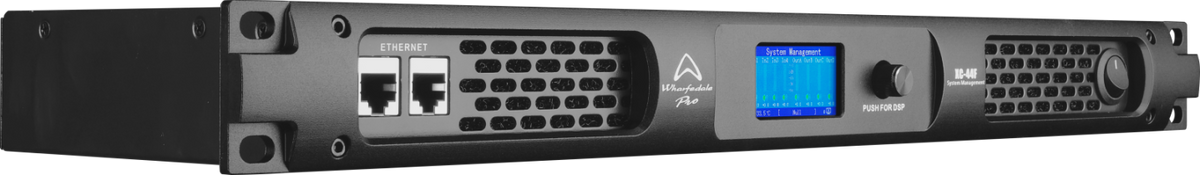

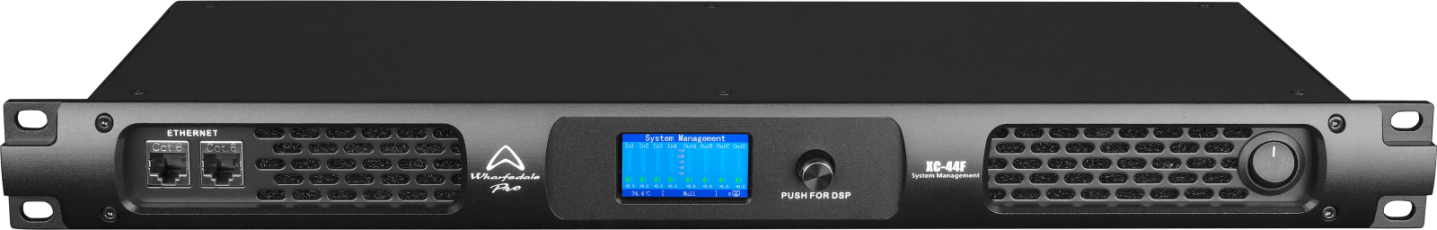

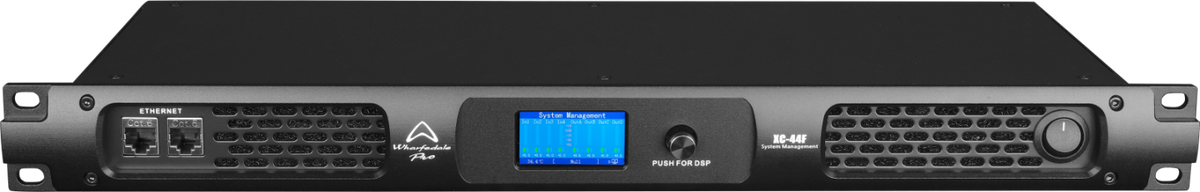

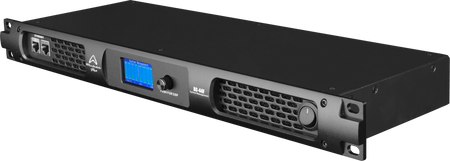

Wharfedale Pro XC44F Digital System Controller with 4-in/4-out DSP, AES/EBU Input

SKU: XC44F

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    KEY FEATURES

    • 4 in – 4 out DSP control
    • Compatibility with DP-F and DP-N amplifier platforms
    • Comprehensive FIR preset library
    • AES / EBU digital inputs with Link outs.
    • Locking XLR input connectors



    DESCRIPTION

    The XC Series System Management controllers harvest the DSP engine capabilities of our successful DP-F and DP-N amplifiers to deliver both protection and enhanced definition to any system.



    Equipped with an extensive loudspeaker preset library, FIR filters and advanced dynamics protection, the XC Series simply improves performance across all applications.

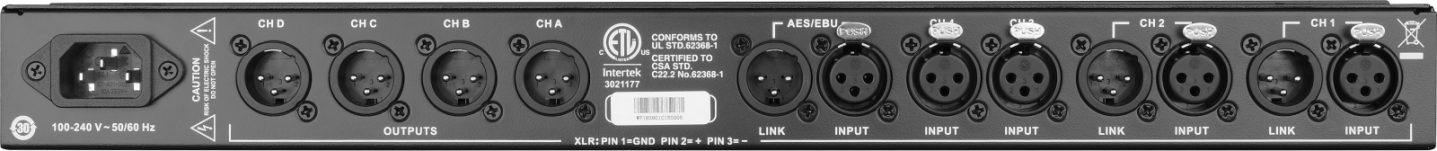

    These 4 in – 4 out controllers are available with two interface options. XC-44F with Ethernet and XC-44N with Dante ™ connectivity. Both models are controlled with the Wharfedale Pro DSP Controller software where FIR presets for almost every Wharfedale Pro loudspeaker are available for free download. Both XC Series models feature AES / EBU input and analogue link outputs on Ch 1 and Ch 2.

    The Wharfedale Pro ecosystem now allows for users to migrate between DP-F and DP-N amplification platforms to and from the XC platform. Familiar user interfaces and compatible file formats make life easy.



    SPECIFICATIONS

    Input / output 4 x 4
    Input type Analog, AES/EBU, Ethernet
    Input impedance 20 kΩ（Balanced，10 kΩ（Unbalanced)
    Output impedance 600 Ω
    Max input level +20 dBu
    Max output level +20 dBu
    THD+N <0.02% (1 KHz,0 dB)
    Frequency response typical: +0, -1 dB (0 dB, 20 Hz-20 KHz)
    Cross-talk <-95 dB（1KHz）
    SNR >105 dB（A weighted）
    Delay <1.8 ms（Analog input/output，48 KHz）
    Main power 100-240 VAC ±10%, 50/60 Hz
