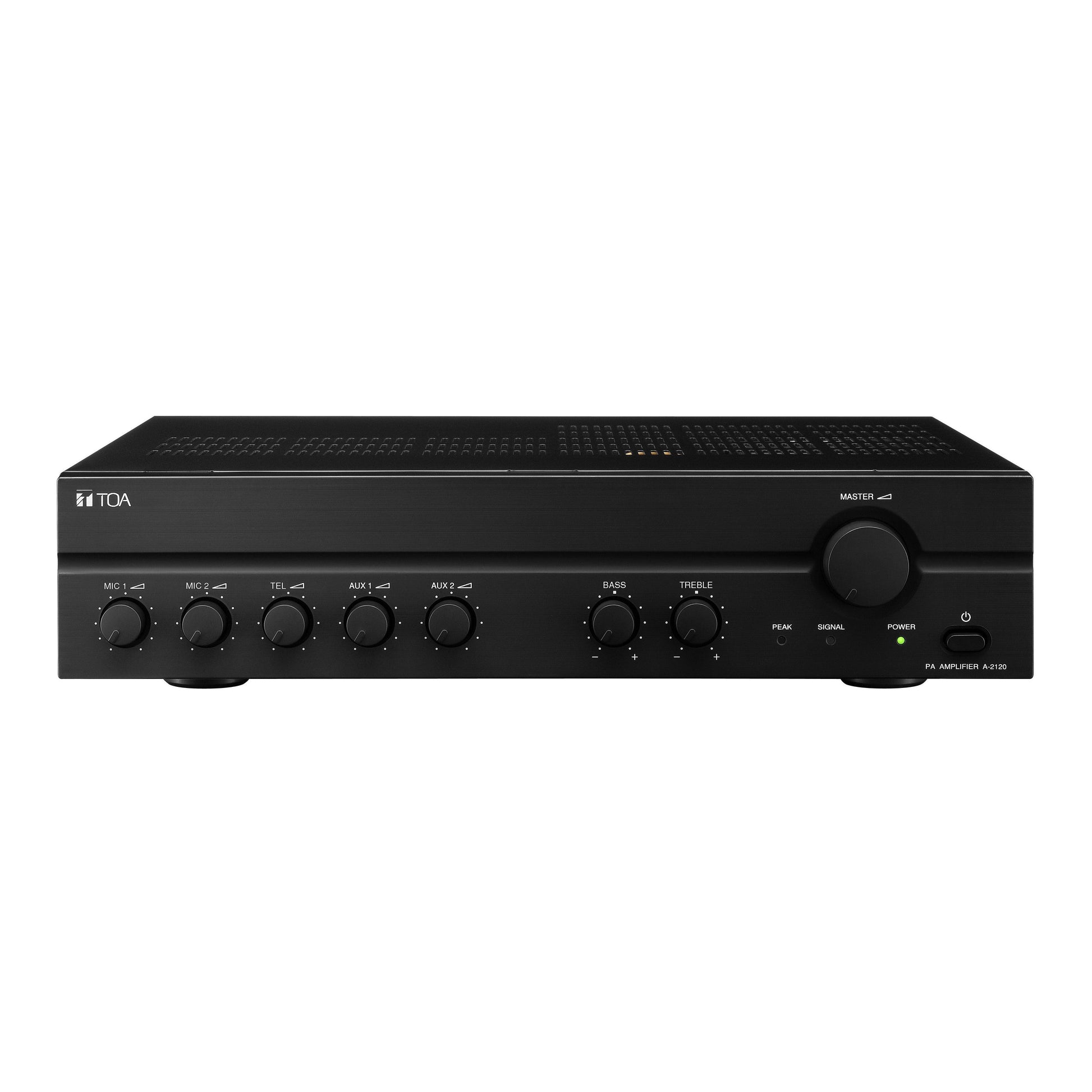

TOA A2240CEGB Mixer Power Amplifier
TOA A2240CEGB Mixer Power Amplifier
This is our wholesale website, for retail purcahses please visit our retail website MusicMajlis.co
Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on WhatsApp, Call Us or Email Us.
Note: This equipment is part of a system. We recommend consulting with our team for system design and to accurately specify the complete solution.
KEY FEATURES
High cost-performance- Suitable for commercial audio systems in schools, offices, restaurants, shops, factories, houses of worship, and large meeting rooms
- Engineered for high performance with wide frequency response, low noise and distortion, and excellent output regulation
- Equipped with a balanced mic. inputs for better isolation from external noise, compared to unbalanced inputs
- A wide range of power outputs from 60W to 240W
- Offers a comfortable acoustic space thanks to tone control at bass and treble
- Phantom power can be provided to MIC 1, for supplying power to a condenser microphone
- Equipped with Auto-mute function which allows voice-activated paging by
- Microphone and Telephone paging inputs which override the Auxiliary inputs
- Scratch- and fingerprint-resistant front panel
- Easy and quick volume control with the master volume knob
DESCRIPTION

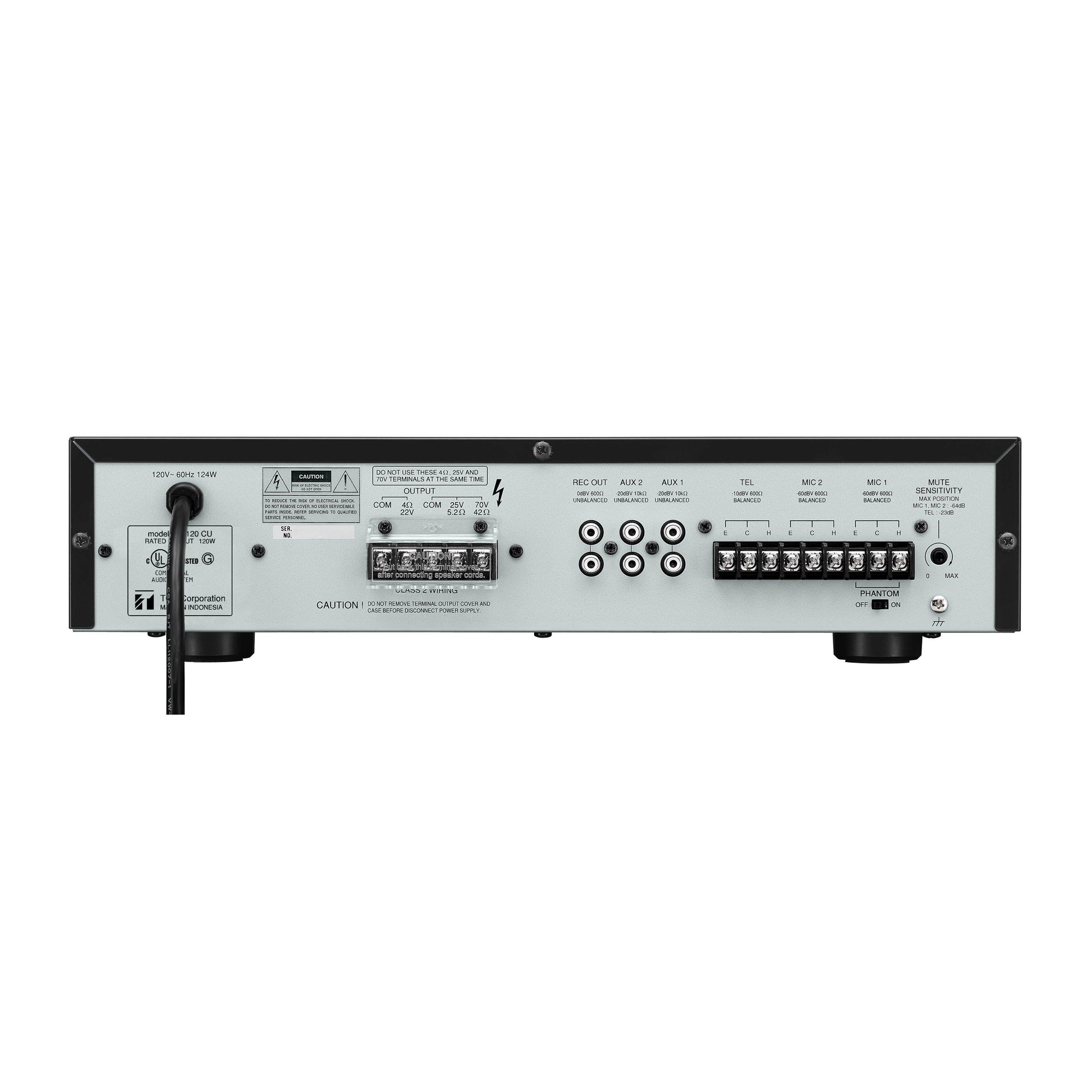

TOA A-2240 MIXER/POWER AMPLIFIER offers versatile features and outstanding value for installed sound applications such as schools, offices, restaurants, shops, factories, houses of worship, and large meeting rooms. The A-2240 (240 W) is manufactured with proven TOA quality and reliability. Features include five inputs and two auxiliary (stereo-summing) line inputs. two balanced microphone inputs and one telephone input. Mic 1 input provides 21V DC phantom power (switchable ON/OFF). Speaker outputs consist of 70.7 V, 25 V, and 4 ohms. Auxiliary line output can be used for recording or connection to an external power amplifier.
SPECIFICATIONS
Power Source |
120V AC, 60Hz |
Rated Output | 240W |
Power Consumption | 238W (EN60065), 520W (AC operation at rated output) |
Frequency Response | 50 – 20,000Hz (±3dB) |
Distortion | Under 1% at 1kHz, 1/3 rated power |
S/N Ratio | Over 60dB |
