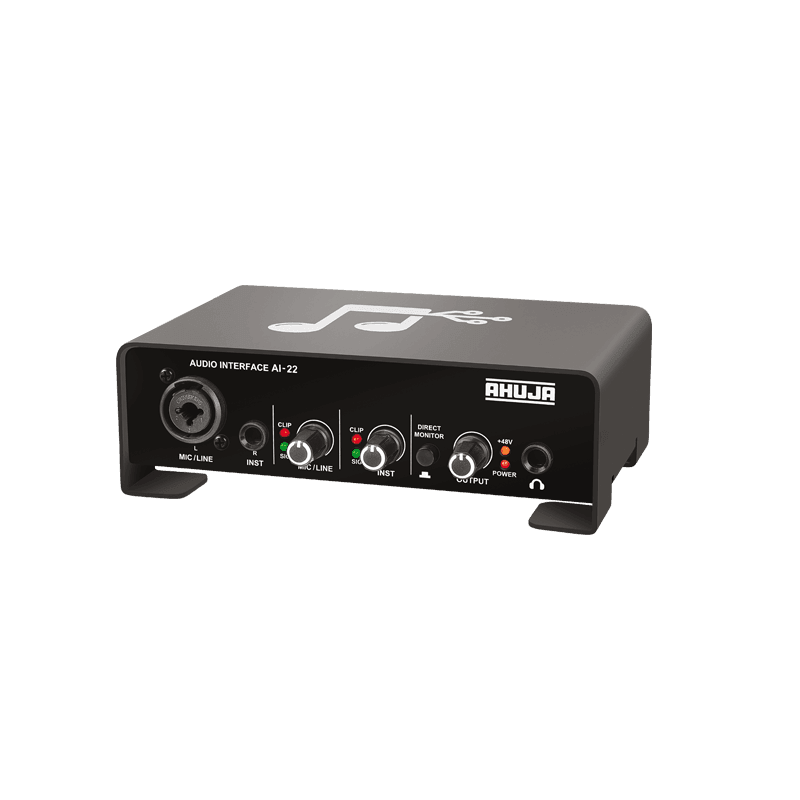

Ahuja AI202 PA Effect Processor 2 x 2 USB Audio Interface
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- Studio Quality(16Bit/48kHz) Digital Recording.
- Features two inputs (Mic/Line & Instrument Level) and two outputs.
- Extreme low-Latency digital streaming.
- Switchable Phantom power.
- Supports Windows/Android & Mac iOS.
- Compatible with popular DAW softwares.
- USB 2.0 Bus-powered.
- Compact durable Aluminum body.
SPECIFICATIONS
MICROPHONE INPUT / LINE INPUT
.
Type
Combo XLR Female X2/ 2 x 6.3mm TRS, Balanced
Input Impedance (Balanced)
2.2kΩ/ 18kΩ
THD+N (1kHz @ +0dBu Output)
<0.5%
S/N Ratio (1kHz @ +0dBu Output)
>55dB
Input Level (0dBu Gain, 1kHz)
3mV ±1mV / 45mV ± 2mV
Phantom Power
+48 VDC at both XLR Female only
INSTRUMENT INPUT
.
Type
2 x 6.3mm TRS, Balanced
Input Impedance
1MΩ
Input Level (0dBu Gain, 1kHz)
3.50mV ± 1mV
Frequency Response
20-20,000Hz
Pad ON
-18dB
OUTPUT L & R
.
Type
2 x 6.3mm Female, Unbalanced
Maximum Output ±20mV
550mV
HEADPHONE OUTPUT
.
Type
6.3mm Active Stereo
Maximum Output ±20mV
300mV/ch. @ 8Ω Load
DIGITAL AUDIO
.
Bit Depth
16 bit
Internal Sample Frequency Selections
44.1, 48 kHz
Power
USB Bus Powered
Dimensions
W175 × H58 × D123 mm
Weight
615g
