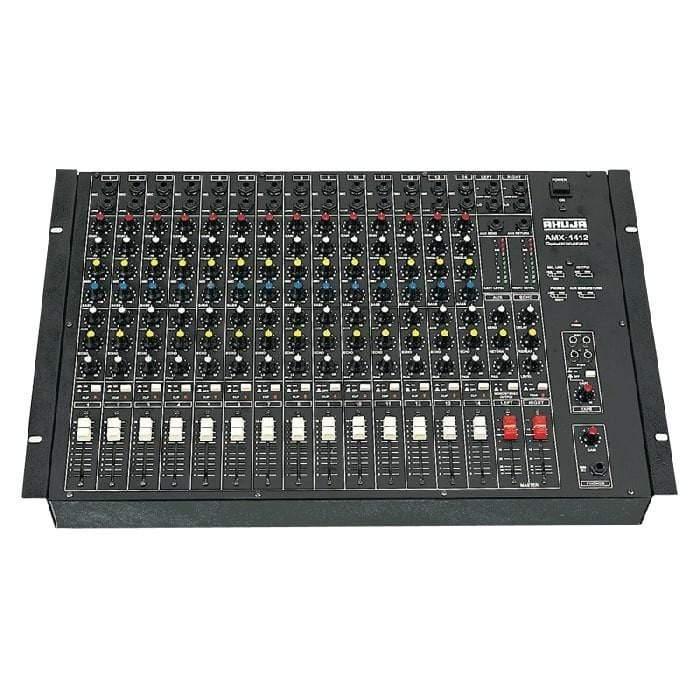

Ahuja AMX1412 14 CH Audio Mixer
Ahuja AMX1412 14 CH Audio Mixer
Ahuja
Authorised Distributor

Ahuja AMX1412 14 CH Audio Mixer

SKU: AMX1412
1,680.00 AED

List price. Trade accounts get better pricing: ask us for a B2B quote. Contact us

Out of stock
Available on request
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    • Input Channels: Each channel has a separate 1/4” balanced phone jack for Mic and Line & accepts both balanced & unbalanced signals.
    • AUX Control: This controls the level of the channel in the final mix to Aux Send output.
    • AUX Send & AUX Return: These have been provided for sending the pre-fader output of channels for monitoring or for adding a Special Effects Unit.
    • MONO/STEREO Output: Mono output is available from either Left & Right output jacks when the switch is in ‘Mono’ position.
    • Each channel has GAIN, BASS, MID, TREBLE, ECHO, PAN, and slide LEVEL controls with the CLIP LED indicator.
    • Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
    Weight 9.4kg
    Dimensions W633‚ H93‚ D420mm
    Distortion 0.08%
    Frequency Response 30Hz - 20kHz (+0, -1dB)
    Outputs Line Output HI 0dBm/+17dBm (775mV/5.5V)
    Power Requirements AC: 220-240V 50/60Hz DC: 24v (2 - 12V Car Battery)
    Reverbs Digital Signal Processing
    Signal-to-Noise Ratio 70dB (0dBm, 0.775V)
