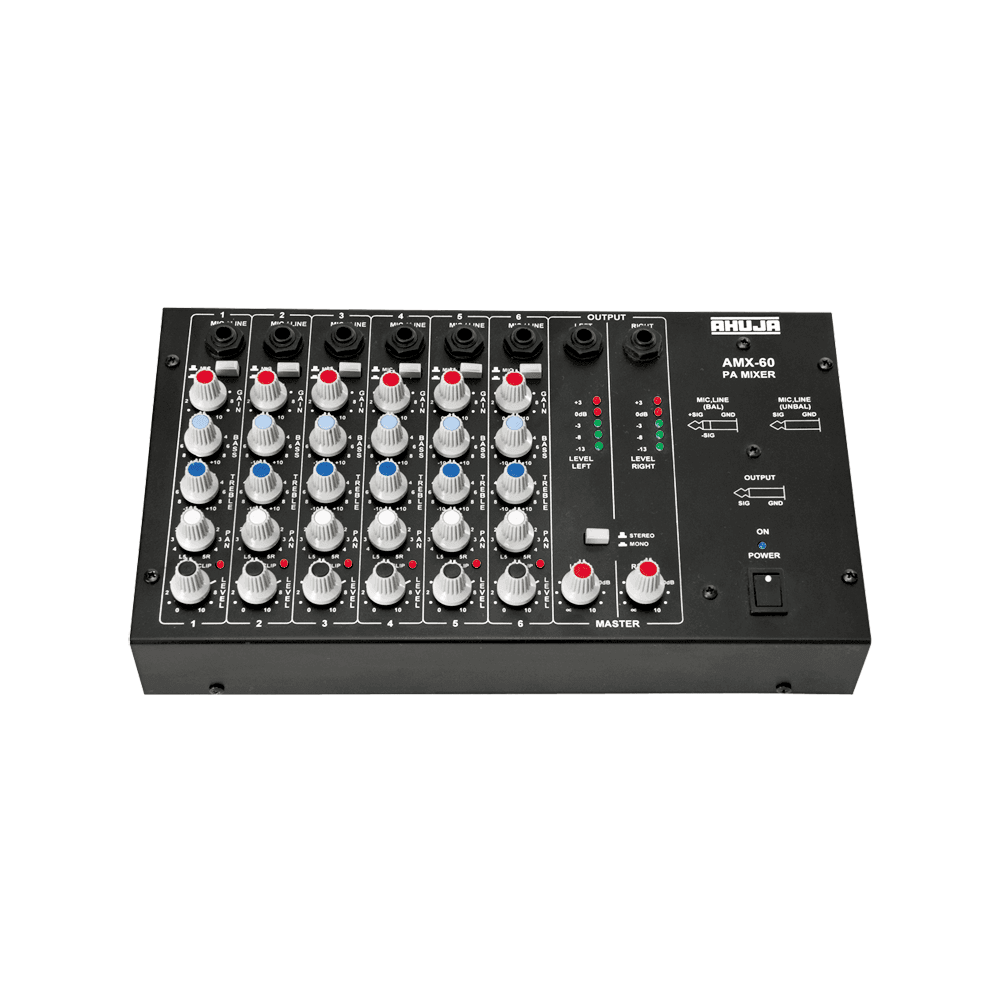

Ahuja AMX60 General Purpose 6 Channel PA Mixer Preamplifier
Ahuja AMX60 General Purpose 6 Channel PA Mixer Preamplifier
Ahuja
Authorised Distributor

Ahuja AMX60 General Purpose 6 Channel PA Mixer Preamplifier

SKU: AMX60

Log in to view price Trade pricing — AED / USD

Out of stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    General Purpose 6 Channel PA Mixer Preamplifier
    Input Channels: Each Channel has a 1/4” balanced phone jack for Mic/Line & accepts both balanced & unbalanced signals.
    MONO/STEREO Output: Mono output is available from either Left or Right output jacks when the switch is in ‘Mono’ position.
    Each channel has Gain, Bass, Treble, PAN and Level controls with Clip LED indicator.
    Individual five-segment LED array for left and right outputs.

    Tech Specs

    Power Requirements AC: 220-240v 50/60Hz
    MIC Input (Impedance/Gain) 2kΩ Balanced/62dB, 1kΩ Unbalanced/62dB
    LINE Input (Impedance/Gain) 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB
    Distortion < 0.1%
    Frequency Response 20Hz-18 kHz (-1dB)
    Tone Controls Bass: ± 12dB at 100Hz, Treble: ± 12dB at 10kHz
    Line Output (RATED/MAX) 0dBm/+18dBm (775mV/6.5V)
    Signal to Noise Ratio > 68dB
    Dimensions W295 X H70 X D180mm
    Weight 2.4Kg
