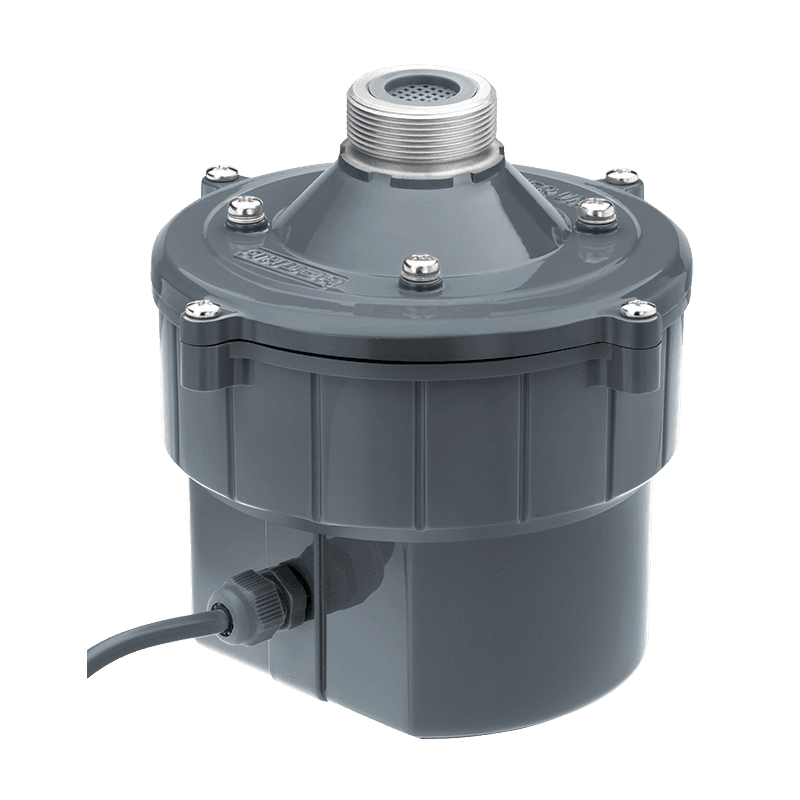

Ahuja - AU50XT Driver Unit w/ Transformer
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
AU-50®XT
50W / 100V- Weatherproof and rugged construction.
- High SPL, crisp penetrating sound.
- Voice coils precision-wound on an aluminium bobbin for efficient heat dissipation.
- Models AU-50XT have a built-in 100V transformer with easily selectable power taps/impedance by changing the position of the rotary switch at the rear.
- Degree of protection IP 66 provided, when mounted on a reflex horn, against foreign particles such as dust and jets of water thus making them ideal for outdoor use. Meets EN 60529.
Specification
Input Power
50W RMS/70W Max.
Impedance/Power Taps
On 100V Line 200Ω/50W, 250Ω/40W 500Ω/20W, 1kΩ/10W 2kΩ/5W
Frequency Response
160-7,000Hz
SPL at 1kHz
113dB/1W/1m, 130dB/50W/1m
Temperature Range
-30°to + 70°C
Throat Coupling
1-3/8” - 18TPI, Throat Couple No.1
Dimensions
ø150 x H143 mm
Weight
2.47kg
Material
Die-cast Aluminium Acoustic Head (Flange)
