Home / Ahuja BTA-660M 40 WATTS PA Amplifier Sets
Ahuja
Authorised Distributor

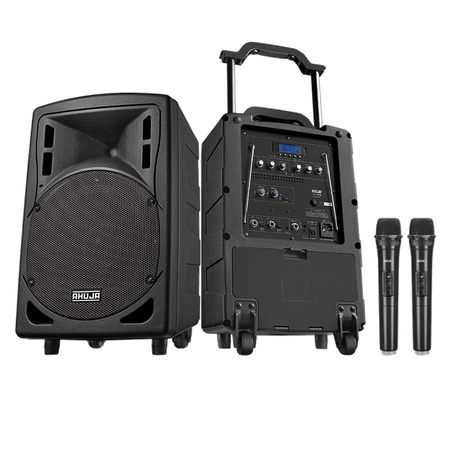

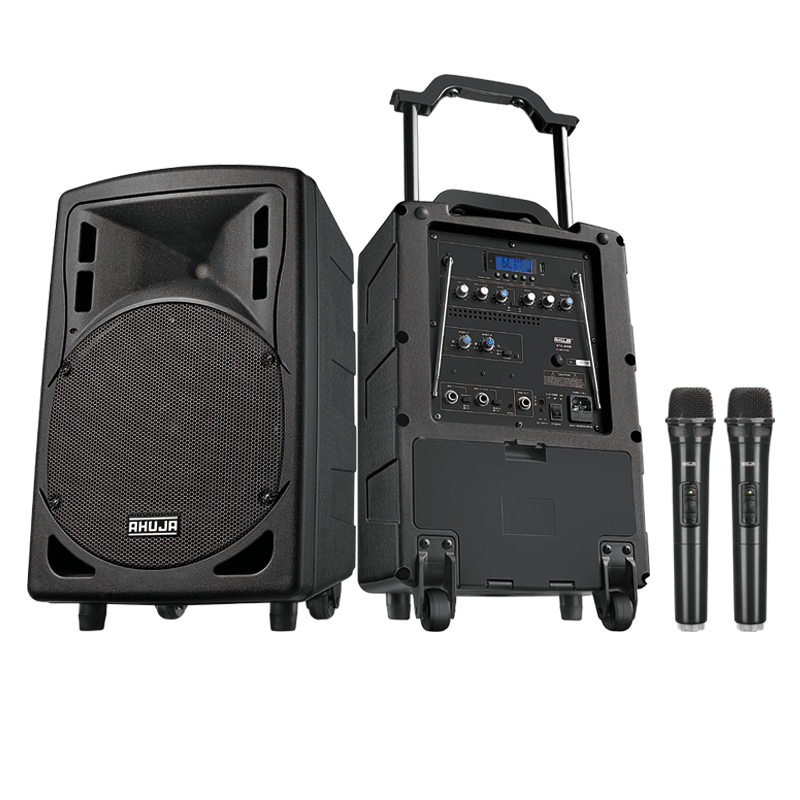

Ahuja BTA-660M 40 WATTS PA Amplifier Sets

SKU: BTA660M

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    KEY FEATURES

    • Elegant and stylish looking plastic moulded cabinet PA Amplifier Set with Trolley System.
    • Two Mic inputs, Two Wireless Mics, one Aux input & one Music input. Mic1 has selectable priority over all other inputs.
    • Built-in 203 mm (10”) 4Ω speaker & 8Ω HF driver.
    • Built-in MP3 Player with Bluetooth, Recorder, SD Card and Remote Control. Built-in Digital Echo effects.
    • Tone control for setting the desire tonal quality.
    • LED indications for low battery, charging & clip output. Auto cut-off feature prevents battery deep discharge.
    • Operates on AC mains, external 12V DC or built-in 12V 7Ah rechargeable battery.



    SPECIFICATIONS

    Category Specification
    Audio Output (BI-AMP) 40W Max (LF: 25W Max / HF: 15W Max)
    Input Channels 2 × Mic (4 mV / 4.7 kΩ), 1 × Aux (100 mV / 47 kΩ), Music (100 mV / 47 kΩ), 2 × Wireless MIC
    Preamp Output 200 mV / 600 Ω
    Tone Controls Bass ±5 dB at 100 Hz, Treble ±5 dB at 10 kHz
    Digital Player MP3 with USB, SD, MMC card reader, recording, Bluetooth
    Power Requirements AC: 220V–240V, 50/60 Hz; DC: 12V external or built-in 12V 7Ah battery
    Power Consumption 50 VA
    Protection AC Fuse: 1A, 250V (T 1A L)
    Wireless Receiving Mode Quartz Controlled Fixed Frequency
    Wireless Range Over 20 m (Line of Sight)
    Dimensions (W × H × D) 325 × 550 × 280 mm
    Weight 14.30 kg

    Transmitter Specifications

    Category Specification
    RF Output Power 10 mW (Max.)
    Max. Modulation 45 dB
    Frequency Response 50 Hz – 15,000 Hz
    Battery 3V (2 × 1.5V AA batteries)
    Dimensions (Ø × L) Ø52 × 242 mm
    Weight 140 g (without battery)
