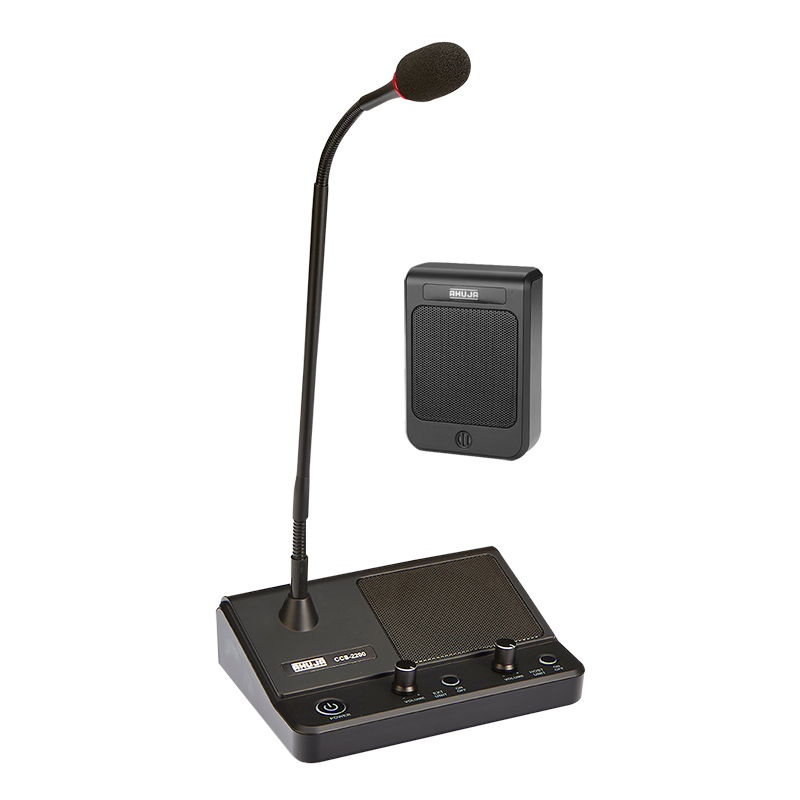

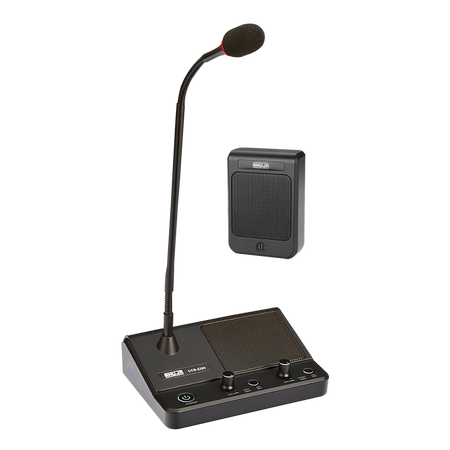

Ahuja CCS2200 Counter Communication System

SKU: CCS2200

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    KEY FEATURES

    • Unique design, pleasing aesthetics & rugged construction.
    • Duplex communication technology, ideal for ticket counters, enquiry counters, banks, embassies, hospitals etc. …. Wherever two way communication is required across a glass barrier. (Can also be used for one way communication).
    • Compact & elegant Attendant Unit with gooseneck microphone, in black colour finish, for flexible sound pickup angle.
    • Separate switches for switching the Host Unit mic, or the External Unit mic, ON or OFF.
    • Separate volume controls on the Host Unit for adjusting the audio output level of the Host Unit and the External Unit.
    • Host Unit mic has automatic voice priority over the External Unit mic. When attendant is speaking into the Host Unit mic, the mic of the External unit is automatically muted.
    • Exclusively designed lightweight plastic external unit, which can be easily mounted on any flat surface. Double sided fixing pad provided.
    • External unit houses a condenser mic cartridge and an efficient speaker for clear and intelligible sound outside the glass barrier.
    • Audio output for recording available through 3.5mm phone jack on the Host Unit. This is a stereo output having signals from both the Host Unit mic and the External Unit mic.
    • A 3.5mm phone jack is provided on the rear panel of the Host Unit for Line Input. This feature can be used to play back pre-recorded messages through the external unit speaker by connecting the Pre-amp output or Line Output of any Ahuja amplifier to the Line Input of the Host Unit.
    • The system is easy to install and simple to operate.
    • The Host Unit is a table top unit which operates on 12V DC, through an AC adapter supplied alongwith.



      SPECIFICATIONS

      Category Specification
      Output Power 2 × 5W (Max.) per amplifier
      Microphone Element Electret Condenser (both units)
      Frequency Response 100 Hz – 10 kHz
      Power Requirement AC: 220–240V, 50/60Hz
      Speaker Impedance 4 Ω (each speaker)
