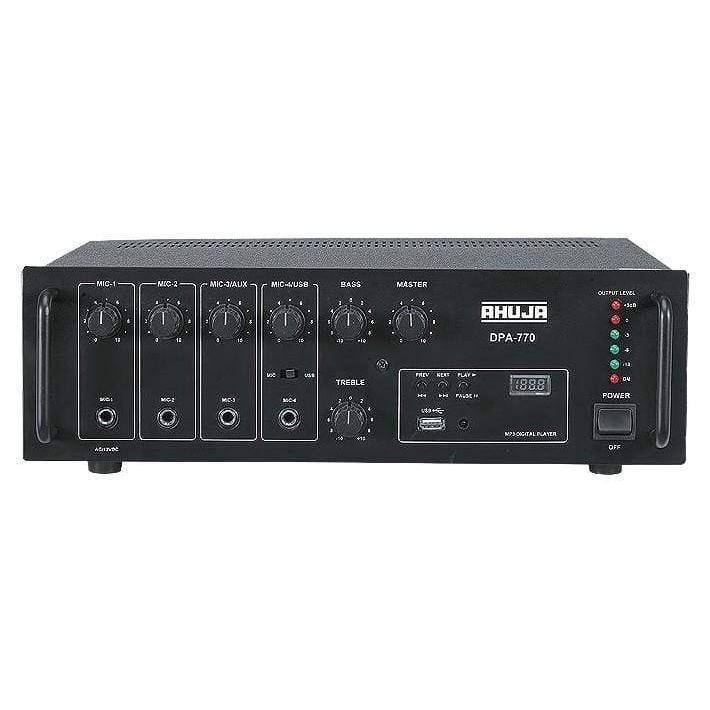

Ahuja DPA-770 PA Mixer Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
DPA-770
75 WATTS WITH BUILT-IN DIGITAL PLAYER
MEDIUM WATTAGE PA MIXER AMPLIFIER
- 4 Mic & 1 Aux Input.
- Built-in MP3 player with USB reader and remote control.
- Line Output for connecting to a Booster Amplifier.
- Active Bass & Treble controls.
- Instant transfer to DC Power (Car Battery) if AC power fails.
- 5 LED array for output level monitoring.
Power Output
100W Max., 75W RMS at 10% THD, 70W RMS at 5% THD
Output Regulation
≤ 2 dB, no load to full load at 1kHz
Input Channels
4 × Mic. 0.6mV/4.7kΩ, 1 × Aux 100mV/330kΩ
Frequency Response
50-15,000Hz ±3dB
Signal to Noise Ratio
55dB
Tone Controls
Bass: -10dB +7dB at 100Hz, Treble: -10dB +7dB at 10kHz
Outputs
Line: 1V/3.5kΩ
Speaker Outputs
4Ω, 8Ω, 16Ω & 100V
Digital Player
MP3 Player with USB Reader
Power Supply
AC: 220-240V 50/60Hz, DC: 12-14V Car Battery
Power Consumption
AC: 140VA DC: 3A
Dimensions
W385 × H130 × D310 mm
Weight
9.6kg
