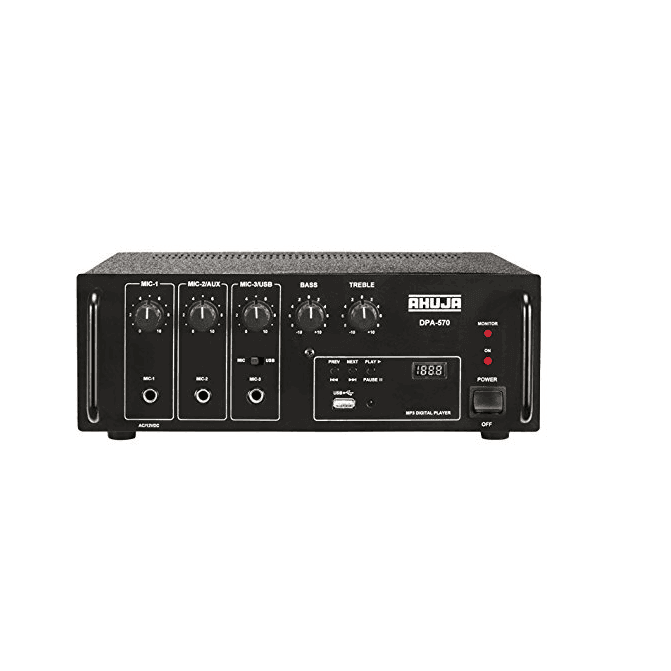

Ahuja DPA570 PA Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Note: This is a B2B Product
-Prices are indicative and discounts available based on quantities
-Design services available for these systems. Please contact our team for support on WhatsApp, Call Us or Email Us.
KEY FEATURES
- 3 Mic & 1 Aux Input.
- Built-in MP3 player with USB reader and remote control.
- Bluetooth facility.
- Line Output for connecting to a Booster Amplifier.
- Cut and Boost type Bass & Treble controls.
- Instant transfer to DC Power (Car Battery) if AC power fails.
SPECIFICATIONS
Power Output
75W Max., 50W RMS at 10% THD, 45W RMS at 5% THD
Output Regulation
≤ 2 dB, no load to full load at 1kHz
Input Channels
3 × Mic 0.6mV/4.7kΩ, 1×Aux 100mV/330kΩ
Frequency Response
50-15,000Hz ±3dB
Signal to Noise Ratio
55dB
Tone Controls
Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz, Line: 400mV/3.5kΩ
Speaker Outputs
4Ω, 8Ω, 16Ω & 100V
Digital Player
MP3 Player with USB, SD, MMC Card Reader & Bluetooth
Power Supply
AC: 220-240V 50/60Hz, DC: 12-14V Car Battery)
Power Consumption
AC: 90VA DC: 3.1A
Dimensions
W305 × H120 × D305 mm
Weight
6.20kg
- 3 Mic & 1 Aux Input.
