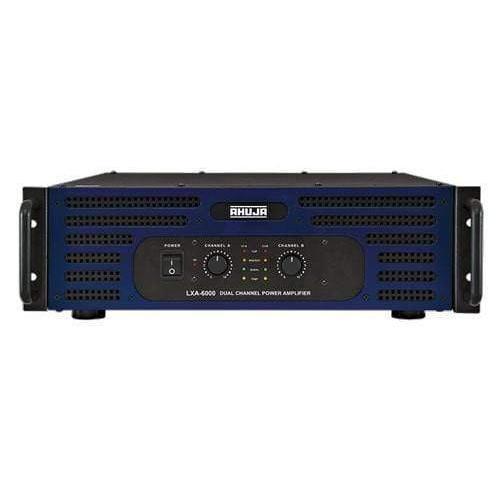

Ahuja LXA6000 Amplifier
Ahuja LXA6000 Amplifier
Couldn't load pickup availability
- Dual-channel direct coupled amplifier.
- 6000 watts rated output.
- Rugged and most reliable. A new benchmark for professionals requiring a sonically superior high power amplifier.
- 80Hz / 120Hz LPF.
- Built-in circuit for HF protection.
- Limiter ON/OFF.
- Two selectable input sensitivity.
- Class H operation for optimum efficiency.
|
Stereo/Mono |
8Ω : 1300W + 1300W RMS, 4Ω : 2000W + 2000W RMS, 2Ω : 3000W + 3000W RMS |
|
Bridged Output |
8Ω : 4000W RMS, 4Ω : 6000W RMS |
|
THD + N |
< 1.0% |
|
Frequency Response |
(-1dB) 20-20,000Hz |
|
Power Bandwidth |
(0.5% THD) 20-20,000Hz |
|
Input Sensitivity |
0dBu (775mV), 4dBu (1.23V) |
|
Input Impedance |
10k Unbalanced, 20k Balanced |
|
Signal to Noise Ratio |
> 95dB |
|
Channel Separation |
> 65dB at 1kHz |
|
Damping Factor |
400: 1 (8W ) |
|
Slew Rate |
35V/µs |
|
Protections |
Temperature, DC, RFI, Short Circuit, Overload, Built-in Limiter (ON/OFF) AC: Circuit Protector 25A; ± DC: Fuse 2 x 30Amp. (T 30A L) for each zone Fuse 2×3 Amp. (T 3A L) |
|
Input Connectors |
2 × XLR, Stereo Phone Jack 6.3mm |
|
Output Connectors |
Speakon 4-Way and heavy-duty Binding Post for each channel |
|
Cooling |
Variable Speed DC Fan with Temperature Sensing |
|
Front Panel Controls |
2 × 41 Step Level Attenuators |
|
Indicators |
Power ON, Signal, Clip, Temperature, Protect (Ch. A & B) |
|
Power Consumption (Rated) |
7200VA @ 220-240V ~ 50/60Hz |
|
Dimensions |
W482 × H153 × D605mm |
|
Weight |
39.00kg |
