Home / Ahuja MX15 PA Audio Mixer 12 Mic & 3 Aux Inputs

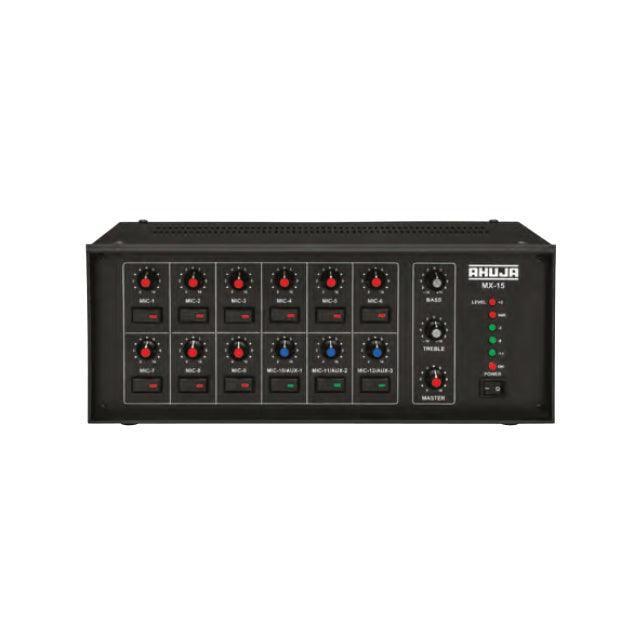

Ahuja MX15 PA Audio Mixer 12 Mic & 3 Aux Inputs
Ahuja MX15 PA Audio Mixer 12 Mic & 3 Aux Inputs
Ahuja
Authorised Distributor

Ahuja MX15 PA Audio Mixer 12 Mic & 3 Aux Inputs

SKU: MX15

Log in to view price Trade pricing — AED / USD

Only 3 left
Low inventory - Hurry up!
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    KEY FEATURES

    • General Purpose 12 Channel PA Mixer Preamplifier
    • 12 Mic & 3 Aux Inputs.
    • All inputs with On/Off switches with LED display.
    • Master control for overall adjustment.
    • 4 Line outputs for connecting a number of Amplifiers or Boosters.
    • Headphone output for monitoring.
    • Active Bass and Treble tone controls.



    SPECIFICATIONS

    Power Requirement

    AC: 220-240v 50/60Hz, DC: 12V (1×12V Car Battery)

    Outputs

    2 × Preamp 200mV/600Ω, 4 × Line 1V/1kΩ, 1 × Headphone 120mV@ 8Ω

    Frequency Response

    20-20,000Hz (±3dB)

    Distortion

    < 1%

    Signal to Noise Ratio

    50dB

    Input Channels

    12 × Mic 0.6mV/4.7kΩ, 2 × Aux 100mV/470kΩ, 1 × Aux 500mV/100kΩ

    Tone Controls

    Bass: ± 10dB at 100Hz, Treble: ± 10dB at 10kHz

    Dimensions

    W350 × H145 × D200 mm

    Weight

    3.9kg
