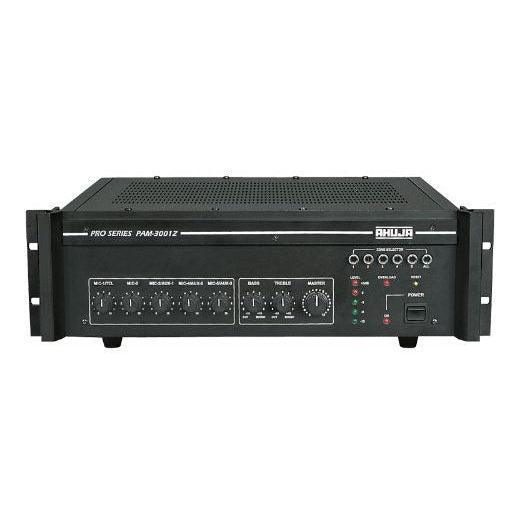

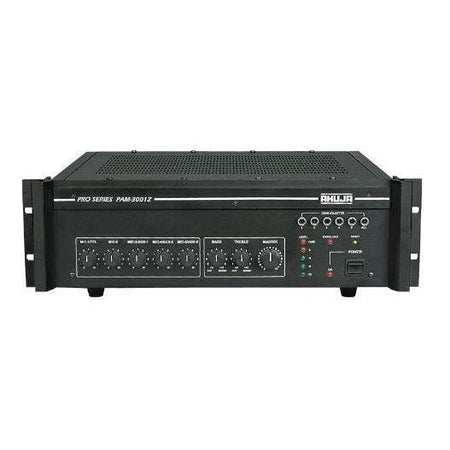

Ahuja PAM3001Z PA Amplifier

Note: This is a B2B Product

-Prices are indicative and discounts available based on quantities

-Design services available for these systems. Please contact our team for support on WhatsApp, Call Us or Email Us.

KEY FEATURES

• 5 Mic, 3 Aux & 1 Telephone Inputs.

• Features and specifications are similar to PAM-3001.

• PAM-3001Z has the additional feature of distributing the total load of 100V line amongst 5 speaker zones, allowing the output to designated areas. The zones are selectable through a zone selector push-button switch on the front panel.

• Ideal for use in commercial establishments where the building may be sectioned into different areas such as offices, warehouses, etc.

• 19” Rack mountable.

SPECIFICATIONS

• Power Output : 415W Max., 325W RMS at 10% THD, 300W RMS at 5% THD, 275W RMS at 2% THD
• Output Regulation : ≤ 2 dB, no load to full load at 1kHz
• Input Channels : 3 × Mic 0.65mV/4.7kΩ, 2 × Mic 1.0mV/2kΩ, 1 × Line 1V/50kΩ, 2 × Aux 100mV/470kΩ, 1 × Aux 250mV/470kΩ, 1 × Telephone 150mV/10kΩ
• Frequency Response : 50-15,000Hz ±3dB
• Signal to Noise Ratio : 60dB
• Tone Controls : Bass- ±10dB at 100Hz; Treble- ±10dB at 10kHz
• Outputs : Preamp 200mV/600Ω, Line 1V/1kΩ, Monitor 5V/8Ω
• Speaker Outputs : 4Ω, 8Ω, 70V & 100V
• Zone Selection : 5 + All Zone
• Power Supply : AC- 220-240V 50/60Hz; DC- 24V (2×12V Car Battery)
• Power Consumption : AC- 600VA; DC- 7A
• Dimensions : W482 × H133 × D390 mm
• Weight : 19.8kg
