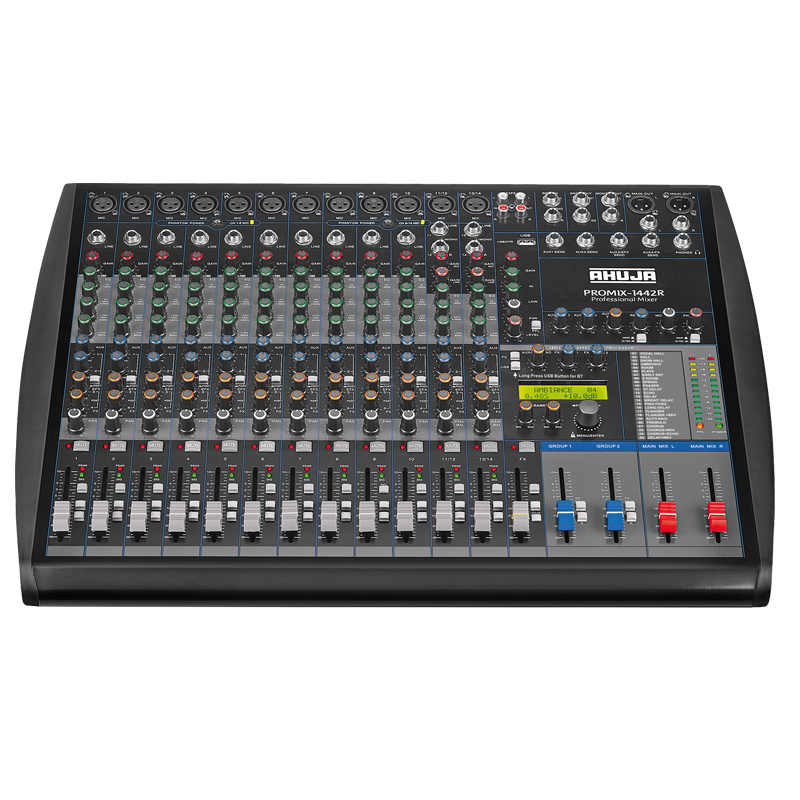

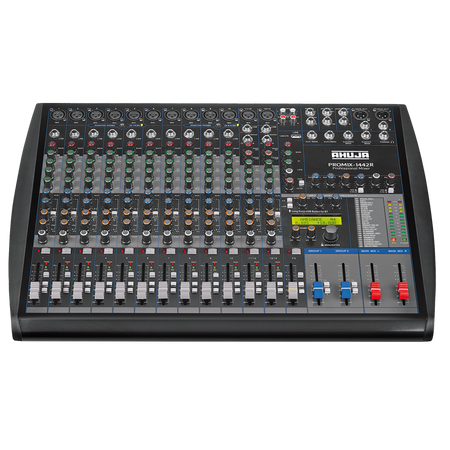

Ahuja PROMIX-1442R With Built-in MP3 Recorder, 24 Digital Effects, 2 Group Outputs, 48V Phantom Supply on all Channels AC Operation

SKU: PROMIX1442R

Log in to view price Trade pricing — AED / USD

In stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    KEY FEATURES

      • Professional mixer with user-friendly construction & aesthetically designed side panels.
      • 12 MIC and 10 LINE Balanced Mono inputs with enhanced headroom. 2 STEREO Balanced inputs.
      • Built-in MP3 recorder with USB playback and Bluetooth facility.
      • Digital multi EFFECTS processor with 24 built-in effects.
      • LCD display for viewing the effects/USB settings.
      • All MIC inputs are through 3 pin F/XLR connectors.
      • All LINE & STEREO inputs are through 6.3mm (1/4”) stereo phone jack sockets.
      • All MIC inputs are available with 48V phantom supply which can be switched ON/OFF.
      • Each input channel has a GAIN control, 4 band active EQ controls, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
      • The STEREO channel has a GAIN control, 3 band active EQ control, AUX1, AUX2, AUX3/EFX, AUX4/FX and PAN control.
      • Pre/Post selector switch for AUX1 and AUX2 in each channel.
      • Channel MUTE switch provided on each individual channel.
      • Peak LED for signal clipping indication. Signal LED for input signal indication.
      • Balanced Left & Right MAIN Mix outputs through M/XLR connectors as well as 6.3mm (1/4”) stereo phone jack sockets.
      • Stereo Tape Playback Input through L&R RCA sockets.
      • Stereo Tape Output through L&R RCA sockets.
      • Two group outputs through 6.3mm (1/4”) phone jack sockets and individual group faders.
      • Monitor outputs through 6.3mm (1/4”) phone jack sockets and individual control.
      • Easy and accurate monitoring of Left & Right output levels through individual 12 segment LED array.
      • L&R AUX RETURN inputs with level control. PFL switch on each channel.
      • Headphone output with Level Control for output monitoring.
      • Operates on 240V 50Hz AC mains.



      SPECIFICATIONS

      Category Specification
      MIC Input Impedance / Gain 2 kΩ Balanced / 65 dB
      LINE Input Impedance / Gain 20 kΩ Balanced / 45 dB
      STEREO Input (L/Mono & R)
      Impedance / Gain 10 kΩ Balanced / 20 dB
      THD < 0.08%
      Frequency Response 25 Hz – 20 kHz (+0, -1 dB)
      Equalization ±12 dB at 12 kHz / 2.5 kHz / 400 Hz / 80 Hz
      Clip LED Indication 4 dB prior to true clip
      Line Output Nominal / Max Level 4 dBu / 21 dBu (1.22 V / 9 V)
      Line Output Impedance 600 Ω
      Digital Effects 24 Effects Digital Processor
      Digital Player MP3 Player with Recording & Bluetooth Functions
      Headphone Output 200 mV at 8 Ω, THD < 1%
      Maximum Gain
      Mic Input to Line Outputs 90 dB
      Line Input to Line Outputs 70 dB
      Stereo Input to Line Outputs 20 dB
      AUX Send (Pre) Unbalanced 5 V
      AUX Send (Post) Unbalanced 9 V
      AUX Return (L&R) Balanced 600 mV
      Group Outputs 3 V
      Monitor Outputs 1 V
      Tape Output (L&R) 775 mV
      Tape Input (L&R) 100 mV
      Signal to Noise Ratio > 80 dB
      Power Supply AC: 220–240 V, 50/60 Hz
      Dimensions (W × H × D) 560 × 111 × 410 mm
      Weight 6.70 kg
