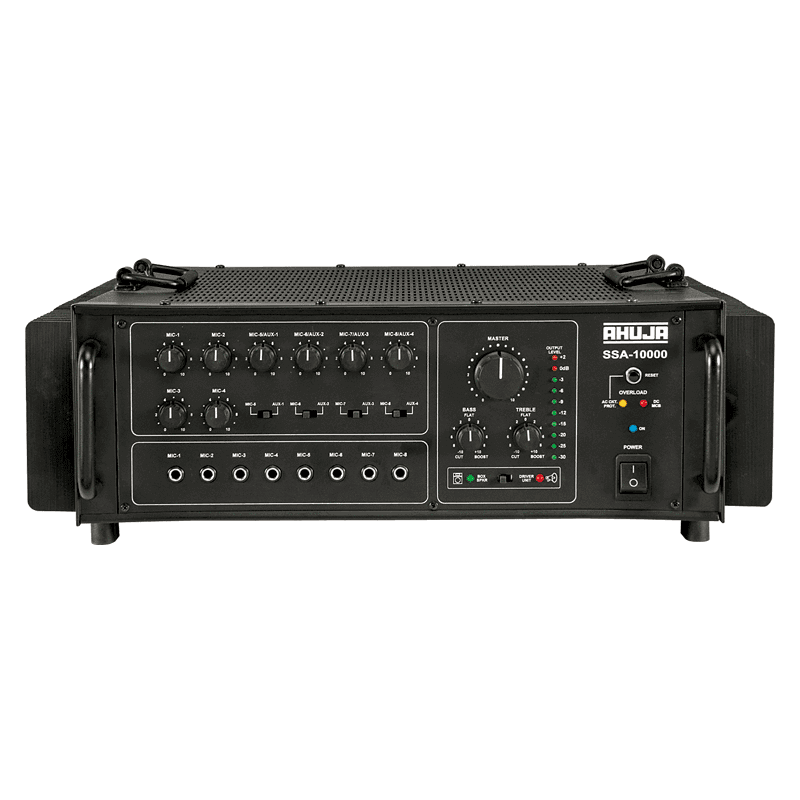

Ahuja SSA-10000 Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
PA Amplifier 1000W RMS w/ 8-Microphone 4-Aux Input and Impedance/voltage Output
1000 WATTSHigh Wattage PA Mixer Amplifier
- Ahuja SSA-10000 is highly reliable 1000 watts PA Amplifier. This is designed to give high power clean sound and trouble free operation under extreme climatic conditions.
- 8 Mic & 4 Aux Inputs.
- Aux-4 input is through RCA socket specially for connecting CD/DVD player.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the programme.
- Line Input for connecting the output from any external mixer or permitting SSA-10000 to be used as a Booster Power Amplifier.
- Resettable circuit breaker & MCB at back for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
Power Output
1350W Max., 1000W RMS at 10% THD, 850W RMS at 5% THD, 800W RMS at 2% THD
Output Regulation
≤ 2 dB, no load to full load at 1kHz
Input Channels
8 × Mic 0.8mV/4.7kΩ, 3 × Aux 100mV/50 kΩ, 1 × Aux 250mV/50 kΩ, 1 × Line 1V/50kΩ
Frequency Response
50-15,000Hz ±3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs
Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Outputs
2Ω, 4Ω, 70V & 100V
Power Supply
AC: 220-240V 50/60Hz DC: 48V (4×12V Car Battery)
Power Consumption
AC: 1600VA DC: 12A
Dimensions
W540 × H185 × D510 mm
Weight
42.0kg
