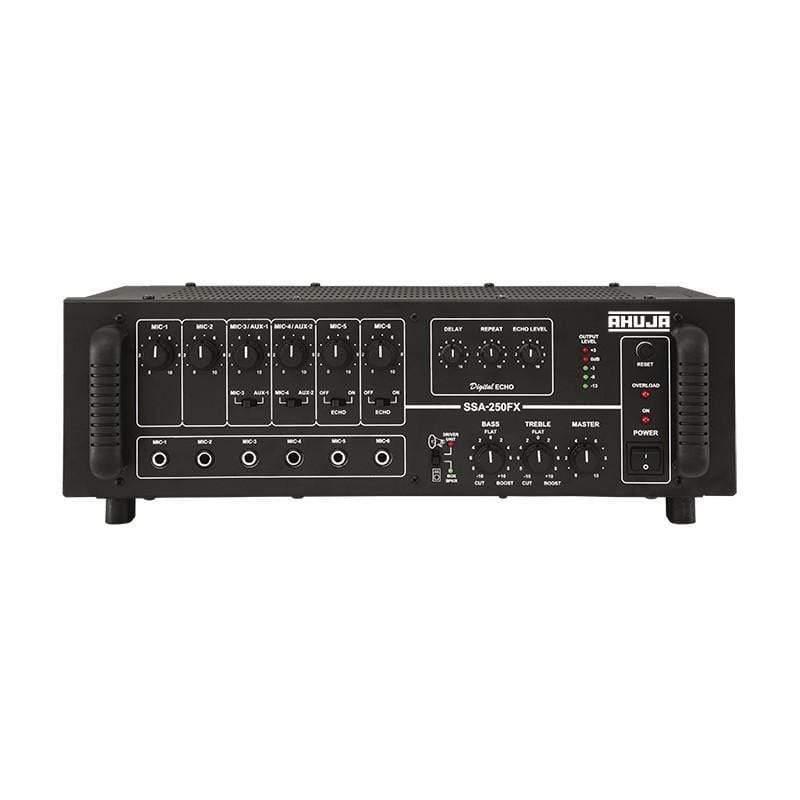

Ahuja SSA-250FX Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
- 6 Mic & 2 Aux Inputs.
- Built-in digital effect processor for 2 Mic Inputs.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the program
- Line Input for connecting the output from any external mixer or permitting SSA-250®M to be used as a Booster Power Amplifier.
- Resettable circuit breaker for protection against overload and short circuit. Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units
SPECIFICATIONS
Power Output
300W Max., 250W RMS at 10% THD 220W RMS at 5% THD, 200W RMS at 2% THD
Output Regulation
≤ 2 dB, no load to full load at 1kHz
Input Channels
6×Mic 0.65mV/4.7kΩ, 2×Aux 100mV/470 kΩ, 1 × Line 1V/50kΩ
Delay System
Digital Signal Processing
Delay Range Setting
60-300ms
Frequency Response
50-15,000Hz ±3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz
Outputs
Preamp 200mV/600Ω, Line 1V/1kΩ
Speaker Outputs
4Ω, 8Ω, 70V & 100V
Power Supply
AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery)
Power Consumption
AC: 460VA DC: 6A
Dimensions
W450 × H160 × D340 mm
Weight
15.70kg
