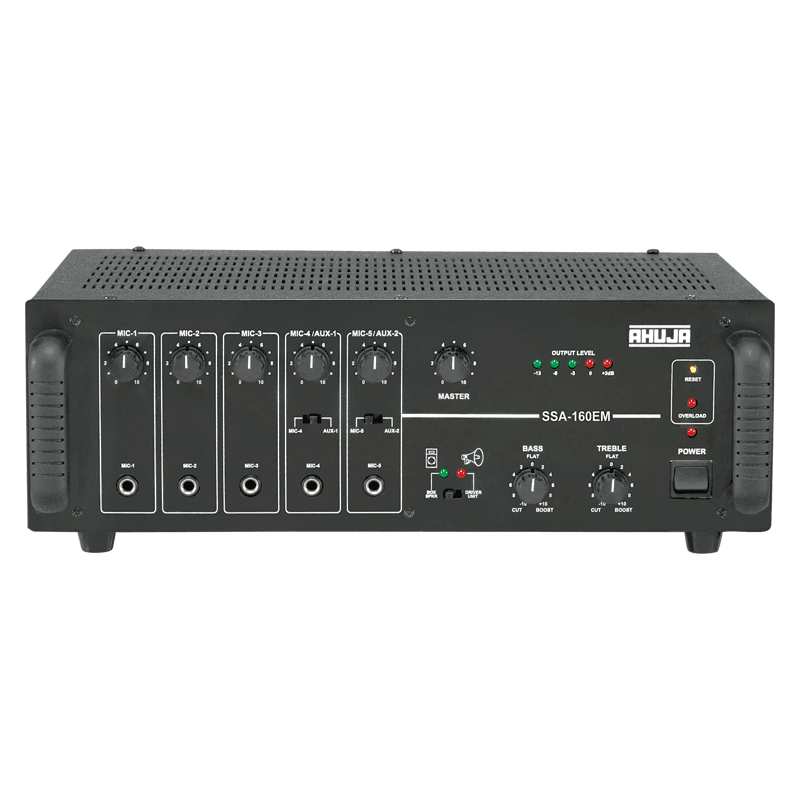

Ahuja SSA160EM Medium Wattage PA Mixer Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- 5 Mic & 2 Aux Inputs.
- Preamplifier and Line Output for connecting to a Booster Amplifier and for recording the program.
- Line Input for connecting the output from any external mixer or permitting SSA-160EM to be used as a Booster Power Amplifier.
DESCRIPTION
The Ahuja SSA160EM PA Mixer Amplifier gives a Resettable circuit breaker for protection against overload and short circuits. It also has an Instant transfer to DC power (Car Battery) if AC power fails. Features a Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
SPECIFICATIONS
Power output: 220W Max., 160W RMS at 10% THD, 140W RMS at 5% THD, 120W RMS at 2% THD Input channels: 5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470kΩ, 1 × Line 1V/50kΩ
Frequency response: 50-15,000Hz ±3dB
Signal to noise ratio: 60dB Power supply: AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) Power consumption: AC: 300VA DC: 4A Dimensions: W420 × H155 × D320 mm Weight: 13.6 Kg
