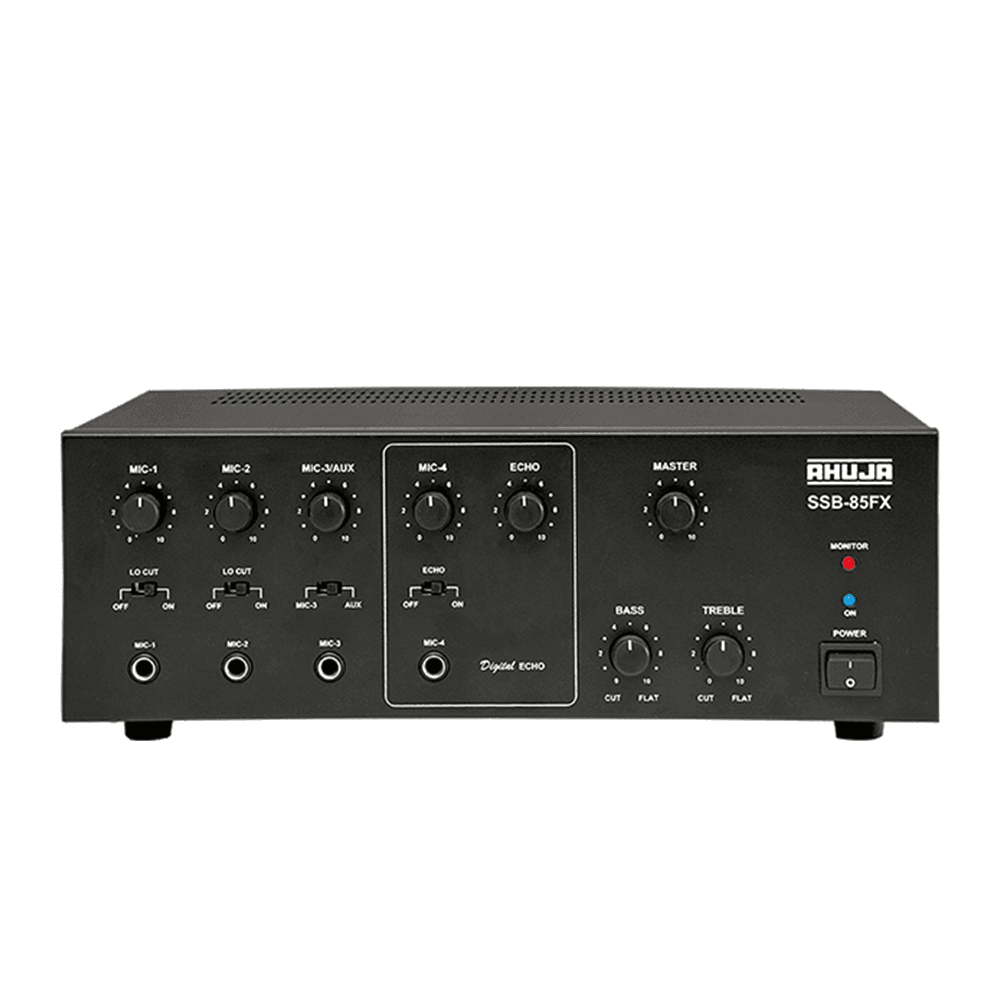

Ahuja SSB-85FX Medium Power PA Mixer Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Ahuja SSB-85FX Medium Power PA Mixer Amplifier
Features
- 4 Mic & 1 Aux Inputs.
- Built-in digital echo effect on Mic-4.
- Mic-3 is alternate to Aux through the switch.
- Mic-1 & Mic-2 having LO-CUT facility.
- Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
- Cut type Bass & Treble controls.
- Instant transfer to DC power (Car Battery) if AC power fails.
Tech Specs
Power Output 110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD Output Regulation ≤ 2 dB, no load to full load at 1kHz Input Channels 4×Mic 0.65mV/4.7kΩ, 1 × Aux 100mV/470kΩ Frequency Response 65-15,000Hz ±3dB Signal to Noise Ratio 60dB Tone Controls Bass: -10dB at 100Hz, Treble: -10dB at 10kHz Outputs Preamp 200mV/600Ω Speaker Outputs 4Ω, 8Ω, 16Ω, 70V & 100V Power Supply AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery) Power Consumption AC: 180VA DC: 3A Dimensions W355 × H133 × D285 mm Weight 8.5kg
TOA
TOA is a global leader in professional PA, voice-alarm, and conference systems. Techniline is the authorised TOA distributor for the UAE & GCC — supplying, specifying, and supporting the full range with regional warranty and manufacturer-backed support.
