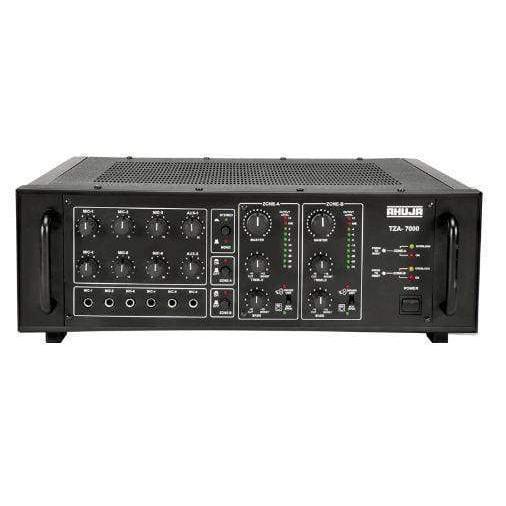

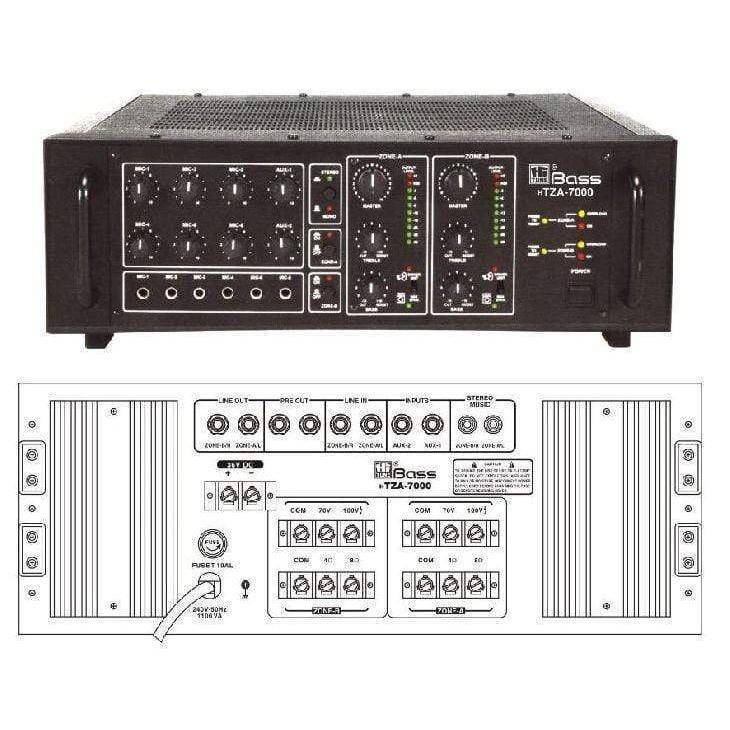

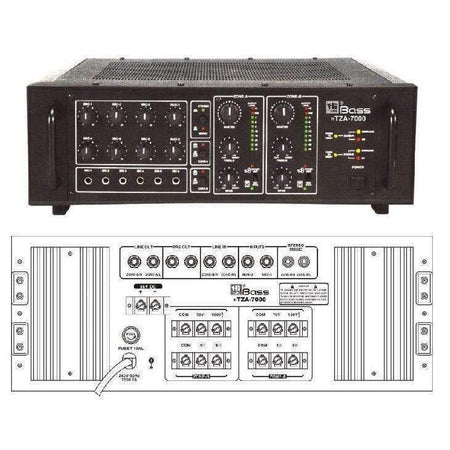

Ahuja TZA7000 Two Zone PA Mixer Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- ‘Stereo’ Music Operation for DJ programs.
- Facilitates connection and operation of two
- separate groups of speakers simultaneously on ‘Mono’ mode. Ideal for Places of Worship.
DESCRIPTION
Ahuja model TZA-7000 is a rugged, reliable, cost-effective 700 watts Two Zone Amplifier. TZA-7000 is ideal for multi-speaker installations where a user needs to separately set power levels for two separate areas such as indoors & outdoors. Line Input & Output on each zone for connecting to a Mixer and Booster Amplifier respectively. Preamplifier output for recording. Box Speaker/Driver Unit selector switch for each zone. Bass boost defeated at Driver Unit position for safer operation of driver units. Zone On/Off facility.
SPECIFICATIONS
Power output:
500W + 500W Max., 350W + 350W RMS at 10% THD, 300W + 300 RMS at 5% THD, 280W + 280W RMS at 2% THD Frequency response: 50-15,000Hz ±3dB
Signal to noise ratio: 60dB Speaker outputs: 4Ω, 8Ω, 70V & 100V for each zone Power supply: AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery) Power consumption: AC: 1100VA DC: 13A Dimensions: W510 × H185 × D470 mm Weight: 39.8 Kg
TOA
TOA is a global leader in professional PA, voice-alarm, and conference systems. Techniline is the authorised TOA distributor for the UAE & GCC — supplying, specifying, and supporting the full range with regional warranty and manufacturer-backed support.
