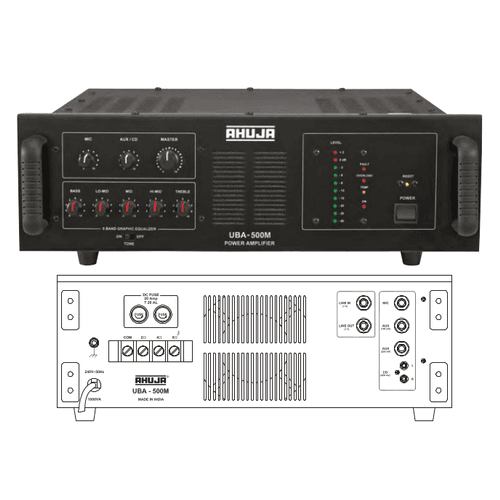

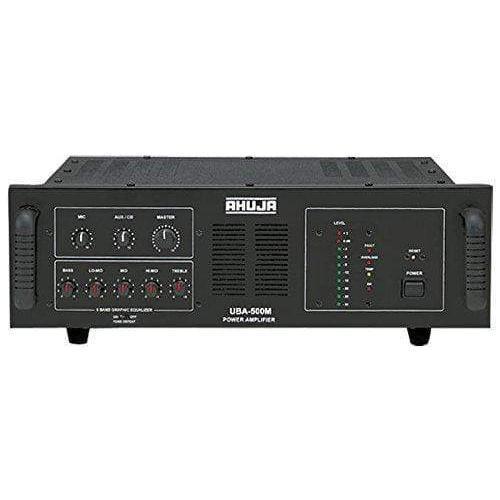

Ahuja UBA-500M 500 Watts DJ & PA Power Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
- Designed for use in a wide variety of PA applications and DJ performances.
- UBA-500M is a 500 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
- The amplifier includes an built-in 5 Band Graphic Equalizer with tone ON/OFF switch which enables precise and accurate tonal setting of the programme.
Specifications:
Power Output
650W RMS Max., 500W RMS at 10%THD, 475W RMS at 5% THD 450W RMS at 2% THD
Output Regulation
≤ 2dB, no load to full load at 1kHz
Input Channels
1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 10kΩ
Frequency Response
50Hz–18,000Hz ±3dB
Signal to Noise Ratio
60dB
Tone Controls
Bass (100Hz) : ± 8dB, Lo-Mid (315Hz) : ± 8dB, Mid (1kHz) : ± 8dB, Hi-Mid (3.1kHz) : ± 8dB, Treble (10kHz) : ± 8dB
Line Output
1V/1kΩ
Speaker Output
2Ω, 4Ω & 8Ω
Power Supply
AC: 220-240V 50/60Hz
Protections
2 × 20 Amp fuse in ± DC supply 5 Amp circuit breaker in AC mains, Protected against high AC mains voltage, overload & temperature
Power Consumption
1000 VA
Dimensions
W482 × H166 × D435 mm
Weight
23.5kg
