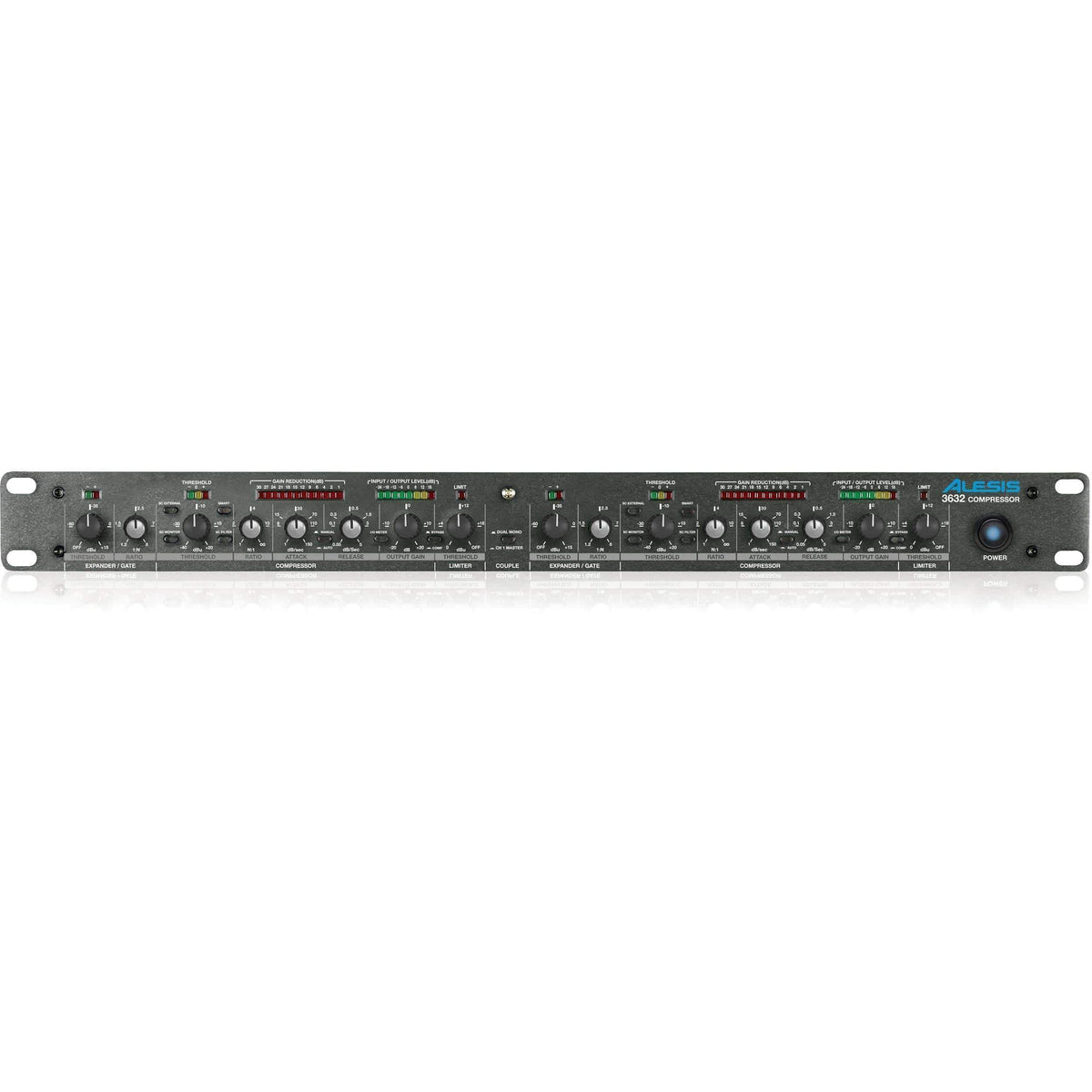

The 3632 Compressor is the follow-up to the 3630 Compressor, the most popular dynamics processor ever made. The 3632 Compressor builds on the popular design and features of its predecessor by providing two independent, full-featured compressor/limiters in one compact rack. It delivers superb sonic quality for any application from studio recording to live sound or broadcast.
| 3632 |
| Stereo compressor/expander/limiter/gate for complete dynamics management |
| Minimized signal path for optimal sound quality |
| Intelligent Ratio adjusts expansion based on input signal |
| Intelligent Gain auto-adjusts output |
| Adjustable attack and release time for manual control |
| Couple switch for a one-touch selection between two mono channels and stereo-linked operation |
| Sidechain send and return for use in an external effects loop |
| Switchable low-cut filter minimizes audio-program pumping triggered by kick drum |
| Gain-reduction LEDs and switchable input/output-level LED meters for visual monitoring of critical values |
| Bypass switches on both channels |
|
Function: Compressor/expander/gate Number of Channels: 2 Inputs: 2x XLR, 2x 1/4" TRS, 2x 1/4" TS Return Outputs: 2x XLR, 2x 1/4" TRS, 2x 1/4" TS Send Maximum Input Level: +21dBu Compression Threshold: -40dB to +20dB Compression Ratio: 1:1 ‚ Infinity:1 Attack Time: 0.1 mSec to 150 mSec/20dB Release Time: 0.05 mSec to 5 Sec/20dB Gate Threshold: Off to +15dB Gate Ratio: 1:1.2 to 1:8 Maximum Output Level: +21dBu Make-up Gain: -20dB to +20dB Frequency Response: 20Hz to 20kHz, +0/-0.05dB Dynamic Range: 125dB Noise: THD+N: 0.01% typical, 1kHz @ +4dBu Power Requirements: 95~120VAC/210~240VAC, 50/60Hz Dimensions (WxDxH): 19 x 7.7 x 1.75" (483 x 195 x 45mm) Weight: 6.8 lbs (3.1kg) |
