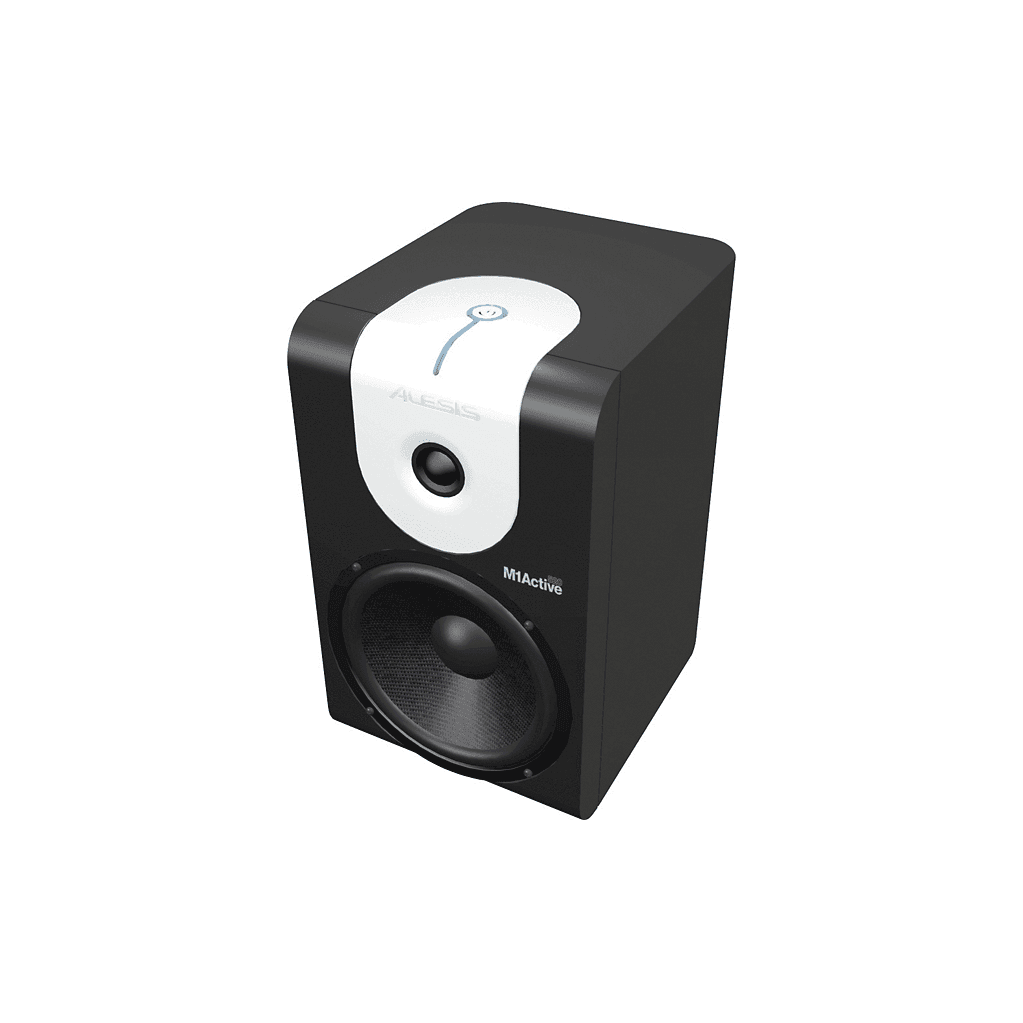

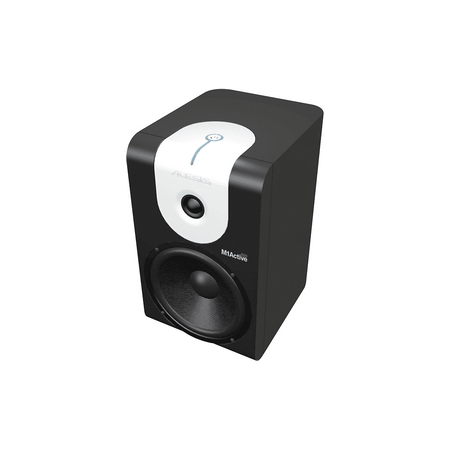

Alesis M1A520 Pair 75W Active Monitor (Pair)
Alesis M1A520 Pair 75W Active Monitor (Pair)
Alesis
Authorised Distributor

Alesis M1A520 Pair 75W Active Monitor (Pair)

SKU: M1A520pair

Log in to view price Trade pricing — AED / USD

Out of stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Note: This studio monitor is sold as a pair

    Description
    This pair of Alesis M1 Active 520 Near-Field Reference Monitors offers an incredible definition and flat frequency response with the help of high-precision drivers and a carefully designed crossover. The rear-port provides deep bass-extension and high SPL output, and the rear-mounted EQ switches allow the user to tailor the speaker to the studio environment. A 1"-thick front baffle minimizes speaker resonance and the acoustic waveguide evenly disperses high-frequency sound. The Bass Density control lets you dial in balanced sound regardless of room or placement. The Alesis M1 520 monitor's top-mounted power/clip indicator lets you know if the speaker is clipping.

    FEATURES
    -2-way, 75W active near-field reference monitors
    -5" low-frequency driver
    -1" silk dome tweeter
    -Acoustic waveguide
    -Low-Frequency Density switch
    -Rear port design
    -Hi, Mid, and Low-Frequency EQ switches
    -Top-mounted Power Switch/Clip Light
    -1"-thick front baffle
    -Magnetically shielded
    -1/4" TRS connector
    -Volume control

    Tech Specs
    Low-Frequency Driver 5" Polypropylene cone
    Mid Frequency Driver No
    High-Frequency Driver 1" Silk Dome Tweeter
    LF Amplifier 50 Watts
    HF Amplifier 25 Watts
    Crossover Active, 2.8 kHz
    Frequency Range 56 Hz - 20 kHz
    Impedance 10 kOhms, Unbalanced
    20 kOhms, Balanced
    Maximum Sound Pressure Level (SPL) 90 dB @ 1m
    Controls and Indicators 1 x Gain Control Knob
    1 x Acoustic Space Switch
    1 x Hi Boost Switch
    1 x Mid-Boost Switch
    1 x Lo 3dB Roll Off Switch
    1 x AC Voltage Selector Switch
    1 x Top-Mounted Power Switch/Clip LED
    Connectors 1 x 3-pin XLR Female, Balanced
    1 x 1/4" TRS/TS Phone, Bal/Unbal
    Shielded Yes
    Dimensions (HxWxD) 10.5 x 6.5 x 7.75" (267 x 165 x 197mm)
    Weight 13 lb (6 kg)
    Specialties Multi-Voltage Power Supply with Selector Switch
    1/4" Input with Bal/Unbal Read
    Acoustic Space Compensator Switch for Wall or Corner Placement
    Rear Bass Port
    Packaging Info
    Box Dimensions (LxWxH) 21 x 15.2 x 12.5"
