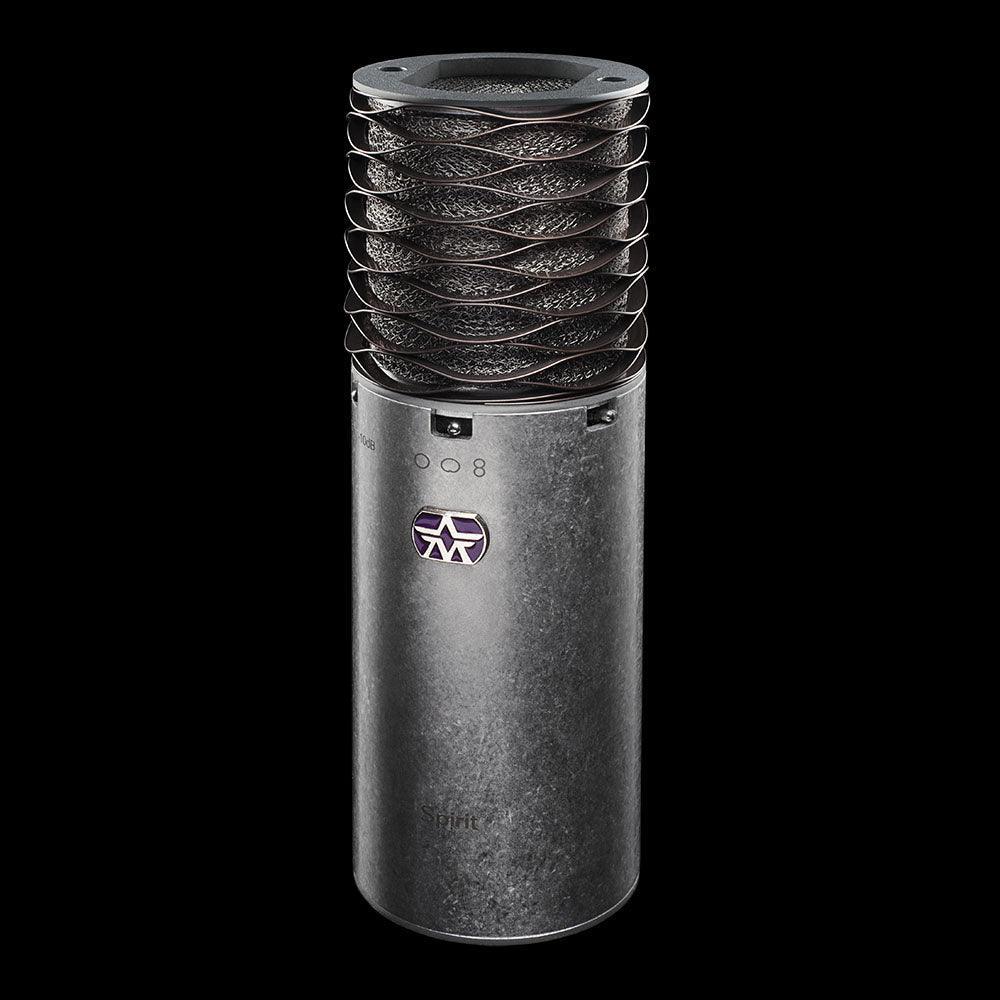

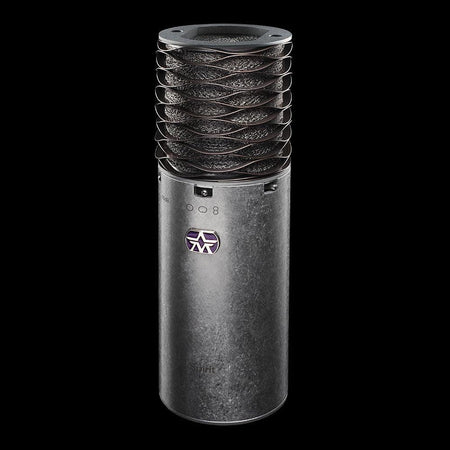

Aston Microphones Spirit Large-diaphragm Condenser Microphone
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
- Large-diaphragm pressure-gradient condenser microphone with variable polar patterns

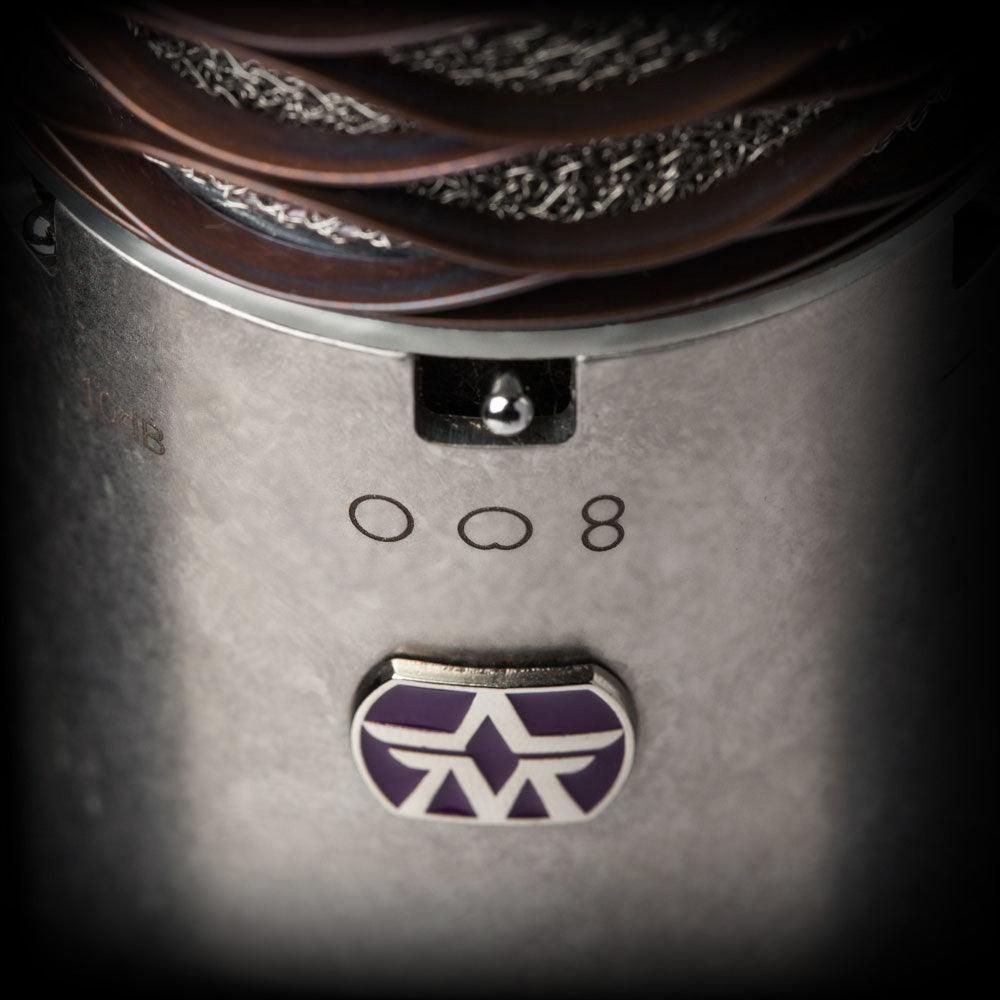

- Polar pattern switchable between Cardioid, Omni, and Figure-8

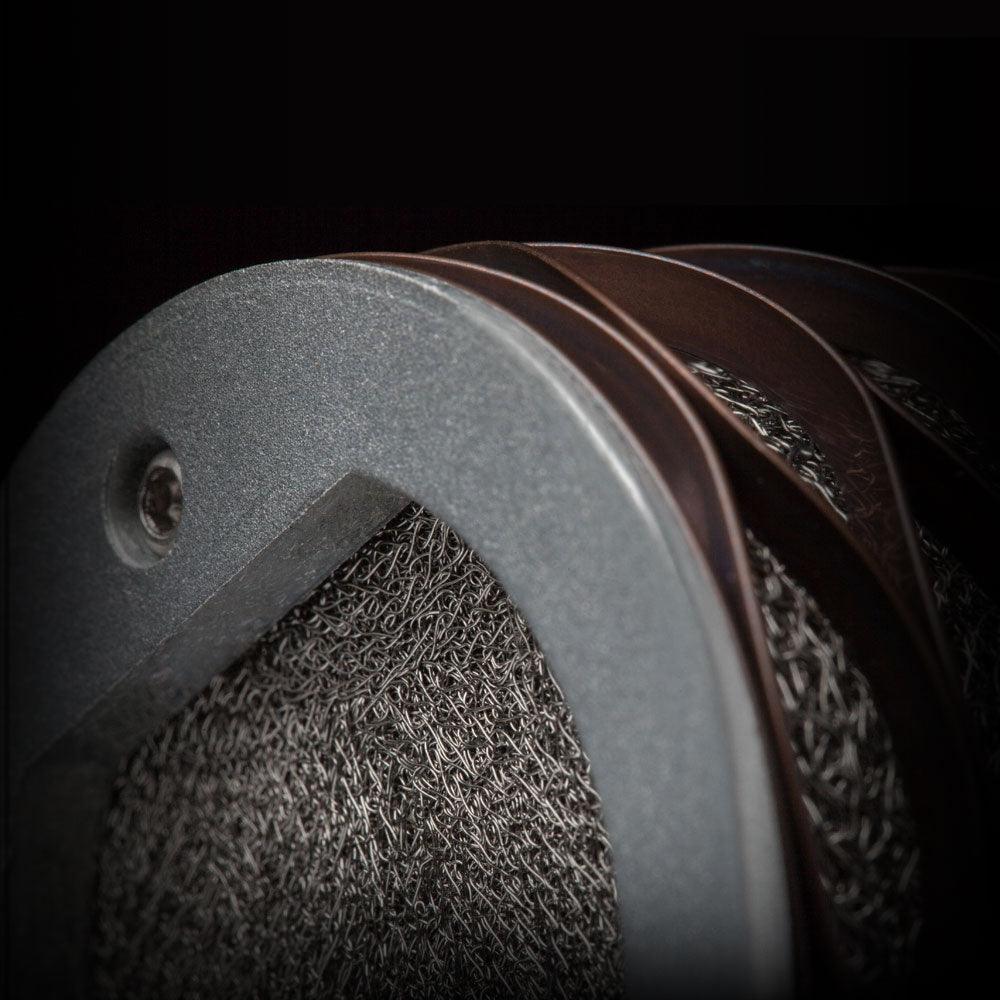

- 1-inch gold-evaporated capsule; protective wave-form mesh head with built-in pop filter
- Innovative blend of discrete and integrated circuitry
- Optimized circuit stage scheme from phantom power input circuit to capsule voltage bias
- Unique nonlinear voltage/current source rectification
- Shock-resistant, wave-form mesh head with built-in pop filter
- Unique, individually tumbled chassis finish

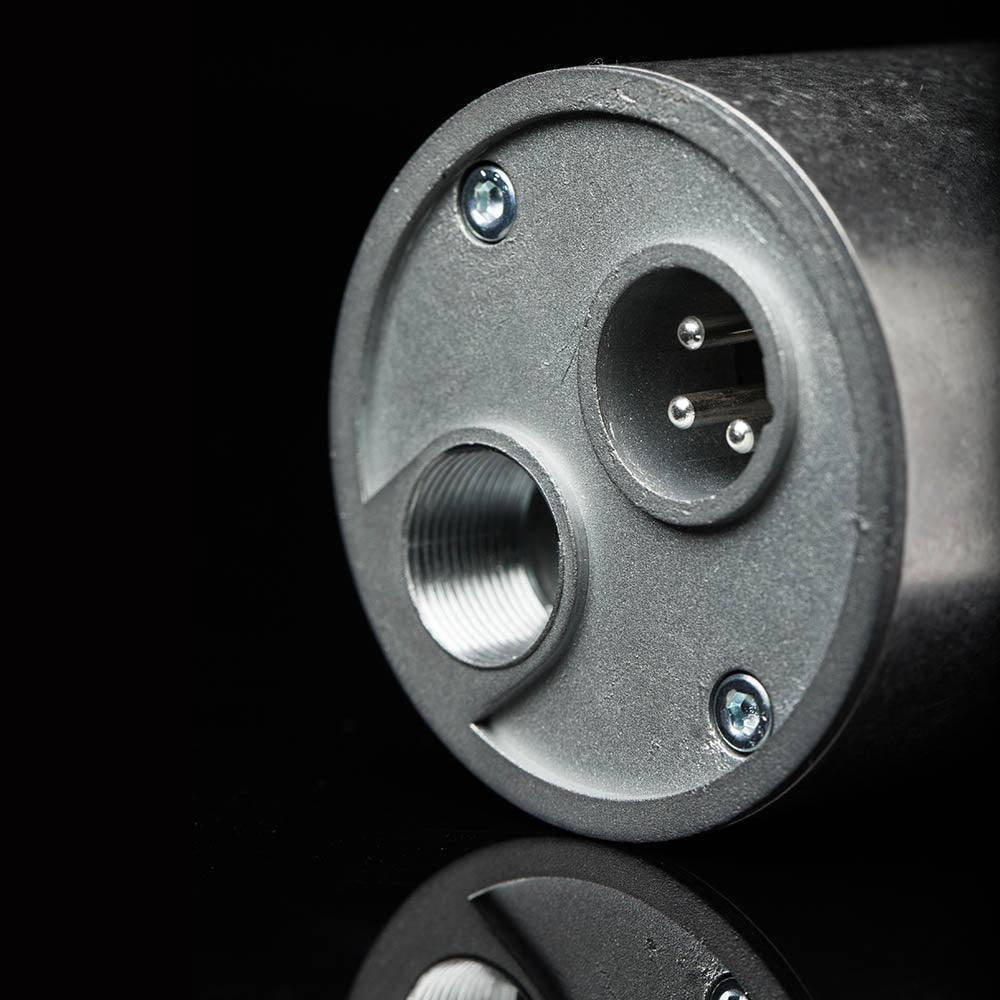

- Custom-molded end cap with integrated XLR and interchangeable mic stand thread adapter
- Onboard 10/20dB pad and 80Hz high pass filter
- 48V phantom power required for operation
DESCRIPTION
The Aston Spirit is a high-performance, switchable pattern, large diaphragm condenser microphone utilizing a 1” gold evaporated capsule. A switch on the mic body selects from Omni, Cardioid or Figure-of-Eight polar patterns. It is versatile enough to use with most instruments and excels on acoustic guitar and vocals. Its Aston 33 panel selected capsule is teamed with high-end transformer balanced circuitry using only the best components. The Spirit is designed to deliver a beautifully open sound with sparkling harmonics. This highly accurate microphone gives a stunningly natural and transparent recording, capturing all the detail in the high range but without adding the harshness that some condenser microphones seem to.
SPECIFICATIONS
Microphone Type:
Condenser
Mono/Stereo:
Mono
Polar Pattern
Cardioid, Omni, Figure-8
Diaphragm Size:
1" gold evaporated
Max SPL:
138dB SPL
Sensitivity:
23.7mV/Pa
Signal to Noise Ratio:
80dB (A weighted)
Self Noise:
14dB (A weighted)
Frequency Response:
20Hz-20kHz (±3dB)
Low Cut Filter:
80Hz
Pads:
-20dB, -10dB
Connector:
XLR
Power Source:
48V phantom power
Color:
Silver
Weight :
1.38lbs
Dimensions:
6.89" x 2.13"
