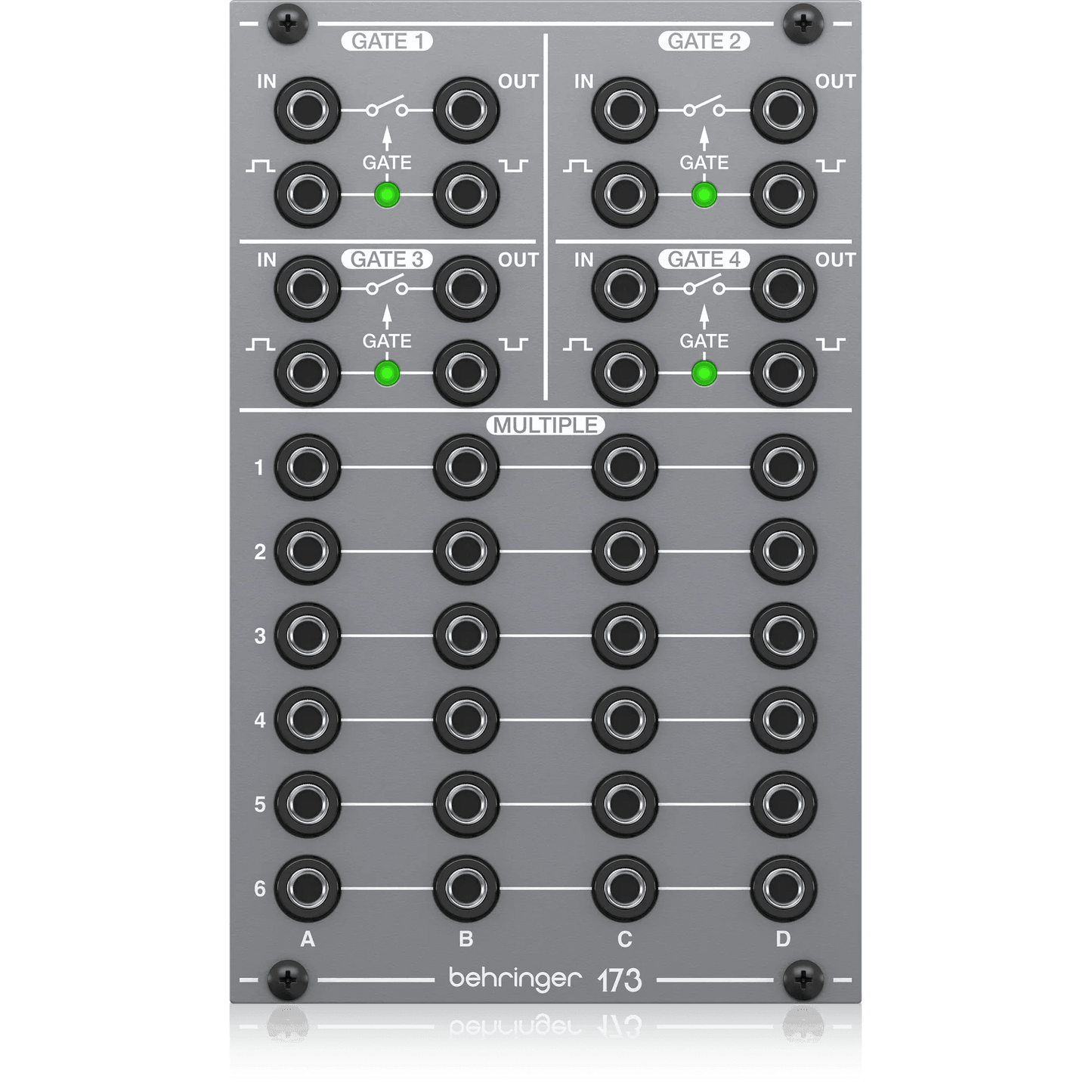

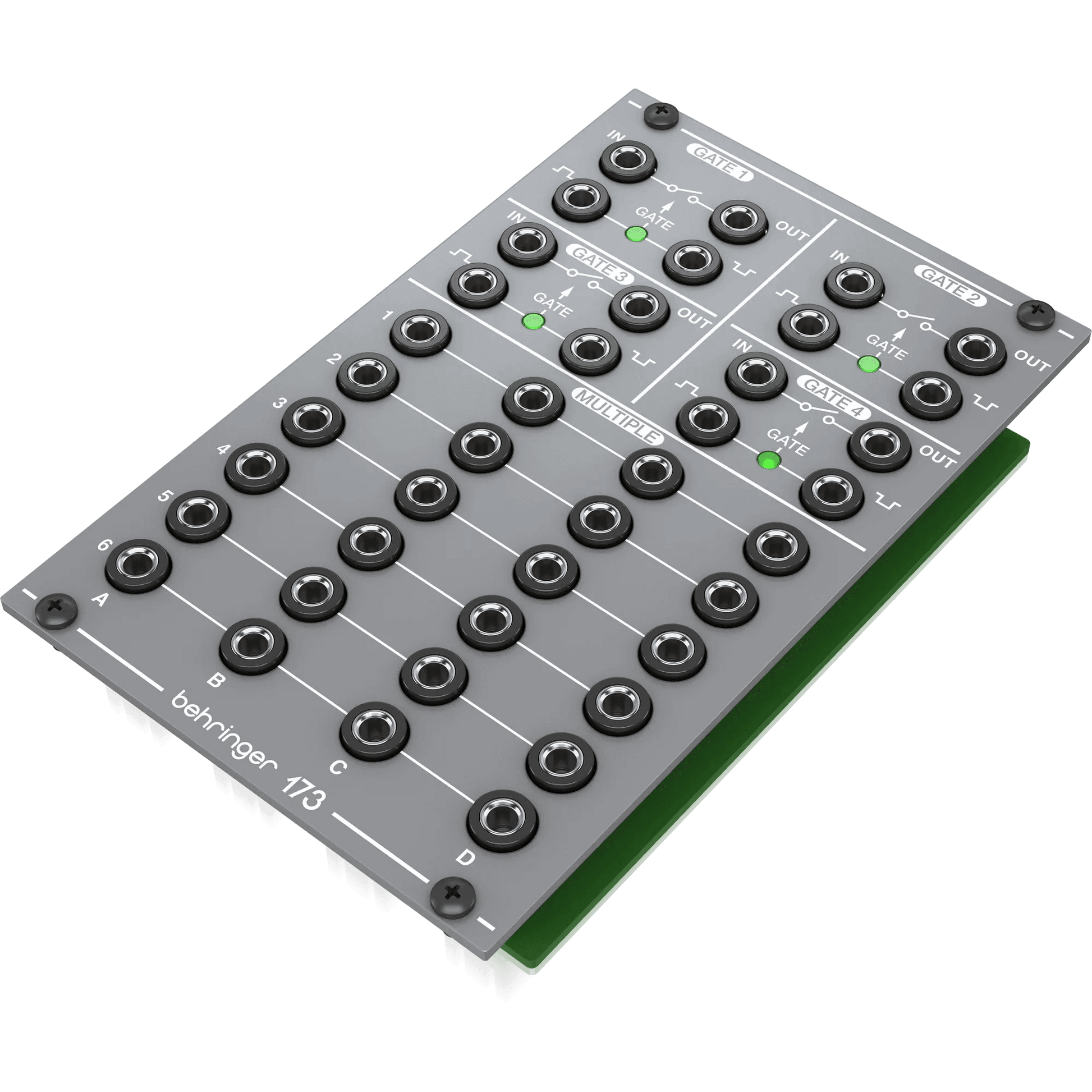

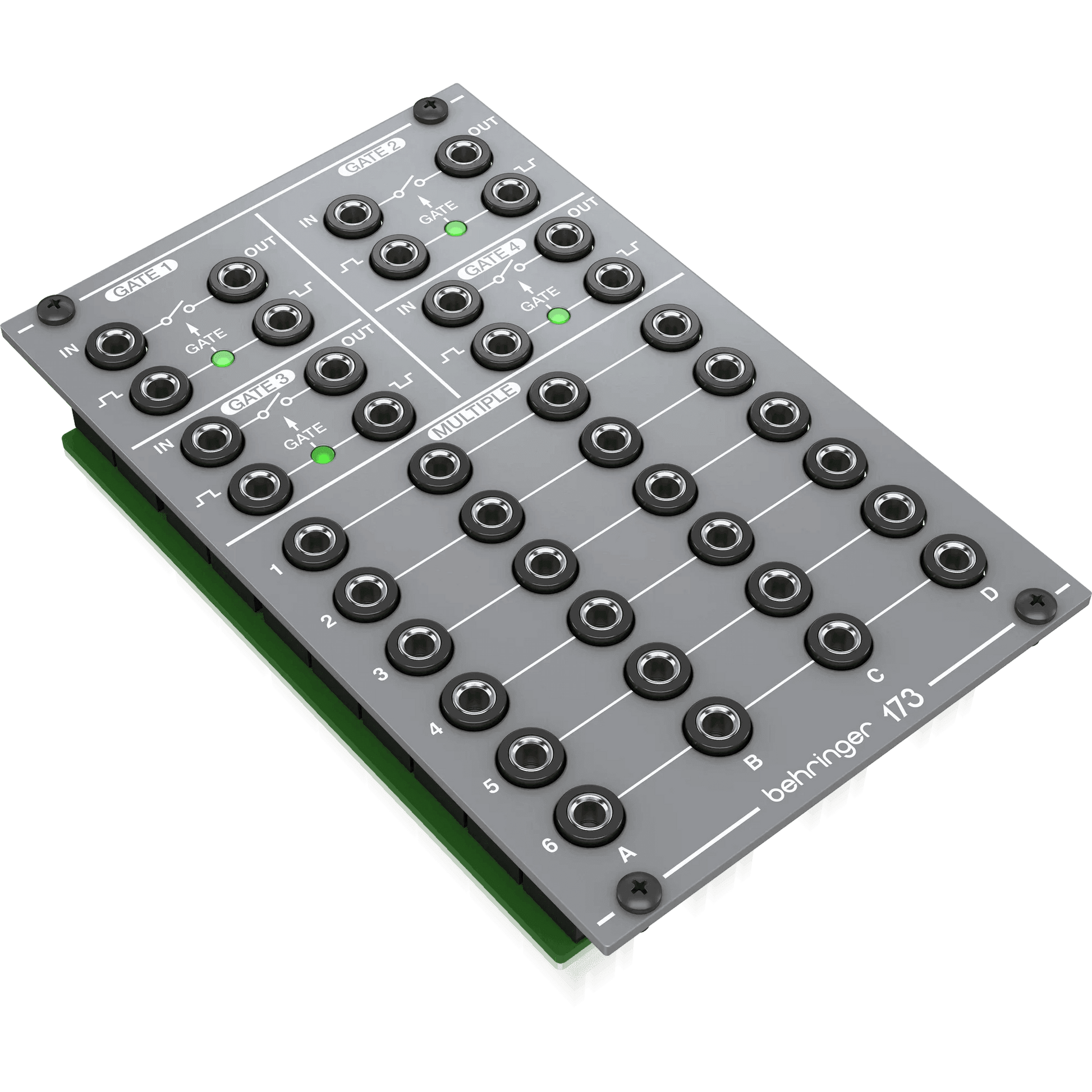

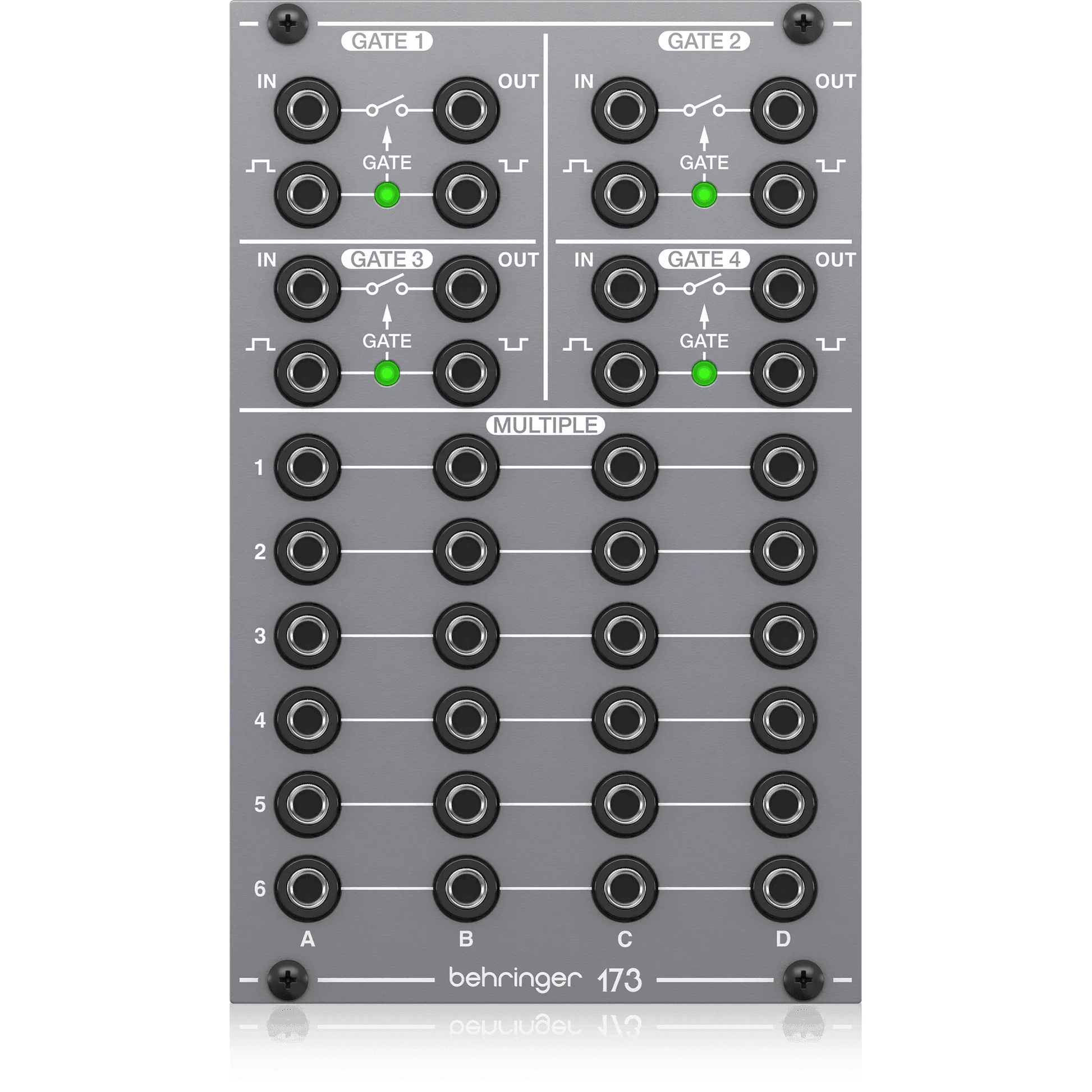

Behringer 173 QUAD GATE/MULTIPLES
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
Amazing quad Signal Gate/Multiple module from the '80s
-
Authentic reproduction of original "System 100M*" circuitry
-
4 signal gates (switches) with buffered audio inputs and outputs for immediate signal switching
-
Gates feature control inputs for positive and negative triggers plus LED indicators
-
6-channel multiples, each with 4 floating parallel connectors for optimal signal integrity
-
Eurorack specs: 16 HP, 40 mA +12 V, 40 mA -12 V
DESCRIPTIONThe 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they’re about to get even better.
SPECIFICATIONSSignal Input
Type
3.5 mm jack, DC coupled
Impedance
160 kΩ, unbalanced
Maximum input level
+17 dBu
Signal Output
Type
3.5 mm jack, DC coupled
Impedance
1 kΩ, unbalanced
Maximum output level
+17 dBu
Frequency response
DC to 20 kHz
Output noise
< -90 dBu, 22 Hz - 22 kHz
Gate Control
Type
2 x 3.5 mm jacks, non-inverting and inverting
Impedance
> 50 kΩ, unbalanced
Switching threshold
Non inverting > +3 V, inverting < +1.5 V
Maximum input level
10 V p-p
Multiples
Type
24 x 3.5 mm TS mono jacks, unbalanced
Arrangement
6 sets of 4 parallel jacks, passive
Compatibility
CV and audio signals
Power
Power supply
Eurorack
Current draw
40 mA (+12 V), 40 mA (-12 V)
Physical
Dimensions
28 x 81 x 129 mm (1.1 x 3.2 x 5.1")
Rack units
16 HP
Weight
0.18 kg (0.4 lbs)
-
