KEY FEATURES
DESCRIPTION
Nothing beats the classic 12AX7 vacuum tube when it comes to delivering soul-searching guitar tone; that’s why it’s a mainstay in musical instrument amplifier design. TUBE PILOT OVERDRIVE is highly maneuverable and powerful enough to satisfy any guitar ace with a burning need for tone. Equipped with a genuine, handpicked 12AX7, TUBE PILOT injects your sound with the organic, touch sensitive saturation of a vintage tube amp that dares you to push it over the edge.
SPECIFICATIONS
|
Keyboard CV |
|
|
Type |
1 x 3.5 mm TS jack, DC coupled |
|
Impedance |
100 kΩ, unbalanced |
|
CV range |
10 V, 1 V/oct. |
|
FM1 / 2 / 3 CV |
|
|
Type |
3 x 3.5 mm TS jacks, DC coupled |
|
Impedance |
50 kΩ, unbalanced |
|
CV range |
10 V, 1 V/octave |
|
PWM CV |
|
|
Type |
1 x 3.5 mm TS jack, DC coupled |
|
Impedance |
75 kΩ, unbalanced |
|
CV range |
10 V, typically 1 V/10% |
|
TRI/SINE/SAW/PULSE |
|
|
Type |
4 x 3.5 mm TS jacks, DC coupled |
|
Impedance |
1 kΩ, unbalanced |
|
TRI level |
±5 V |
|
SINE level |
±5 V |
|
SAW level |
0 V / +10 V |
|
PULSE level |
0 V / +10 V |
|

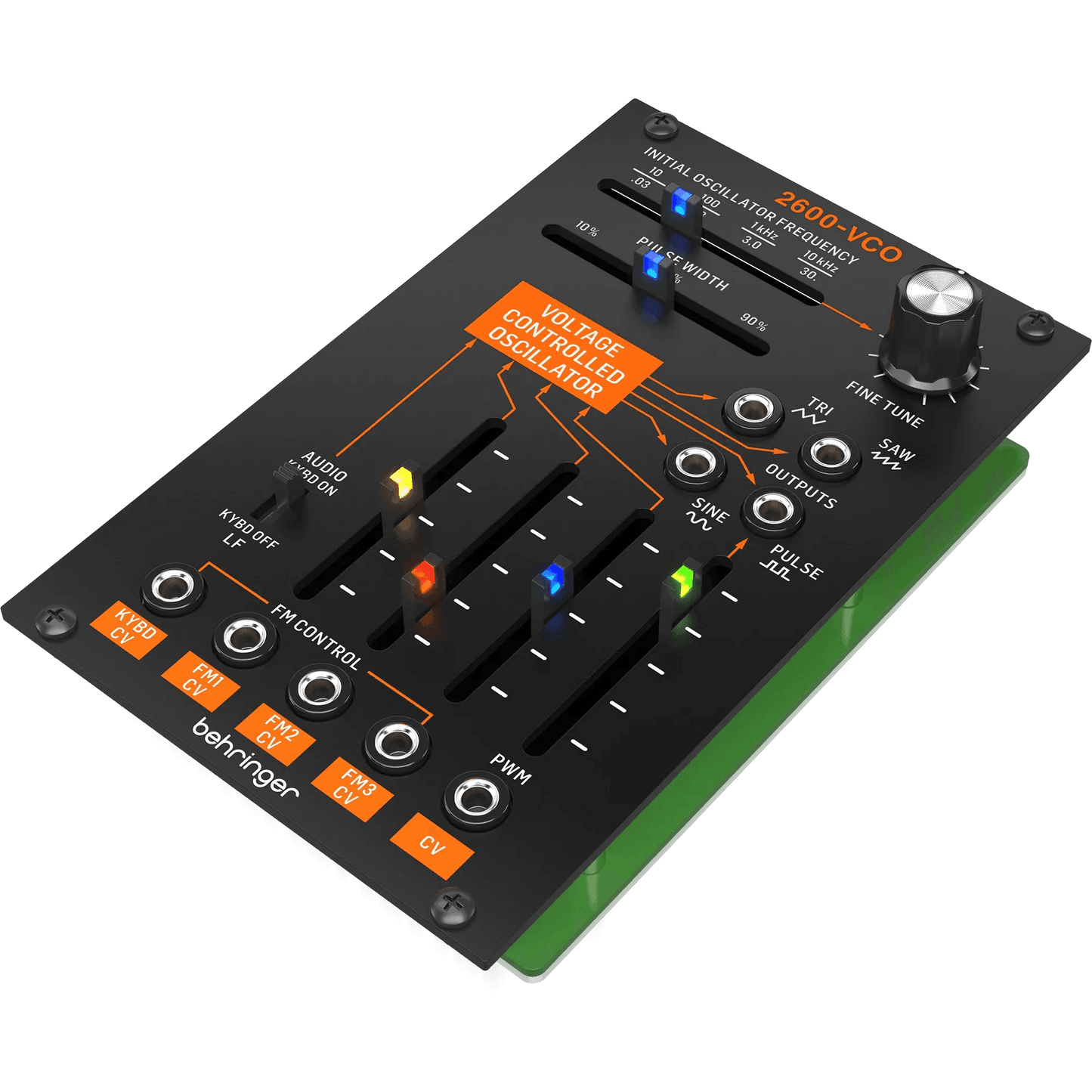

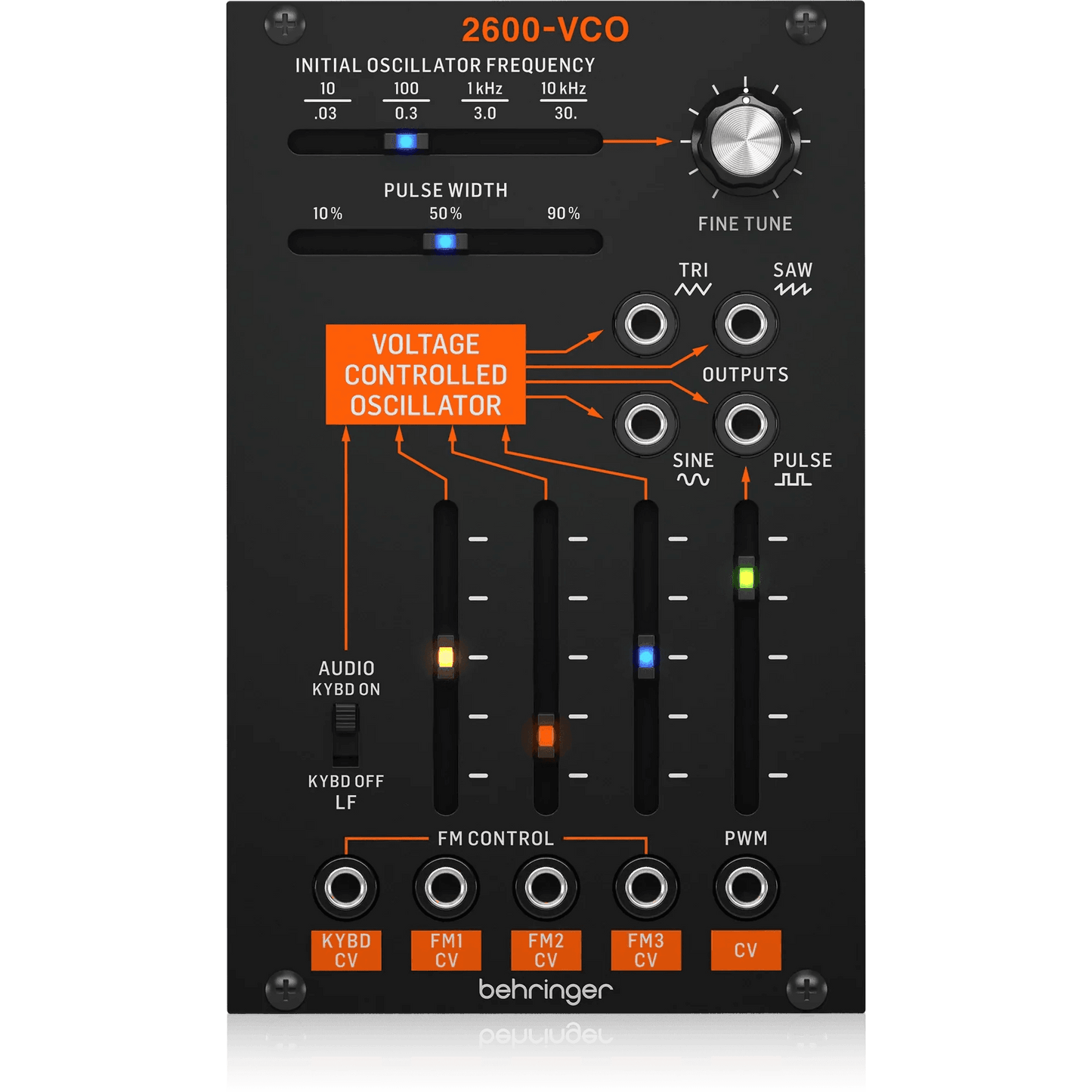

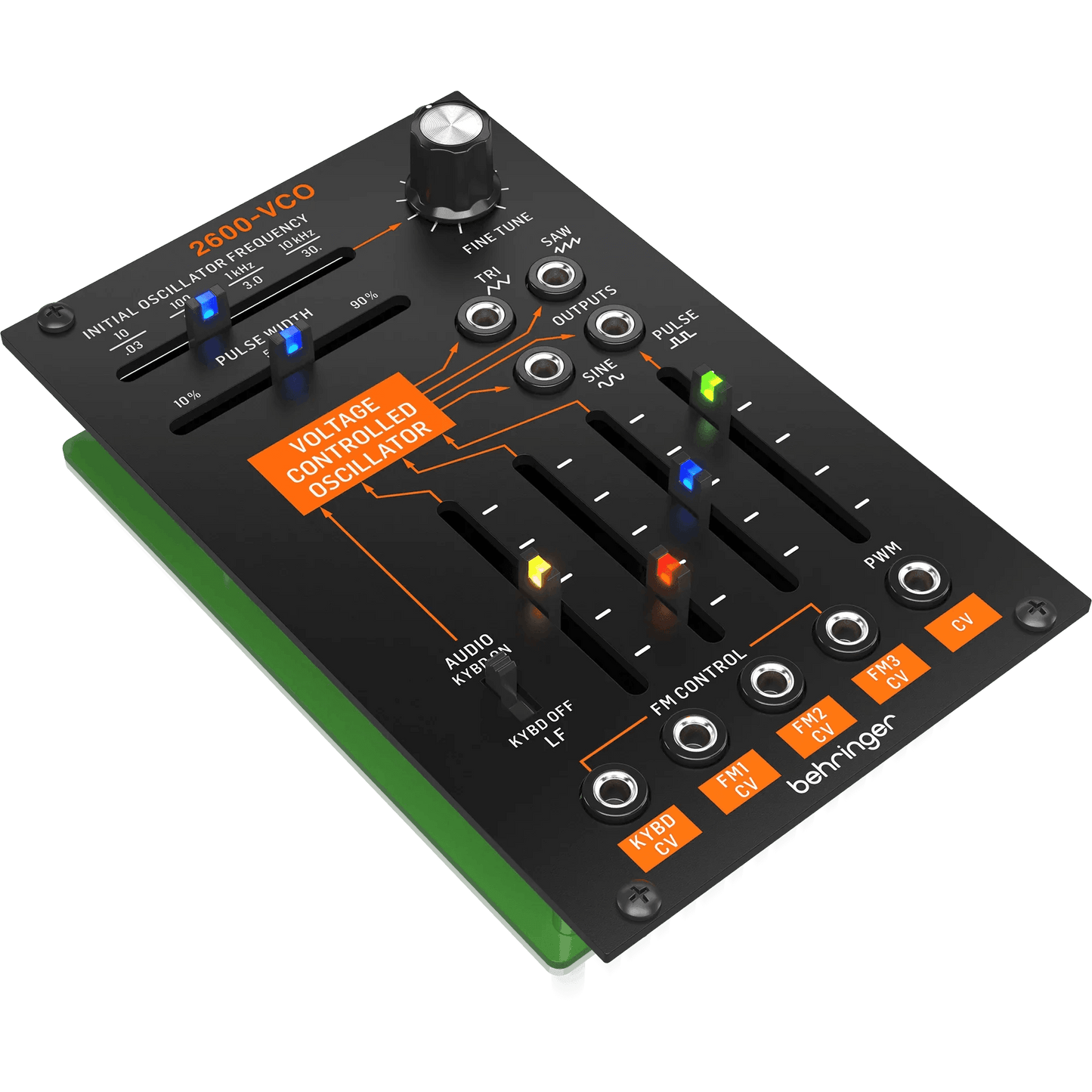

Controls |
|
|
Initial oscillator frequency fader |
Sets oscillator frequency (10 oct. range) |
|
Fine tune knob |
Oscillator fine tune adjustment (±0.4 oct.) |
|
Audio (Kybd on) / LF (Kybd off) slide switch |
Select audio band (10 Hz to 10 kHz) or LFO (0.03 Hz to 30 Hz) |
|
FM 1 / 2 /3 faders |
Attenuate FM inputs (-∞ to unity gain) |
|
Pulse width fader |
Pulse width adjustment (10% to 90%) |
|
PWM fader |
Pulse width modulation attenuator (-∞ to unity gain) |
|
Physical |
|
|
Dimensions (H x W x D) |
129 x 81 x 42 mm (5.08 x 3.19 x 1.65") |
|
Rack units |
16 HP |
|
Weight |
0.15 kg (0.33 lbs) |
