Behringer 305 EQ/Mixer/Output

SKU: 305 EQ/MIXER/OUTPUT

Log in to view price Trade pricing — AED / USD

Out of stock
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

    KEY FEATURES

    • Combination of amazing parametric EQ, mixer/oscillator and headphone amplifier module from the early '80s

    • Authentic reproduction of original "System 100M*" circuitry

    • 4-channel EQ section with level, bandwidth and frequency controls plus direct out for maximum flexibility

    • 4-input mono mixer with pan and 2 adjustable mono/stereo master outputs

    • Tuning oscillator with 3 selectable frequencies (200/400/800 Hz) and level control

    • Independent headphone output with level control

    • Bypass switch for quick comparison of EQ signals

    • 25 controls give you real-time access to all important parameters

    • Eurorack specs: 20 HP, 120 mA +12 V, 100 mA -12 V


    DESCRIPTION

    Modular Synthesis

    The 80s was the golden age of electronic music. Synthesizers were at their prime and almost every hit song and movie soundtrack at that time had a synth in one form or another. Modular synths have become more and more popular with professionals and enthusiasts over the years and they’re about to get even better.

    SYSTEM 100 305 EQ/MIXER/OUTPUT

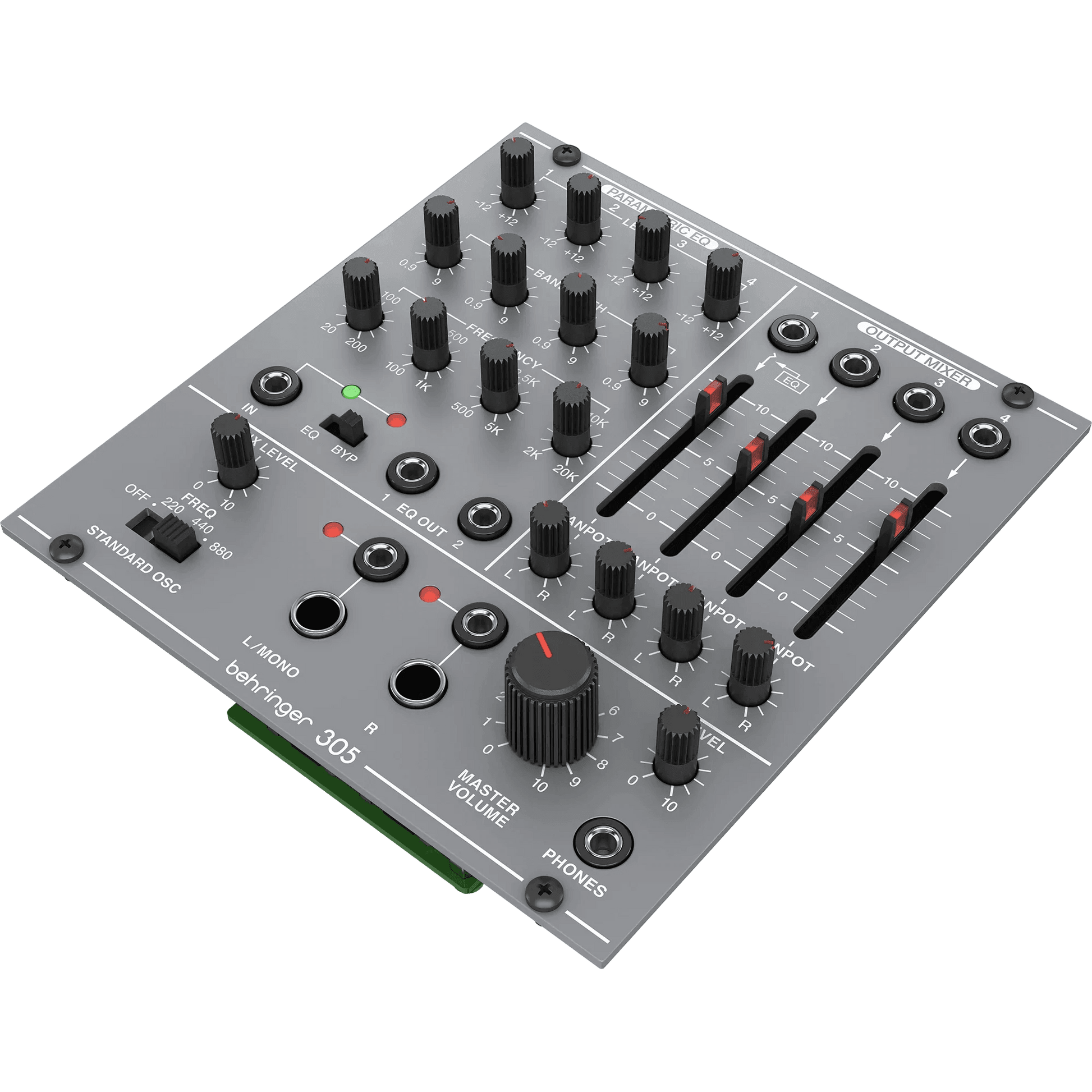

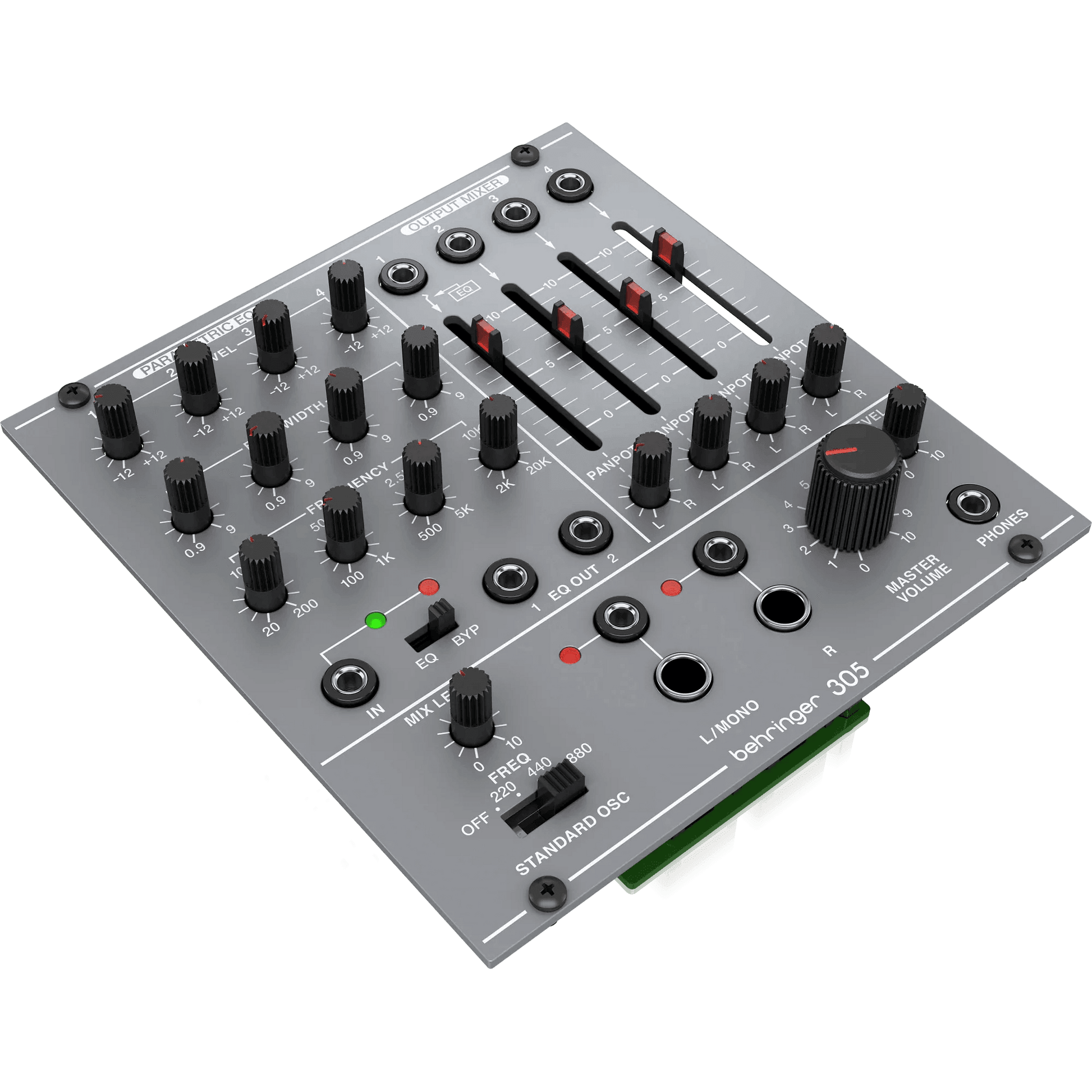

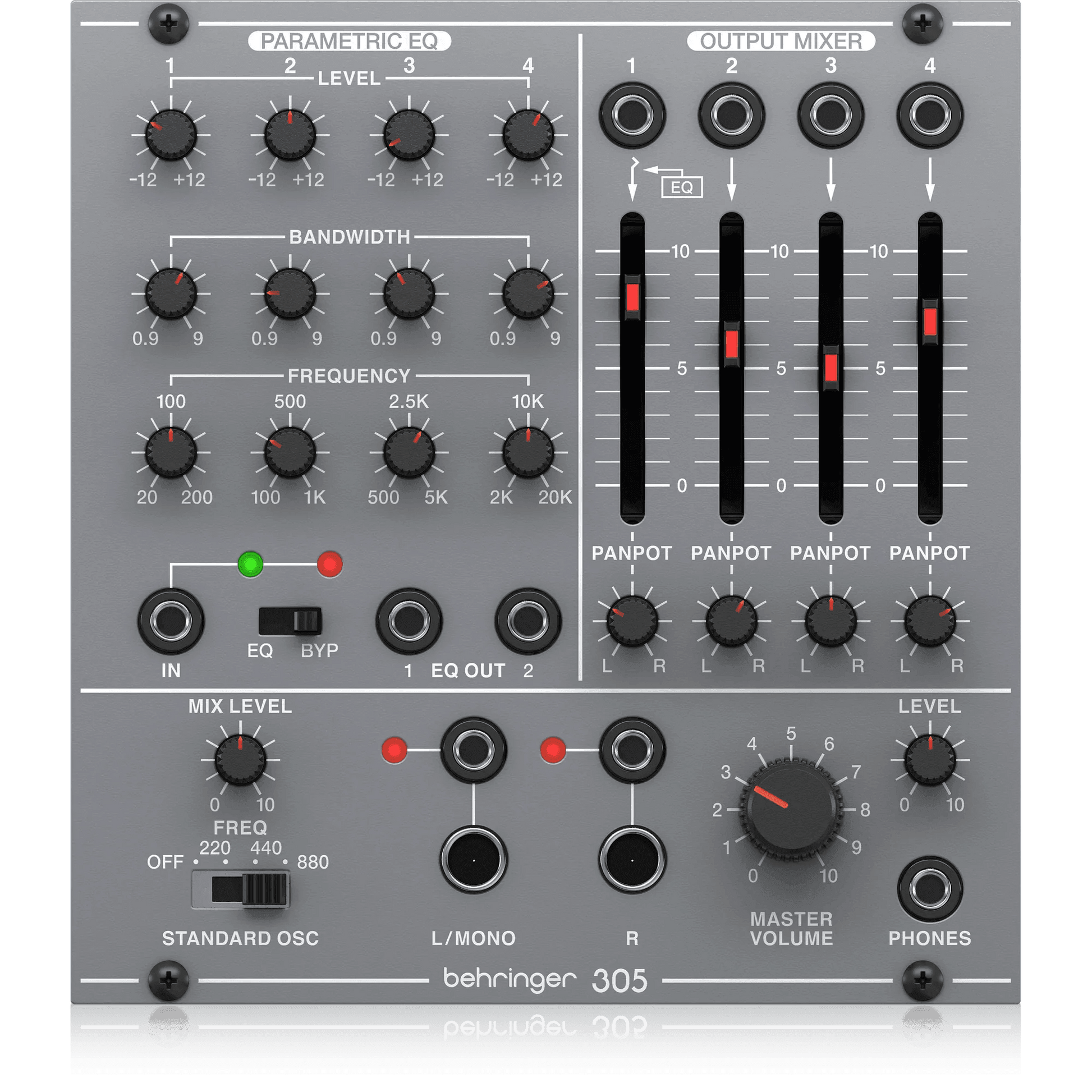

    This is the Behringer System 100 305 EQ/MIXER/OUTPUT Module. A parametric EQ, mixer/oscillator and headphone amp combo that’s an authentic reproduction of the original “System 100M” circuitry from the 80s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price! Mix the 305 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun!

    Sculpting Your Masterpiece

    The 305 allows for maximum tone shaping with its 4-channel EQ section complete with level, bandwidth and frequency controls that span a wide frequency spectrum from 20 Hz all the way up to 20 kHz. Using the two outputs of this section, you can then patch signals to two different modules for some extra modulation and waveform sculpting possibilities and even switch between EQ’d and Bypass modes for a quick comparison.

    Start Mixing

    For added mixing capabilities, you can use the 305’s 4-input mixer with individual pan and level controls. The output signal can be in either mono or stereo via 3.5mm and ¼” jacks. Monitor your overall signal though the independent headphone output and its included level control.

    Eurorack Ready

    Installing the 305 EQ/MIXER/OUTPUT is simple as it was designed to fit into a standard Eurorack case. Just connect the power cables to the power supply and mount the module using the included screws. This allows for the 305 EQ/MIXER/OUTPUT to be mixed with other synth modules for a truly unique set up.

    Complete Your Collection

    Whether you’re just getting into modular synths or looking to complete your collection, the 305 EQ/MIXER/OUTPUT module from Behringer is a great tool to have when creating amazing music.


    SPECIFICATIONS

    Inputs


    EQ input
    Type

    3.5 mm TS jack, AC coupled
    Impedance

    40 kΩ, unbalanced
    Max input level

    +18 dBu
    Mixer input
    Type

    4 x 3.5 mm TS jacks, AC coupled
    Impedance

    > 25 kΩ, unbalanced
    Max input level

    +21 dBu

    Outputs


    EQ output
    Type

    2 x 3.5 mm TS jacks, DC coupled
    Impedance

    330 Ω, unbalanced
    Max output level

    +18 dBu
    Noise with EQ set flat

    < -90 dBu, 22 Hz to 22 kHz
    Master output
    Type

    2 x 3.5 mm TS jacks 2 x ¼" TS jacks AC coupled
    Impedance

    700 Ω, unbalanced
    Max output level

    +8 dBu
    Noise with 1 channel open

    < -100 dBu, 22 Hz - 22 kHz
    Phones output
    Type

    3.5 mm TRS stereo jack, AC coupled
    Impedance

    50 Ω, unbalanced
    Max output level

    +18 dBu
    Controls
    EQ level

    ±12 dB, 0 dB center detent
    EQ bandwidth Q range

    0.9 to 9
    EQ frequency range 1

    20 Hz to 200 Hz
    EQ frequency range 2

    100 Hz to 1 kHz
    EQ frequency range 3

    500 Hz to 5 kHz
    EQ frequency range 4

    2 kHz to 20 kHz
    EQ bypass switch

    Off / on
    OSC frequency switch

    Off / 220 Hz / 440 Hz / 880 Hz
    OSC mix level

    -∞ to unity gain
    Mixer input fader

    -∞ to unity gain
    Mixer panpot

    -∞ to unity gain, -3 dB center detent
    Master volume

    -∞ to -10 dBu
    Phones level

    -∞ to +10 dBu
    Power
    Power supply

    Eurorack
    Current draw

    120 mA (+12 V), 100 mA (-12 V)
    Physical
    Dimensions

    53 x 122 x 129 mm (2.1 x 4.8 x 5.1")
    Rack units

    24 HP
    Weight

    0.28 kg (0.62 lbs)
