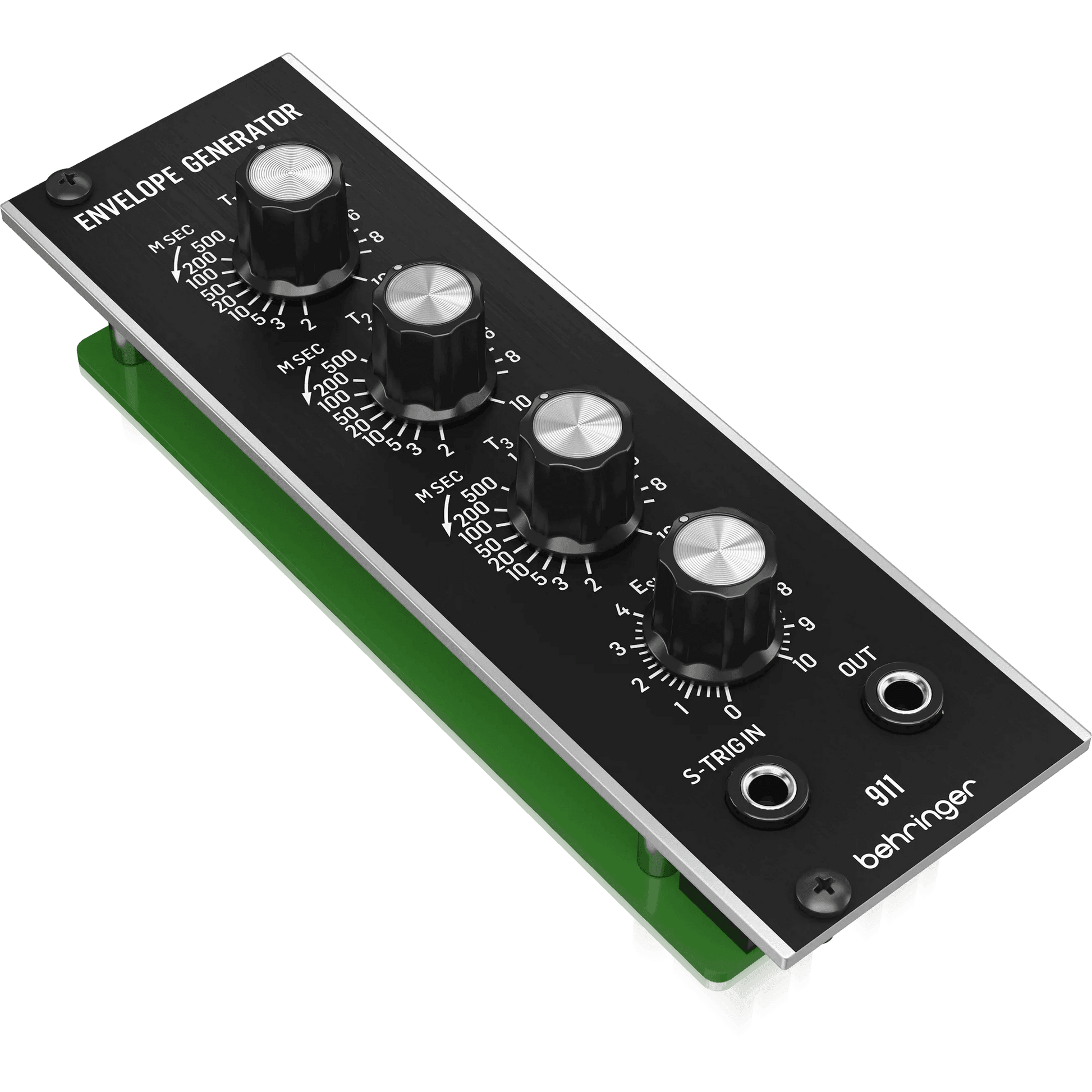

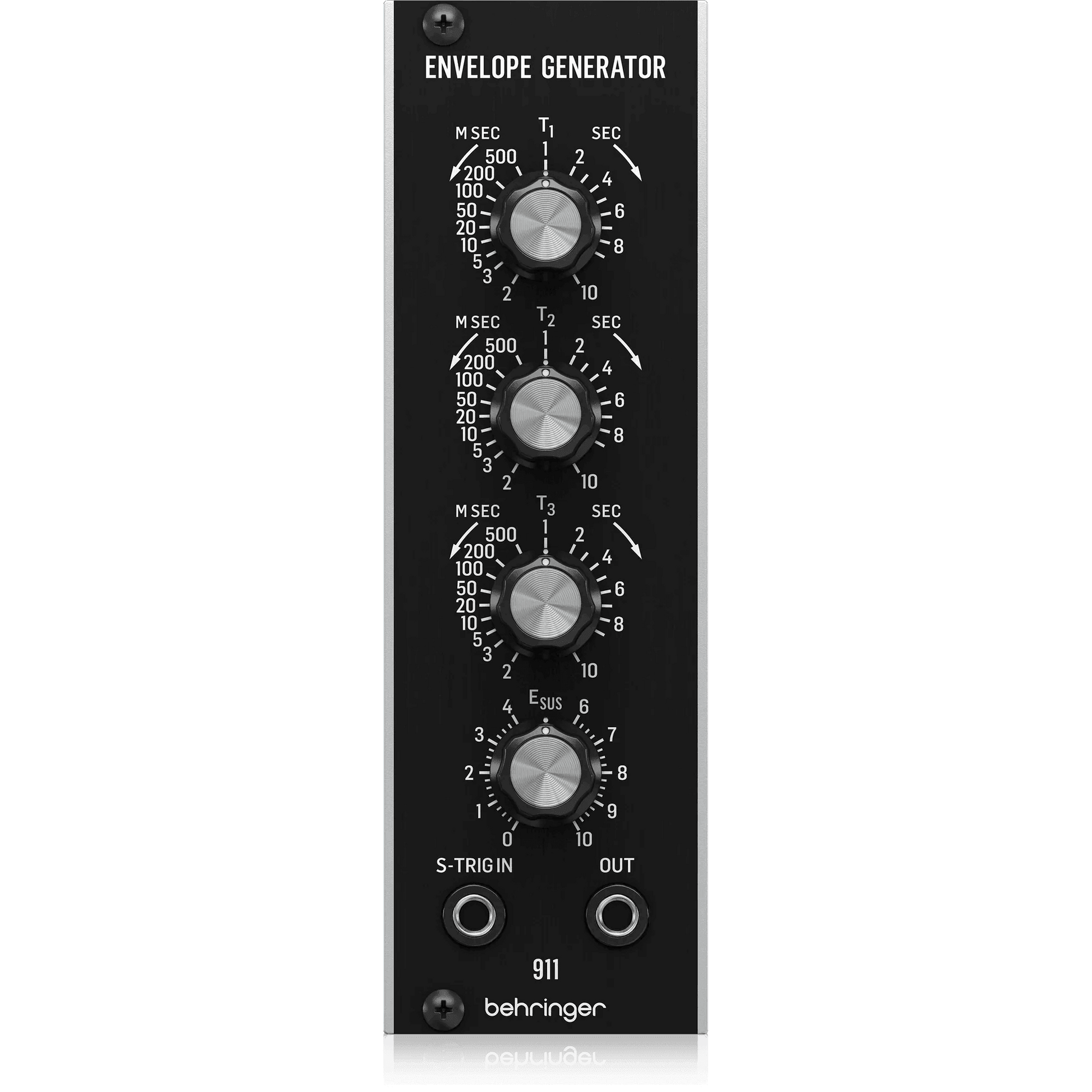

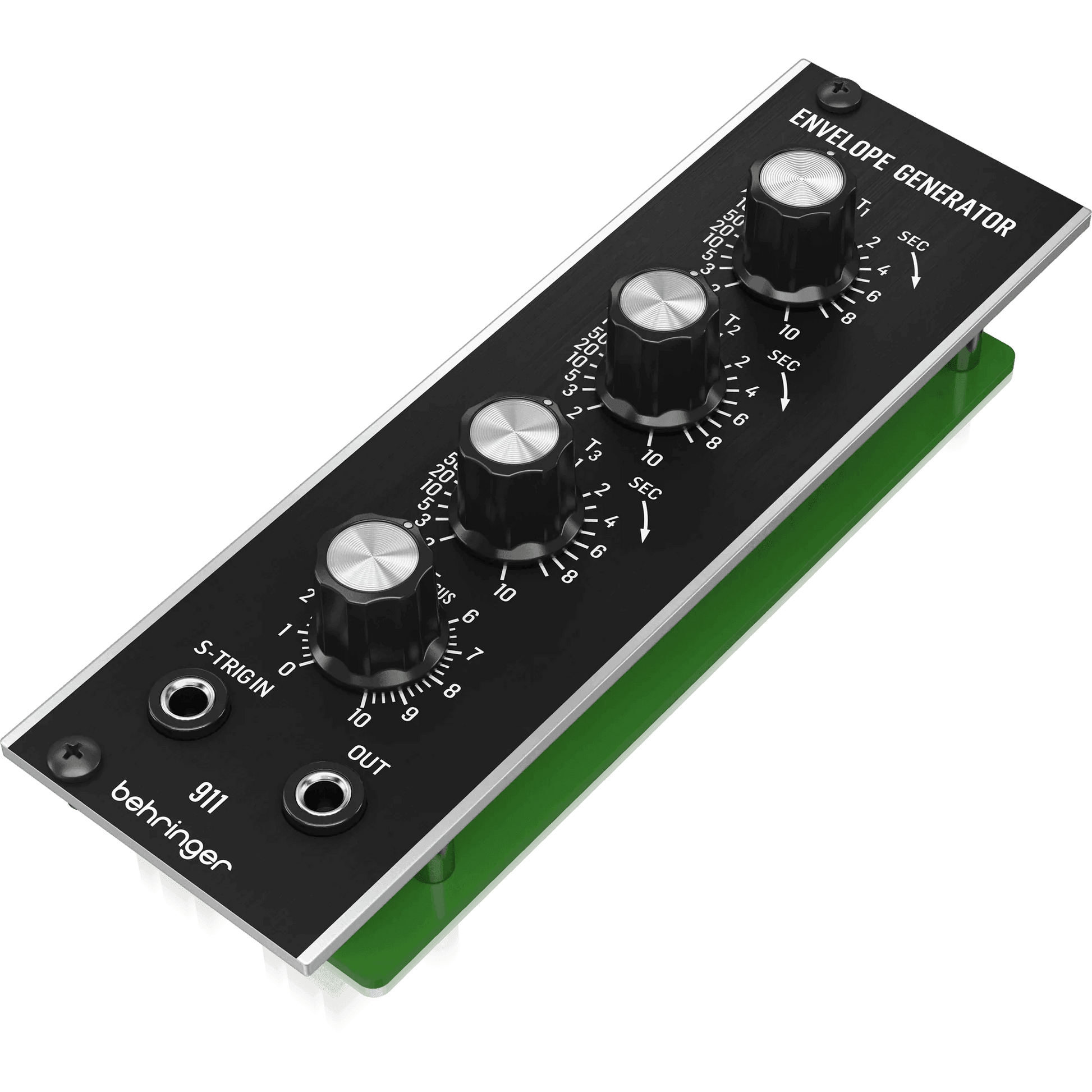

Behringer 911 ENVELOPE GENERATOR

SKU: 911 ENVELOPE GENERATOR

Log in to view price Trade pricing — AED / USD

Out of stock
  • Full Specifications

    Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information

    KEY FEATURES
    • Vintage-sounding 911 ADSR module from the '70s

    • Authentic reproduction of the circuitry from the "Modular 55, 35 & 15" Series

    • Artist roster includes world's most famous pop, rock and jazz musicians

    • Trigger in and CV out connectors for integration with your other modules

    • 4 independent controls for T1 (attack), T2 (decay), T3 (release) and sustain provide full control of envelope signal

    • Time intervals from 2 ms - 10 sec allows for both snappy percussive sounds and evolving drones

    • Eurorack specs: 8 HP, 30 mA +12 V, 30 mA -12 V


    DESCRIPTION

    The first System 55, 35 and 15 synth modules came out in the early 70s and tended to be extremely expensive. They were mainly all discrete transistor designs as op-amps at the time were very high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream and so many more, giving us some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

    SPECIFICATIONS

    Trigger Input

    Type

    3.5 mm jack, DC coupled

    Impedance

    5 kΩ, unbalanced

    Maximum input level

    +10 V

    Trigger operation

    Active low, hold low until release

    Envelope Output

    Type

    3.5 mm jack, DC coupled

    Impedance

    > 200 Ω, unbalanced

    Maximum output range

    0 V to +6 V DC

    Controls

    T1 (Attack)

    2 ms - 10 s

    T2 (Decay)

    2 ms - 10 s

    T3 (Release)

    2 ms - 10 s

    E sus (Sustain)

    0 V to +5.5 V DC

    Power

    Power supply

    Eurorack

    Current draw

    30 mA (+12 V), 30 mA (-12 V)

    Physical

    Dimensions

    35 x 40 x 129 mm (1.4 x 1.6 x 5.1")

    Rack units

    8 HP

    Weight

    0.09 kg (0.2 lbs)
