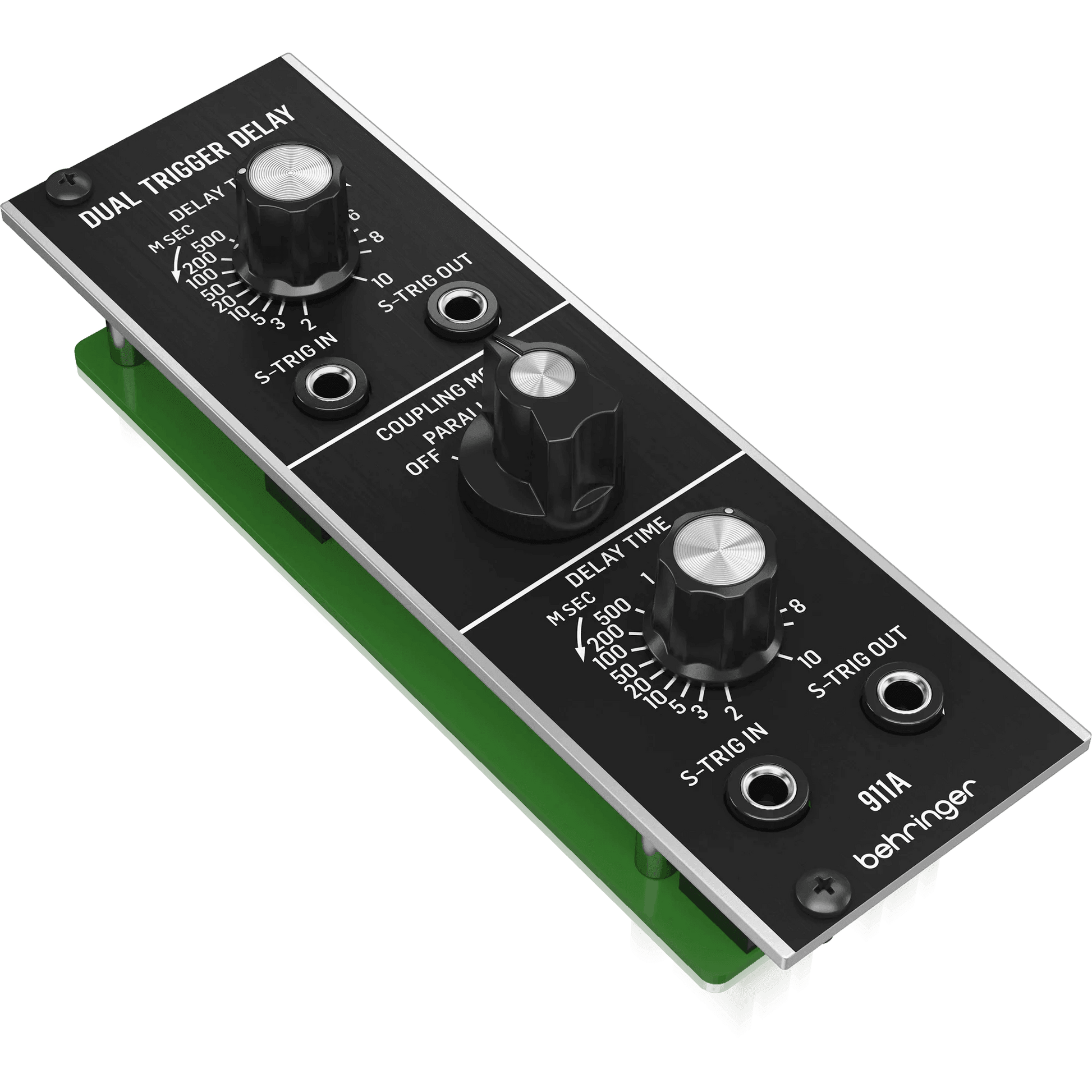

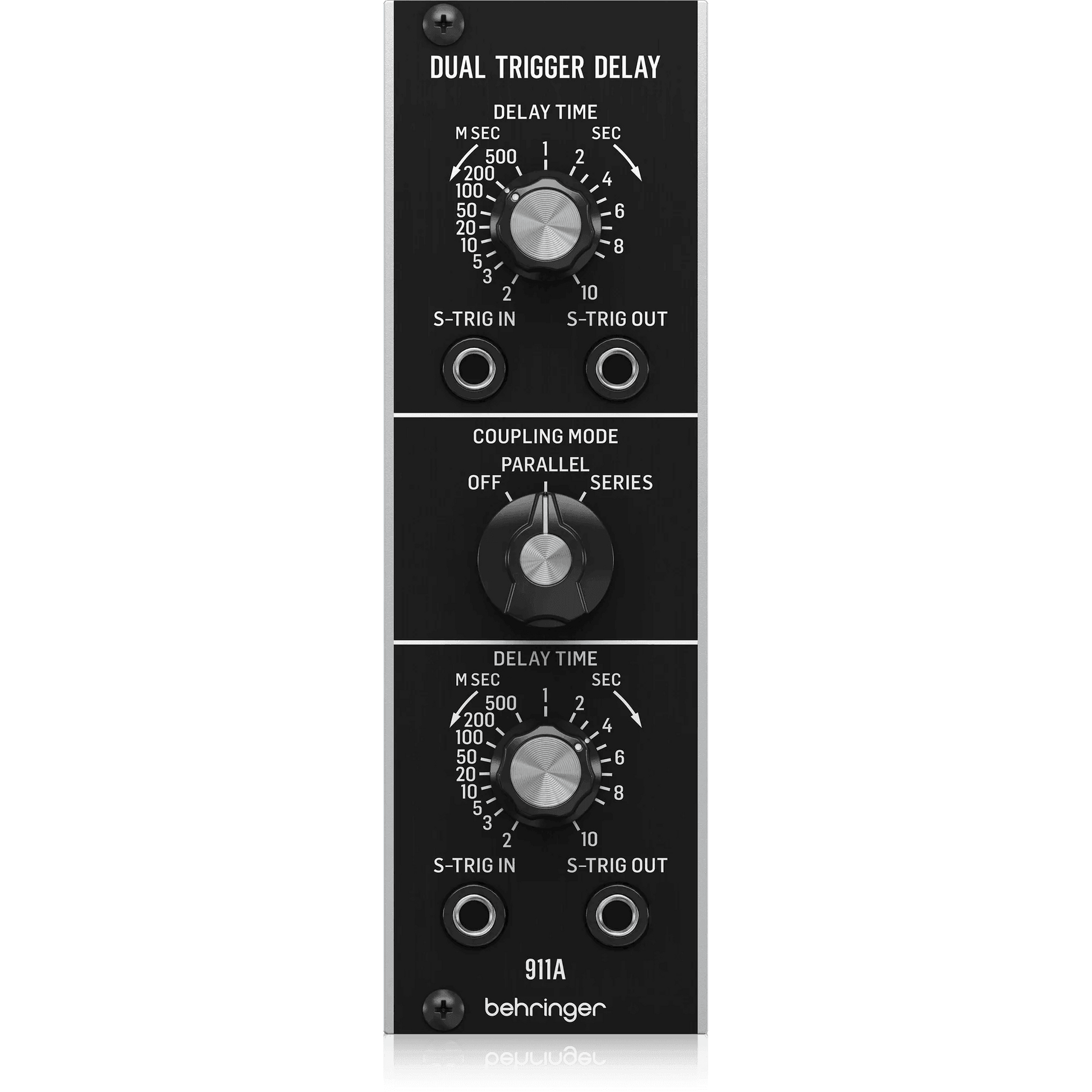

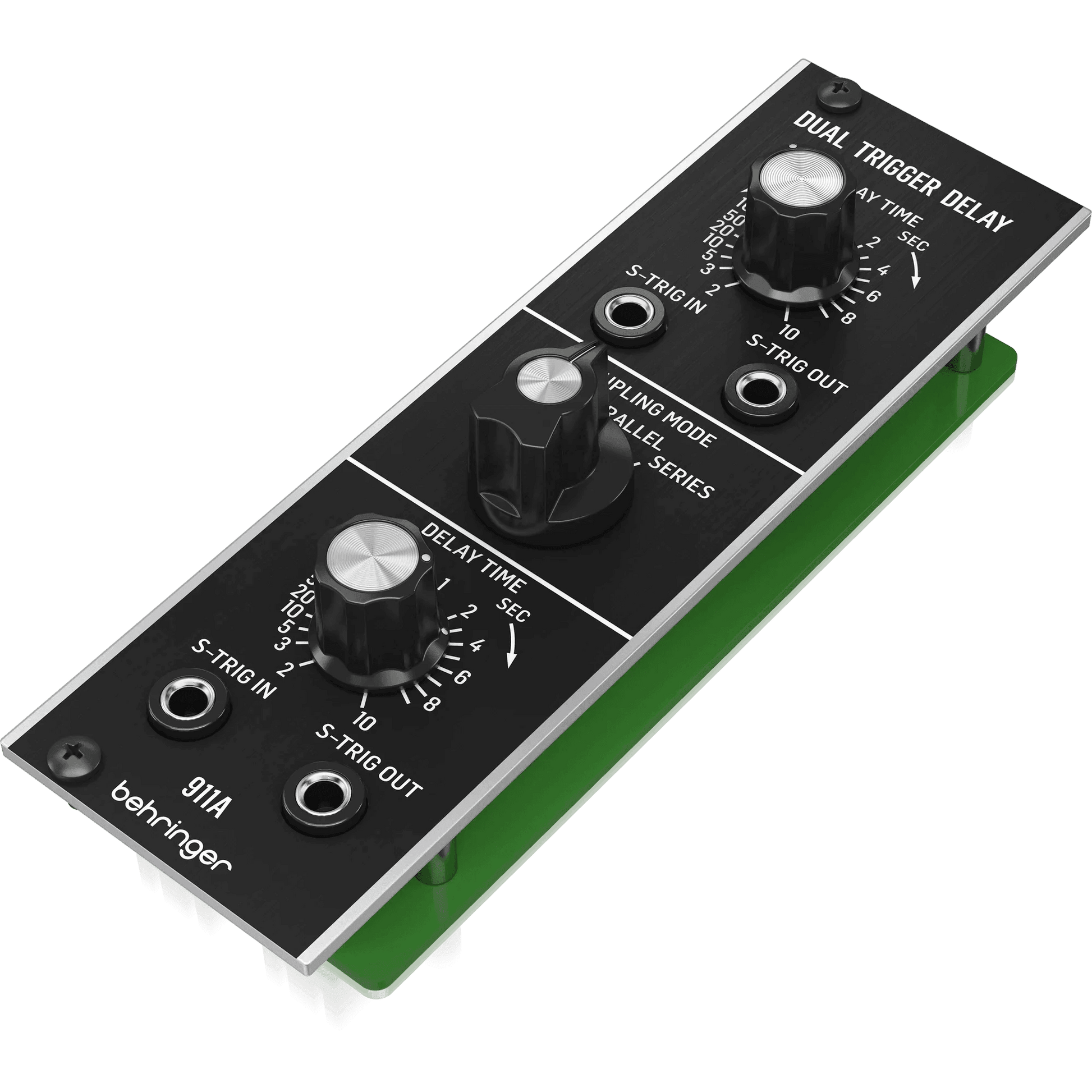

KEY FEATURESAuthentic reproduction of the circuitry from the "Modular 55" Series
Artist roster includes world's most famous pop, rock and jazz musicians
Dual trigger delay with delay times ranging from 2 ms - 10 sec
2 separate channels with dedicated S-trig inputs and outputs
Channels can be used independently, in series, or in parallel
Eurorack specs: 8 HP, 6 mA +12 V, 6 mA -12 V
DESCRIPTION
The first System 55, 35 and 15 synth modules came out in the early 70s and tended to be extremely expensive. They were mainly all discrete transistor designs as op-amps at the time were very high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream and so many more, giving us some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.
SPECIFICATIONS
|
Trigger Inputs |
|
|
Type |
3.5 mm jack, DC coupled |
|
Impedance |
9 kΩ, unbalanced |
|
Maximum input level |
+11 V |
|
Trigger operation |
Active low, hold low until delay time is completed |
|
Trigger Outputs |
|
|
Type |
3.5 mm jack, DC coupled |
|
Impedance |
20 Ω to ground when enabled, unbalanced |
|
Maximum output level |
+11 V |
|
Trigger operation |
Active low |
|
Controls |
|
|
Delay time |
2 ms - 10 s |
|
Coupling mode |
Off, parallel, series |
|
Power |
|
|
Power supply |
Eurorack |
|
Current draw |
6 mA (+12 V), 16 mA (-12 V) |
|
Physical |
|
|
Dimensions |
38 x 40 x 129 mm (1.5 x 1.6 x 5.1") |
|
Rack units |
8 HP |
|
Weight |
0.1 kg (0.22 lbs) |
