Professional 1'' gold-sputtered large-diaphragm condenser microphone for unsurpassed audio quality
Ideal as main and support microphone for studio and live applications--perfect for acoustic instruments and overhead etc.
Cardioid pickup pattern for outstanding sound source separation and feedback rejection
Pressure-gradient transducer with shock-mounted gold-sputtered large-diaphragm capsule
Switchable low-frequency roll-off and -10 dB input attenuation
Ultra low-noise transformerless FET input eliminates low-frequency distortion
Ultra-rugged construction with nickel-plated brass body

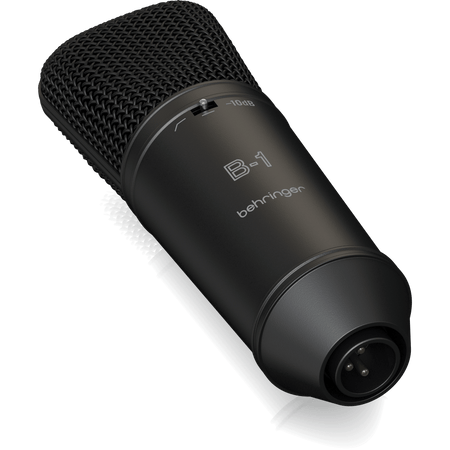

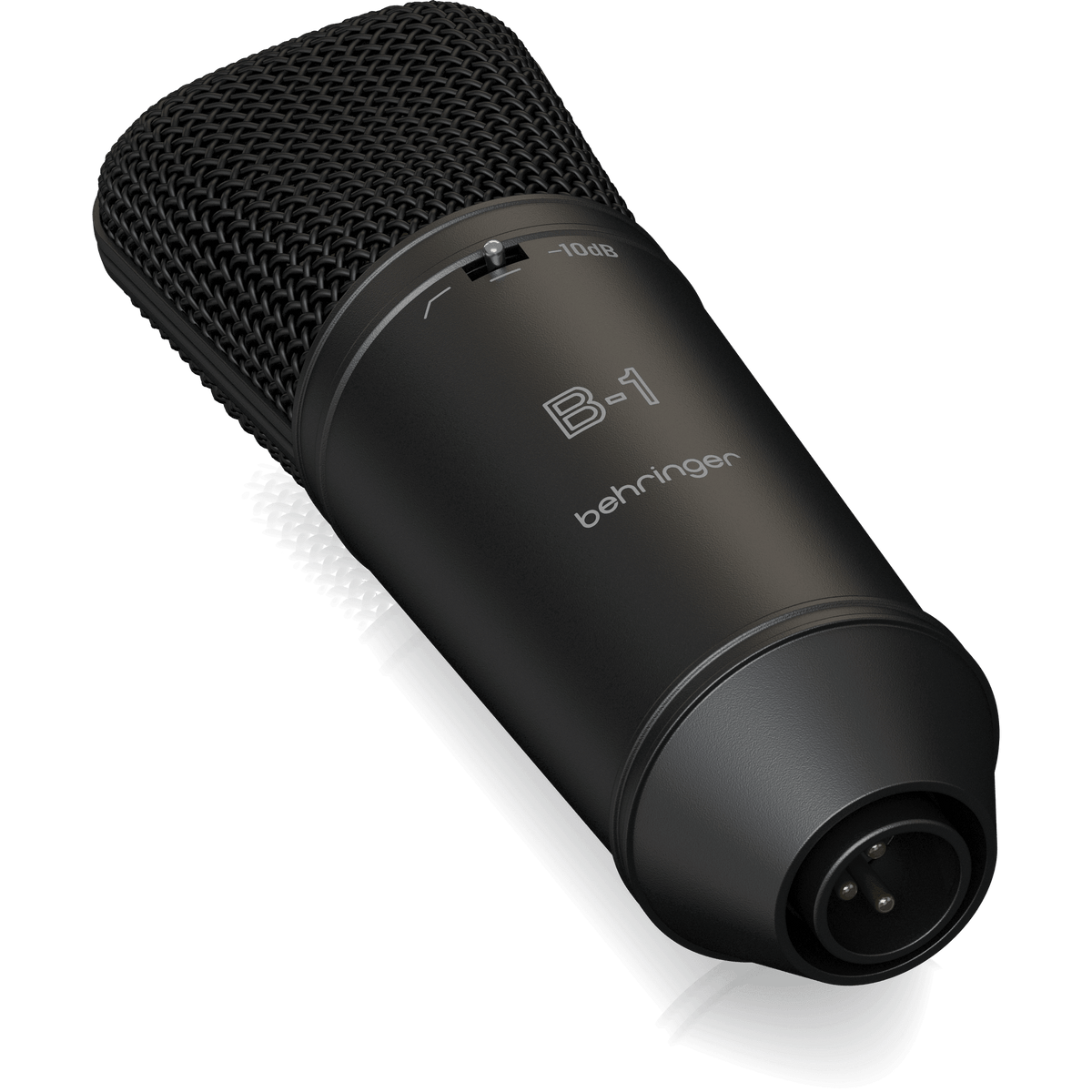

Gold-plated 3-pin XLR output connector for perfect signal transmission

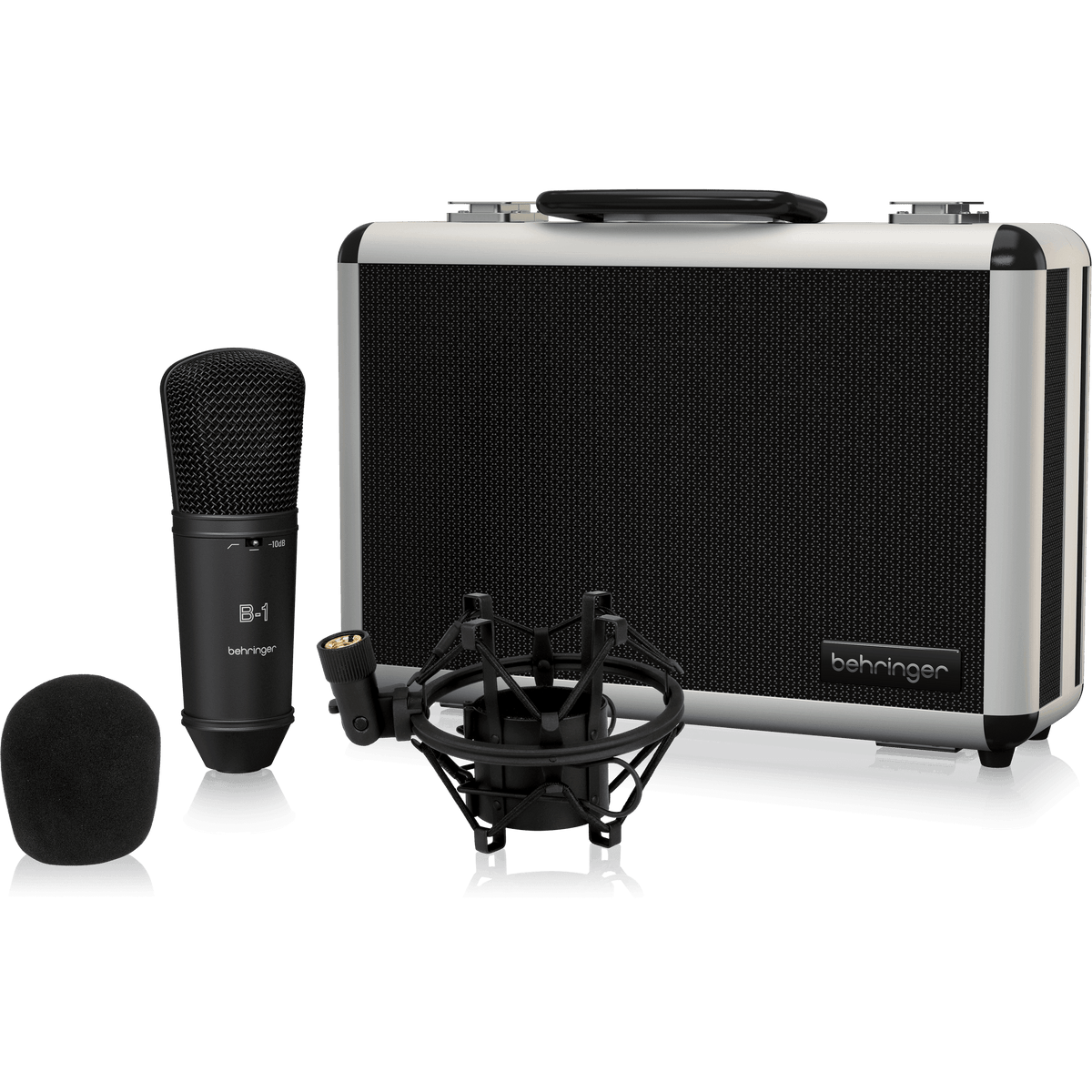

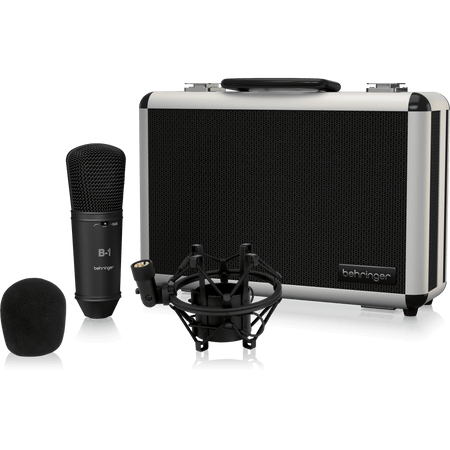

Heavy-duty suspension mount, windscreen and aluminum transport case included
Discover great audio quality with the B-1 DARK EDITION, designed to capture transparent vocals, acoustic instruments, and voice overs. This microphone delivers exceptional audio recordings and can be used as a main or support mic for studio/live applications. The B-1 DARK EDITION has a range of user-friendly features, including:
The B-1 DARK EDITION has everything you need to elevate your audio game. Best of all, it's available at an affordable price, so you can get the most out of your investment.
| Specification | Value |
|---|---|
| Transducer Type | Condenser, 1" single diaphragm |
| Operating Principle | Pressure gradient |
| Polar Pattern | Cardioid |
| Connection | Gold-plated balanced XLR connector |
| Open Circuit Voltage @ 1 kHz | -34 ±2 dBV (0 dBV = 1 V/Pa) |
| Open Circuit Sensitivity | 20 mV/Pa |
| Frequency Range | 20 Hz – 20 kHz |
| Level Attenuation | -10 dB (switchable) |
| Low-Cut Filter | 6 dB/Octave at 75 Hz (switchable) |
| Max. SPL (1% THD @ 1 kHz) | 138 dB (0 dB), 148 dB (-10 dB) |
| Equivalent SPL (IEC 268-4) | 13 dB-A |
| Signal-to-Noise Ratio (re 1 Pa) | 81 dB A-weighted |
| Nominal Impedance | 50 Ω |
| Load Impedance > | 1 kΩ |
| Supply Voltage | +48 V |
| Supply Current | 3 mA |
