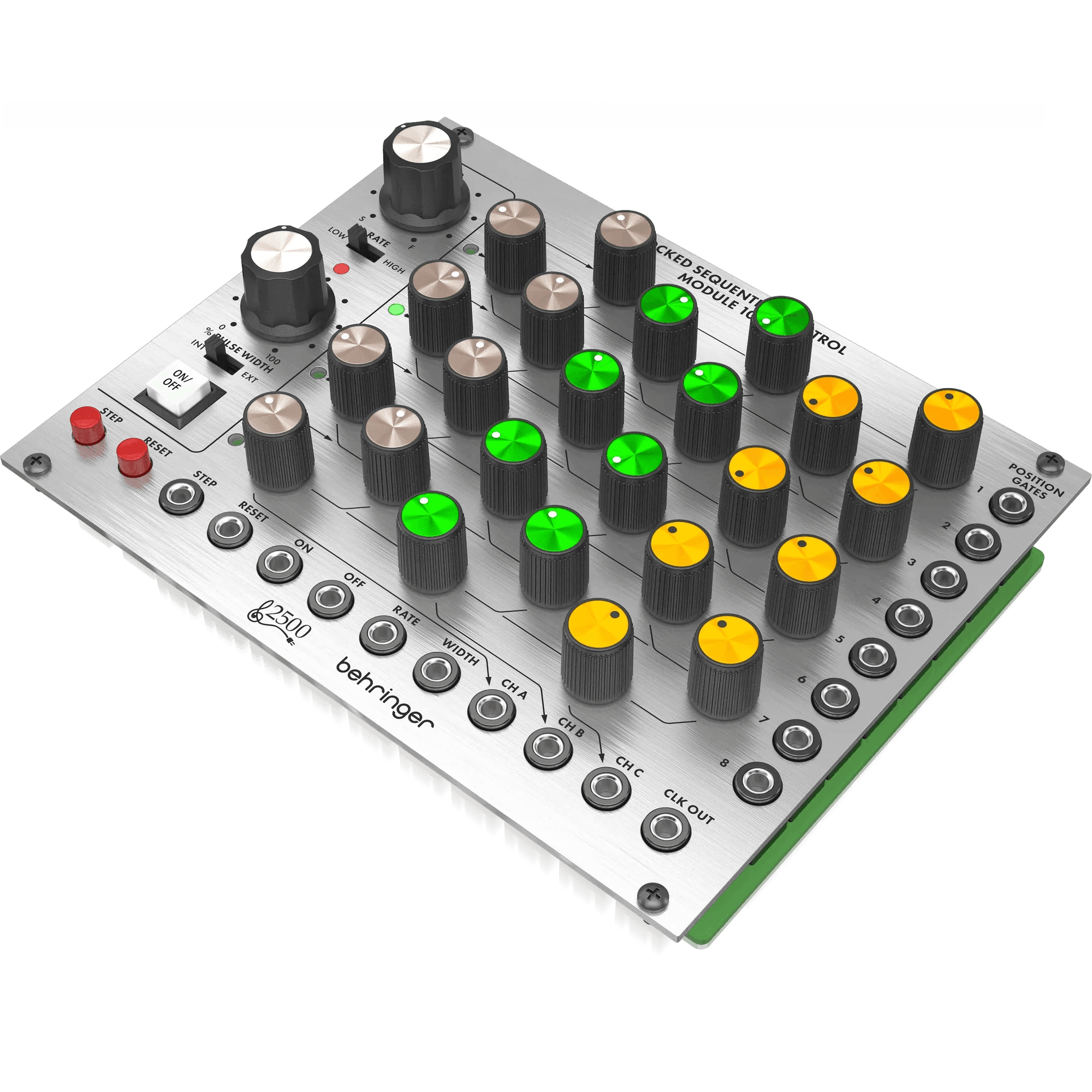

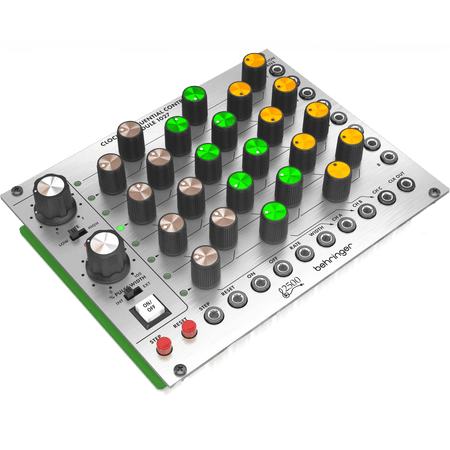

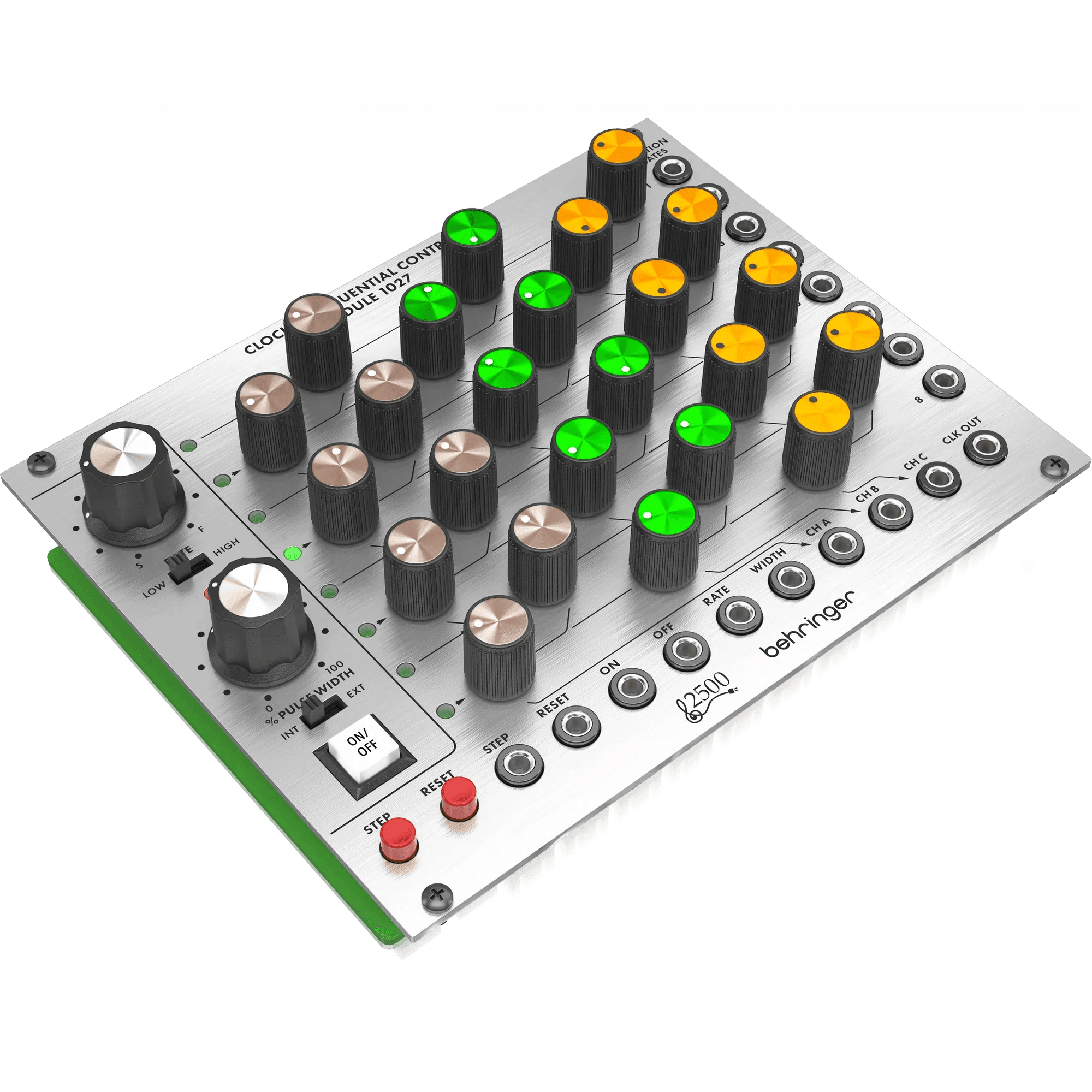

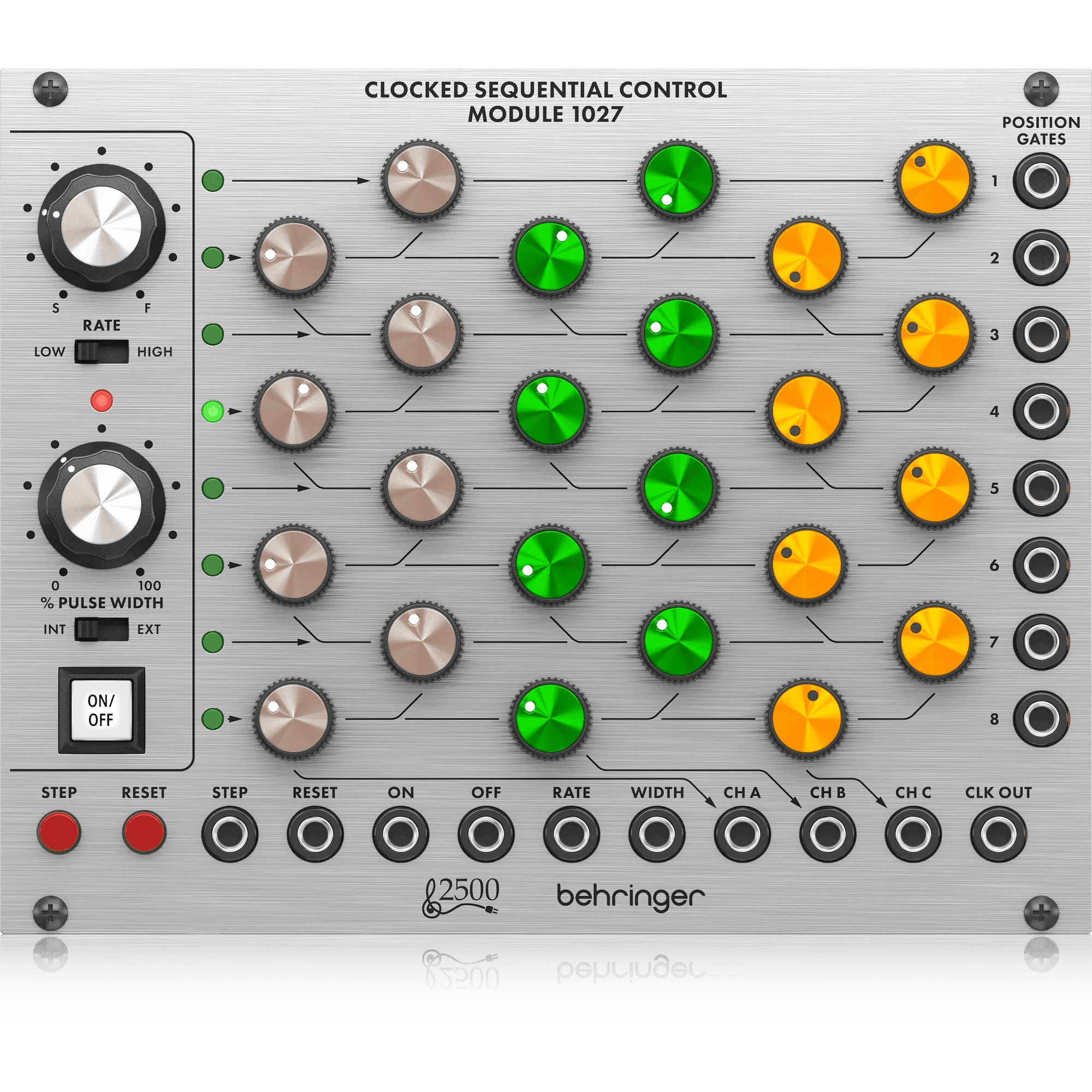

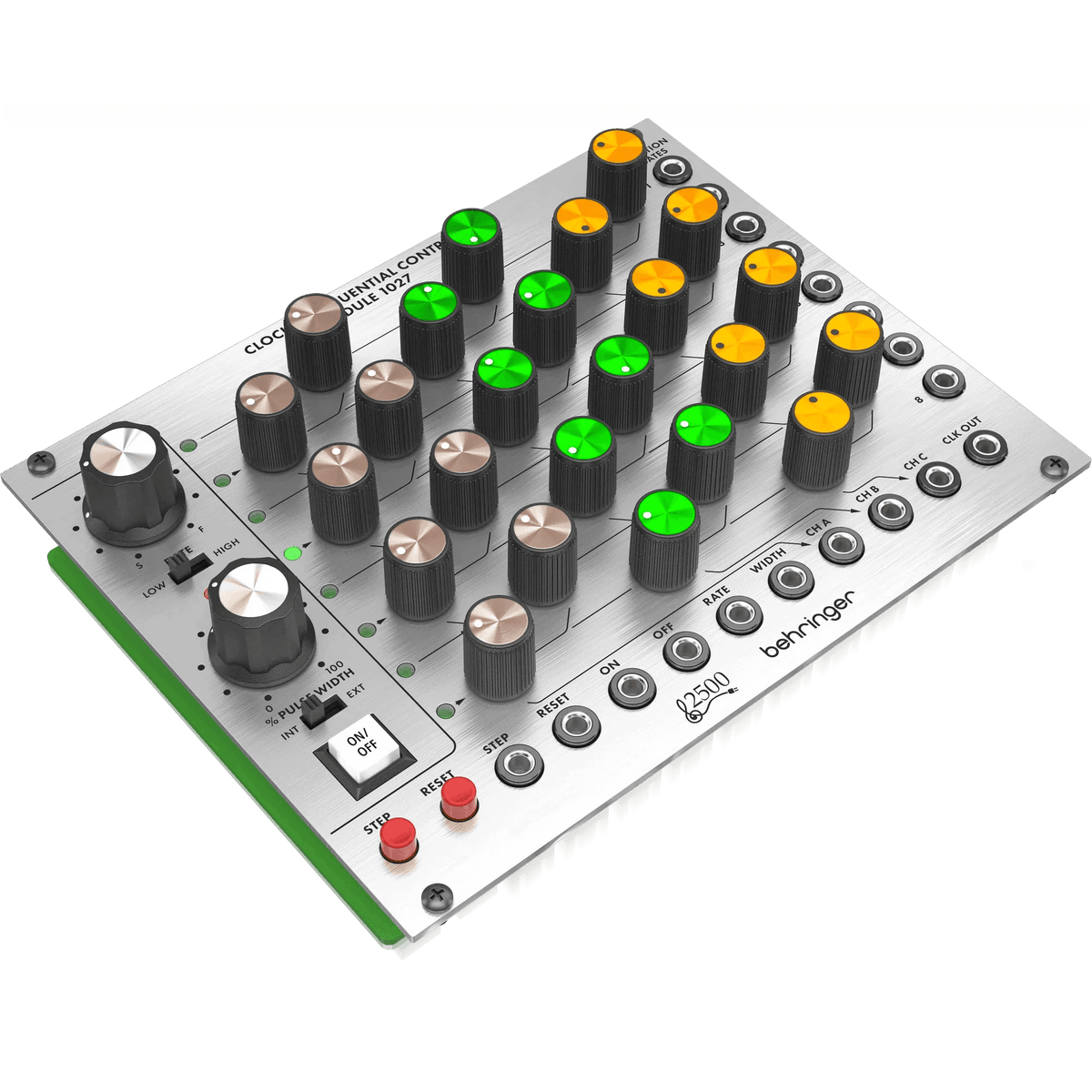

Behringer CLOCKED SEQUENTIAL CONTROL MODULE 1027
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Classic 1027 clocked sequential controller module from the '70s
- Authentic reproduction of the circuitry from the "2500" Series
- Contains an integrated circuit 8-step counter and 3 channels (A, B and C) of control voltages
- 8 rows of 3 controls provide 3 independently adjustable voltage outputs for each step of the counter
DESCRIPTION
This is the Behringer 2500 series CLOCKED SEQUENTIAL CONTROL MODULE 1027. An authentic reproduction of the original “System 2500” circuitry from the 70s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the CLOCKED SEQUENTIAL CONTROL MODULE 1027 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
SPECIFICATIONS
Inputs
On / of
Type
2 x 3.5 mm TS jacks, DC coupled
Impedance
100 KΩ, unbalanced
Maximum input level
10 V
Minimum switching threshold
2.5 V, trigger
Rate
Type
1 x 3.5 mm TS jack, DC coupled
Impedance
100 KΩ, unbalanced
Maximum input level
10 V, 1 V/oct.
Width
Type
1 x 3.5 mm TS jack, DC coupled
Impedance
100 KΩ, unbalanced
Maximum input level
10 V
Step/Reset
Type
2 x 3.5 mm TS jacks, DC coupled
Impedance
100 KΩ, unbalanced
Maximum input level
10 V
Minimum switching threshold
2.5 V
Outputs
Ch A / B / C
Type
3 x 3.5 mm TS jacks, DC coupled
Impedance
1 KΩ, unbalanced
Maximum output level
10 V
Clock out
Type
1 x 3.5 mm TS jacks, DC coupled
Impedance
1 KΩ, unbalanced
Maximum output level
5 V
Power
Power supply
Eurorack
Current draw
70 mA (+12 V), 30 mA (-12 V)
Physical
Dimensions
43 x 162 x 129 mm (1.7 x 6.4 x 5.1")
Rack units
32 HP
Weight
0.37 kg (0.81 lbs)
