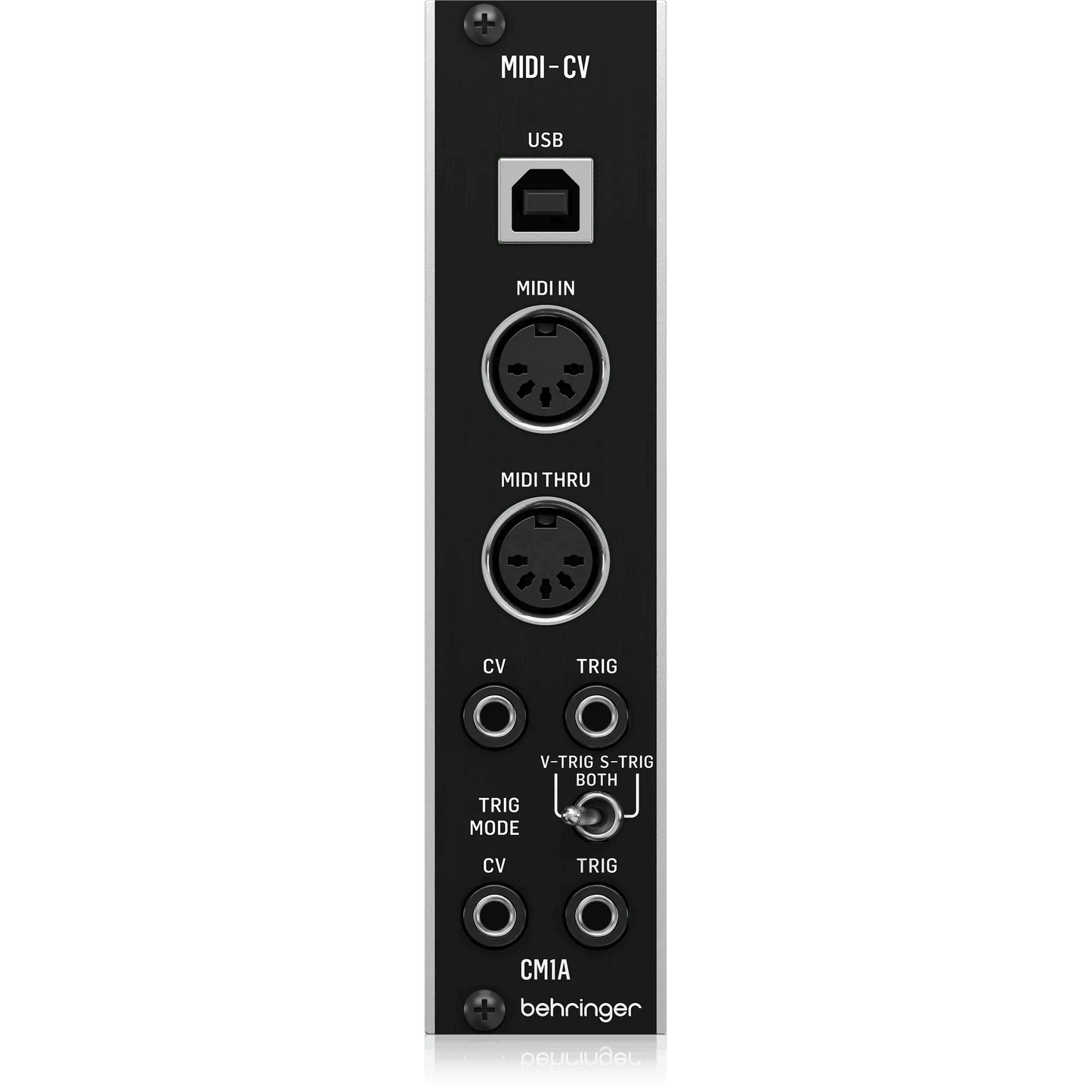

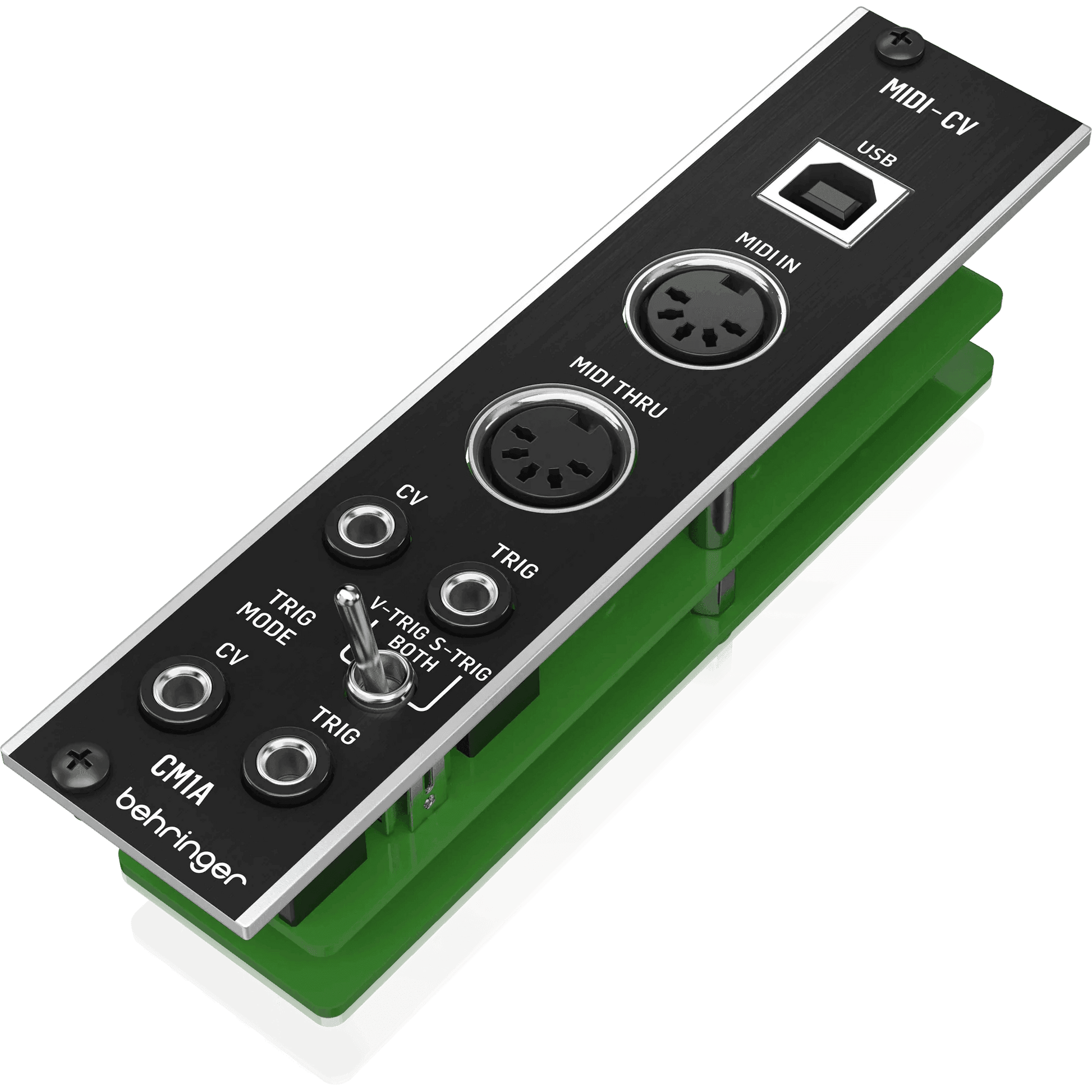

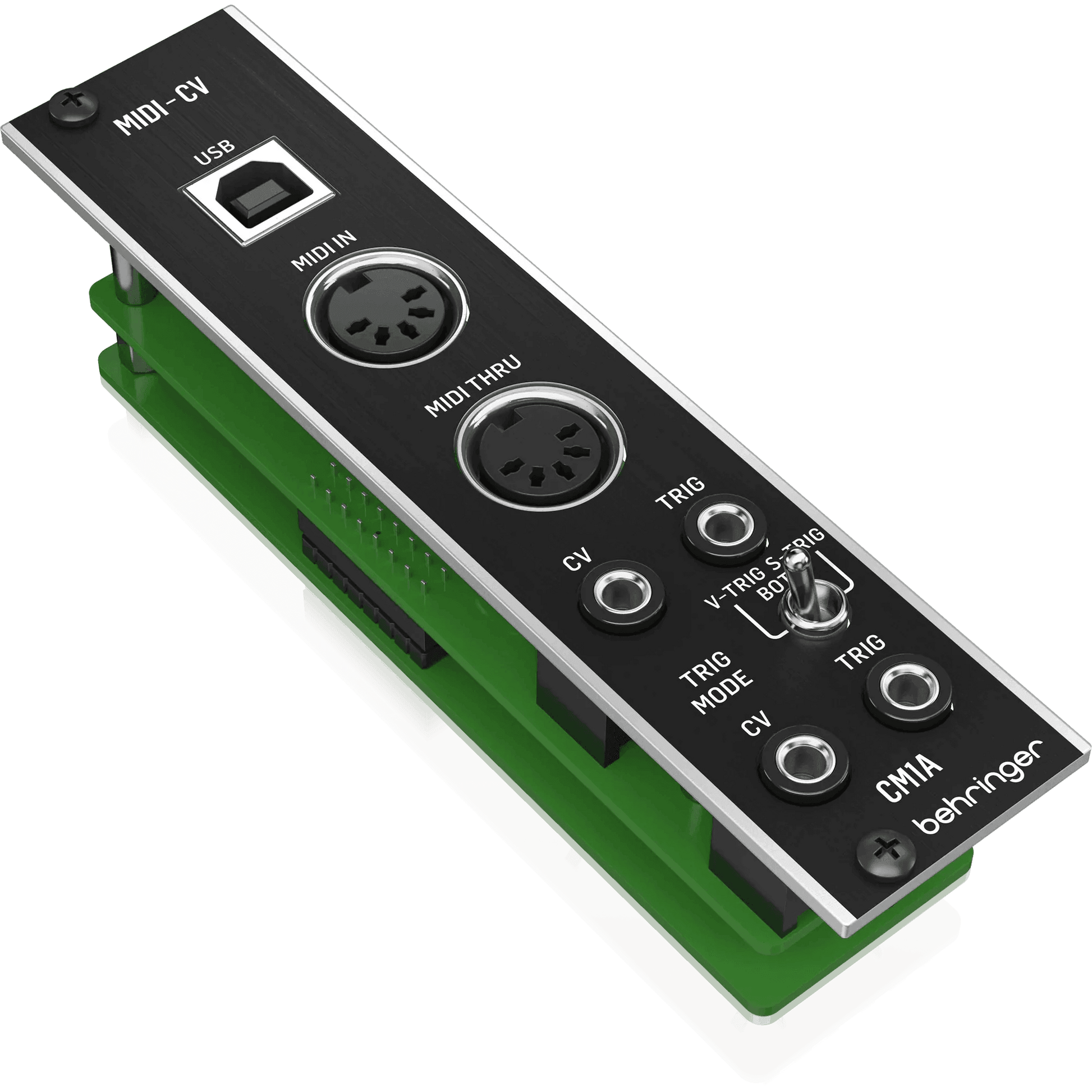

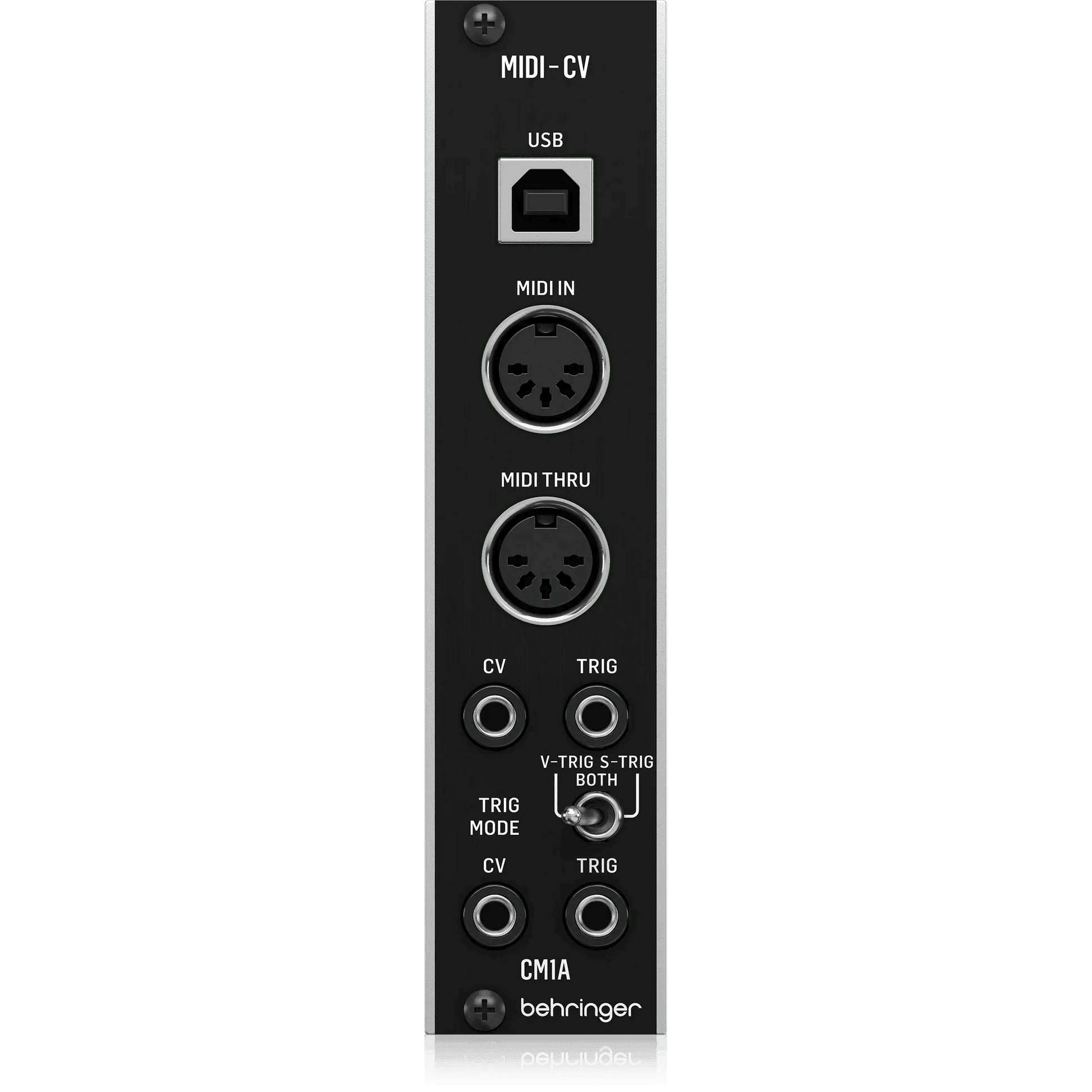

Behringer CM1A
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
Converts MIDI signals to analog control voltages for modular synthesizers
-
High-resolution 16-Bit Texas Instruments DAC for high resolution and pitch accuracy
-
Enables modular synthesizers to be controlled by a MIDI keyboard, sequencer or DAW
-
Dual trigger outputs can be used to control envelope generators
-
Select between V-trigger, S-trigger or both for maximum flexibility
-
Eurorack specs: 6 HP, 70 mA +12 V, 10 mA -12 V
DESCRIPTIONThe first SYSTEM 55, 35 and 15 synth modules came out in the early '70s and tended to be extremely expensive. They were mainly all discrete transistor designs as op-amps at the time were very high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream and so many more, giving us some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.
SPECIFICATIONSOutputs
CV
Type
2 x 3.5 mm TS jack, DC coupled
Impedance
100 Ω
Max output level
-6.3 V to +10 V
CV range, System 100, 2500 series mode
-1 V to +9 V, 1 V/octave
CV range, System 15, 35, 55 mode
-5.3 V to +4.7 V, 1 V/octave
CV modes
Monophonic, duophonic
Trig
Type
2 x 3.5 mm TS jack, DC coupled
Impedance
25 Ω
Max output level
+5 V when in V-Trig mode,
S-Trig = pull down to 0 VTrig modes
V-Trig, S-Trig, both: upper = S-Trig, lower = V-Trig
MIDI
Type
- 2 x 5-pin DIN
- MIDI IN and MIDI THRU
- MIDI Channel (1 to 16) set via SynthTribe tool
USB
Type
USB 2.0, Type B
Mode select (rear panel)
Mode 1, underside LEDs = red/red
System 15, 35, 55 CV range, monophonic
Mode 2, underside LEDs = green/red
System 100, 2500 series CV range, monophonic
Mode 3, underside LEDs = red/green
System 15, 35, 55 CV range, duophonic
Mode 4, underside LEDs = green/green
System 100, 2500 series CV range, duophonic
Power
Power supply
Eurorack
Current draw
0 mA (+12 V),
10 mA (-12 V)Physical
Dimensions
30 x 129x 520 mm
(1.18 x 5.08 x 20.47")Rack units
6 HP
Weight
0.09 kg (0.19 lbs)
-
