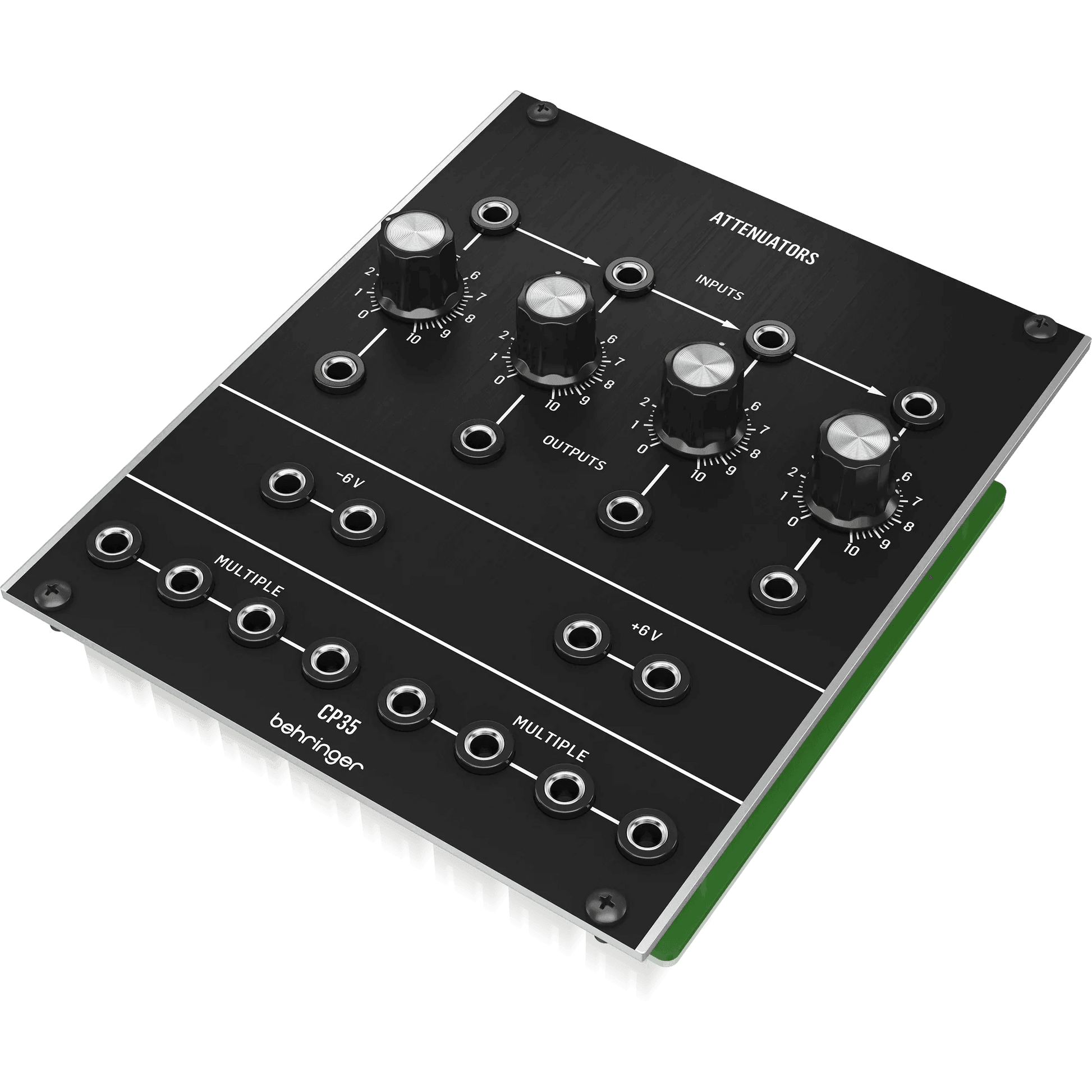

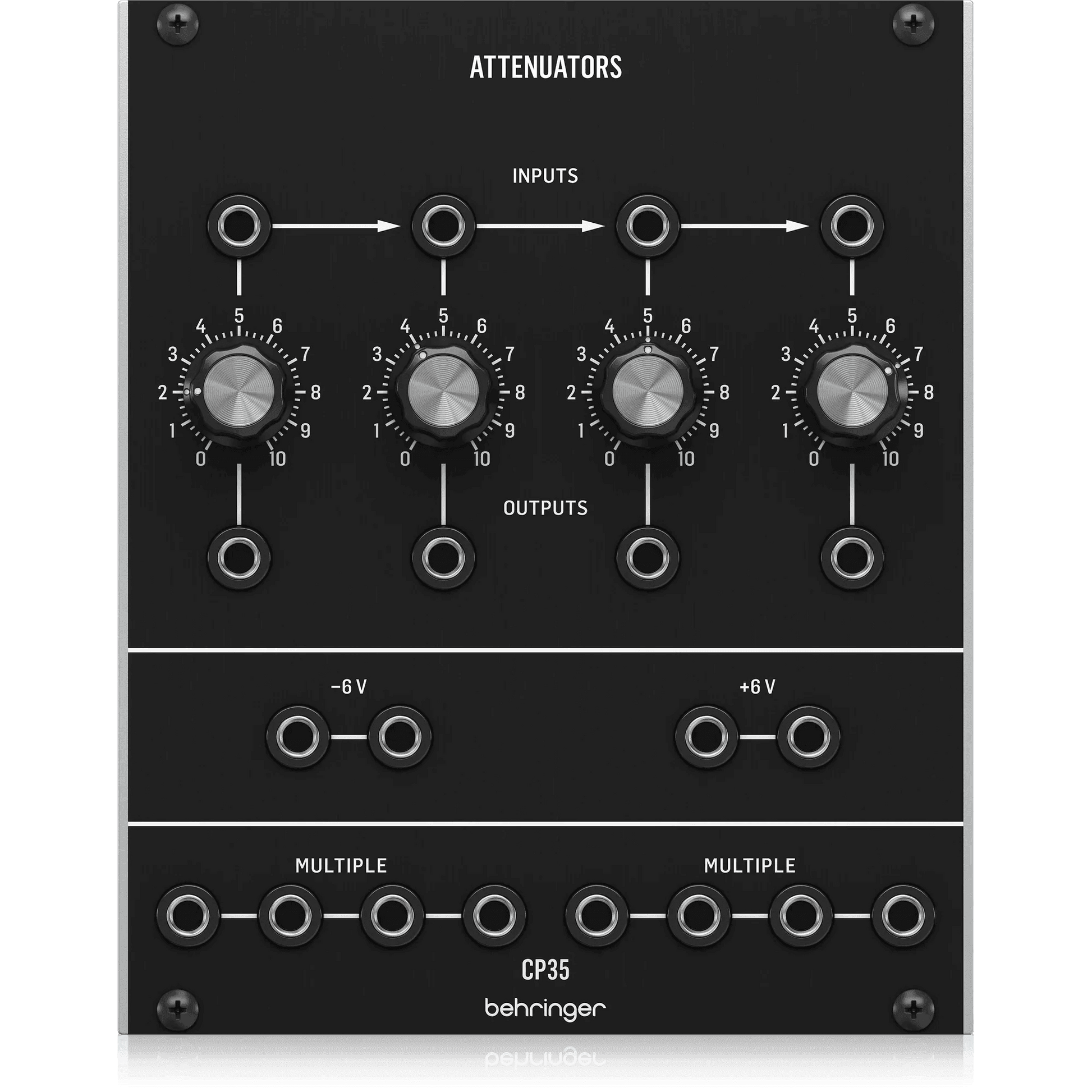

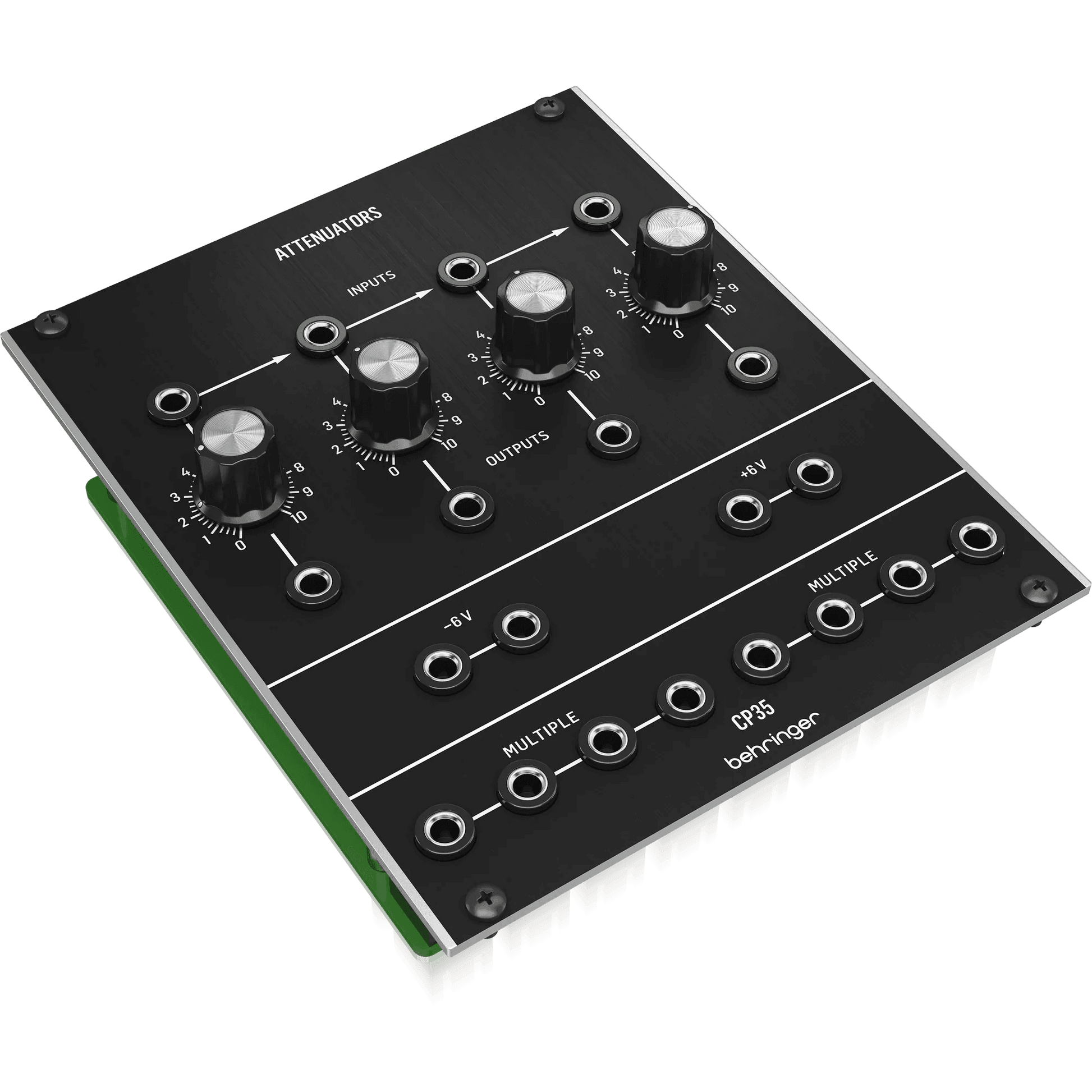

KEY FEATURESAuthentic reproduction of the circuitry from the "Modular 55 & 35" Series
Artist roster includes world's most famous pop, rock and jazz musicians
4 passive attenuators with linked inputs
Fixed +/-6 Volt CV reference voltage with 2 linked outputs each
Dual 4-socket multiples for splitting CV or audio signals to multiple destinations
Eurorack specs: 21 HP, 1 mA +12 V, 1 mA -12 V
DESCRIPTION
The first System 55, 35 and 15 synth modules came out in the early 70s and tended to be extremely expensive. They were mainly all discrete transistor designs as op-amps at the time were very high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like Keith Emerson, Stevie Wonder, Tangerine Dream and so many more, giving us some of the greatest records we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.
SPECIFICATIONS
|
Controls |
|
|
Attenuators |
4 x passive rotary attenuators |
|
Signal Input |
|
|
Type |
4 x 3.5 mm jack, half normalled, DC coupled |
|
Impedance |
< 25 kΩ, unbalanced |
|
Maximum input level |
+20 dBu |
|
Signal Output |
|
|
Type |
4 x 3.5 mm jack, DC coupled |
|
Impedance |
< 25 kΩ, unbalanced |
|
Maximum output level |
+20 dBu |
|
Multiples |
|
|
Type |
8 x 3.5 mm TS mono jacks, unbalanced |
|
Arrangement |
2 sets of 4 parallel jacks, passive |
|
Compatibility |
CV and audio signals |
|
6 V Voltage References |
|
|
Negative 6 V output |
2 x 3.5 mm jack, linked |
|
Positive 6 V output |
2 x 3.5 mm jack, linked |
|
Impedance |
5 kΩ |
|
Power |
|
|
Power supply |
Eurorack |
|
Current draw |
1 mA (+12 V), 1 mA (-12 V) |
|
Physical |
|
|
Dimensions |
106 x 129 x 35 mm (4.2 x 5.1 x 1.4") |
|
Rack units |
21 HP |
|
Weight |
0.18 kg (0.40 lbs) |
