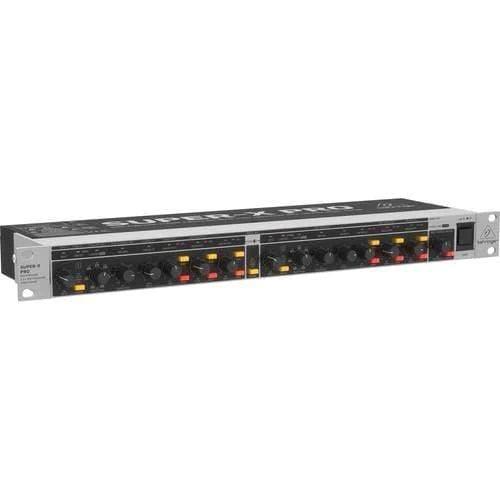

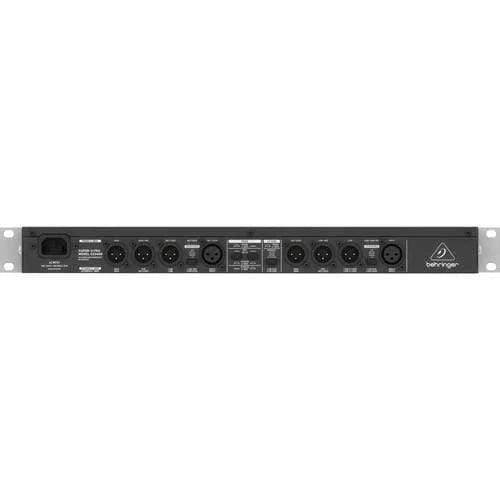

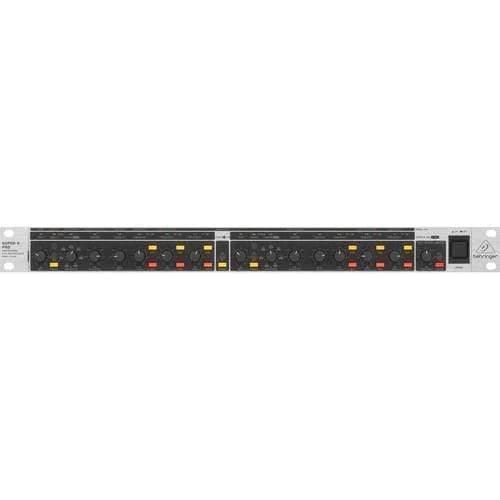

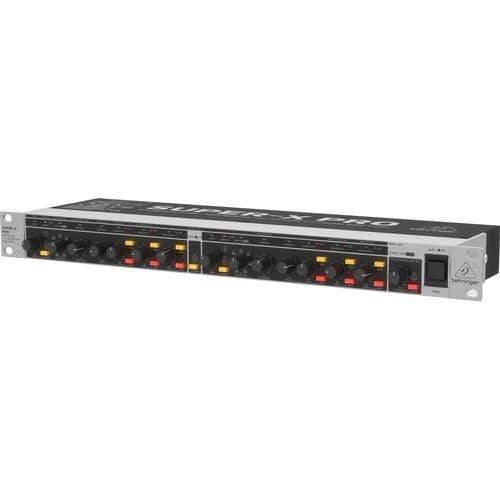

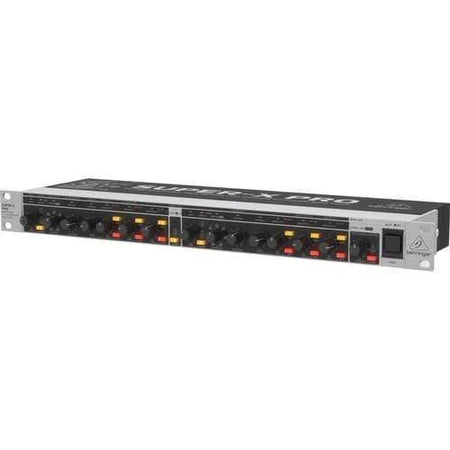

Behringer CX3400V2 Crossover 3way stereo/4way mono/Limiter/Sub Out

Achieve top-notch frequency separation with the Behringer Super-X Pro CX3400 V2. This crossover boasts stereo 2-way, stereo 3-way, and mono 4-way modes, along with state-of-the-art 24dB/octave Linkwitz-Riley filters. Benefit from superior loudspeaker protection, thanks to individual limiters on each output, as well as Delay controls for driver phase alignment. CD horn correction supplies constant-directivity compensation, while a low-frequency output summing function provides mono output for your subwoofer. Beyond that, the CX3400 gives you individual output Gain controls for all bands, individual output Mute switches for band adjustment, individual phase reverse switches for solving polarity issues, a 25Hz low cut filter, and an internal switch-mode power supply.

Behringer Super-X Pro CX3400 V2 Crossover Features:

• Professional stereo 2-way/3-way/mono 4-way crossover featuring state-of-the-art Linkwitz-Riley filters with 24 dB/octave

• Individual Limiters on each output for optimal loudspeaker protection

• Adjustable time delay for phase alignment between drivers

• CD horn equalization for constant directivity horn compensation

• Absolutely flat summed amplitude response, zero phase difference

• "Low Sum" function provides mono output for subwoofer operation

• Individual output Gain controls for all bands

• Individual output Mute switches for easy band adjustment

• Individual Phase reverse switches for instant phase correction

• Switchable 25 Hz Low cut filter on each input for low-frequency driver protection

• Servo-balanced and gold-plated XLR connectors for all inputs and outputs

• Ultra-high precision potentiometers for ultimate accuracy and repeatability

Tech Specs
