  • Behringer DI20 Direct Injection Box Active 2 CH
1 of 1

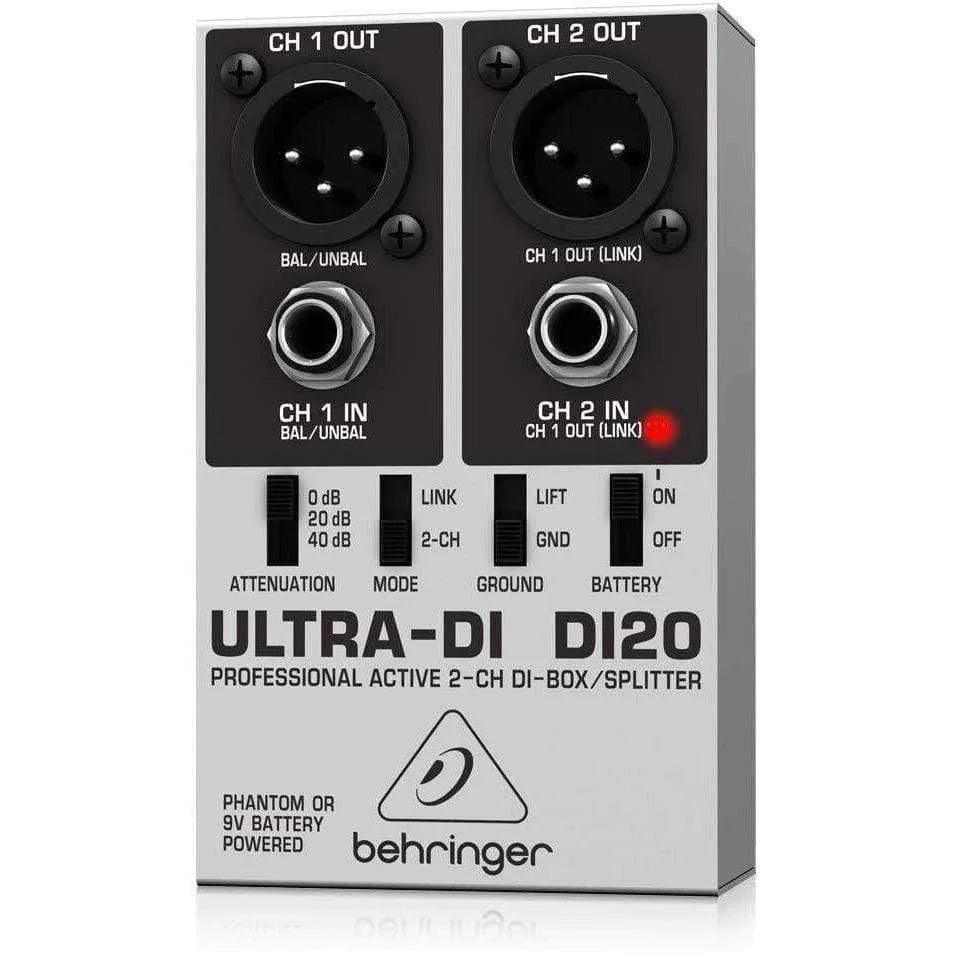

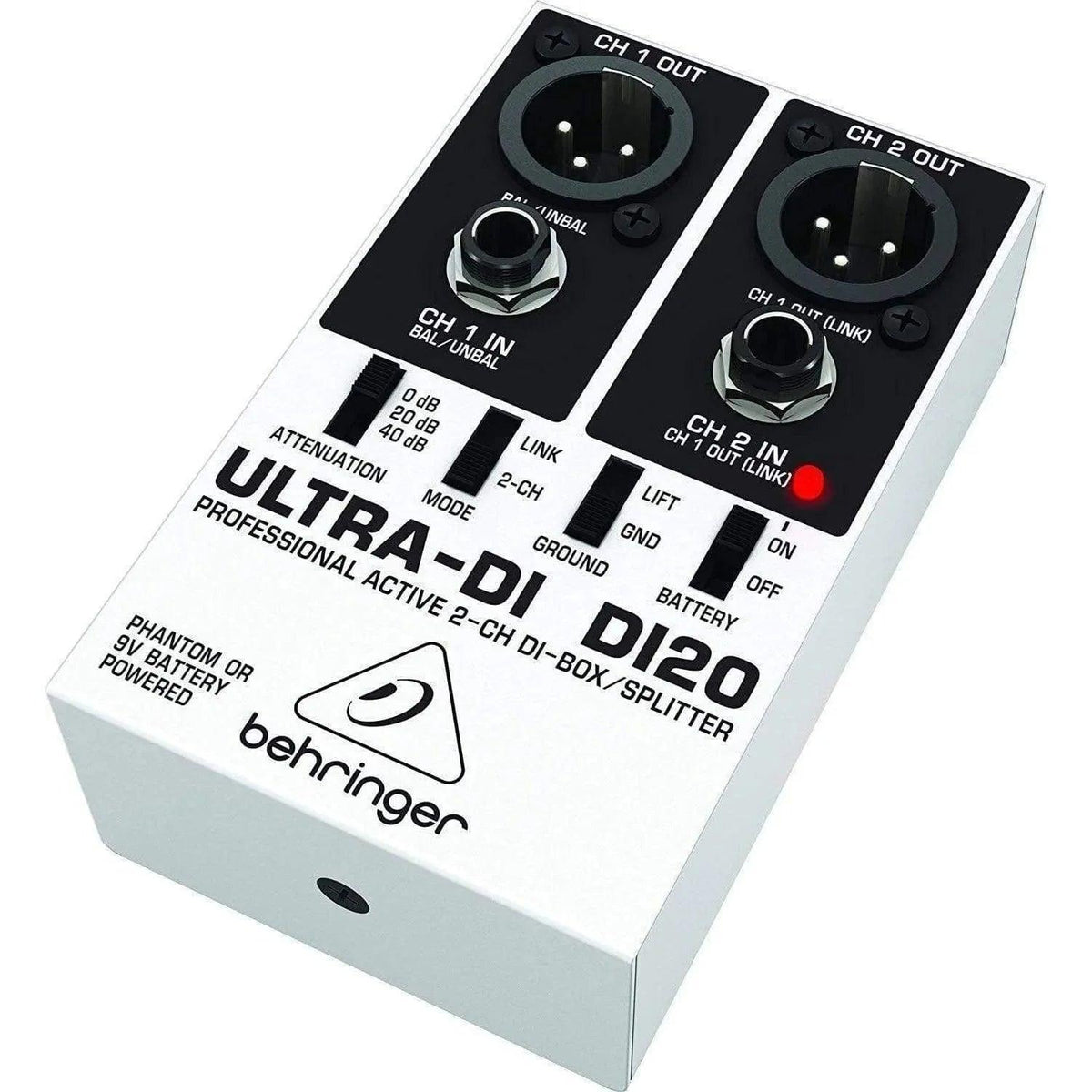

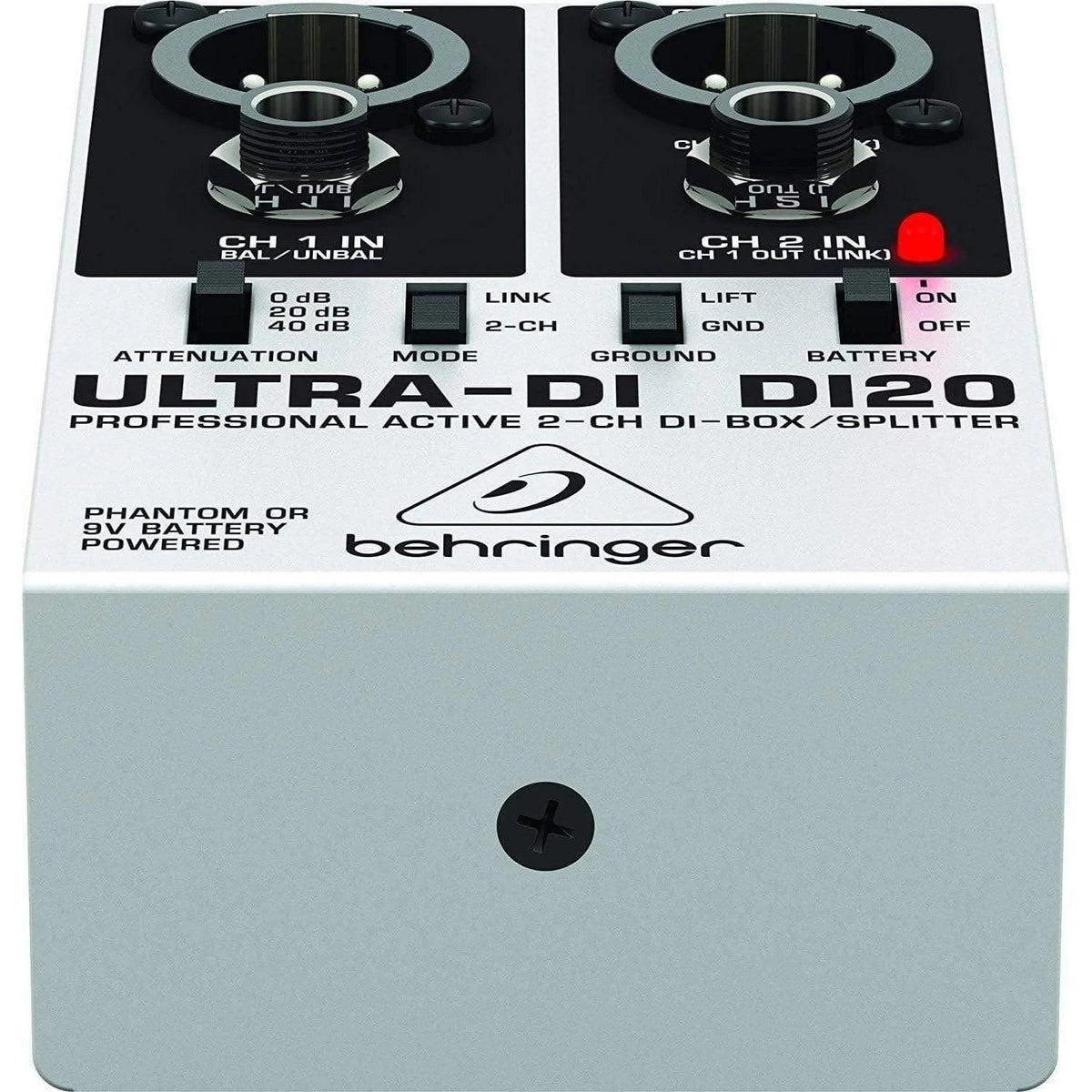

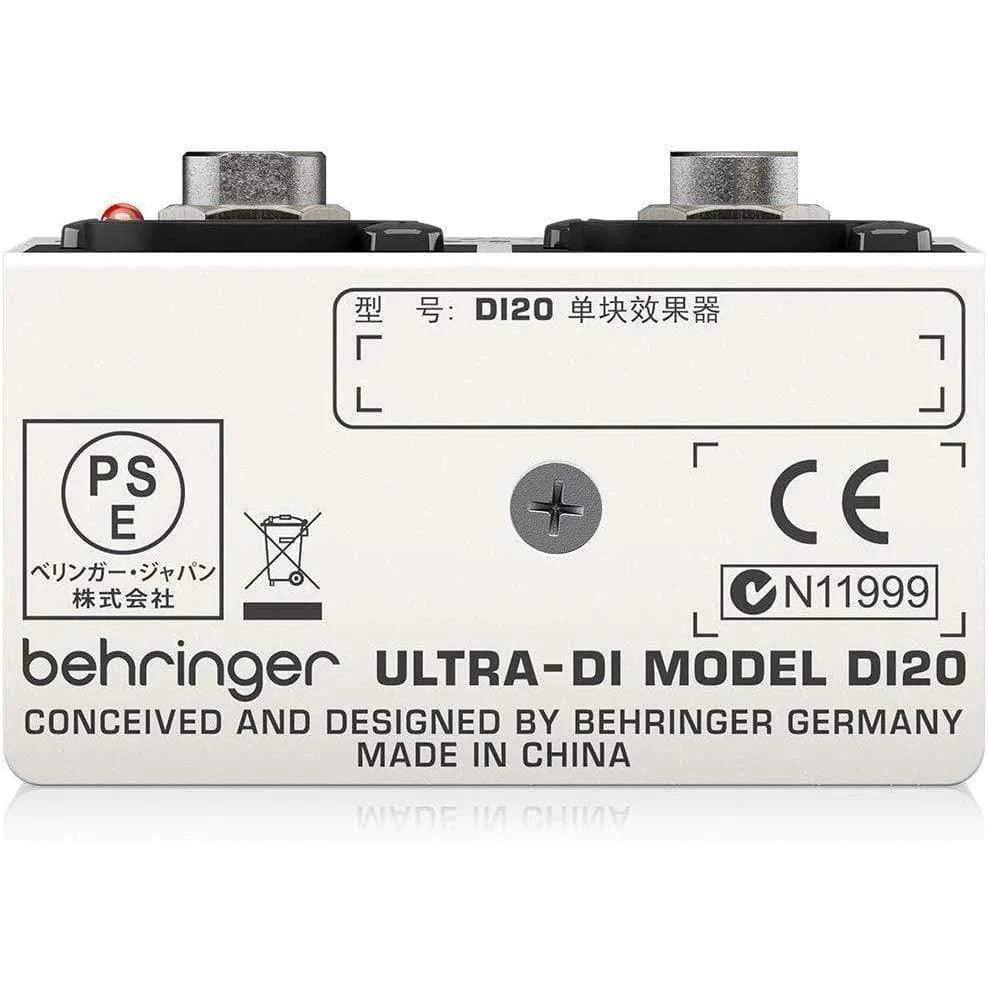

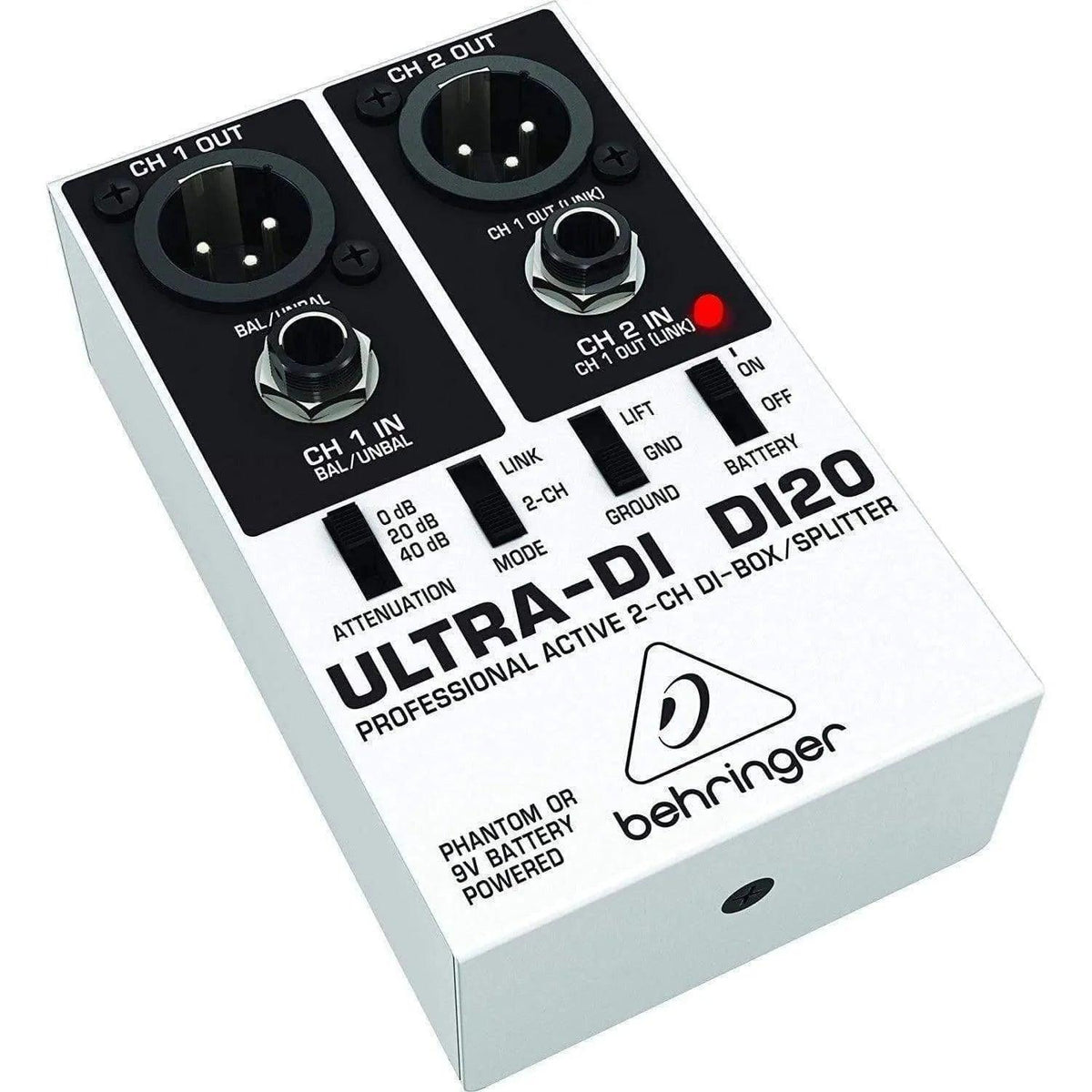

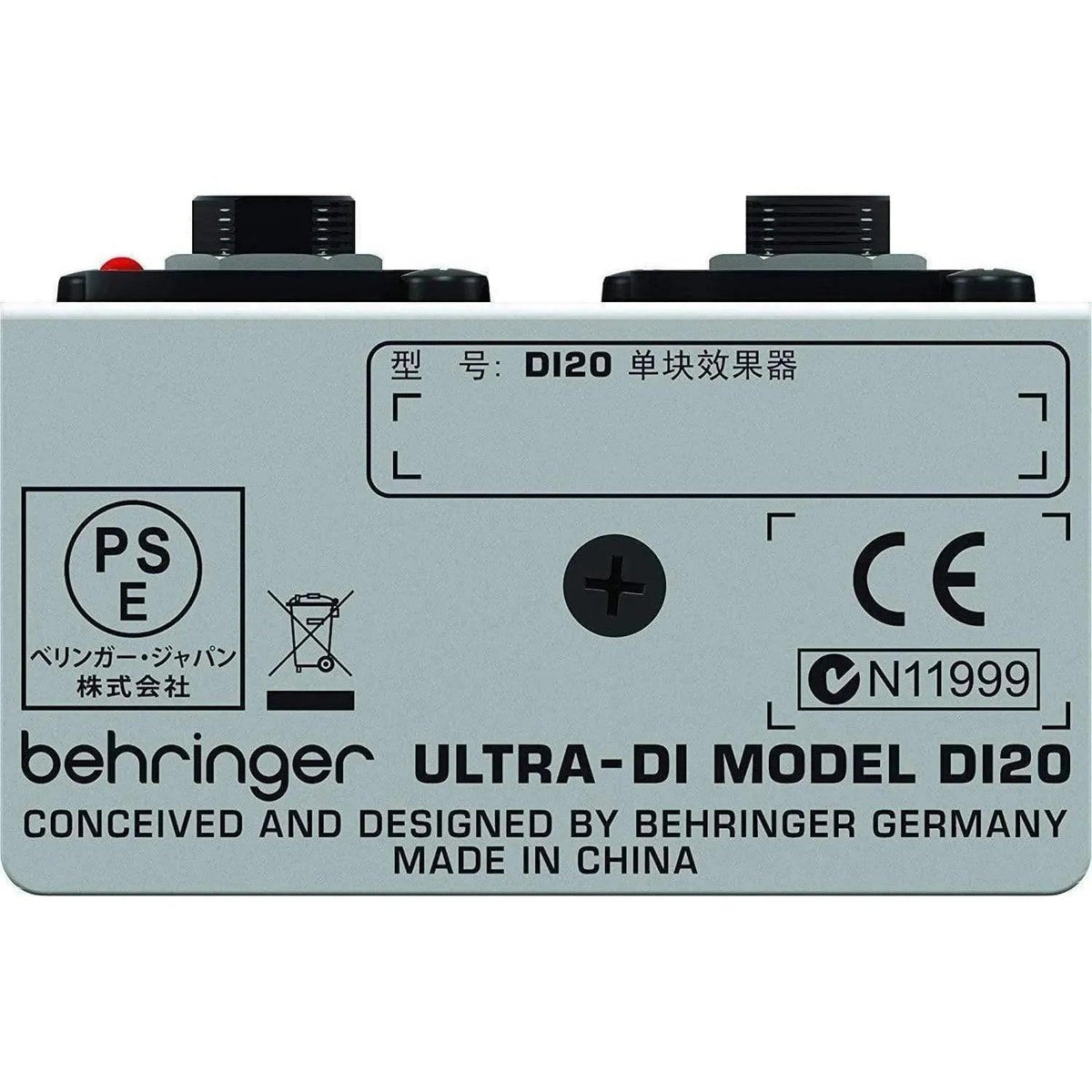

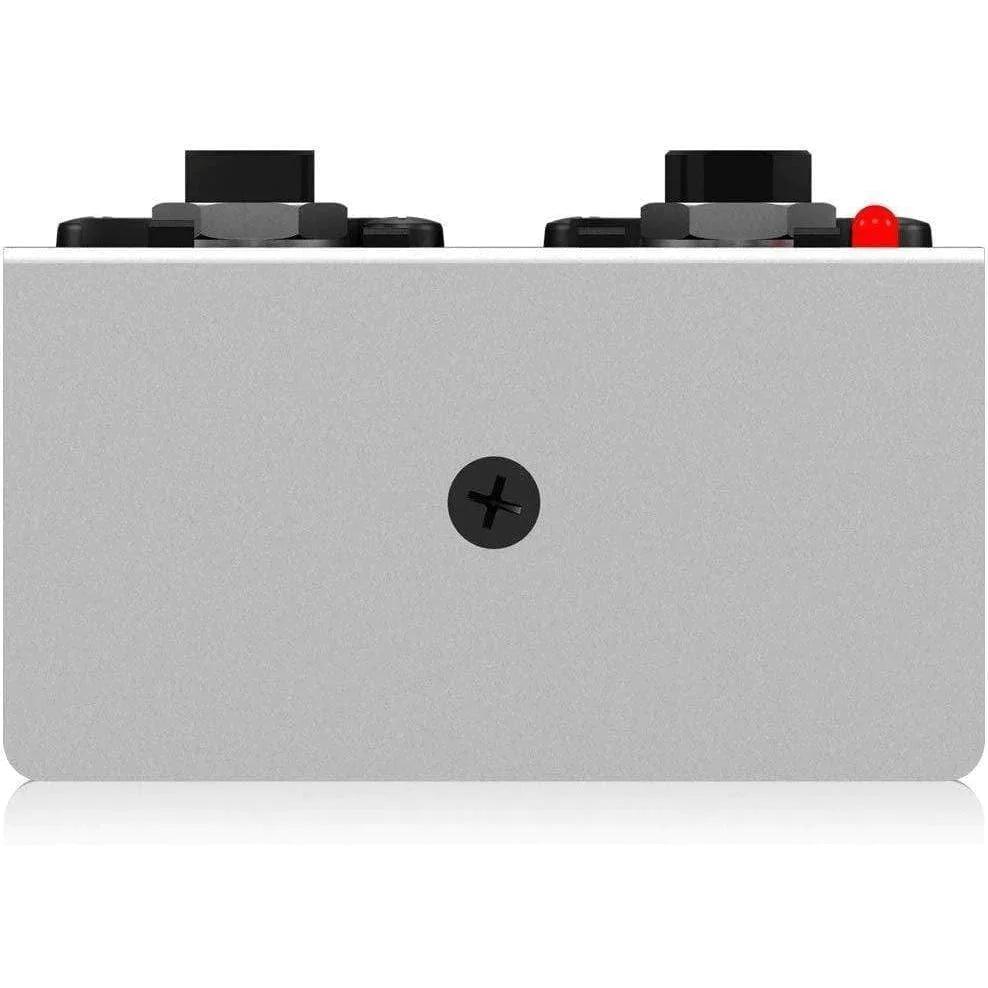

Behringer DI20 Direct Injection Box Active 2 CH

Regular price
Regular price
Sale price

The Behringer Ultra-DI DI20 Active 2-Channel DI-Box/Splitter can convert two separate unbalanced 1/4" inputs into two balanced XLR outputs. Need a signal splitter? The DI20 does that too. Whether you're a keyboardist, guitarist, or bassist, you'll marvel at the flexibility this little box gives you. Feed it two mono signals, a stereo signal, or a split signal feeding two separate amps. You also get a ground lift and a 3-position input attenuator to school unruly signals - so you can even connect it to your guitar amp's speaker output! The Behringer Ultra-DI DI20 is cool.


  • Multi-purpose direct injection box for stage and studio applications
  • Provides impedance and signal matching for direct connection of instruments to mixers and amplifiers
  • Converts 2 independent unbalanced 1/4'' TRS line inputs into 2 balanced XLR outputs
  • Additional Split mode (channel 1 assigns signal to both XLR outputs)
  • Ultra-flat frequency response due to servo-balanced operation
  • Internal battery automatically shuts off when phantom power is applied
  • Allows direct connection to speaker outputs with up to 3,000W
  • Ground lift switch eliminates typical ground loop problems
  • Input 2 usable as channel 1 Link output (additional to XLR output)
  • TRS and gold-plated XLR connectors
  • Ultra-rugged, road-suitable metal case
  • High-quality components and exceptionally rugged construction ensure long life

Tech Specs

Type: DI
Channels: 2
Pads: -20dB, -40dB
Ground Lift: Yes
Inputs: 2 x TRS
Outputs: 2 x XLR
Power Source: 48V Phantom Power / 9V battery
Height: 6"
Depth: 5"
Width: 2.375"
Weight: 1.43 lbs.
Manufacturer Part Number: DI20
