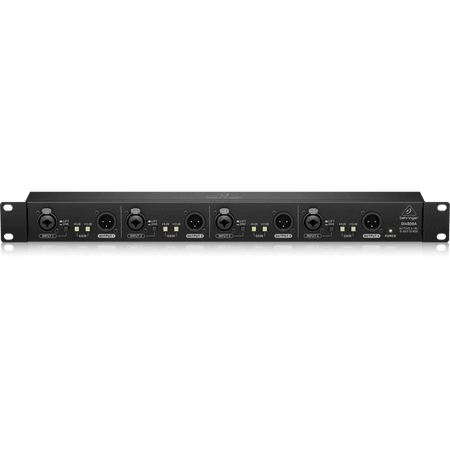

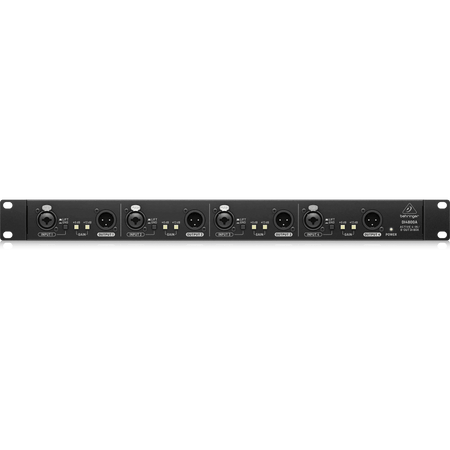

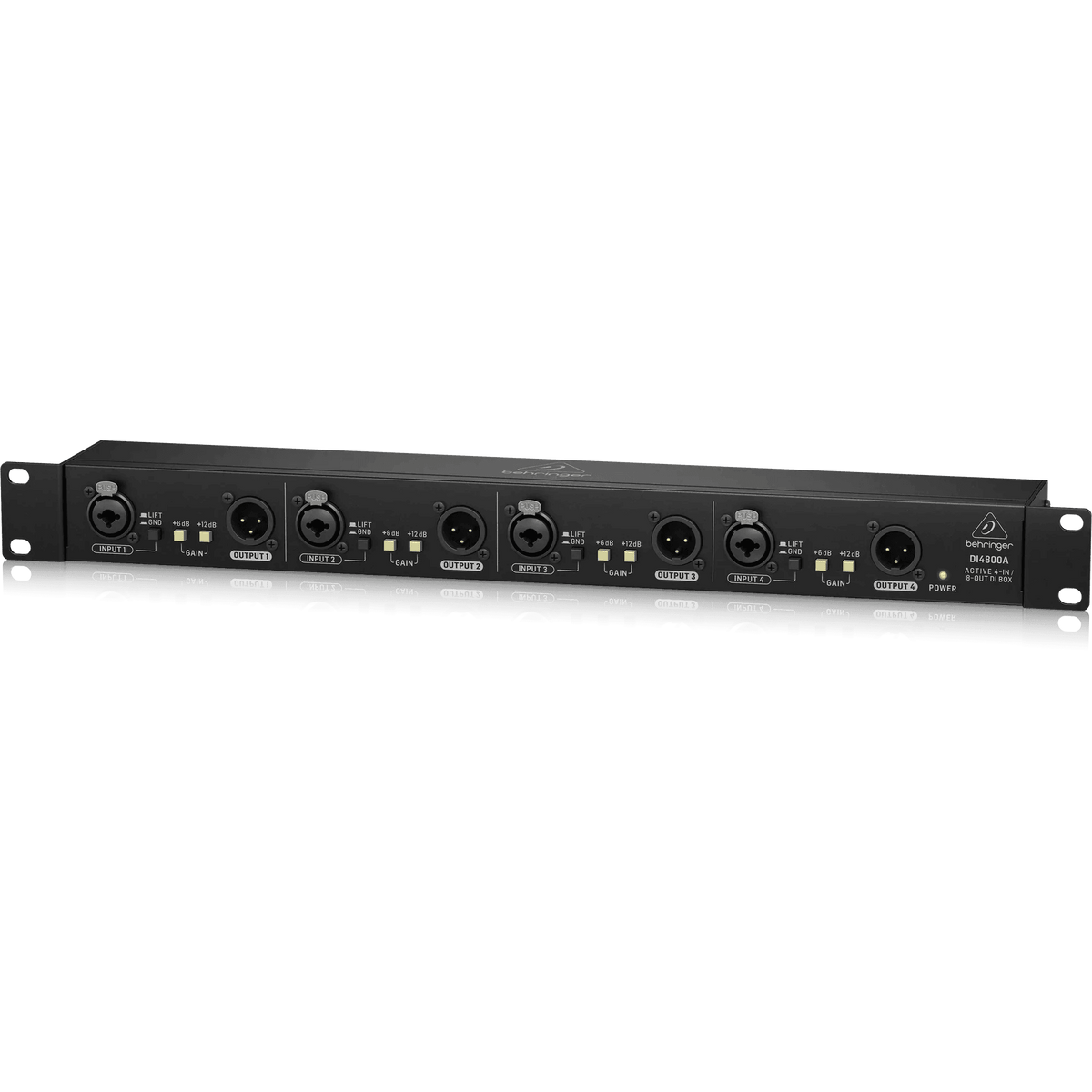

Behringer DI4800A Professional 4-Channel Active DI Box, Booster and Line Isolator
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
Professional and multi-purpose 4-channel direct injection box for stage and studio applications
-
Provides impedance and signal matching for the direct connection of instruments to mixers and amplifiers
-
Ultra-flat frequency response due to renowned Behringer OT-1 transformers
-
Total of +18 dB gain boost in three +6 dB increments for pre-amplification of low-level signals
-
Ground Lift switch eliminates typical ground loop problems
-
Switchable -20 dB output attenuation
-
Neutrik* combo and gold-plated XLR connectors
-
Powered via external DC power supply (included) with optional battery powered operation (sold separately)

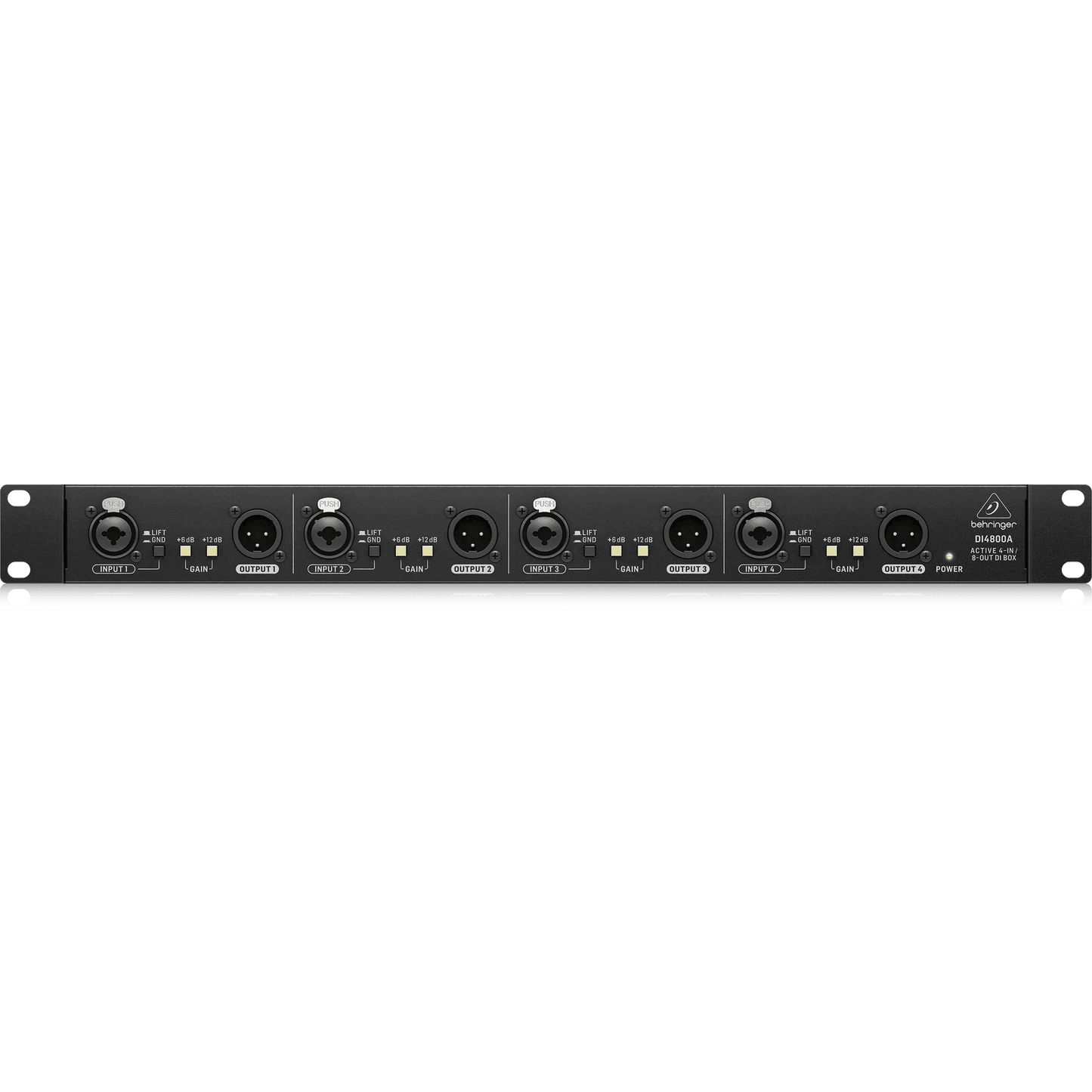

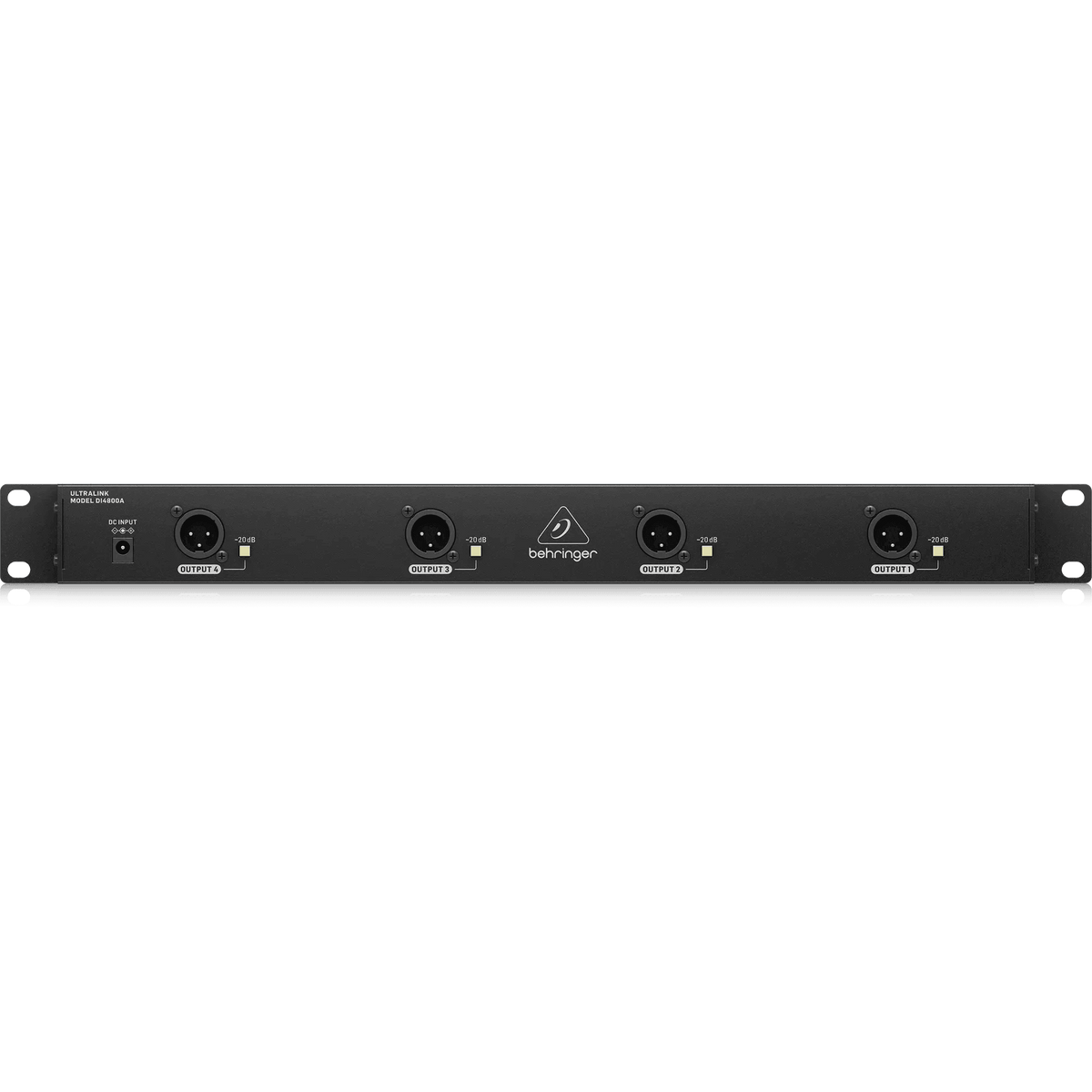

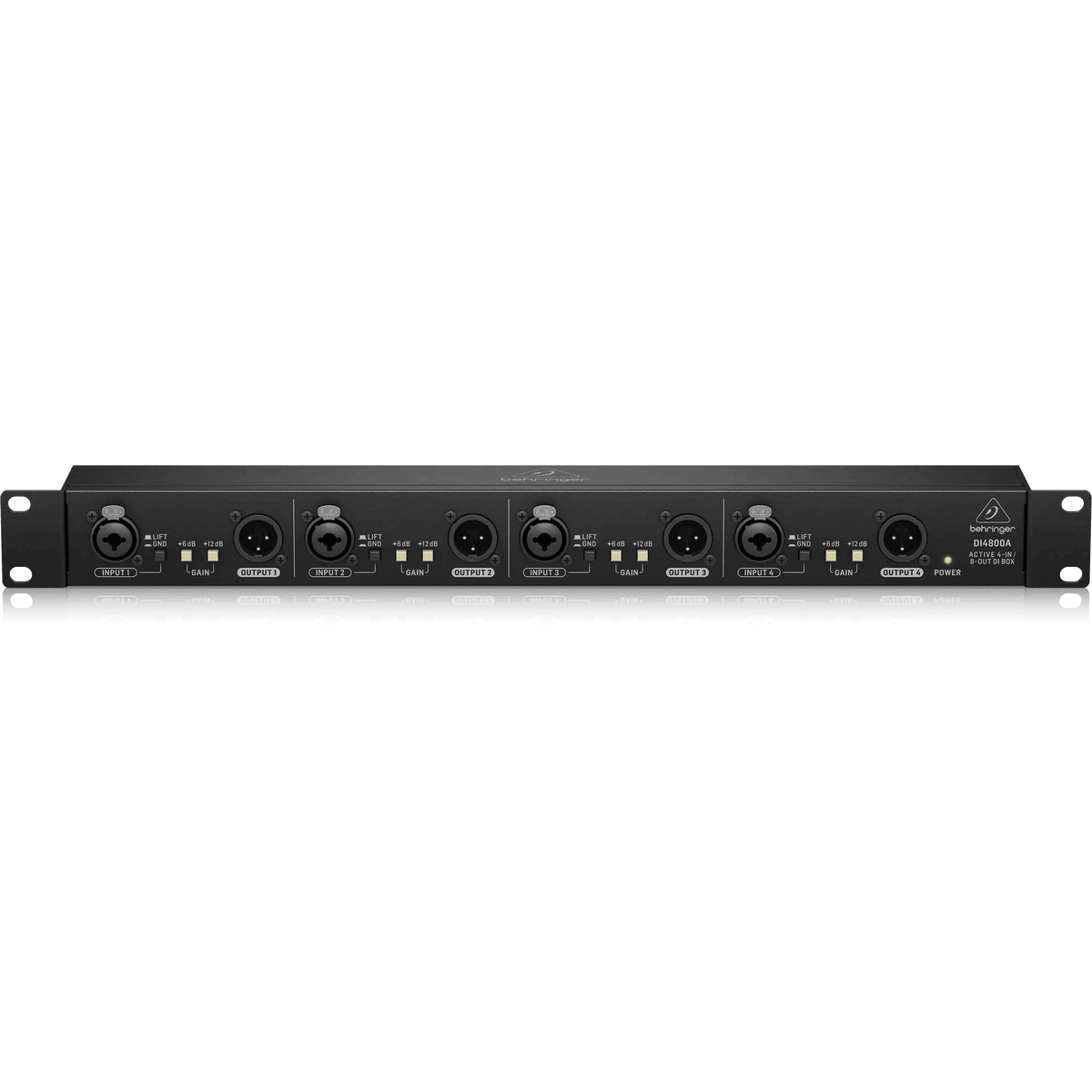

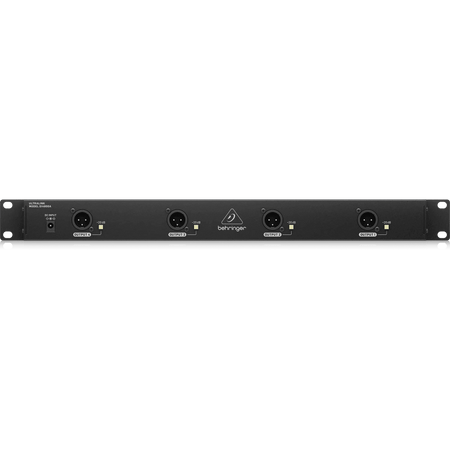

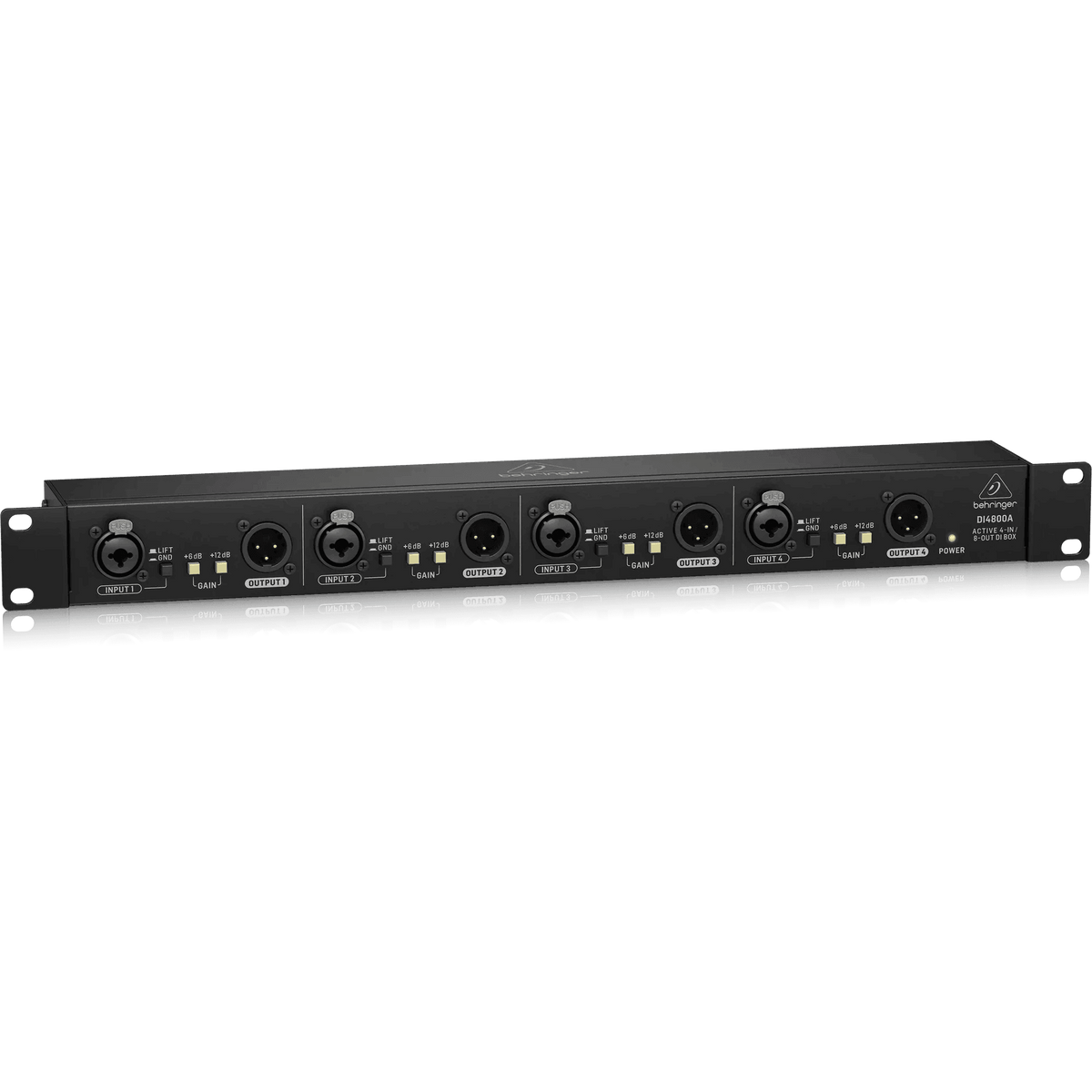

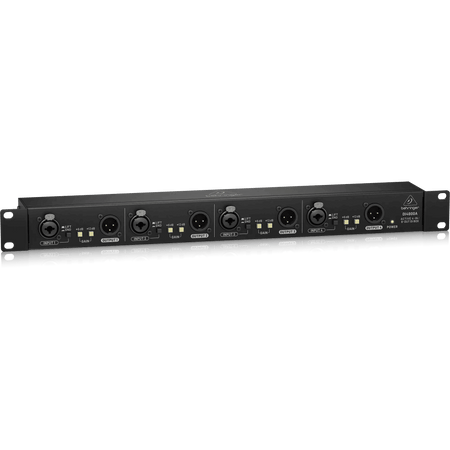

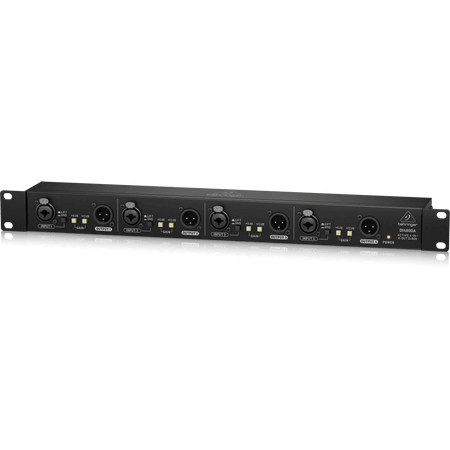

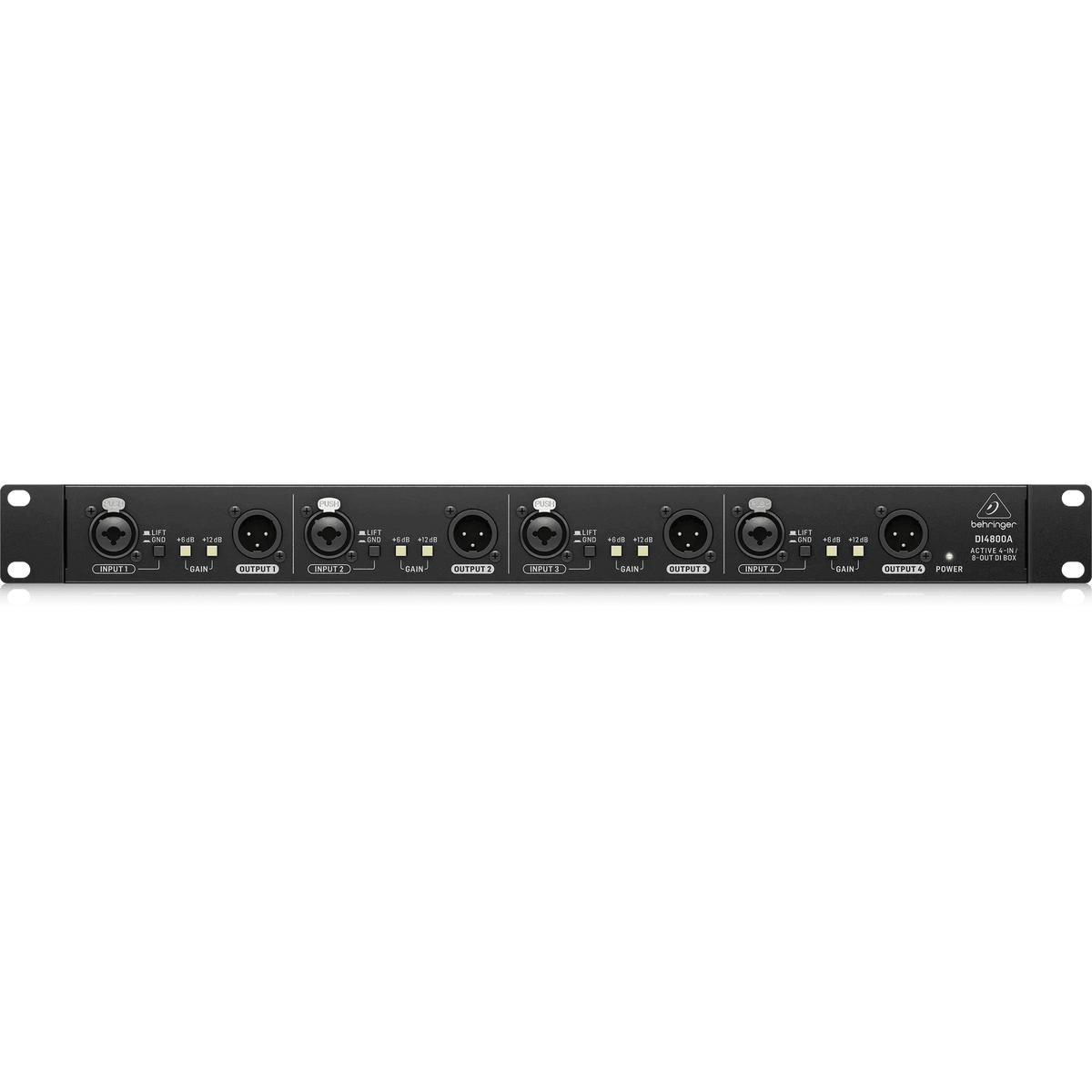

DESCRIPTIONTHE ULTRA-DI PRO DI4800A gives you 4 first-class DI channels in a single rack space. Each channel is equipped with one input (XLR or ¼” TRS) and two XLR Outputs at the front and back to connect to your amp or monitor console allowing for 8 outputs in all. Plus, the DI4800A is designed to accommodate virtually any input signal, with a switchable output attenuation of -20 dB, while our highly acclaimed OT-1 output transformers ensure pristine and powerful output.
SPECIFICATIONSInputs
Connectors
4 x XLR-1/4" combo jacks, balanced
Impedance
20 kΩ
Max. input level
+20 dBu
Channel boost switchable
+6 dB,+12 dB,+18 dB
Outputs
Connectors
8 x XLR, transformer balanced
Impedance
600 Ω
Max. output level
+20 dBu
Output pad switch
20 dB attenuation
System
Frequency response
20 Hz to 20 kHz (±3 dB)
THD + N (distortion)
0.01% @ 1 kHz, 0 dBu
Signal-to-noise ratio
120 dB
Ground lift switch
Removes ground connection
Power requirement
12 V DC, 500 mA
Physical
Standard operating temperature range 5° C – 40° C (41° F – 104° F) Dimensions (W x D x H) 483 x 71 x 44 mm(19.0 x 2.8 x 1.7"") Weight 1.4 kg (3.1 lbs) -
