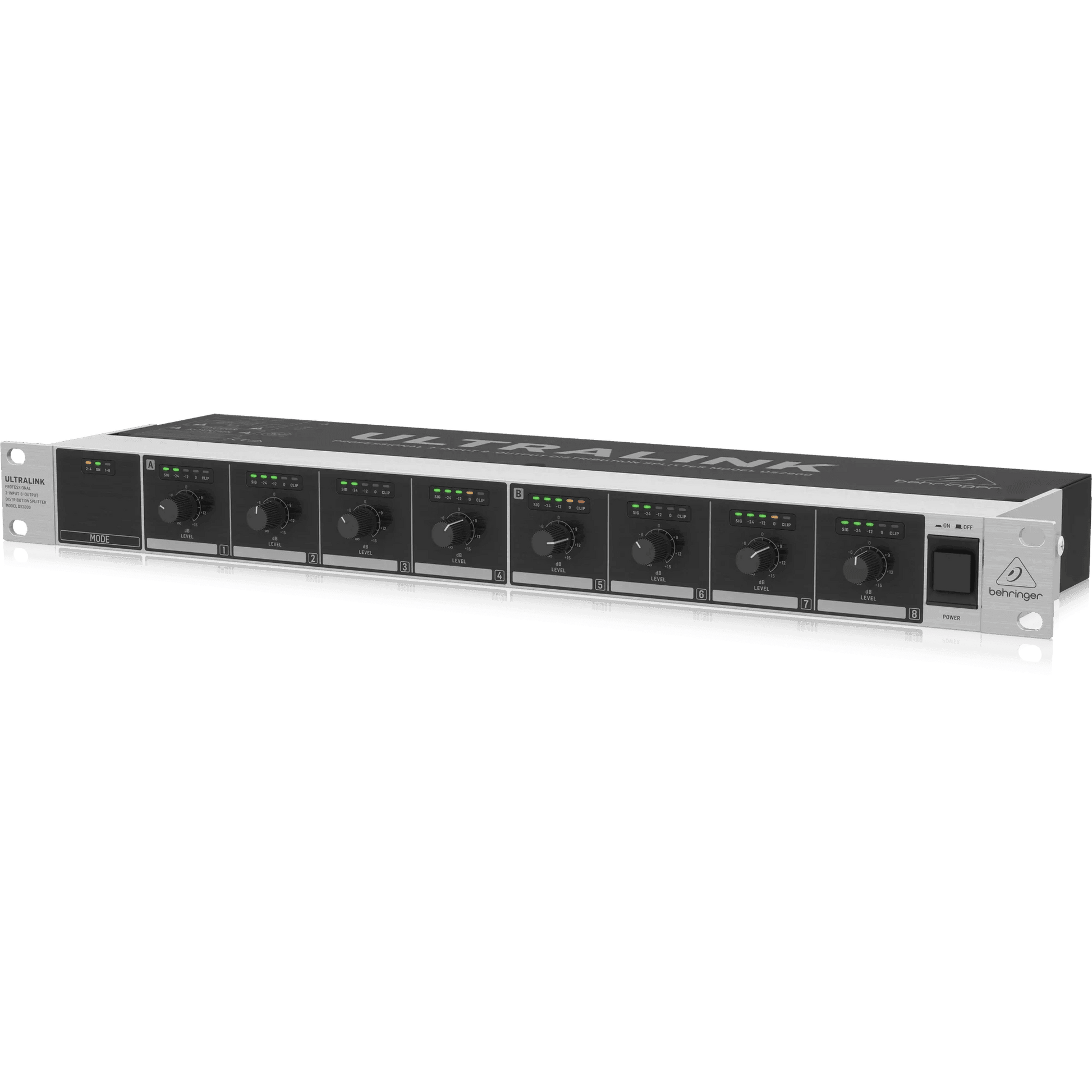

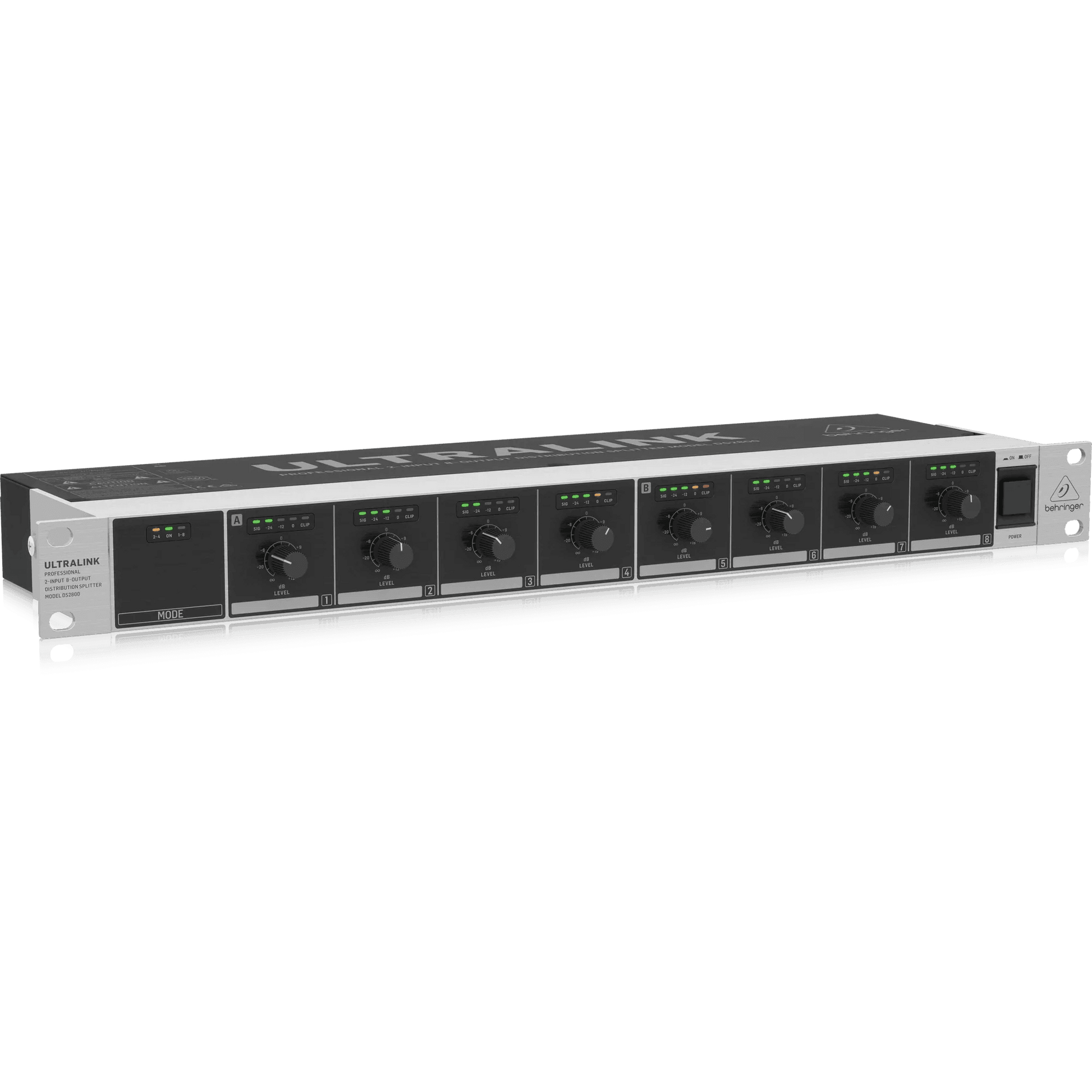

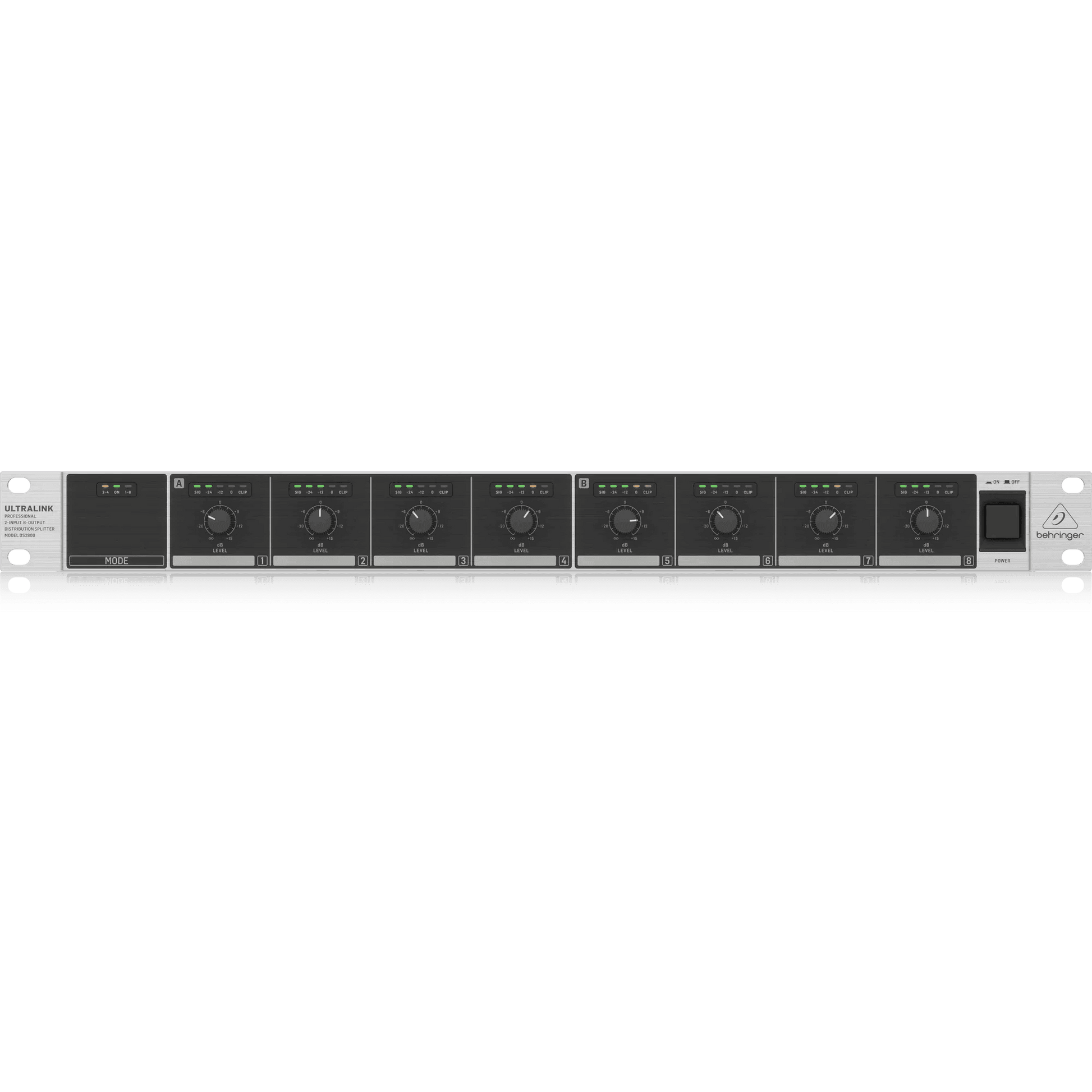

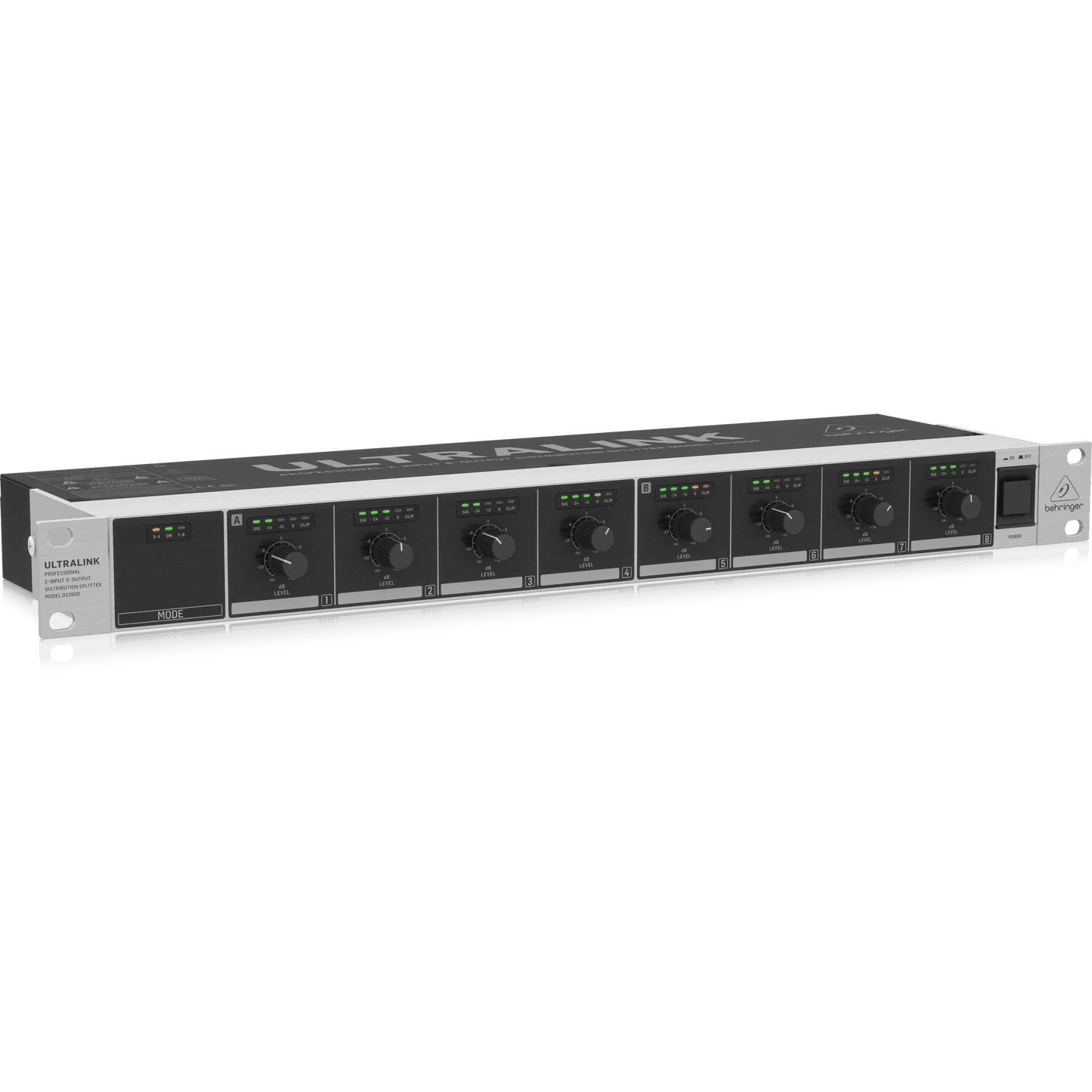

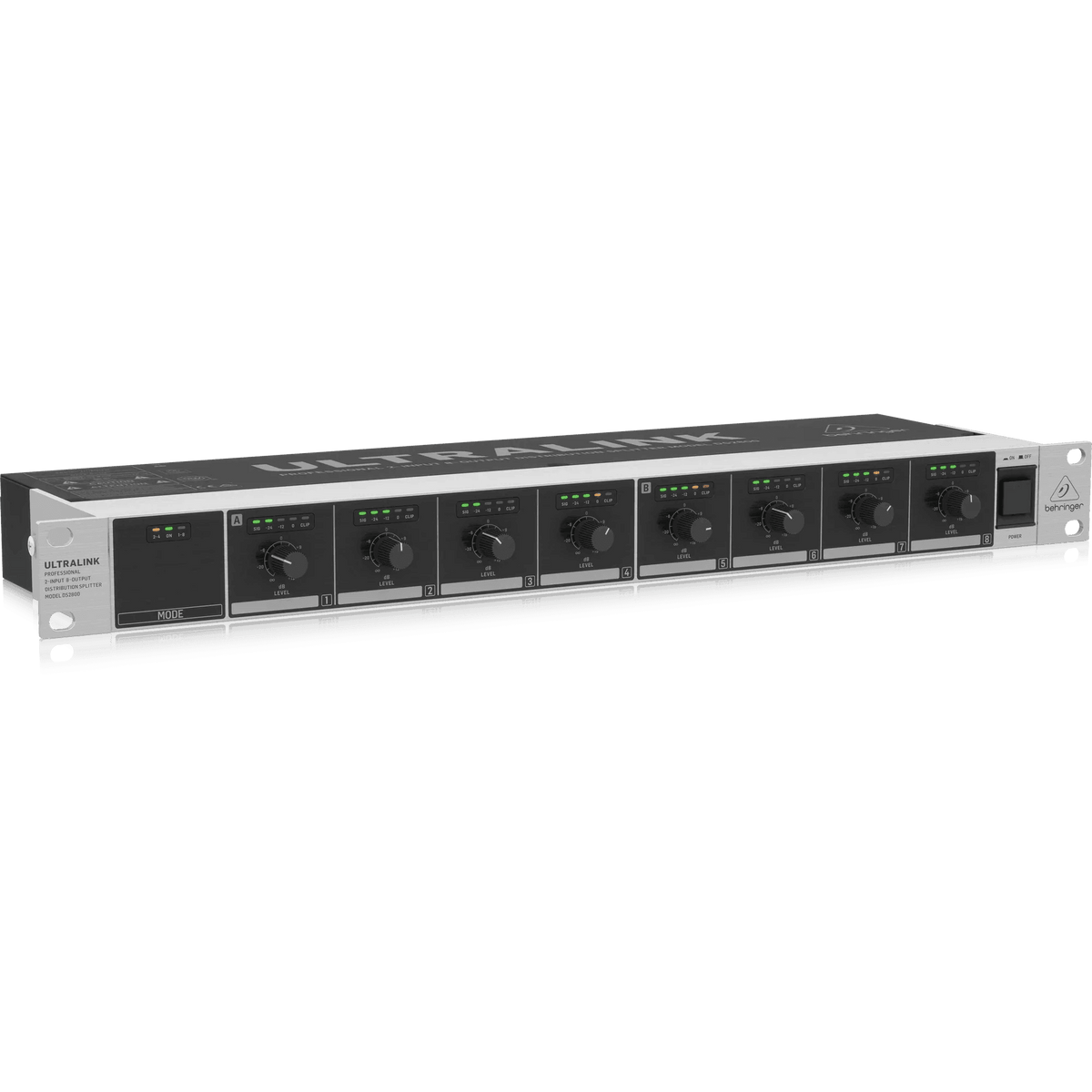

Behringer DS2800 Professional 2-Input 8-Output Distribution Splitter
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
Ultra-flexible and easy-to-use distribution splitter for commercial sound applications
-
Dual mode 2-In / 4 out or 1-in / 8-out operation
-
2 ultra-low noise line inputs with separate link output connectors
-
8 output channels each featuring independent level controls
-
5-segment LED meters for each output to indicate signal activity
-
Servo-balanced inputs and outputs with gold-plated XLR connectors
-
Internal switch-mode power supply (100 - 240 V~) for noise-free audio and low power consumption
DESCRIPTION
When it comes to providing signal distribution in commercial sound applications, the DS2800 Professional 2-Input 8-Output Distribution Splitter is the leader in its class. Extremely flexible and easy to use, the DS2800 features two modes of operation that allow you to send either 2 audio signals to 4 separate zones, or a single signal to up to 8. This level of versatility makes the DS2800 the ideal choice for a wide range of applications including everything from recording studios to shops, restaurants and more.
Dual Mode Operation

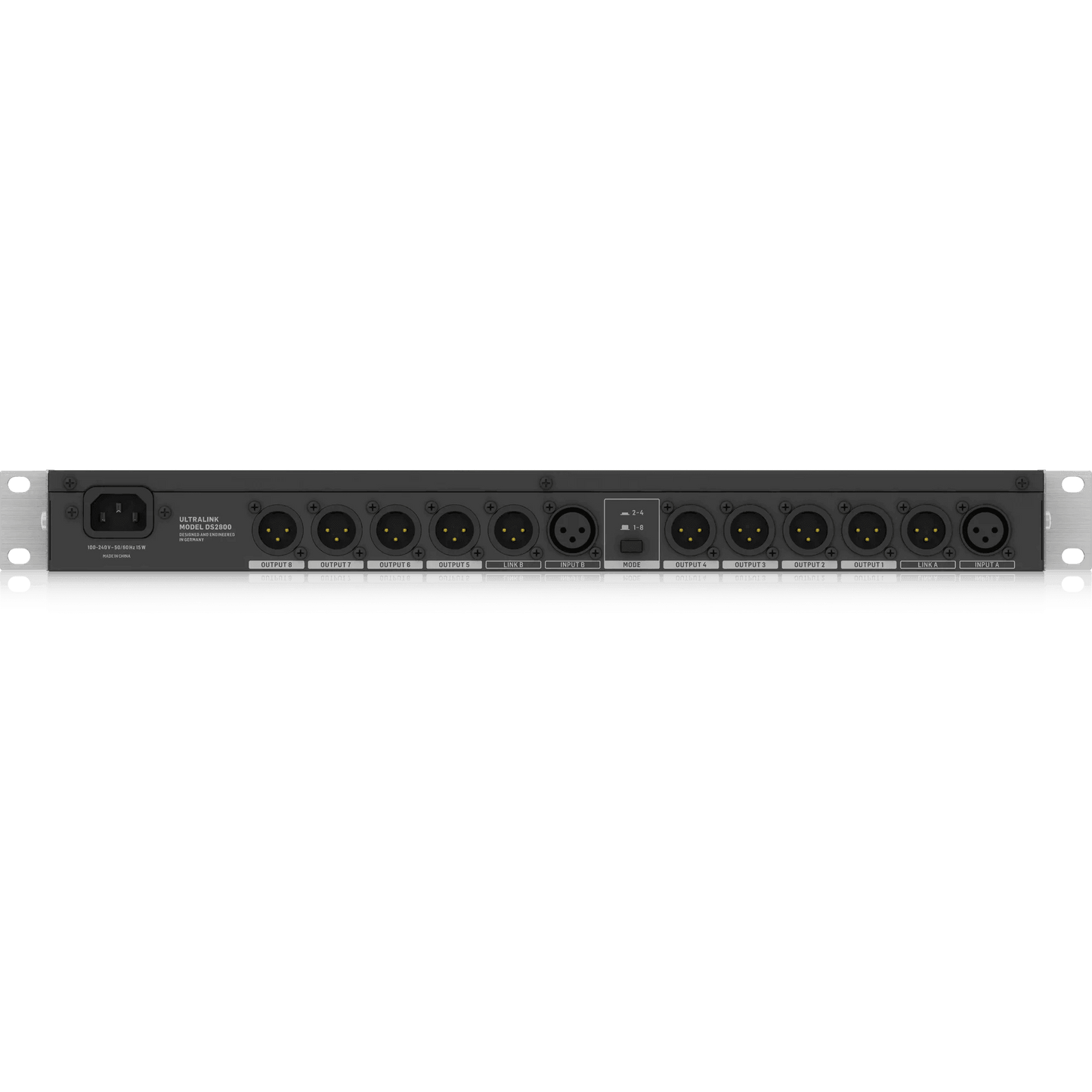

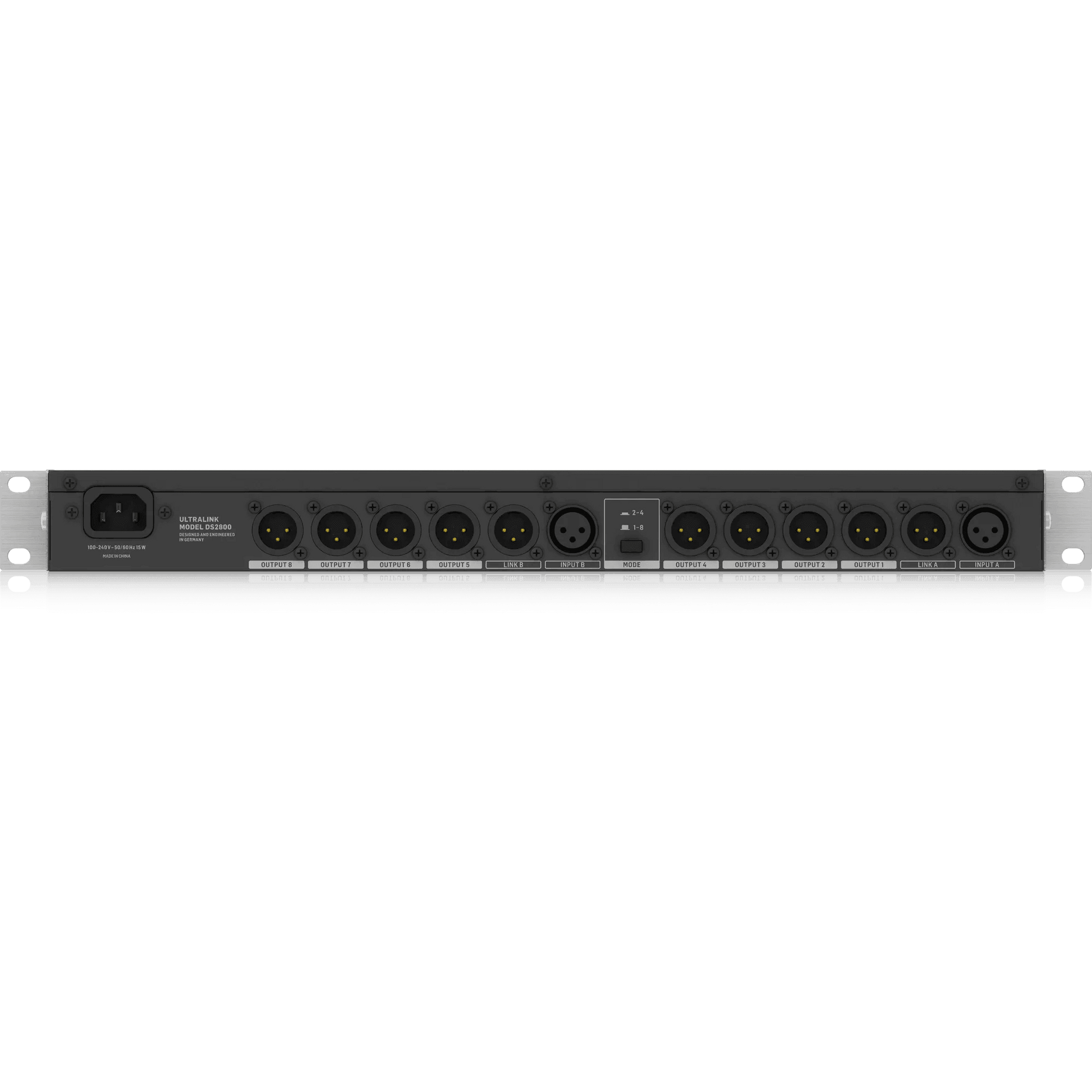

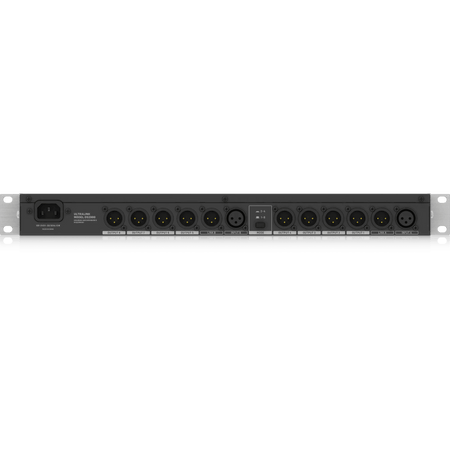

In the recording studio, monitoring options are crucial for the performers as well as the engineers, so DS2800’s 2-In / 4 Out mode makes it easy to switch between various loudspeaker and headphone systems. For applications such as restaurants and the like, running separate zones lets you set individual volume levels to better suit the needs of your clientele. The Mode selection switch is located on the rear panel and LED indicators on the front let you know which mode has been selected.
Ultra-Low Noise
DS2800’s XLR line Inputs feature state-of-the-industry, ultra-low noise op-amps for the ultimate in pristine sonic performance. In addition to the inputs, Link Output XLR sockets are provided for cascading additional DS2800 devices, so your system can grow as needs change. All XLR Input and Output connectors are gold plated for the highest signal integrity.
SPECIFICATIONS
Audio Connections
Input A / B XLR, balanced
Input impedance 10 kΩ balanced, 6.6 kΩ unbalanced
Max. input level +21 dBu
CMRR 64 dB typ. @ 1 kHz
Link A / B XLR, balanced
Output 1 – 8 XLR, balanced
Max. output level +28 dBu
System
Frequency response 10 Hz to 75 kHz (±3 dB)
Dynamic range 117 dB
Distortion (THD) 0.001% typ. @ +4 dBu, 1 kHz, Gain 1
Crosstalk < -77 dB @ 1 kHz
Signal-to-noise ratio 20 Hz to 20 kHz, > 97 dB @ 0 dBu
Function Controls / Switches
Output level -∞ … + 15 dB, variable
Mode 1 – 8 / 2 – 4, switchable
Displays
Power ON LED indicator
Output level 5-digit LED display: sig / -24 / -12 / 0 / clip
Mode Status LED Indicator
Power Supply
Type Switch-mode autorange power supply
Mains voltage 100-240 V, 50/60 Hz
Power consumption 15 W
Mains connection Standard IEC receptacle
Dimension / Weight
Dimensions (H x W x D) 44 x 483 x 148 mm (1.7 x 19.0 x 5.8")
Weight 1.6 kg (3.5 lbs)
-
