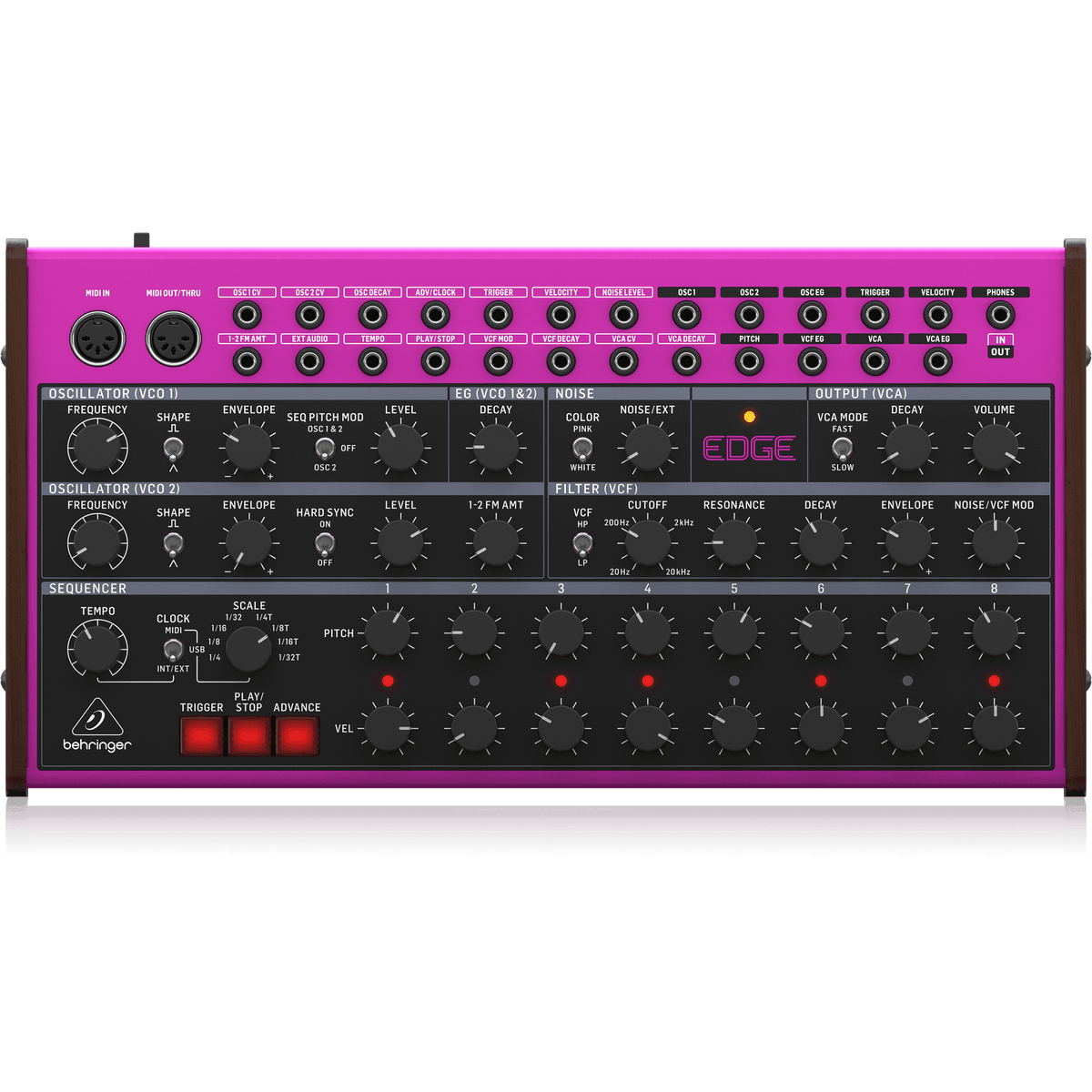

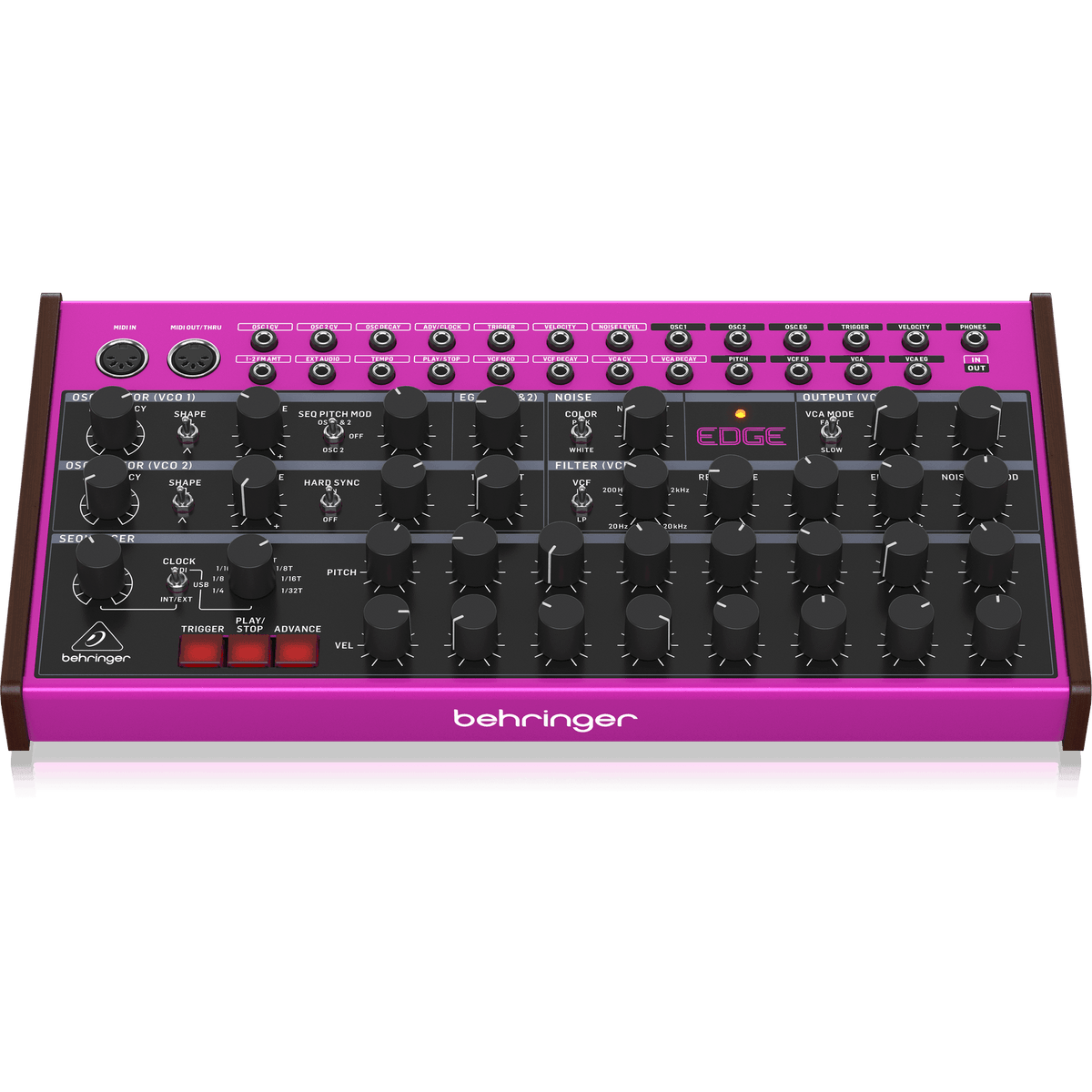

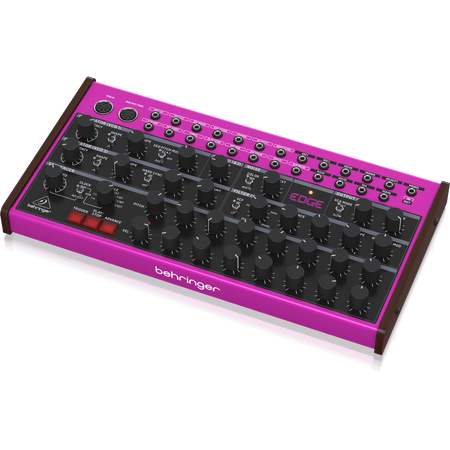

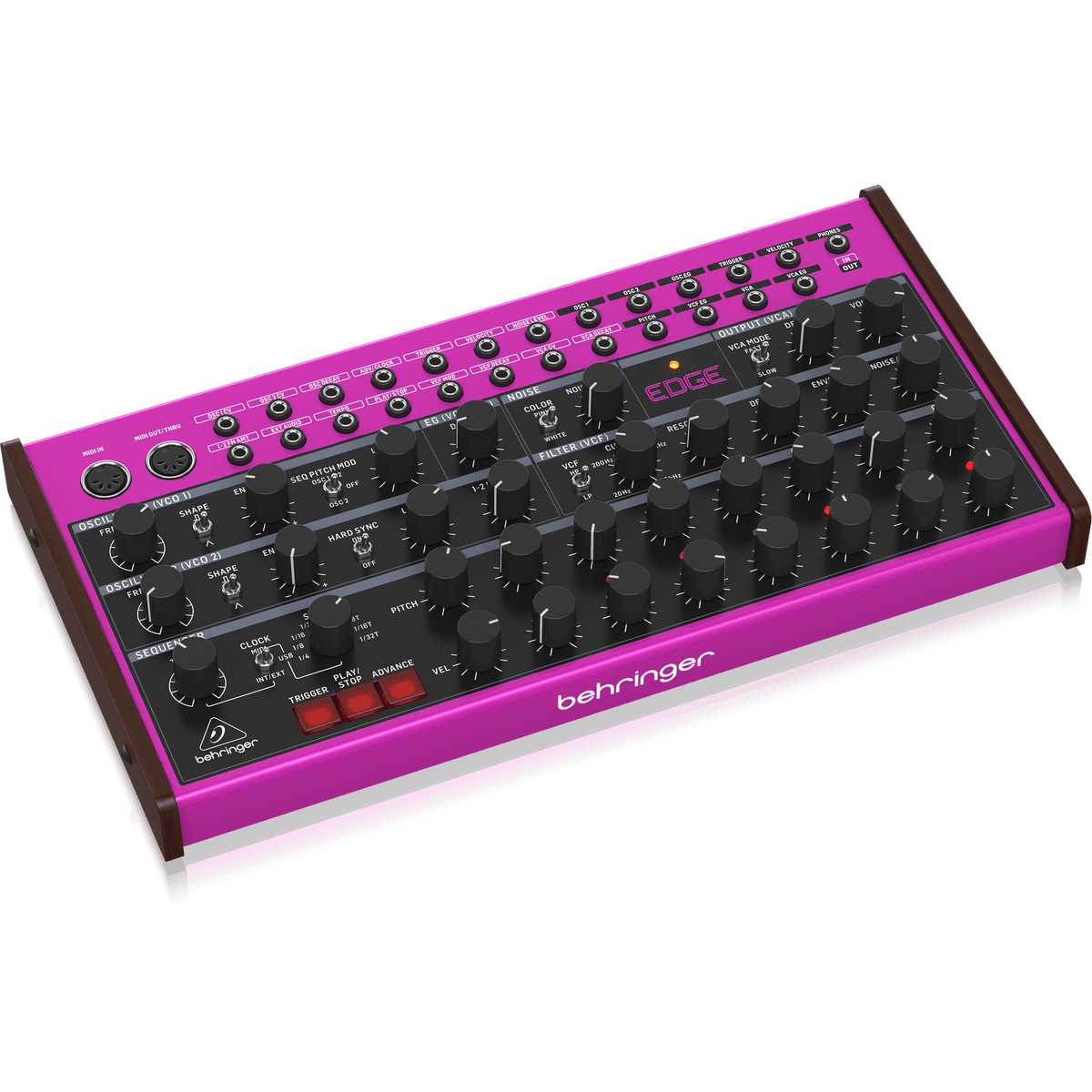

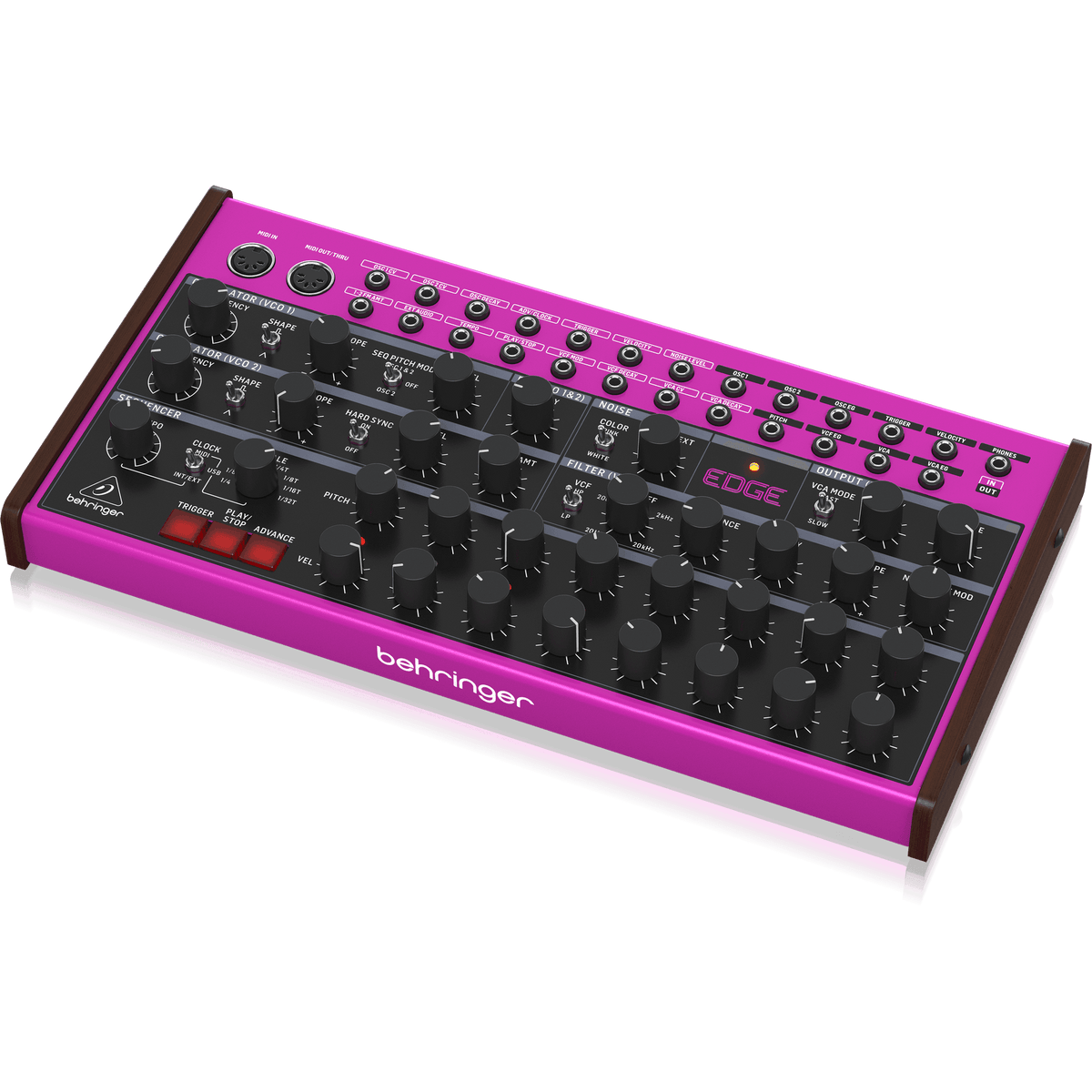

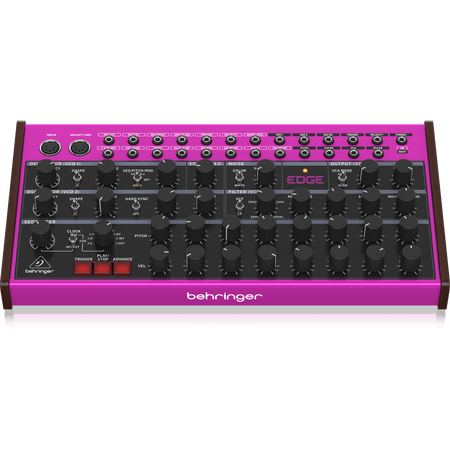

Behringer EDGE Semi-Modular Percussion Synthesizer with 2 Oscillators
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
KEY FEATURES
-
Analog semi-modular percussion synthesizer for insanely fat music creation
-
Pure analog signal path based on authentic VCO and VCF designs
-
Dual VCOs with pulse and triangle waves, oscillator sync and FM for a huge range of sounds
-
Dual 8-step sequencer with pitch and velocity controls for inspiring grooves and rhythms
-
White/pink noise source and external input for unlimited additional timbres
-
Multi-mode 24 dB resonant ladder filter with low and high-pass plus cutoff modulation by noise
-
3 separate decay envelopes for pitch, filter cutoff and amplitude for detailed control
-
Sequencer speed with up to 10,000 BPM allows for audio range waveform generation
-
Semi-modular design with default routings requires no patching for immediate performance
-
15 x 10 I/O matrix for incredibly vast and flexible patching options
-
44 controls give you direct and real-time access to all important parameters
-
Multiple clocking sources including MIDI/USB for synchronization with other equipment
-
Time division control featuring 8 different rates
-
Comprehensive MIDI implementation with MIDI channel and Voice Priority selection
DESCRIPTION
If you’ve been searching for the perfect companion to your Behringer CRAVE then the brand new EDGE provides all the tools you need to complete your synth setup and become a master beat-maker, including: Dual VCOs with a huge range of sounds, a dual 8-step sequencer with pitch and velocity controls and so many more features for a powerful and flexible drum & bass machine that’ll shake the house and get everyone moving to the beat!
Great care has been taken in designing the EDGE to achieve new possibilities in sound creation by reviving timeless analog designs and technologies. By taking a fresh and modern approach on classic circuits, the EDGE gives you the power to create super-tight percussive sounds to dark and moody bass lines.
Built to enhance the way you perform, the EDGE boasts a pure analog signal path, Dual VCOs with pulse and triangle waves, oscillator sync and FM plus a white/pink noise source for a huge range of sounds and timbres. Its dual 8-step sequencer with pitch and velocity controls can also provide you with a degree of control that will let you create any groove and rhythm you can imagine. If that wasn’t enough, the EDGE’s sequencer can go up to an astounding 10,000 BPM so you can turn your beats into mind-blowing waveforms that’ll surprise even the most hardcore synth wave fan out there.
SPECIFICATIONS
Synthesizer Architecture
Number of voices Monophonic
Type Analog
Oscillators 2
VCF 1 HP/LP 4-pole (-24dB/Oct) ladder filter
Envelope 1 per VCO, 1 VCA decay, 1 VCF
Noise White, pink

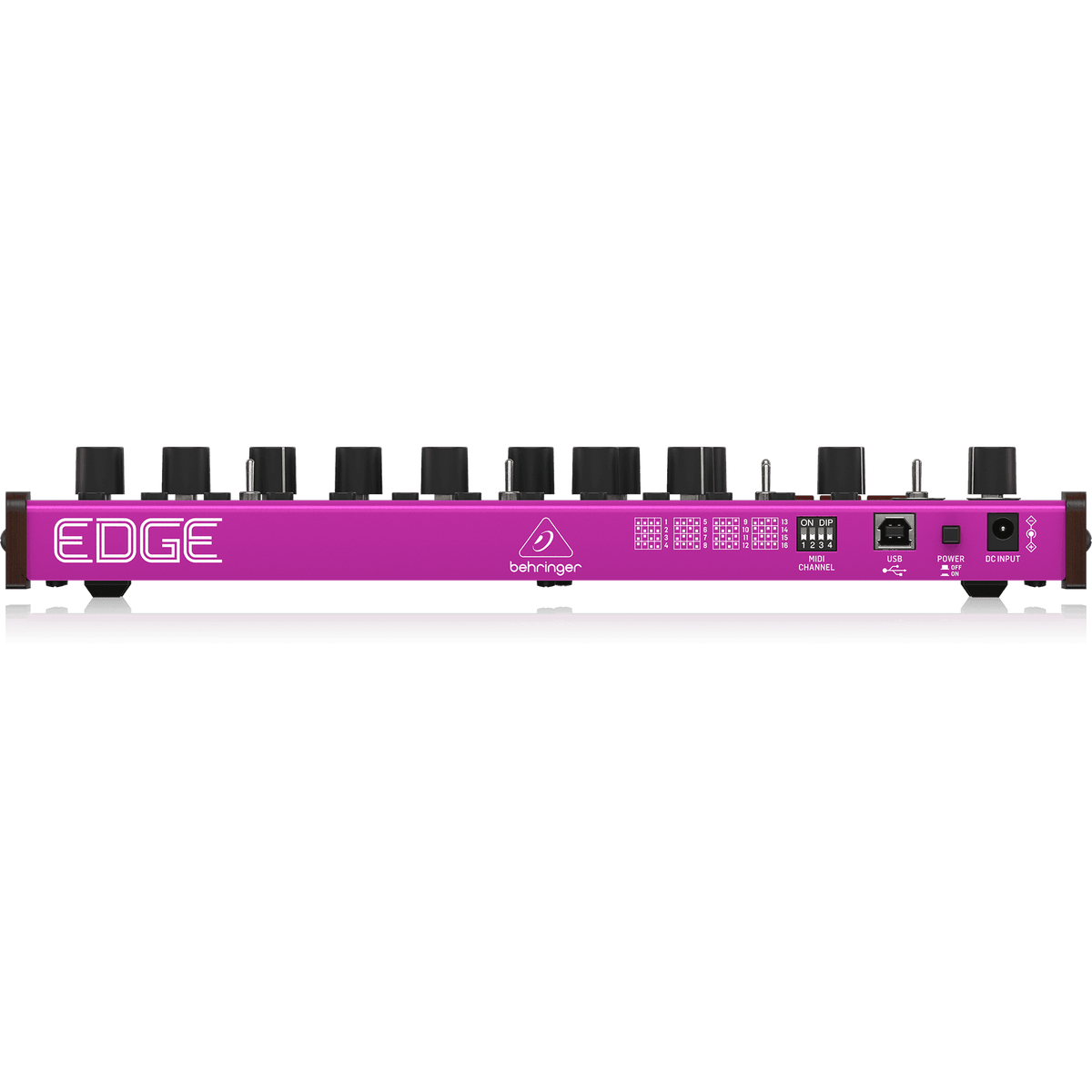

Connectivity
Power input DC input connector
Power switch Push button on / off
USB (MIDI) USB 2.0, type B
MIDI In / Out /Thru 2 x 5-pin DIN / 16 channels
Output VCA output: 3.5 mm TS, unbalanced, max +14.5 dBu
Headphones 3.5 mm TRS, max. 450uW @ 64 Ω
Headphones output impedance 470 Ω
Inputs
Type 3.5 mm TS
OSC 1 CV -5 V to +5 V
OSC 2 CV -5 V to +5 V
OSC decay -5 V to +5 V
ADV/clock more than 3.2 V (10 V max)
Trigger 0 to +5 V Pulse or Gate signal (+10 V max)
Velocity 0 V to 5 V
Noise level 0 V to 8 V
1-2FM AMT 0 V to 8 V
Ext audio 10 V max
Tempo -5 V to +5 V
Play/stop more than 3.2 V (10 V max)
VCF mod -5 V to +5 V
VCF decay -5 V to +5 V
VCA CV 0 V to 8 V
VCA decay -5 V to +5 V
Outputs
Type 3.5 mm TS
OSC 1 ± 5 V
OSC 2 ± 5 V
OSC EG 0 V to 8 V
Trigger 0 to +5V Pulse
Velocity 0 to +5V
Pitch ± 5 V
VCF EG 0 V to 8 V
VCA EG 0 V to 8 V
USB
Type Class compliant USB 2.0, type B
Supported operating systems Windows 10 or higher / Mac OS X 10.14 or higher
Oscillator (VCO) 1 Section
Controls Frequency ± 5 octave (10 octave range)
Envelope: -5 to +5
Level: 0 to 10
EG (VCO 1&2) decay 0 to 10
Switches Shape: pulse, triangle
Seq pitch mod: osc 1&2, off, osc 2
Oscillator (VCO) 2 Section
Controls Frequency ± 5 octave (10 octave range)
Envelope: -5 to +5
Level: 0 to 10
1-2 FM amt 0- 100%Switches Shape: pulse, triangle
Hard sync on/offNoise Section
Controls Noise/ext 0-100%
Switch Color: pink/white
Output (VCA) Section
Controls Decay 0 to 10
Volume: 0 to 10Switch VCA mode: fast/slow
Filter (VCF) Section
Controls Cutoff frequency: 0 to 10 (20 Hz - 20 kHz)
Resonance: 0 to 10
Decay: 0 to 10
Envelope : -5 to +5
Noise/VCF MOD: 0 to 10Switch VCF: HP/LP
SEQUENCER
Controls Tempo 0% - 100%
Scale 1/4, 1/8, 1/16, 1/32, 1/4T, 1/8T, 1/16T, 1/32T
8 Pitch controls ± 5 V
8 Velocity controls 0 to 5 VSwitch Clock: MIDI, USB, INT/EXT
LED Active step indication
Buttons Trigger, play/stop, Advance
Power Requirements
External power adapter 12 V DC 1000 mA
Power consumption 4 W max
Indicator Power LED
-
