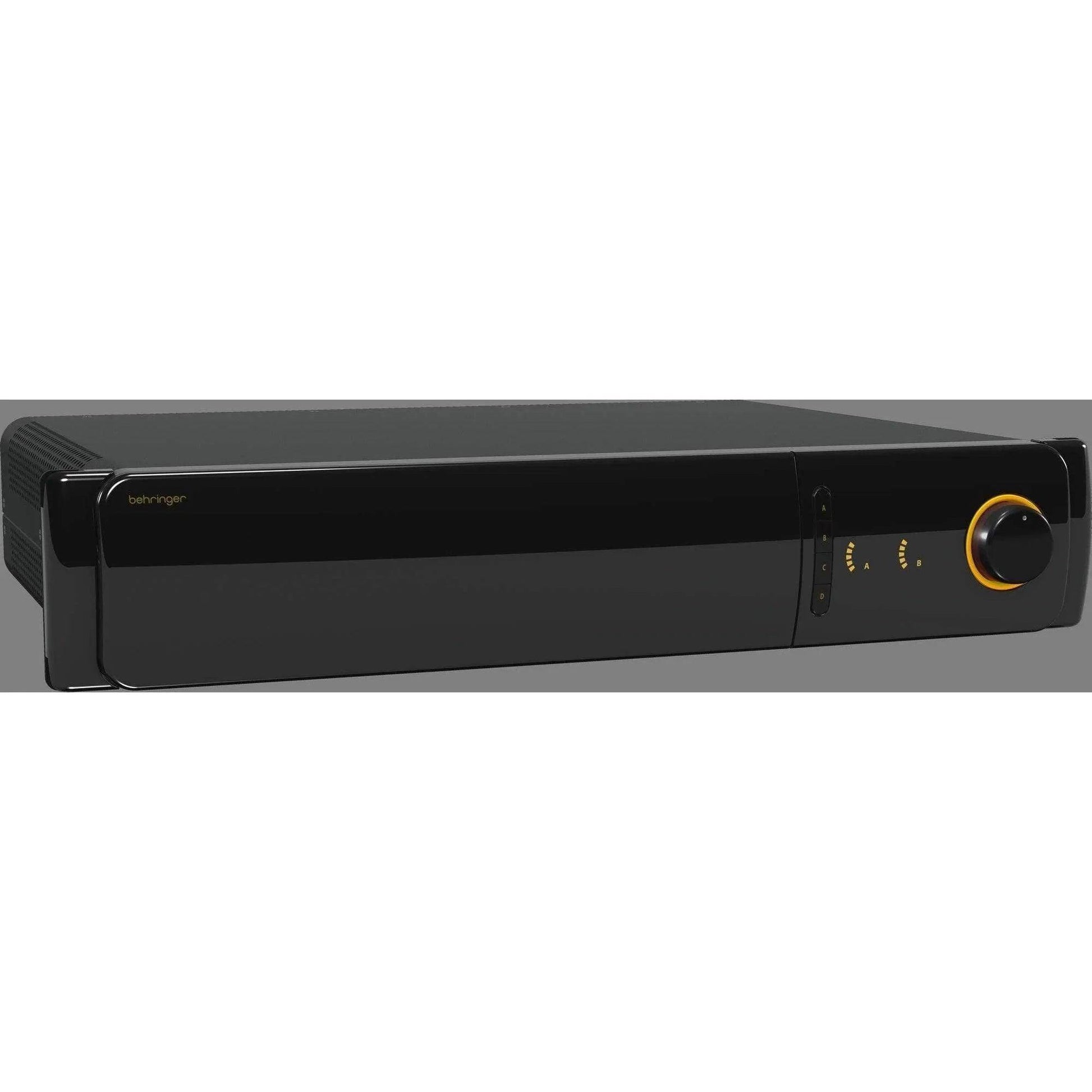

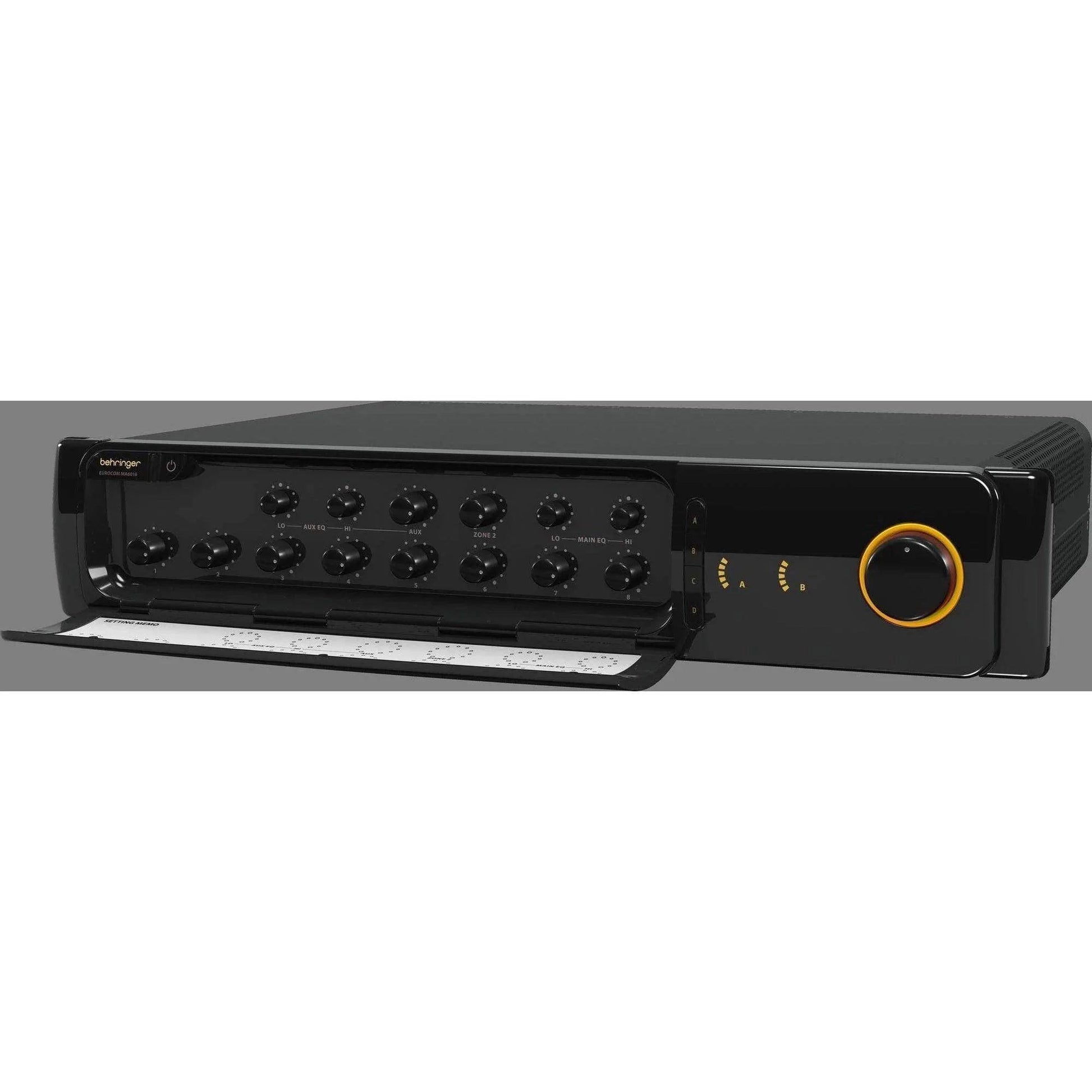

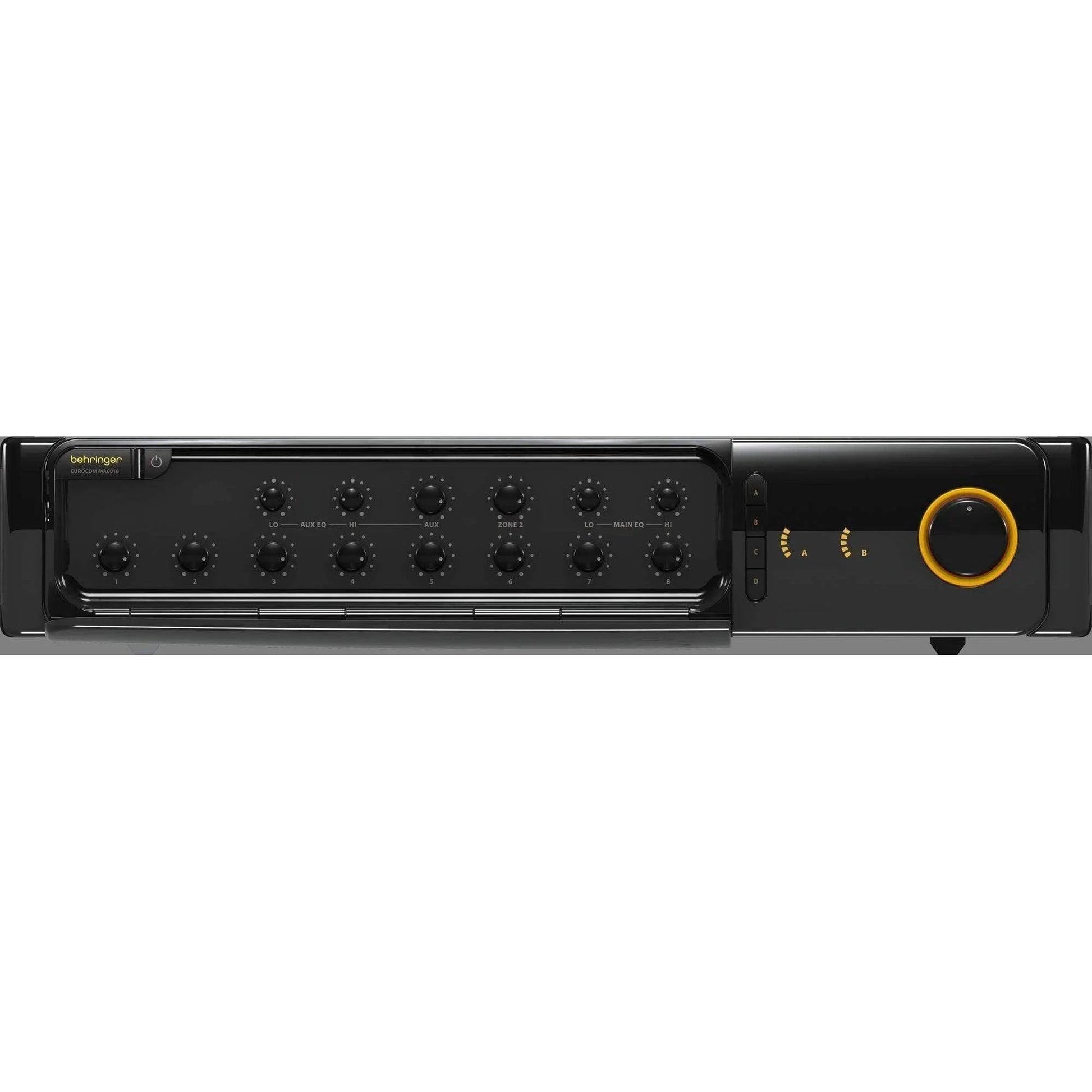

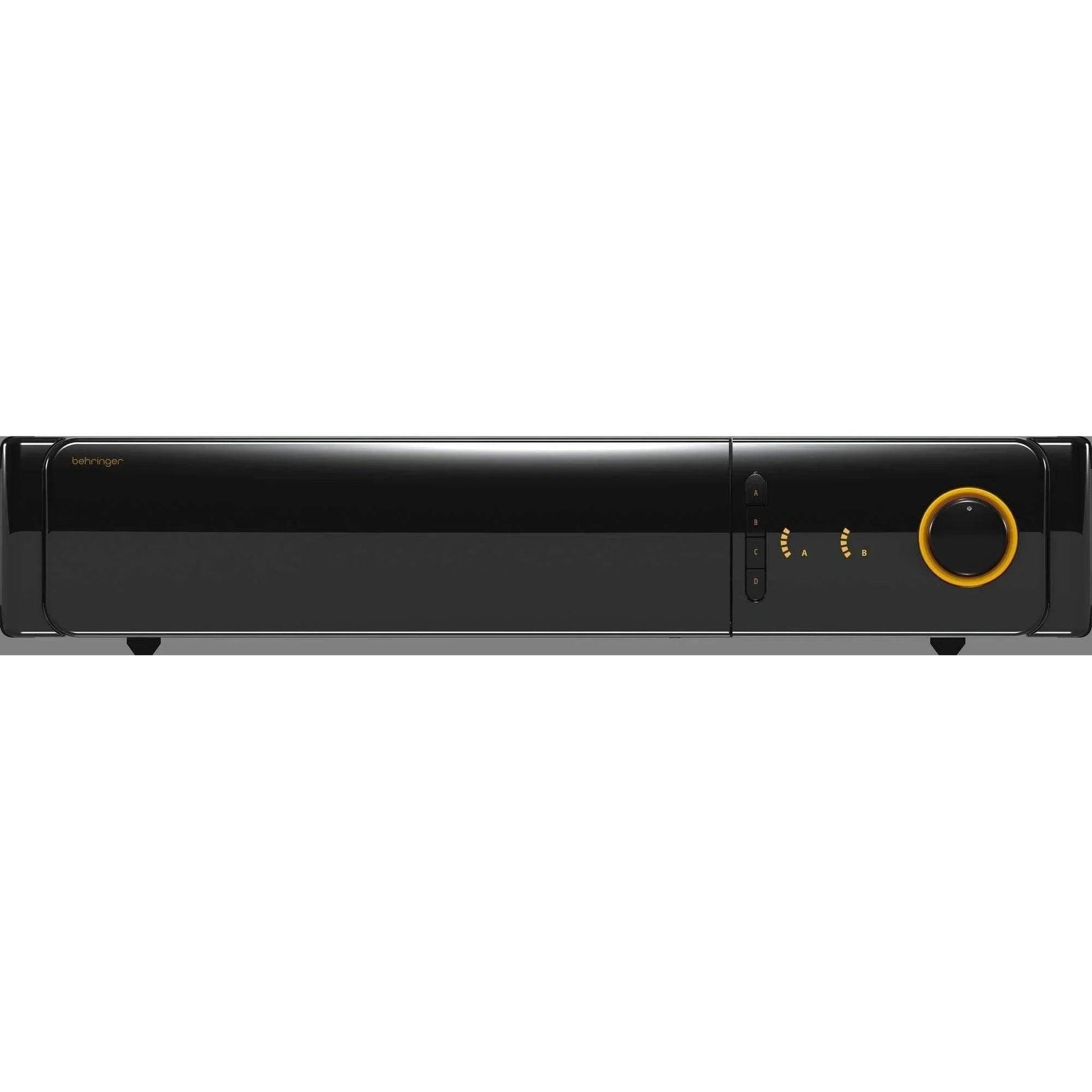

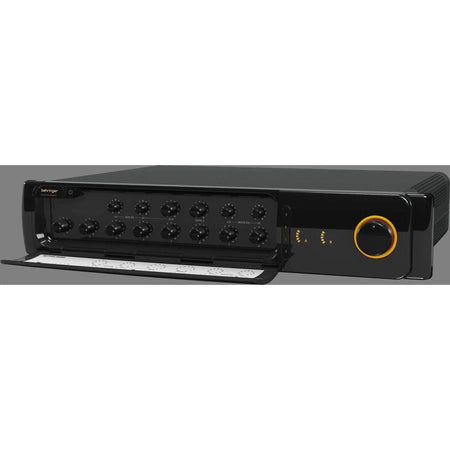

Behringer MA6018 Auto-Mixing Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
The EUROCOM MA6018 Auto-Mixing Amplifier from Behringer allows you to distribute audio to speakers in two different zones and page listeners within those zones. This unit also allows for the installation of hybrid multi-zone systems combining distributed music and low-impedance speakers because it is driven by two independent Class-D mono amplifiers. The first amplifier operates with a standard low impedance output while the second features a selectable output voltage of 70 or 100 volts.

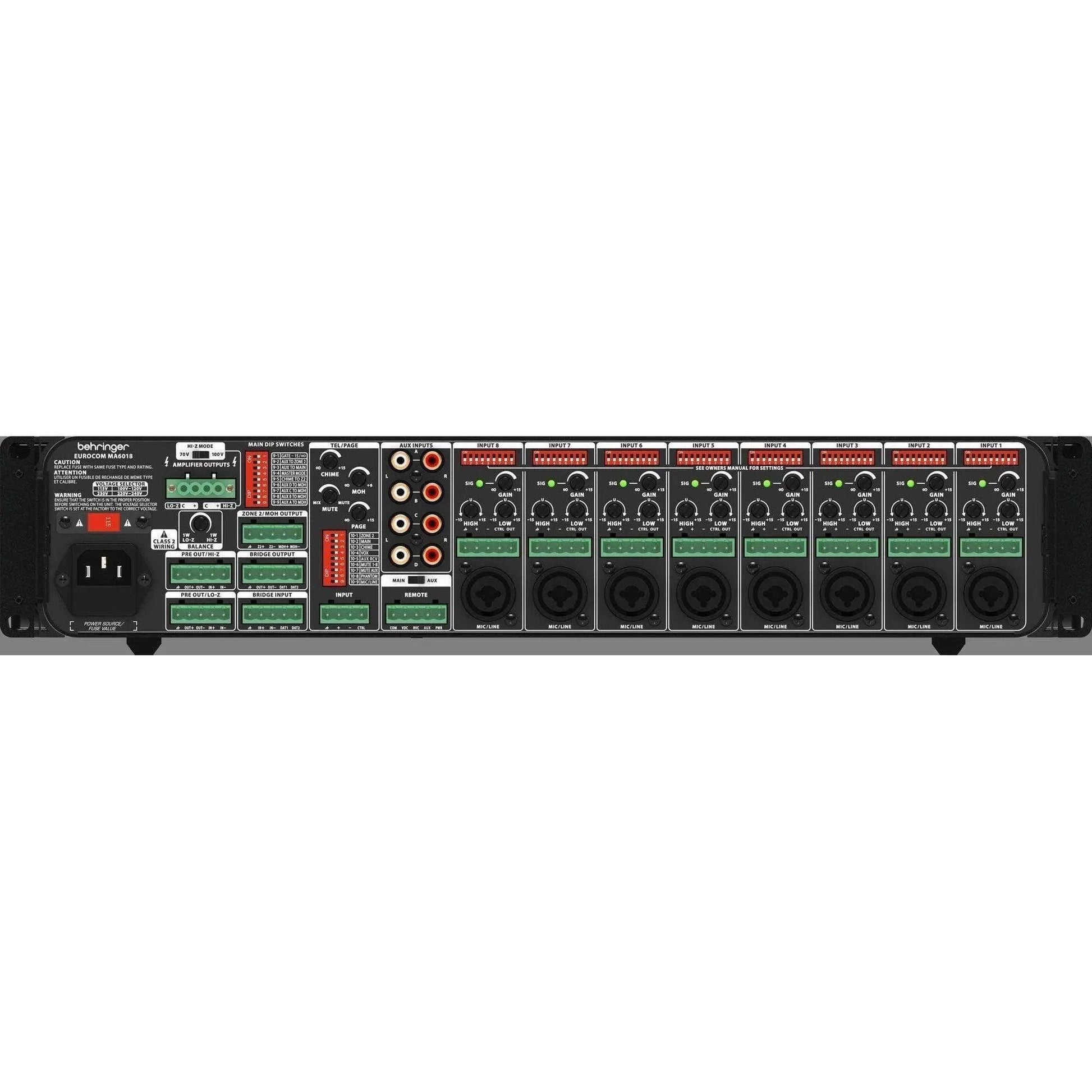

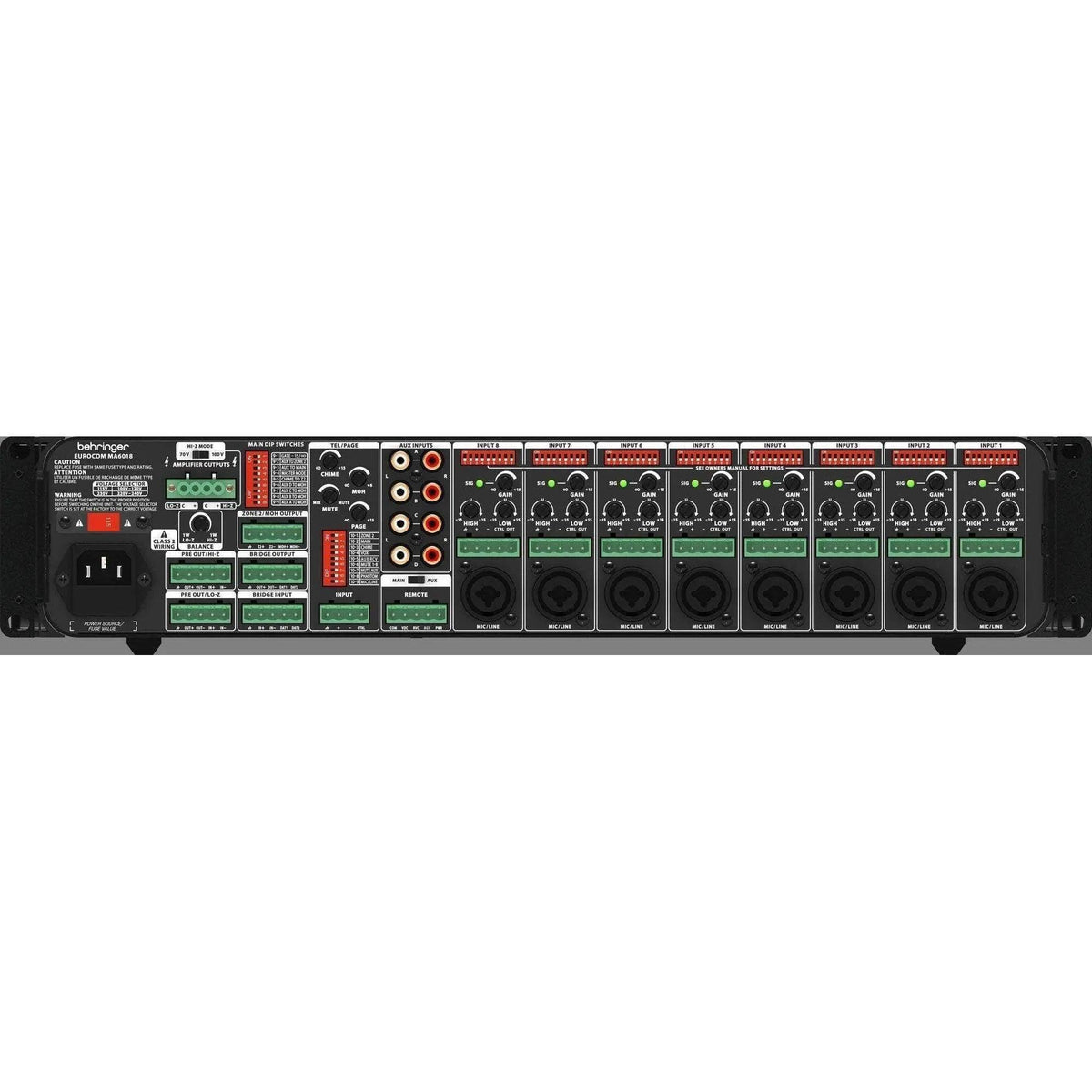

Weight 14.1 lb (6.4 kg) Audio Input Type 8x Combo XLR/TRS mic/line, 8x 5-Pin Euroblock mic/line (in parallel), 4x Stereo summed RCA auxiliary, 1x 4-Pin Euroblock page input Audio Output Type Amplifier Output: 1x 4-Pin female Euroblock, Lo-Z Output: 2x terminals @ 4 Ω, Hi-Z: 2x terminals @ 70/100 V (switchable), Direct Out: 8x 5-Pin Euroblock, Z2/MOH Output: 1x 5-Pin Euroblock Channels Lo-Z: 1x 4 Ω (minimum), Hi-Z: 1x 70/100 V (switchable) Dimensions 3.5 x 17.0 x 16.0" (8.8 x 43.2 x 40.6 cm) Dynamic Range Mic: 65 dB, Line: 80 dB Frequency Response 50 Hz to 18 kHz (± 2 dB) Input Impedance Mic: -50 to 0 dBV @ 600 Ω (electronically balanced), Line: -27 to 0 dBV @ 600 Ω (electronically balanced), Auxiliary : -10 dBV @ 10 kΩ (unbalanced) Output Impedance 0 dBV @ 600 Ω (balanced) Phantom Powered 24 VDC Switchable on inputs 1 to 8 and Tel/Page input THD 0.5% @ 1 kHz (rated output)
