Behringer HA4700 Headphone Amplifier
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications

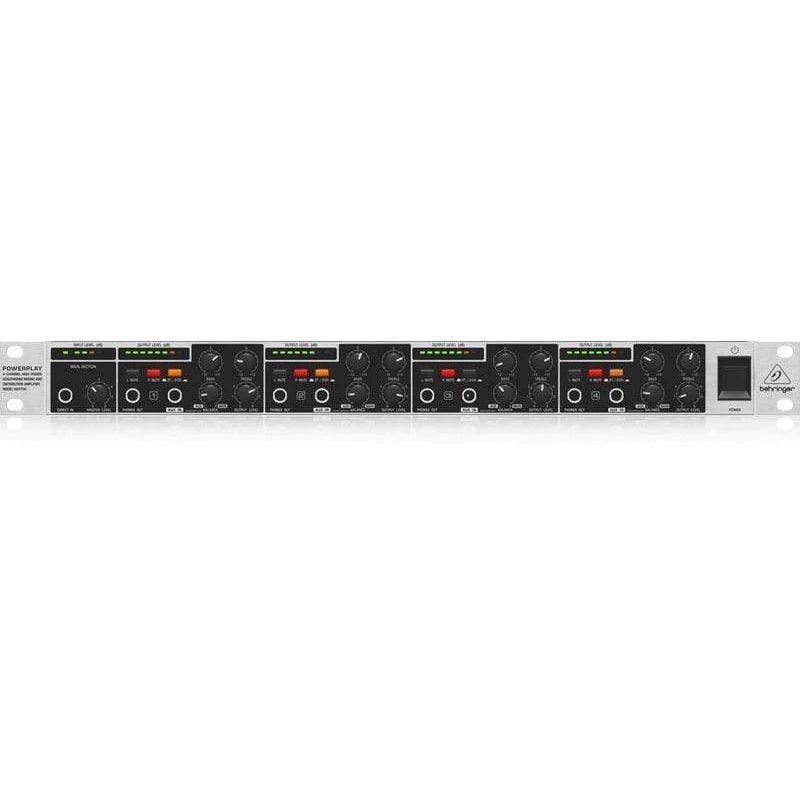

The Behringer HA4700 headphone amplifier is a very full-featured, professional, 4-channel rackmount unit. It provides balanced Main input and output connectivity and 4 independent headphone amplifiers, with individual level, balance and stereo/mono monitoring control, in addition to individual channel EQ's.
Features
- Professional 4-Channel rack-mountable headphone amplifier for stage and studio use
- 4 independent amplifier sections offer 4 different mixes and individual output level control
- Accepts signal from all console output sections, balanced and unbalanced
- Individual EQ, Balance, Muting, and Stereo/Mono monitoring per channel
- Left and Right Mute switches allow for separate dual-mono mix monitoring per channel
- Individual front panel Aux and Direct inputs per channel
- Balance control allows for individual level control of Main and Direct or Aux input signals
- 8-segment LED output level monitoring per channel

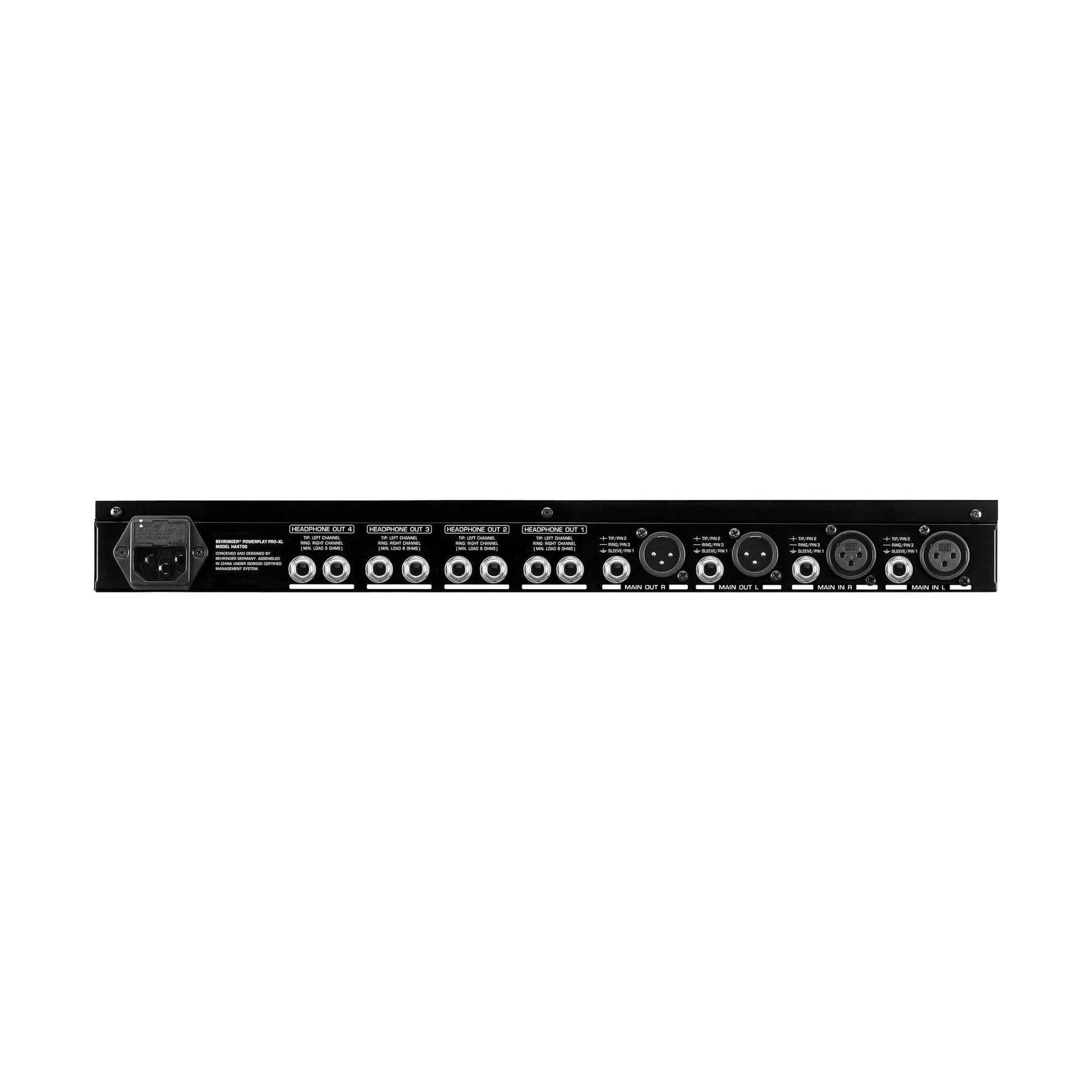

- Servo-balanced Main inputs and outputs, XLR and 1/4" TRS
- 3 headphone outputs per channel, 1 front, 2 rear
- High quality detented potentiometers, illuminated switches
- Supports a wide variety of headphone impedances
- High headroom, high output amplification
- Switchable power supply for international, transformer-free use
Tech Specs
Number of Channels 4 Input Connections Main: 2 x XLR Female, Balanced Main: 2 x 1/4" TRS Phone, Balanced AUX In: 4 x 1/4" TRS Stereo Phone Direct In: 5 x 1/4" TRS Stereo Phone Output Connectors Main: 2 x XLR Male(L, R), Balanced Main: 2 x 1/4" TRS Phone (L, R), Balanced 4 x 1/4" TRS Stereo Headphone 8 x 1/4" TRS Stereo Headphone(Rear Panel) Maximum Output Level +24 dBm(load impedance 100 Ohms) Function Controls 1 x Stereo/2-Channel Switch 1 x Main In 1/Main In 2 Switch 2 x Left, Right Mute Switches 1 x Mono Switch 1 x Main Input Level Control Knob 4 x Balance Control Knobs 4 x Output Level Control Knobs 4 x Treble Control Knobs 4 x Bass Control Knobs Frequency Response 10 Hz - 150 kHz +/-3 dB THD + N 0.006% Typical @ +4 dBu, 1 kHz, Gain 1 Noise 22 Hz - 22 kHz>90 dB @ 0 dBu Display Input Level: 1 x 4-Digit LED, MAIN Output Level: 4 x 8-Digit LED, PHONES Dimensions 1.75 x 19 x 8.5" (44.5 x 482.6 x 217mm) Weight 5.08 lb (2.3 kg)
