Behringer Modamp Module 1005
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
Classic 1005 analog ModAmp module from the '70s
-
Authentic reproduction of the circuitry from the "2500" Series
-
Consists of a discrete balanced modulator and VCA
-
Balanced modulator accepts 2 input signals (DC to 20 kHz) and produces an output that is a multiplication of the two signals
-
Modulation is activated by illuminated push buttons (Mod and Unmod)
-
Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
DESCRIPTIONModular Synthesis
The first 2500 series synth modules came out in the 70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.

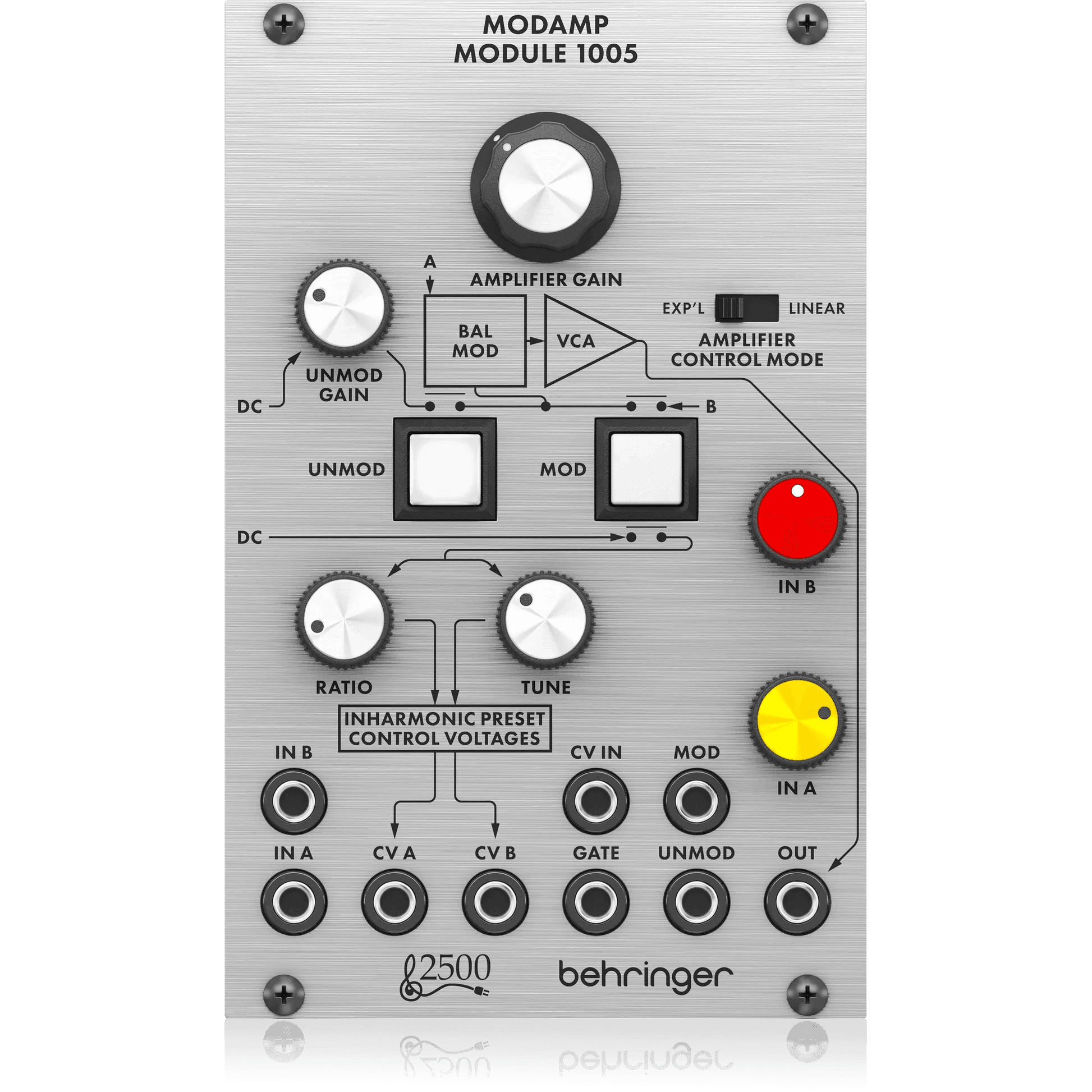

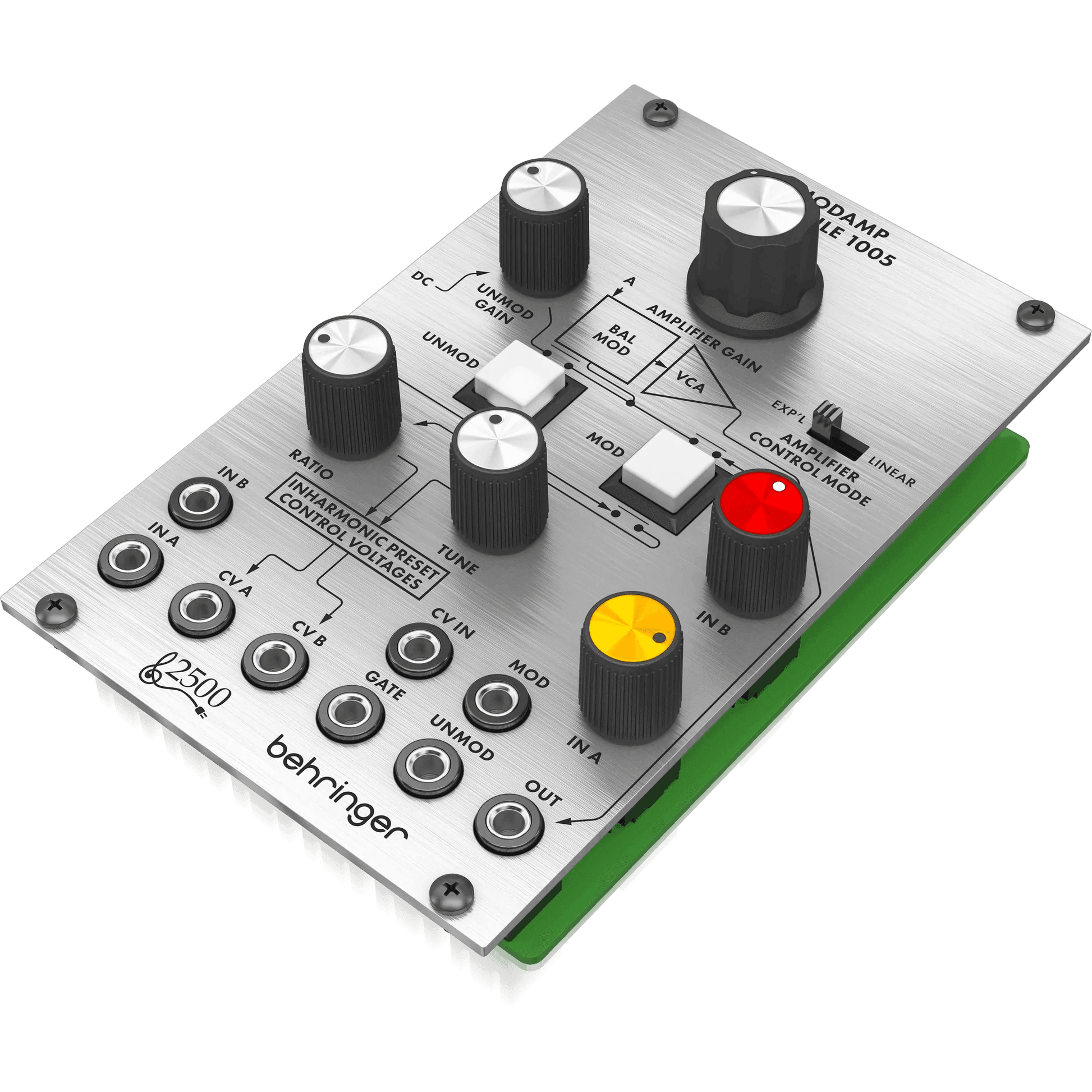

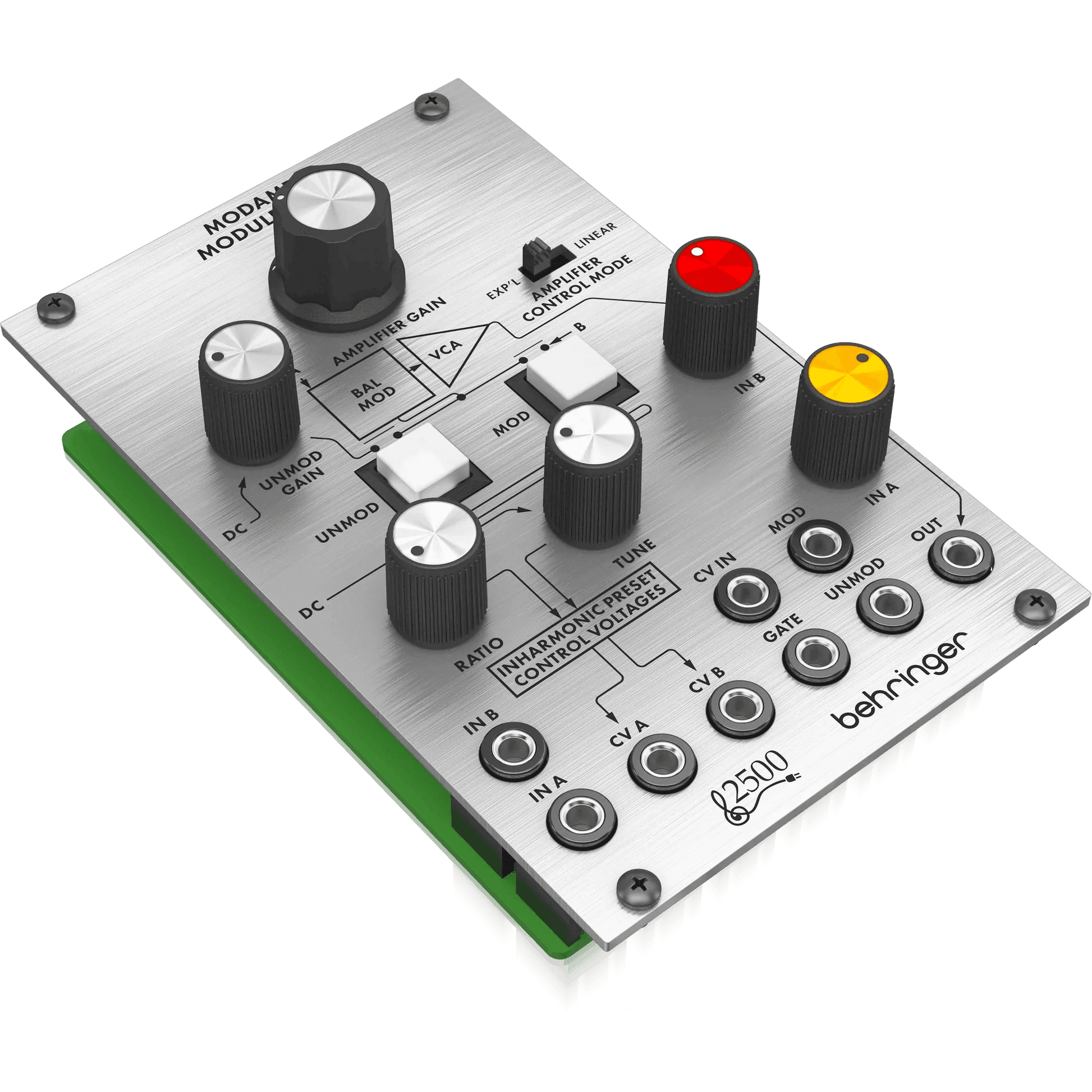

MODAMP MODULE 1005
This is the Behringer 2500 series MODAMP MODULE 1005. An authentic reproduction of the original “System 2500” circuitry from the 70’s that can fit in a standard Eurorack case. The best part? It’s at a very affordable price. Mix the MODAMP MODULE 1005 in with your existing rig or start your modular synth journey from here. Either way you’re sure to have a lot of fun.
Ins and Outs
The 1005 gives you comprehensive connectivity, Inputs A and B for the modulator inputs where signal A is modulated by signal B, CVA and CVB connect to your VCO’s frequency CV inputs for remote control, CV IN to control the VCA level from another module. The GATE, MOD and UNMOD jacks give you a choice of remote control of the UNMOD (Modulation disabled) and MOD (Modulation enabled) switches and finally the VCA OUT provides the unmodulated or modulated signal output allowing the VCA to be used independently when in UNMOD mode.
MODAMP MODULE 1005
Whether you’re just getting into modular synths or looking to complete your collection, the MODAMP MODULE 1005 from Behringer is a great tool to have when creating amazing music.
SPECIFICATIONSInputs
In A / B Type 2 x 3.5 mm TS jacks, DC coupled
Impedance 50 kΩ, unbalanced
Max input level 10 V p-p
Gate Type 1 x 3.5 mm TS jack, DC coupled
Impedance 80 kΩ, unbalanced
Max input level +12 V
Minimum switching threshold +4 V
Mod / unmod Type 2 x 3.5 mm TS jacks, AC coupled
Impedance 50 kΩ, unbalanced
Max input level +12 V
Minimum switching threshold +4 V
CV in Type 1 x 3.5 mm TS jack, DC coupled
Impedance 100 kΩ, unbalanced
Max input level ±10 V
Outputs
Out Type 1 x 3.5 mm TS jack, DC coupled
Impedance 1 kΩ, unbalanced
Max output level 10 V p-p
CV A / B Type 2 x 3.5 mm TS jack, DC coupled
Impedance 400 Ω, unbalanced
CV A Max output level ±3 V
CV B Max output level ±6 V
Controls
Amplifier gain -∞ to unity gain
Unmod gain -∞ to unity gain
Amp control mode 1 x sliding switch, Exponential / linear
Unmod / mod 2 x button, LED backlit
In A / B -∞ to unity gain
Ratio ±3 V @ CV B output only
Tune ±3 V @ CV A & CV B outputs
Power
Power supply Eurorack
Current draw 60 mA (+12 V),
45 mA (-12 V)
Physical
Standard operating temperature range 5° C to 40° C (41° F to 104° F)
Dimensions 43 x 81 x 129 mm
(1.7 x 3.2 x 5.1")
Rack units 16 HP
Weight 0.16 kg (0.35 lbs)
-
