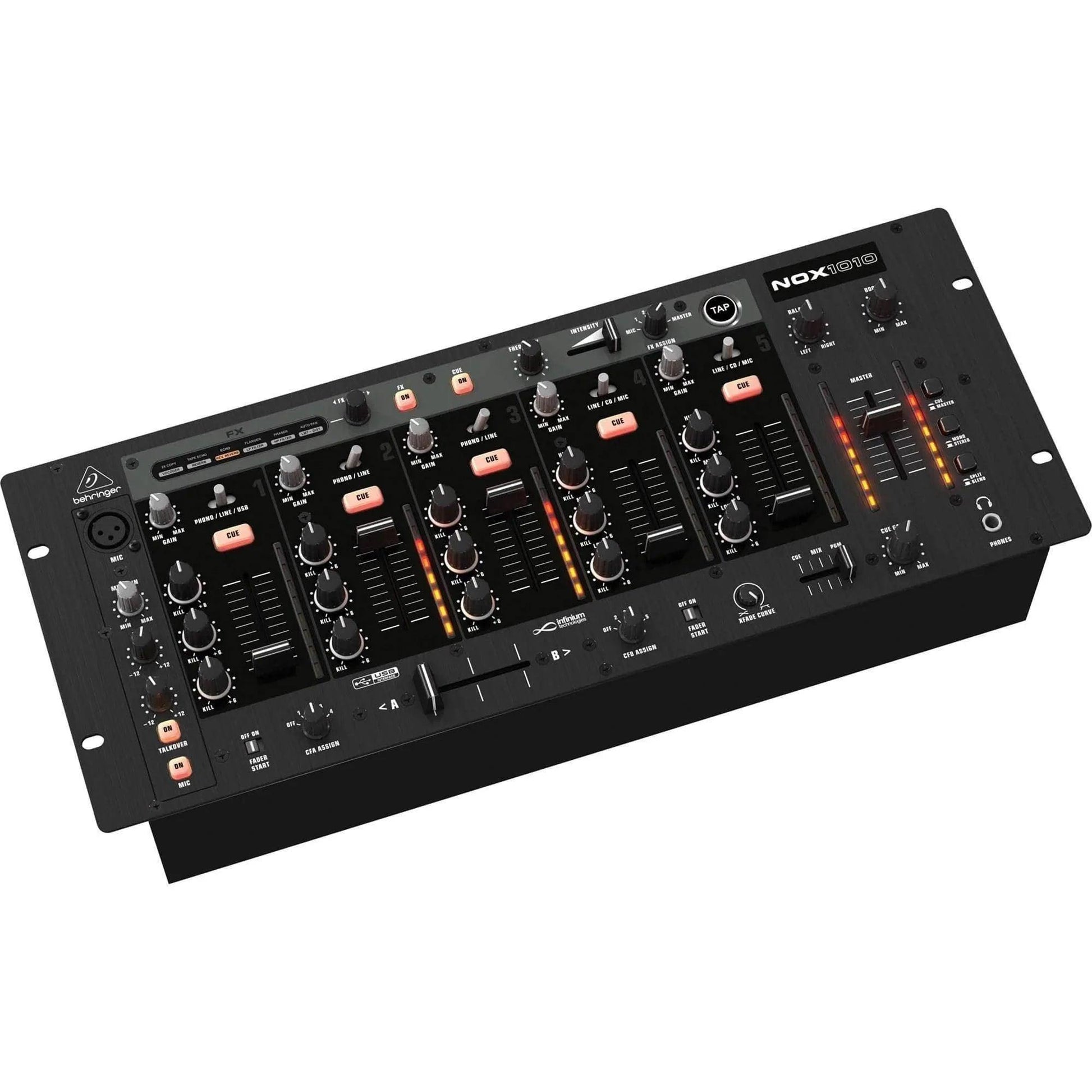

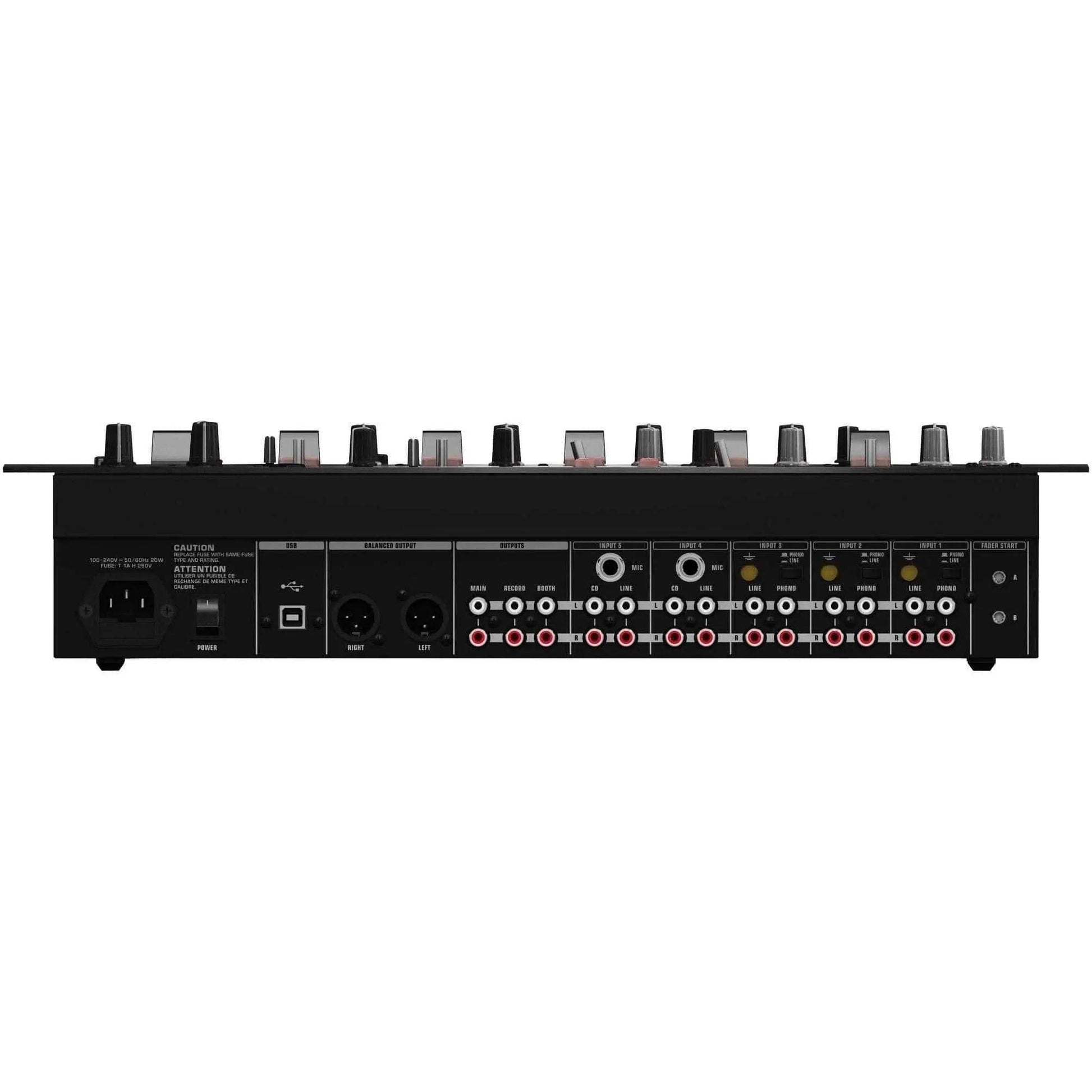

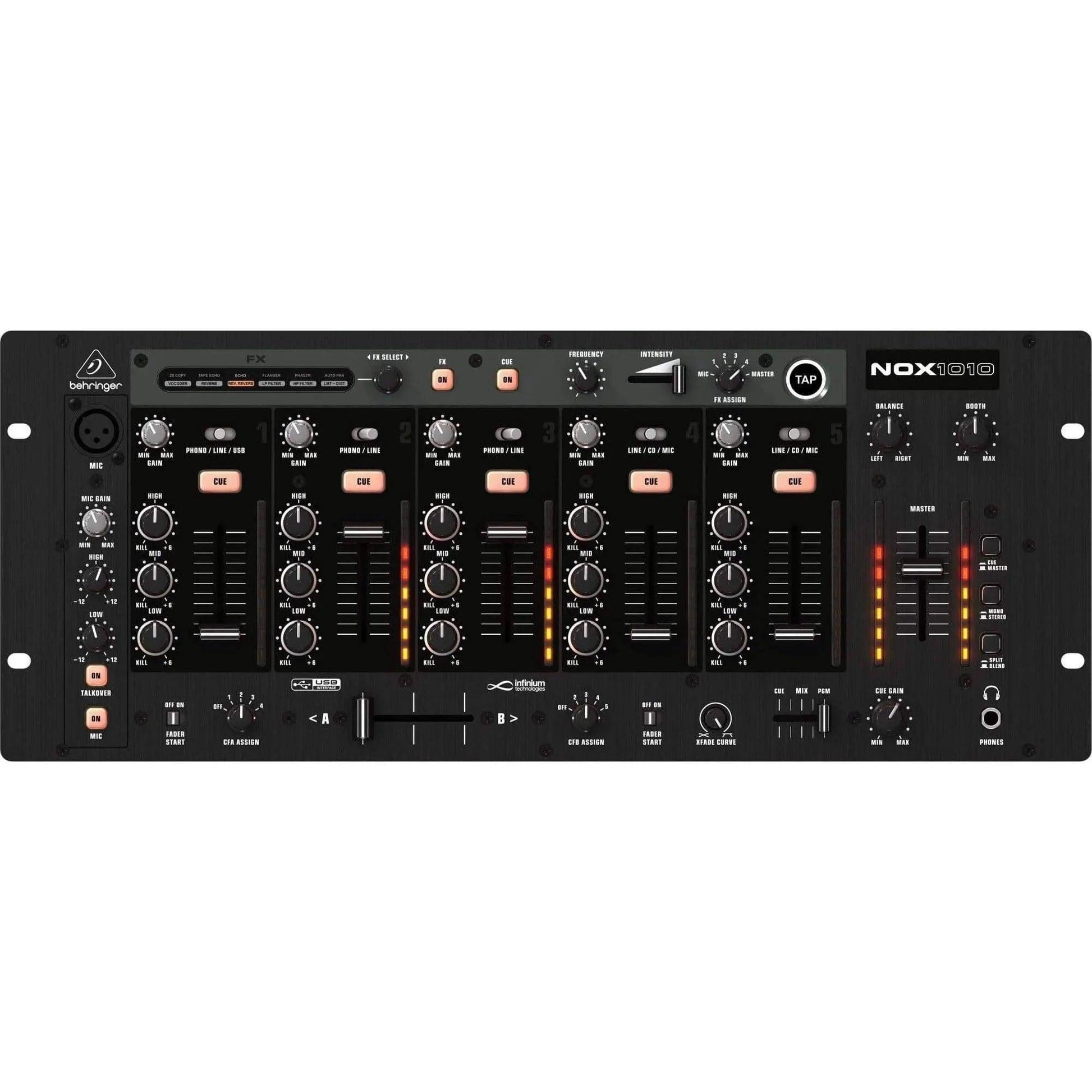

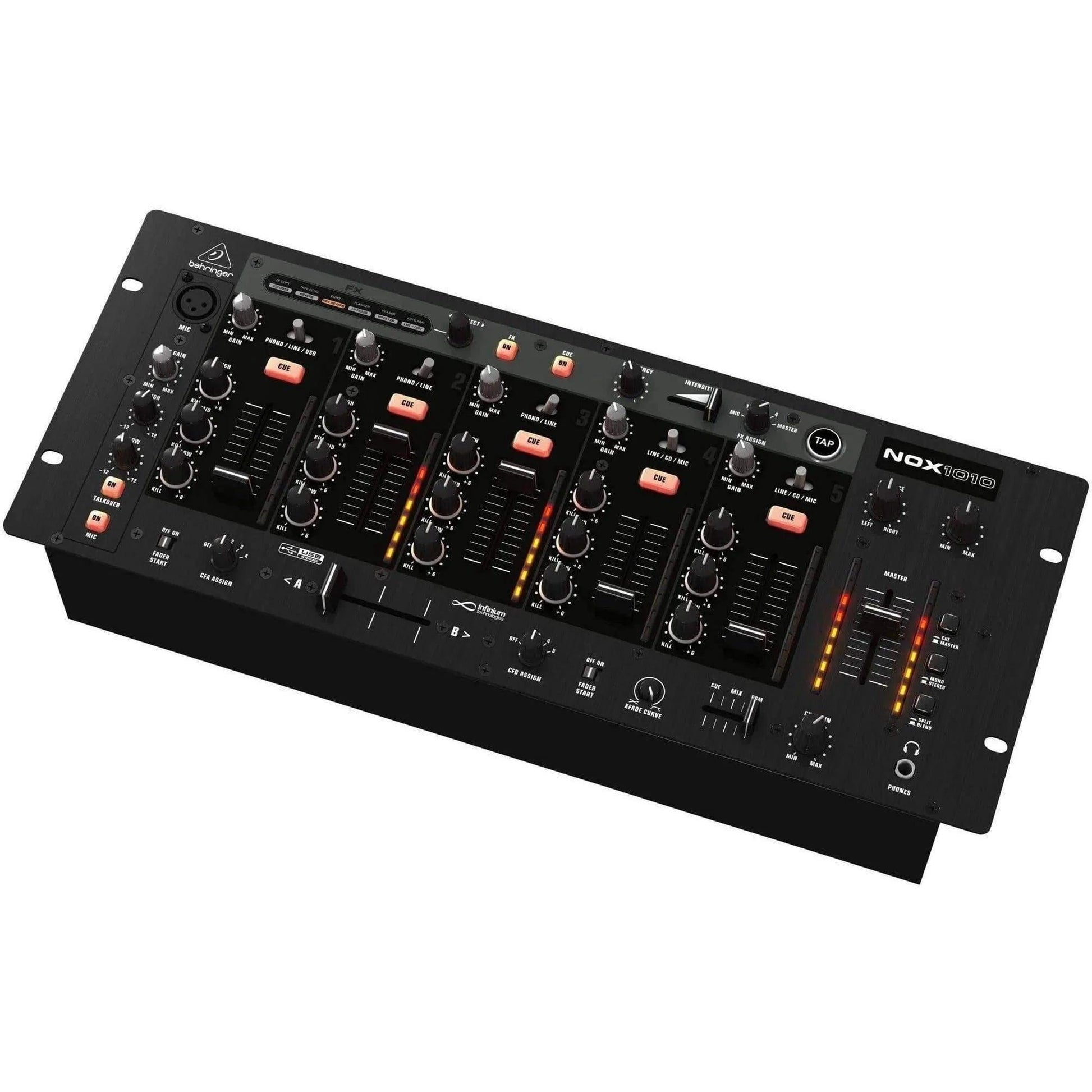

Behringer NOX1010 DJ Mixer

Behringer NOX Series DJ Mixers are built to connect directly to your computer and take your music straight into the digital realm. In an instant, these mixers allow you to record and play any digital music file with your PC or Mac computer without the need for any special drivers. Also including the Infinium contact-free VCA Crossfader, the legendary XENYX mic and premium-grade phono preamps, and beat-syncable FX for years of flawless performance.

Features

• Premium phono and XENYX mic preamps for superior detail and ultimate punch
• 5 dual-line and USB inputs, 3 phono, line plus 2 mic, line inputs
• VCA controlled faders with selectable fader start for utmost reliability and noise-free performance
• Sophisticated headphone monitoring and a cueing section with split cue function
• Extensive XLR Master, Record and Booth outputs
• Planet Earth power supply for maximum flexibility, 100 - 240 V, noise-free audio, superior transient response plus low power consumption for energy saving
• High quality components and exceptionally rugged construction ensure long life
• Conceived and designed by BEHRINGER Germany
• Premium 5 channel club DJ mixer for the most demanding turntablist, remixer and digital DJ
• 45 mm Infinium contact-free optical crossfader with adjustable tension and fader curve for years of use
• Beat syncable FX section with 2 parameter controls assignable to Mic, 1, 2, 3, 4 or Master
• Built-in USB interface for recording and playback of any digital music file. Works with your PC or Mac computer — no setup or drivers required
• Awesome 3 band EQ with full kill filters plus 8 element level meters with peak hold function per channel

Tech Specs

Audio Inputs

• Mic in: 40dB gain, XLR, electronically balanced
• Phono in: 40dB gain, RCA, unbalanced
• Line in: 0dB gain, RCA, unbalanced
• Aux/CD in: 0dB gain, RCA, unbalanced

Audio Outputs

• Main out (A): 21dBu max, XLR, balanced
• Main out (B): 21dBu max, RCA, unbalanced
• Booth/Amp: 21dBu max, RCA, unbalanced
• Record out: 21dBu max, RCA, unbalanced
• Phones out: max. 400 mW @ 1kHz into 75 Î

Crossfader Type: infinium optical crossfader

Equalizer

• Stereo low: +6 / -31dB @ 50Hz
• Stereo mid (1): +6 / -20dB @ 1.2kHz
• Stereo high: +6 / -20dB @ 10kHz
• Mic low: ±12dB @ 50Hz
• Mic high: ±12dB @ 12kHz

USB Audio: Stereo In/Out

• Connector: Type B
• Converter: 16-bit
• Sample rate: 44.1 / 48kHz

Digital Effects Processor

• DSP: 24-bit Freescale
• A/D-D/A converter: 24-bit Delta-Sigma

Power Supply

• Mains voltage: 100-240 V, 50/60Hz
• Power consumption: max. 20W
• Fuse: T 1A H 250V
• Mains connection: Standard IEC receptacle
• Dimensions (HxWxD): 4.3" x 19" x 7.5"/108mm x 483mm x 191mm
• Weight: 6.8lb. / 3.1kg
