Behringer NX6000 Power Amplifier

The Behringer NX6000 packs an impressive amount of power into a lightweight, cool-running unit. This power amplifier delivers 3,000 watts/channel into 4 ohms or 1,600 watts/channel into 8 ohms, so you'll have plenty of headroom to work with. Experience low noise, superior transient response, and low power consumption, thanks to an efficient switch-mode power supply. Benefit from a linear frequency response at any speaker load, by virtue of the NX6000's SmartSense loudspeaker impedance compensation. Beyond that, Zero-attack limiters supply maximum output with reliable overload protection. The NX6000 comes complete with a built-in stereo crossover, reliable twist-lock speaker connectors, and precise 4-segment LED metering.

• Delivers 2 x 3000 Watts into 4 Ohms; 2 x 1600 Watts into 8 Ohms and weighs less than 13 lbs / 5.9 kg

• Ultimate reliability through revolutionary cool-running High-Density Class-D technology with “near-zero” thermal buildup

• Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption

• Built-in stereo crossover with low-cut, high-cut and full range mode

• SmartSense Loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance

• “Zero-Attack” limiters offer maximum output level with reliable overload protection

• Detented and illuminated gain controls for precise level setting

• Precise 4-segment Signal and Limit LEDs to monitor performance

• XLR and 1/4" TRS combination input connectors for compatibility with any source

• Professional twist-lock speaker connectors for ultimate reliability

• Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show

• “Back-to-front” ventilation system prevents thermal buildup for reliable operation

 SPECIFICATIONS:

Maximum Output Power
Stereo / 4-channel
4 Ω per channel, stereo	2 x 3000 W
Controls
Front	Power switch Gain controls (channels A and B)

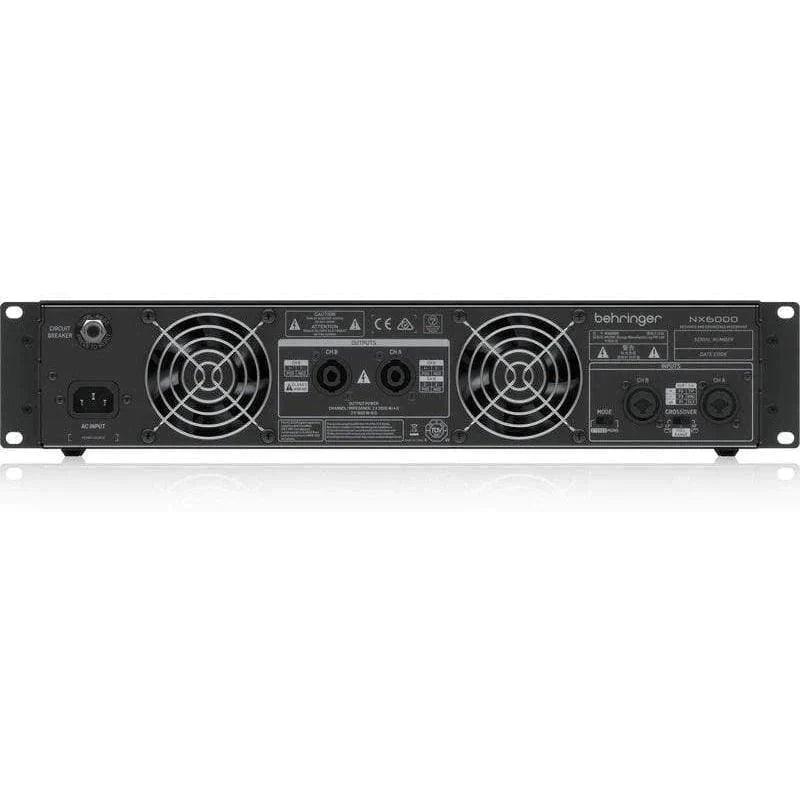

Rear	Mode switch (stereo / mono) Crossover switch (LF / fullrange / HF) Circuit breaker
Indicators
Power	Amber LED
Limit (per channel)	0 dB LED
Signal (per channel)	-40 / -6 / -3 dB LEDs
Protect (per channel)	Red LED
Input Sensitivity
For rated power into 4 Ω	0.775 V (0 dBu)
System
Inputs	2 x combo jacks
Input impedance	10 kΩ unbalanced, 20 kΩ balanced
Outputs	2 x locking-style professional speaker connectors
Output circuit type	Class D
Distortion	<0.1%
Frequency response	20 Hz to 20 kHz, +0 / -2 dB
Damping factor	>140 @ 8 Ω
Signal-to-noise	>100 dB
Circuit Protection
Cooling	Continuously variable speed fan
	Back-to-front air flow
Amplifier protection	Thermal and DC protection
	Stable into reactive or mismatched loads
Load protection	On/off muting, DC-fault power supply shutdown
Power Supply, Voltage, Current Consumption (Breaker / Fuses)
USA / Canada	120 V~, 60 Hz, (T 25 A H 250 V)
Japan	100 V~, 50/60 Hz, (T 25 A H 250 V)
UK / Australia / Europe	220-240 V~, 50/60 Hz, (T 12 A H 250 V)
Korea / China	220-240 V~, 50/60 Hz, (T 12 A H 250 V)
Power consumption @ 4 Ω, 1⁄8 rated power	620 W
Mains connector	Standard IEC receptacle
Dimensions / Weight
Dimensions (H* x W x D)	94 x 483 x 316 mm (3.7 x 19.0 x 12.4")
Weight	5.9 kg (13.0 lbs)
