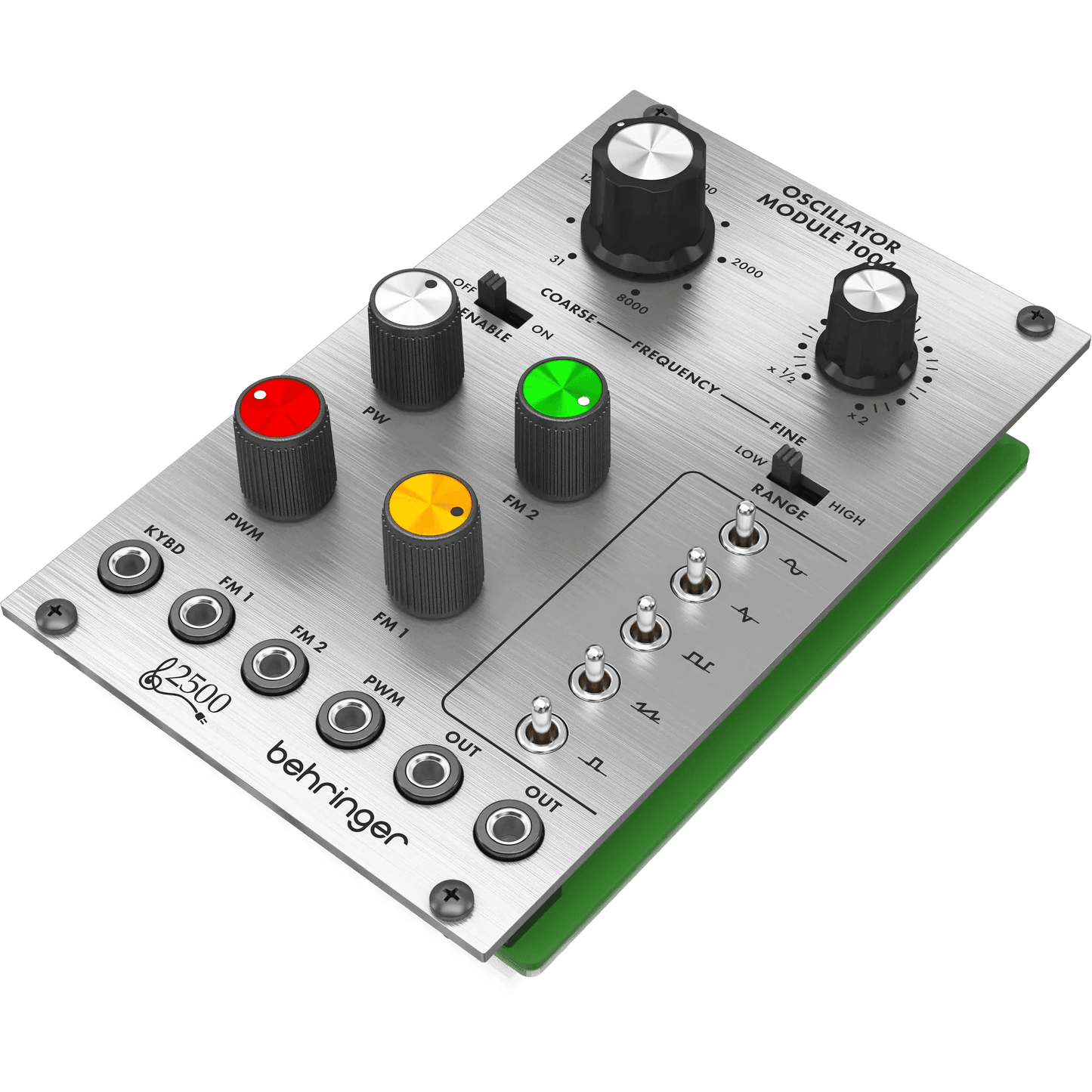

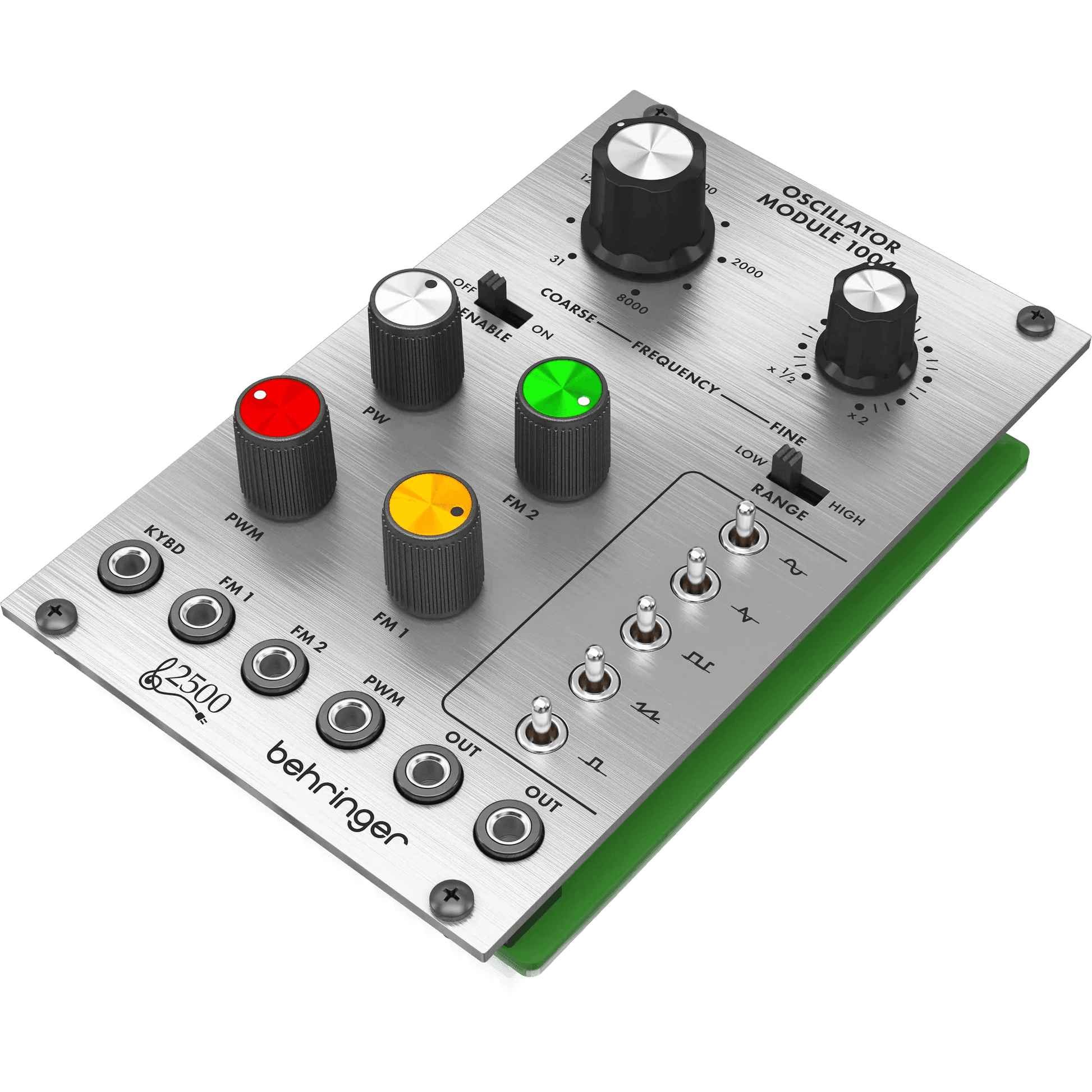

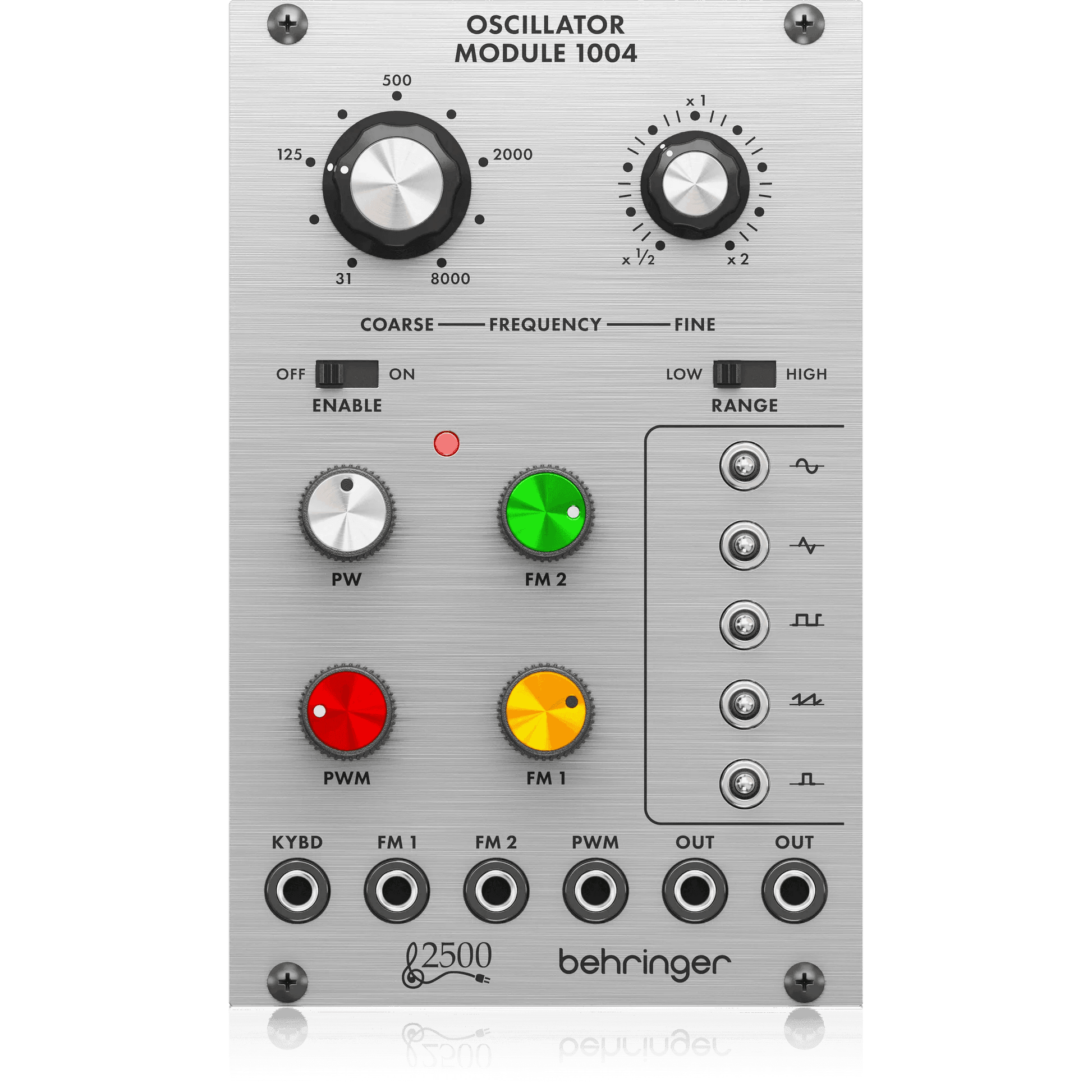

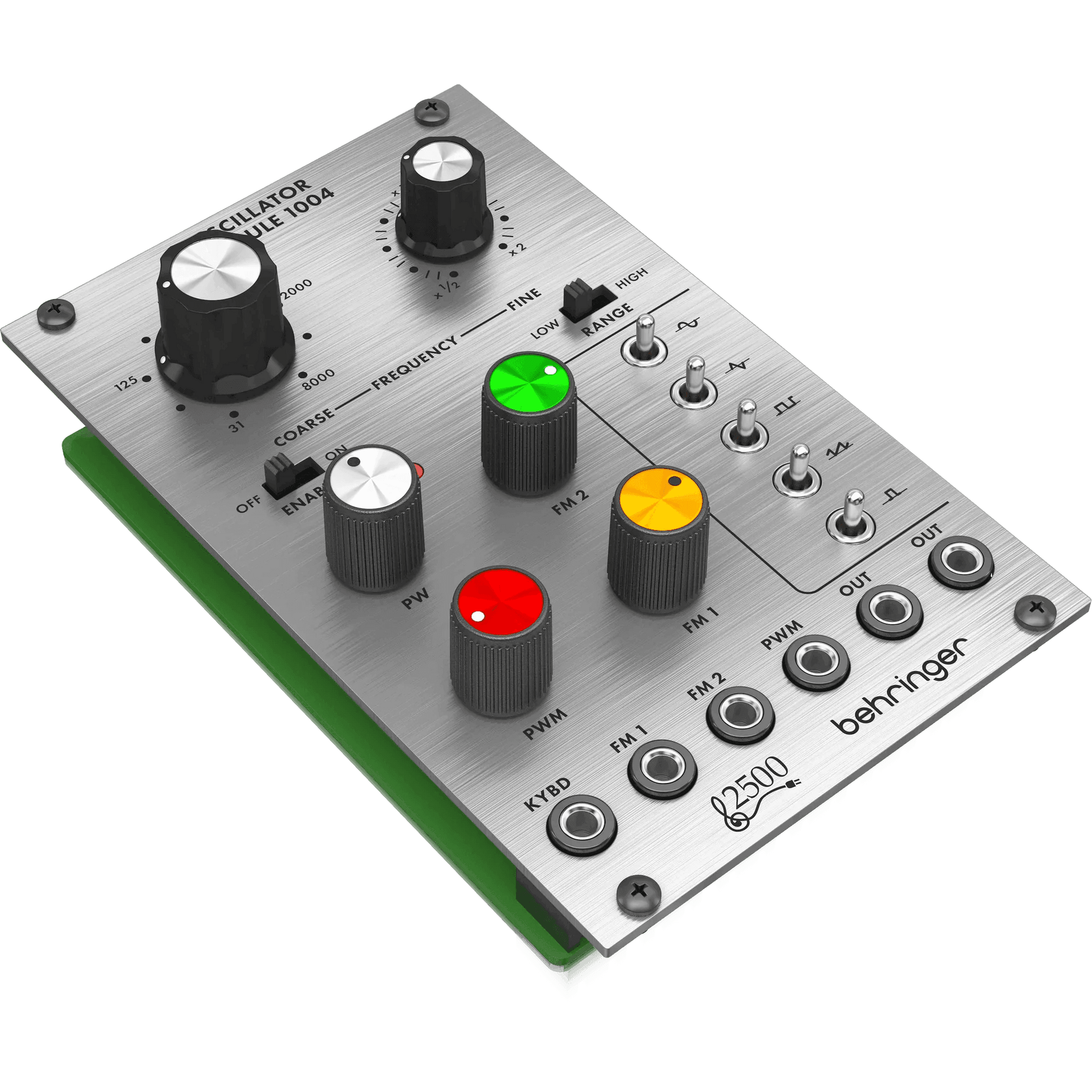

Behringer OSCILLATOR MODULE 1004
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
-
lassic 1004 dual analog VCO module from the '70s
-
Authentic reproduction of the circuitry from the 2500 Series
-
VCO features 5 waveforms: sine, triangle, square, sawtooth and pulse
-
Waveforms can be combined and inversed into the audio outputs
-
Output frequency range from 0.03 Hz to 16 kHz in 2 ranges
-
VCO range selectable between Low (LFO) or High (Audio)
-
Coarse frequency control allows adjustment over 10 octaves
-
Fine frequency control adjusts over +/- 1 octave
-
Frequency modulation with 2 inputs and controls responding to 1 V/octave
-
The width of the pulse waveform can be set manually and controlled dynamically
-
Eurorack specs: 16 HP, XX mA +12 V, XX mA -12 V
DESCRIPTIONThe first 2500 series synth modules came out in the '70s and tended to be extremely expensive. They were mainly all discrete transistor designs with some op-amps as at the time op-amps were high cost. The discrete circuitry gave the modules a very distinctive sound and were used by artists like The Who, Jean Michel Jarre, Vangelis, Kraftwerk and so many more, giving us some of the greatest records and film soundtracks we’ve ever heard. Modular synths were a landmark development in electronic music and today, it’s about to get better.
SPECIFICATIONSInputs
FM 1/2
Type
2 x 3.5 mm TS jacks
Impedance
50 kΩ, unbalanced
Max input level
10 V, 1 V/octave
Keyboard
Type
3.5 mm TS jack
Impedance
50 kΩ, unbalanced
Max input level
10 V, 1 V/octave
PWM
Type
3.5 mm TS jack
Impedance
50 kΩ, unbalanced
CV range
±10 V, 10% per volt
Outputs
Out
Type
2 x 3.5 mm TS jacks
Impedance
1 kΩ, unbalanced
Max output level
10 V p-p
Controls
Coarse
Sets oscillator frequency (8 octave range)
Fine
Oscillator fine adjustment (±1 octave)
Range
Select LFO (0.06 Hz - 16 Hz) or audio band (31 Hz - 8 kHz)
Enable
Oscillator on/of
PW
Pulse width adjustment (5% - 95%)
PWM
Modulation depth adjustment (-∞ to unity gain)
FM 1/2
Attenuate FM inputs (-∞ to unity gain)
Waveform switches
Select up to 5 waveforms (sine, tri, square, saw, pulse)
Power
Power supply
Eurorack
Current draw
60 mA (+12 V), 50 mA (-12 V)
Physical
Dimensions
46 x 81 x 129 mm (1.8 x 3.2 x 5.1")
Rack units
16 HP
Weight
0.17 kg (0.37 lbs)
-
