Behringer P16-HQ 16-Channel Personal Monitoring Mixer

SKU: P16HQ

Log in to view price Trade pricing — AED / USD

Only 1 left
Low inventory - Hurry up!
Request Bulk Pricing

Ask an AV specialist

Video chat Chat Email +971 50 559 4871

  • Full Specifications

    KEY FEATURES

    • Easily create highest-quality personalized monitor mixes from 16-channel input stream

    • Excellent new 114 dB D/A converter for noise free output even at high levels

    • New high-quality output amplifier stage for improved volume with low-impedance headphones and in-ears

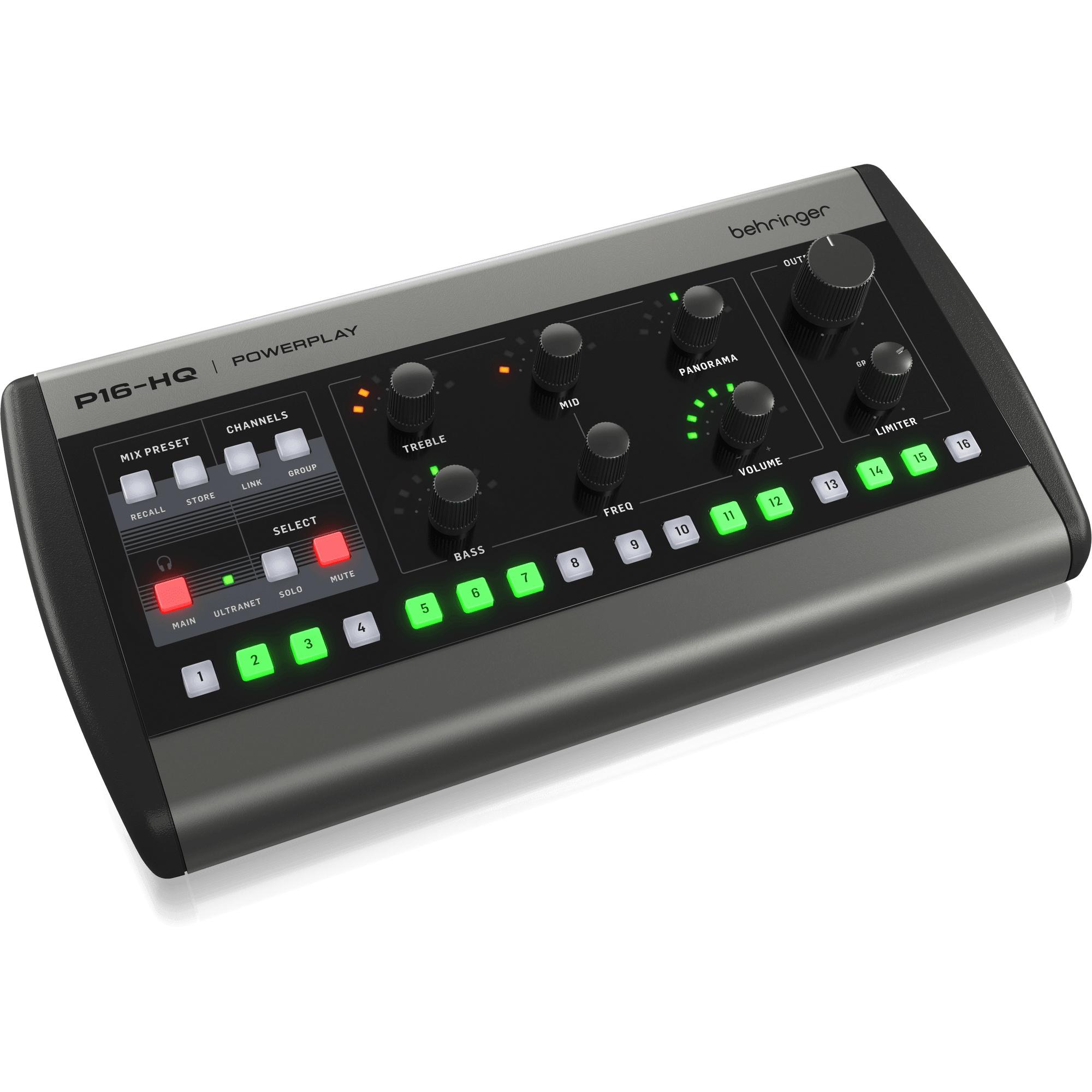

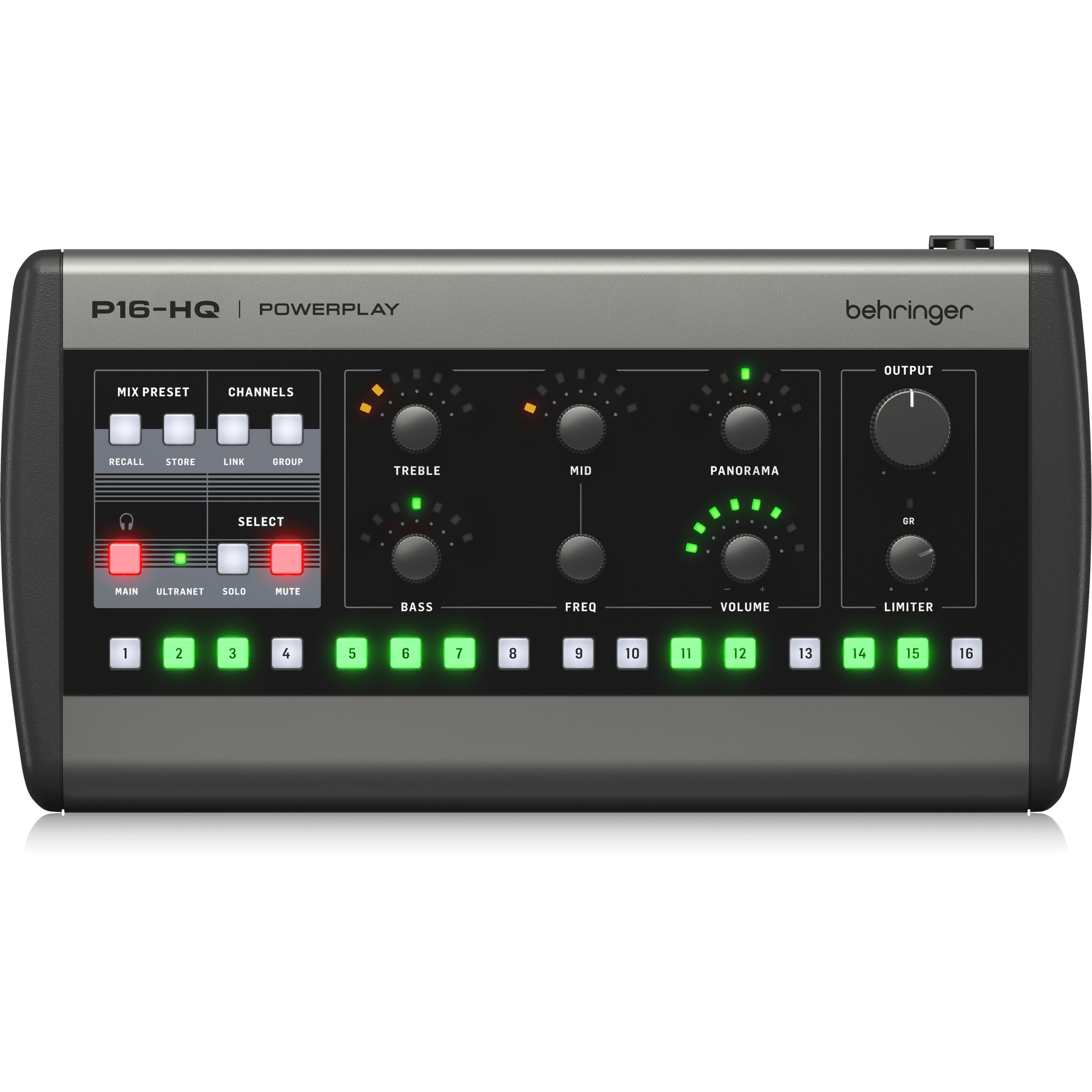

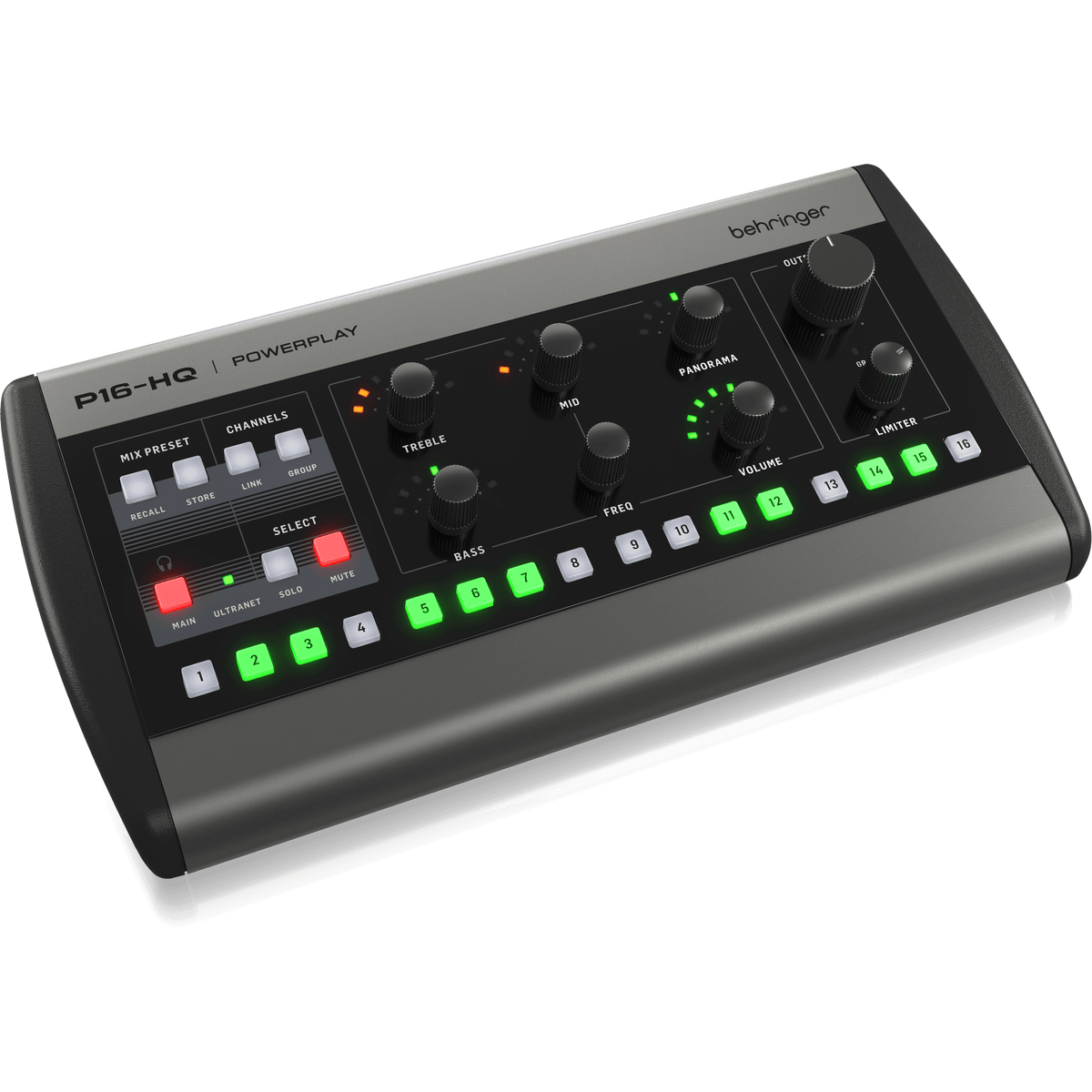

    • Intuitive control surface with total recall and presets for custom mixes

    • 16 backlit channel select buttons for immediate access

    • Level and Panorama/Balance control with LED indicators

    • 3-band EQ per channel and main with adjustable mid-band frequency

    • Solo and Mute functions per channel and main

    • Output limiter for hearing protection

    • Additional mono/stereo line output for active monitor speakers

    • Single Ultranet CAT5e connection delivers power and 16 signals to personal mixers

    • For larger setups, P16-HQ can be daisy-chained or connected to P16-D hubs

    • Phantom powered via Ultranet or with external DC power supply (included)

    • Ultra-low system latency of less than 1 millisecond

    • Mounts securely on a mic stand with P16-MB (not included)

    • MIDI input allows real-time remote control from external MIDI devices

    • Fully compatible with Behringer P16-M personal mixers.



    DESCRIPTION

    The Behringer P16-HQ builds on the success of P16-M, an industry favorite, with its new high-quality D-A converter, output amplifier, a design refresh and more! The P16-HQ is a great and affordable way to give performers control over their own monitor mix; leaving room for engineers to create the best overall mix possible.

    The P16-HQ includes a new digital-to-analog converter with a dynamic range of 114dB, coupled with a new high-quality amplifier stage providing improved performance and volume, especially with low-impedance headphones and in-ears.


    SPECIFICATIONS

    Category Specification

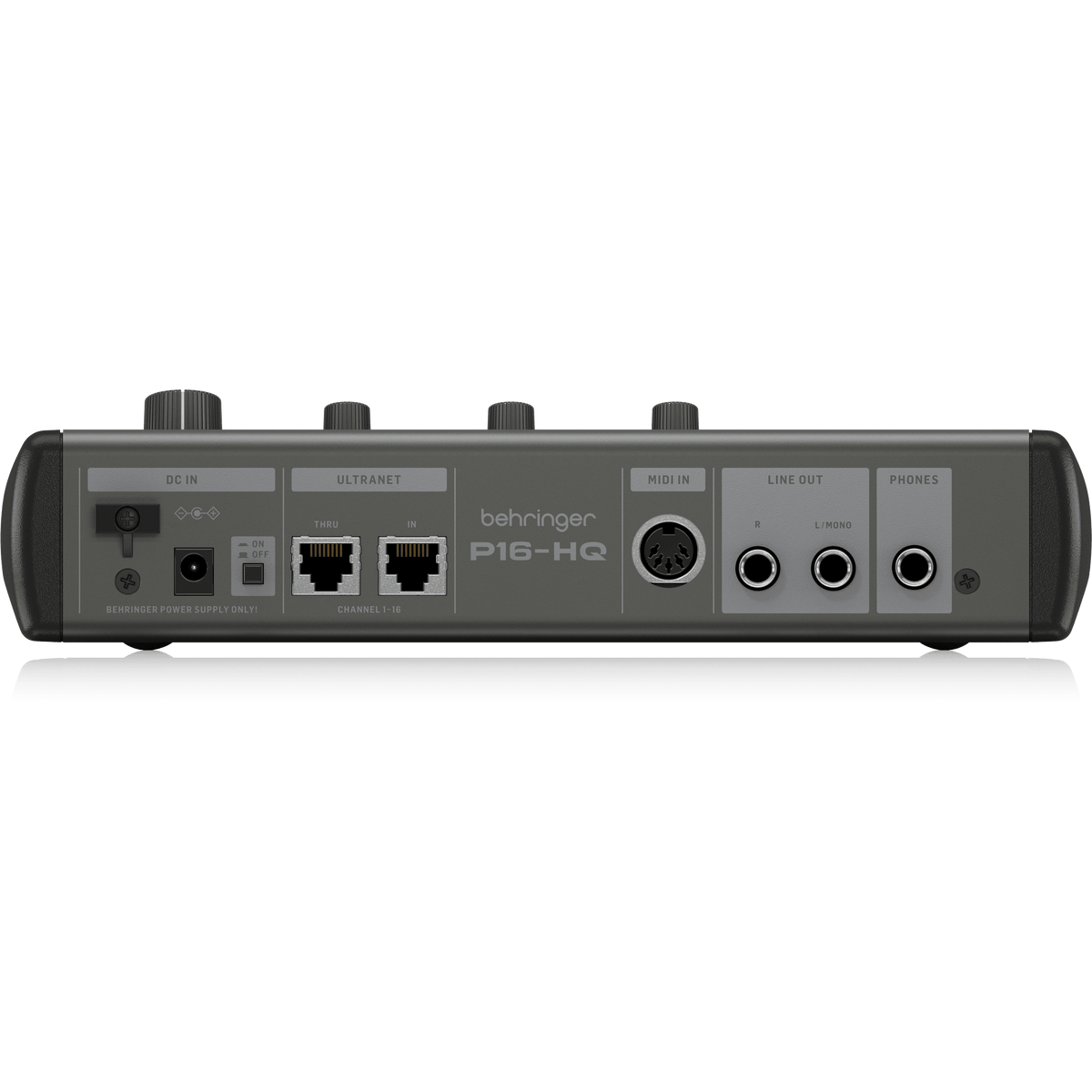

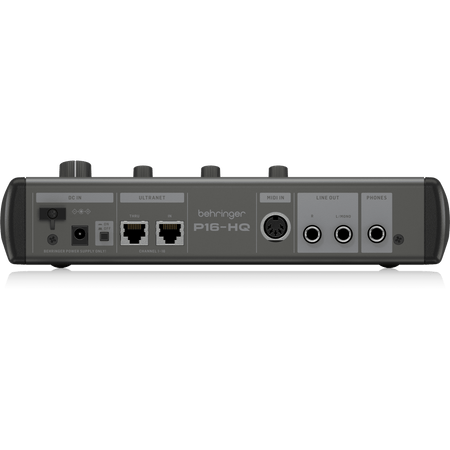

    Audio Connections
    Phones 1/4" TRS, stereo
    Line Out 2 x 1/4" TS, unbalanced
    Ultranet Thru / In 2 x RJ45
    MIDI In 5-pin MIDI connector
    Performance Line Out
    Frequency Response 20 Hz – 20 kHz (+0 / -0.5 dB)
    THD+N 0.002 % typ.
    Residual Noise -99 dBu unweighted / -102 dBu A-weighted
    Crosstalk L / R < -75 dB
    Output Impedance 1 kΩ
    Max. Output Level +12.5 dBu @ 200 kΩ load / +2.7 dBu @ 600 Ω load
    Performance Phones Out
    Frequency Response 20 Hz – 20 kHz (+0 / -0.1 dB)
    THD+N 0.002 % (typ.) / 0.007 % @ 350 mW output
    Residual Noise -94.5 dBu unweighted / -97.5 dBu A-weighted
    Crosstalk L / R < -90 dB
    Max. Output Level 50 mW @ 600 Ω load
    100 mW @ 300 Ω load
    400 mW @ 30 Ω load
    Controls
    Equalizer Bass: ±12 dB @ 100 Hz (shelving)
    Mid: ±12 dB, semi-parametric
    Frequency: 100 Hz – 10 kHz (adjustable)
    Treble: ±12 dB @ 10 kHz
    Output Limiter: Ratio ∞:1
    Level: -20 to +15 dBu (Phones)
