• Behringer PP400 Phono Preamplifier convert Phono to Line
1 1

Behringer

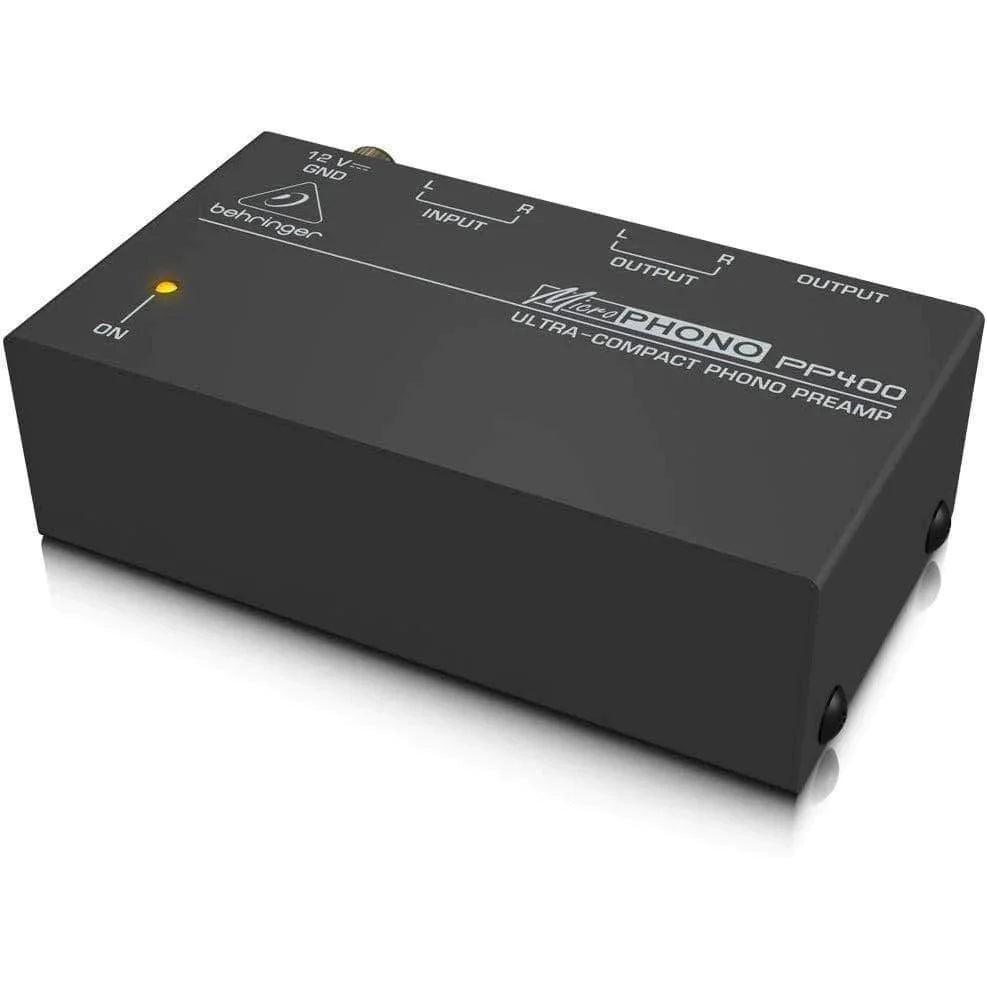

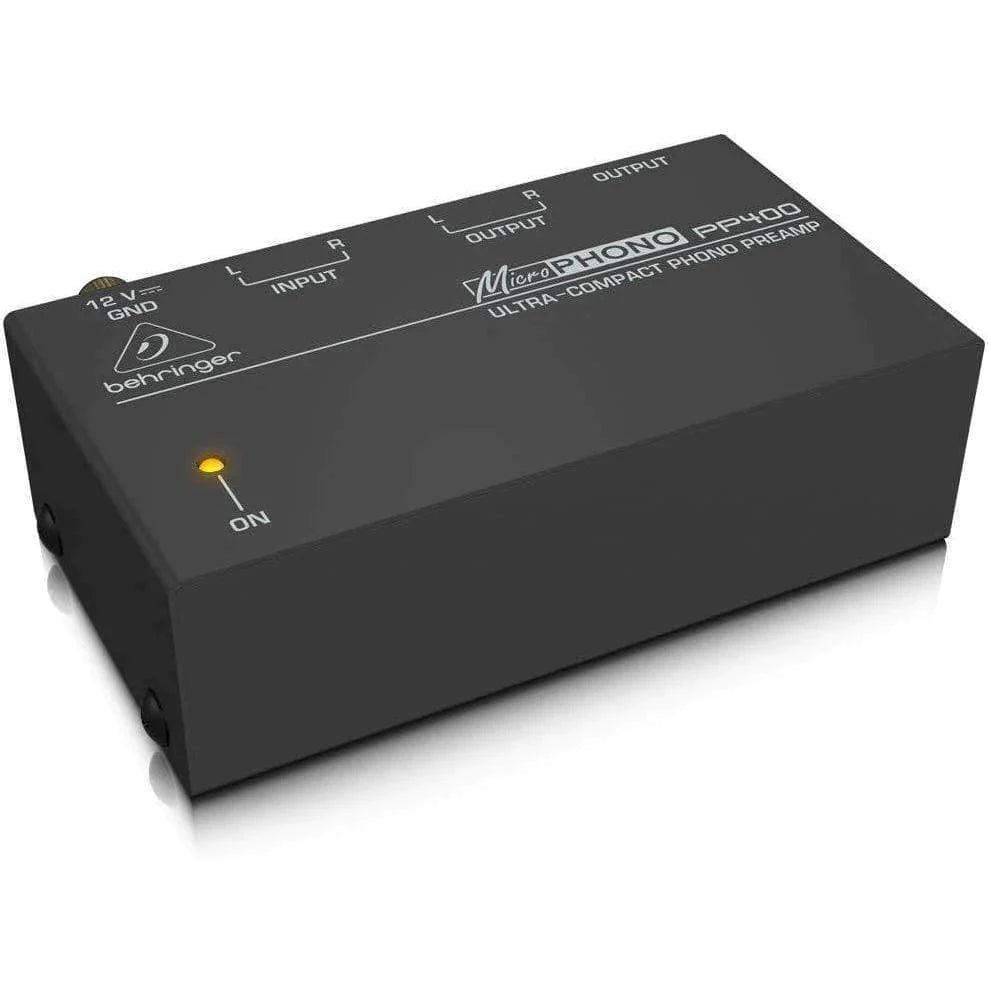

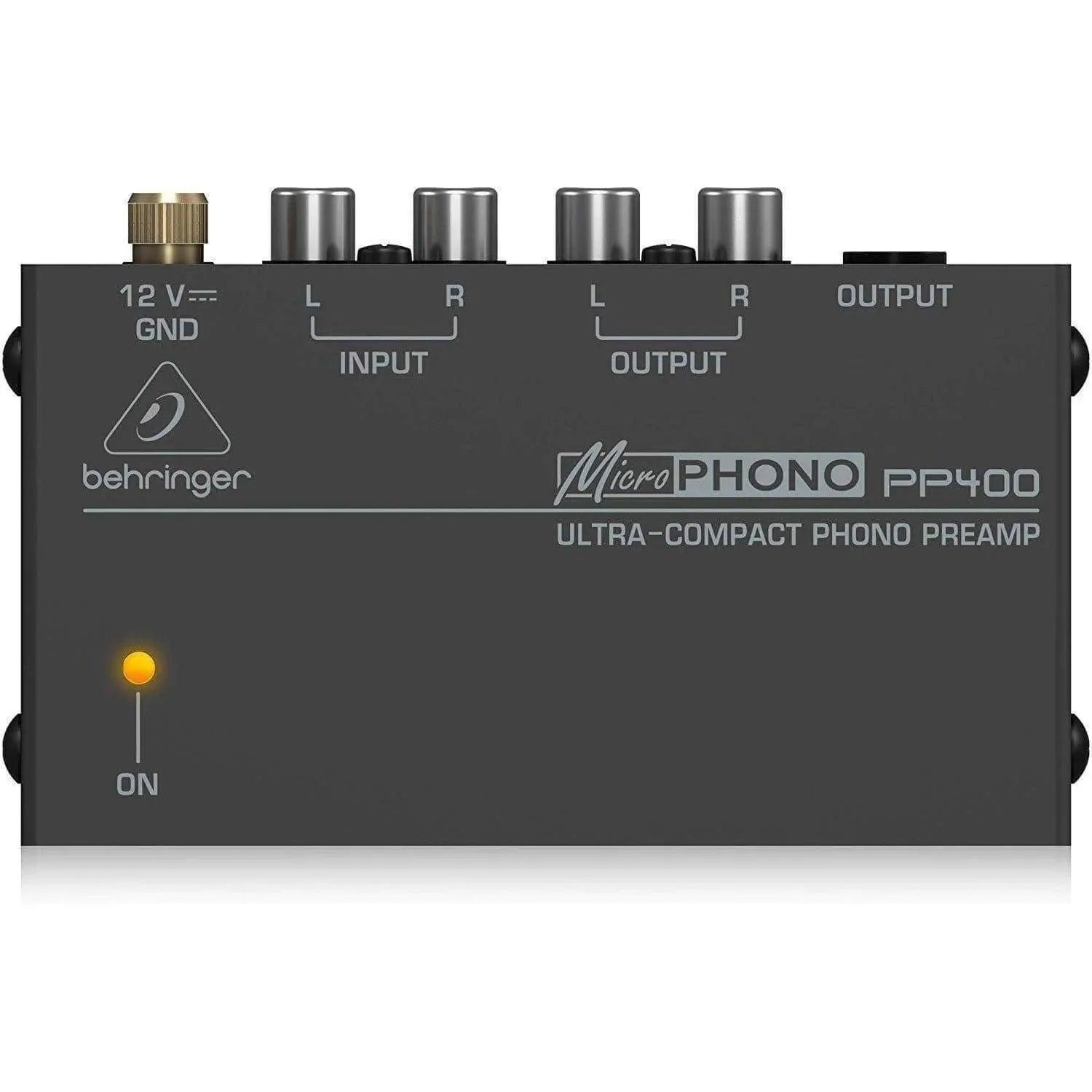

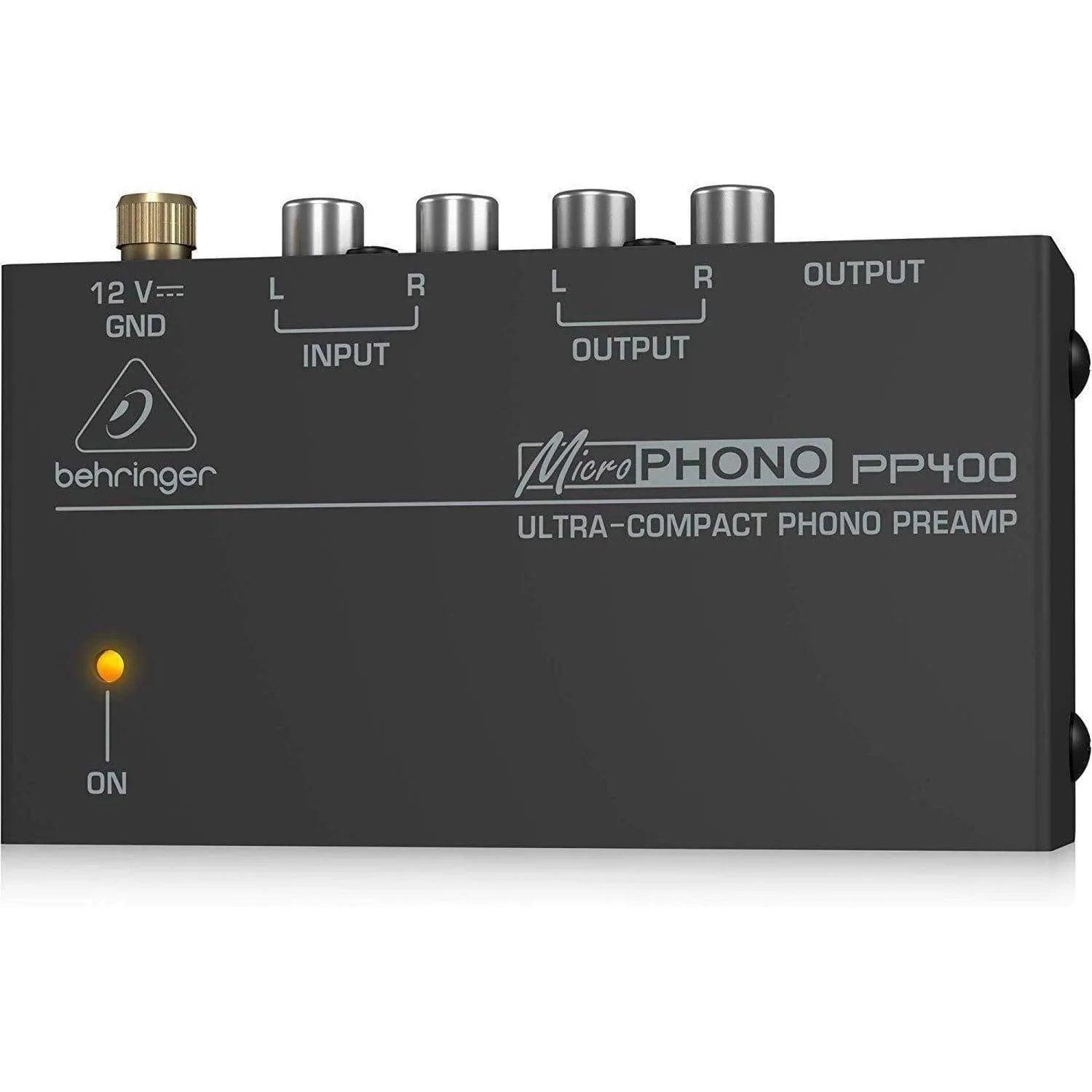

Behringer PP400 Phono Preamplifier convert Phono to Line

The Behringer PP400 is a professional-quality phono preamplifier for turntables. Designed to convert a phono signal to a line-level signal, the PP400 is a compact problem solver for today's home theater systems, which do not provide an input for a turntable. The PP400 features dual RCA inputs and outputs, as well as a 1/4" TRS output.

Features:

  • Converts your phono signal to a line-level signal
  • Professional-quality phono preamp
  • Accepts all magnetic pickups
  • Dedicated dual RCA outputs
  • One 1/4" TRS output
  • 12 VDC adapter included


Tech Specs

Input Type: RCA Connector
Impedance: approx. 47 kOhms
Max. Input Level: -23.5 dBV @ 1 kHz

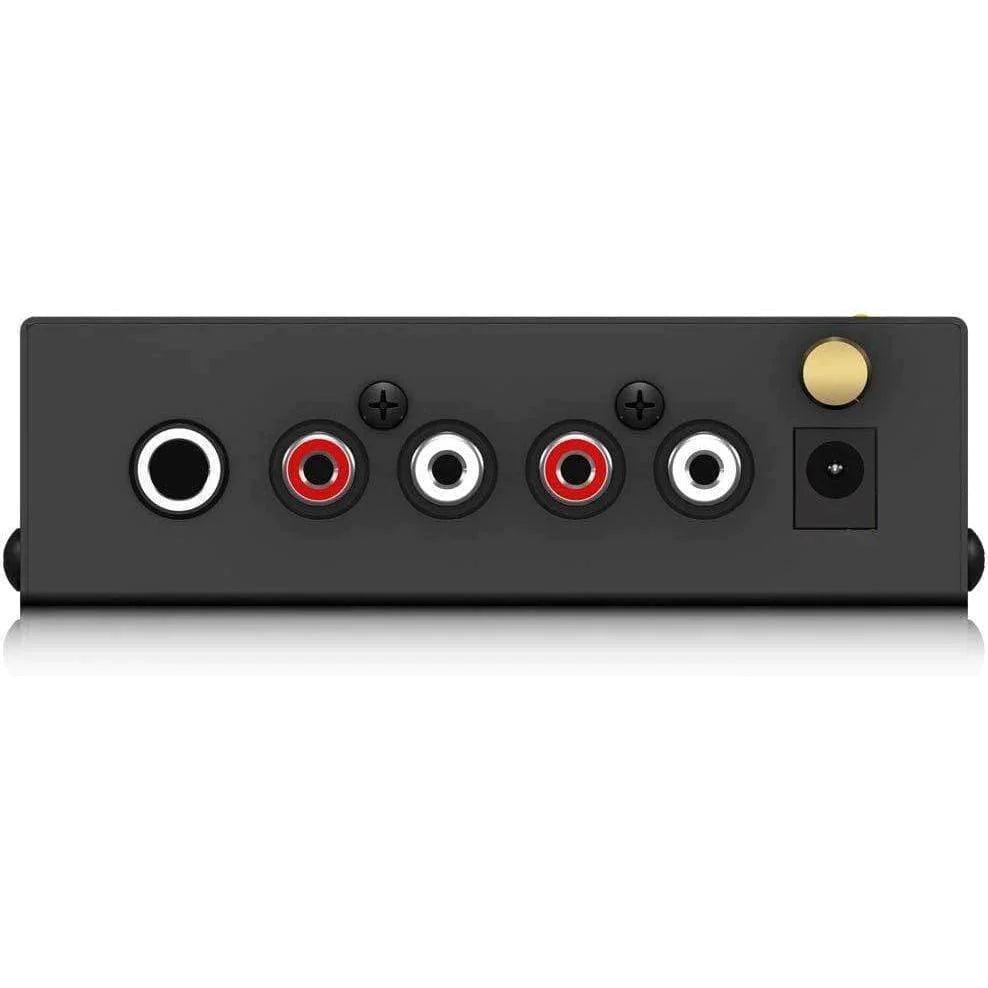

Outputs Type: 2 x RCA and 1 x 1/4" / 6.35 mm TRS
Impedance: approx. 50 Ohms
Max. Output Level: +11.5 dBV @ 1 kHz
Frequency Response RIAA
THD & Noise 0.06% typ. @ -40 dBu/1 kHz
Gain 35 dB
Signal-to-Noise Ratio 68 dBu @ 0 dBu, A-weighted
Input Sensitivity 5.3 mV @ 1 kHz
Power USA/Canada 120 VAC, 60 Hz
Power Consumption: approx. 1.5 W
Main Connection: external power supply
Dimensions (H x D x W) 1.3 x 4.0 x 2.5" / 31.8 x 101.6 x 63.5 mm
Weight 0.40 lb / 0.18 kg
Packaging Info
Package Weight 0.695 lb
Box Dimensions (LxWxH) 7.75 x 5.1 x 2.5"
