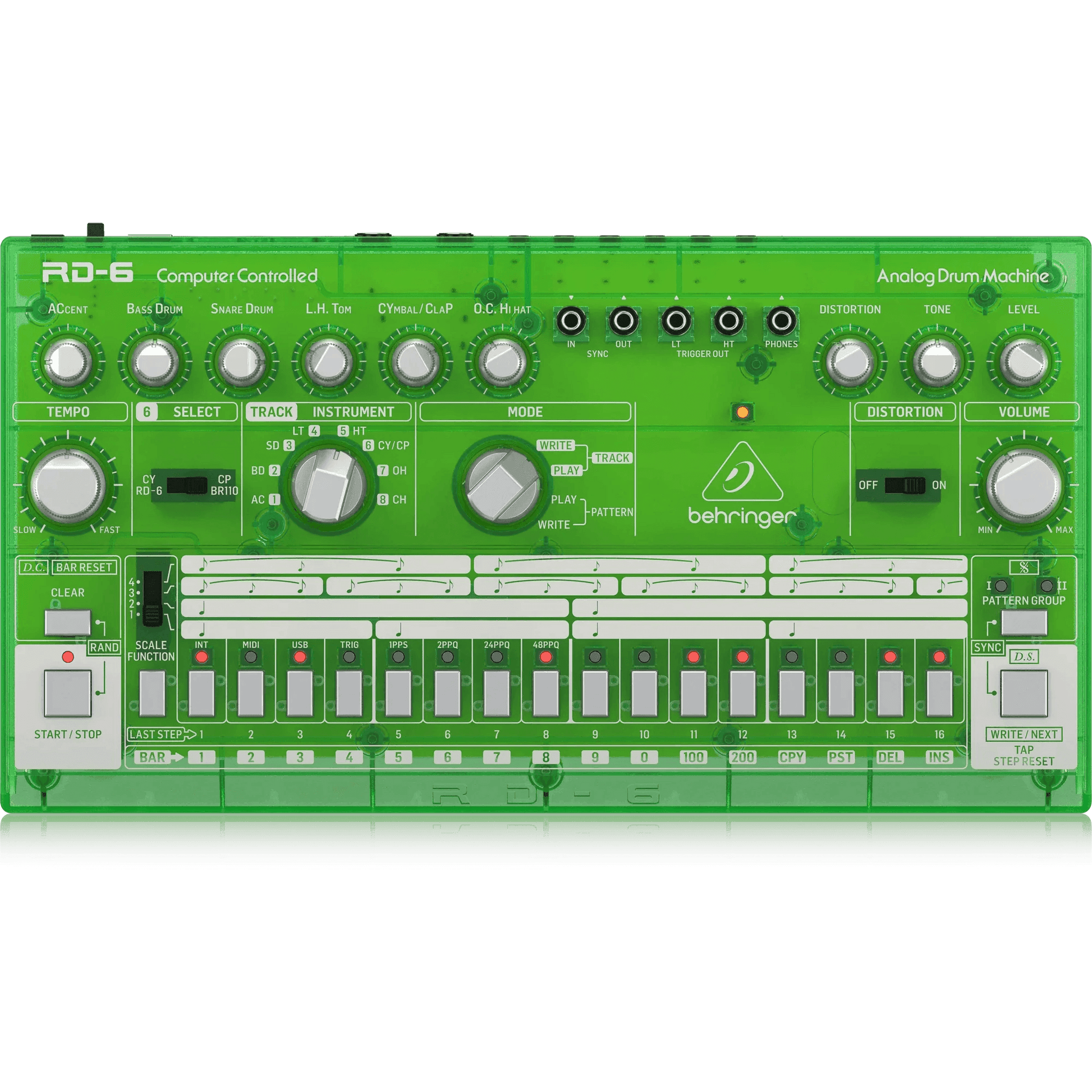

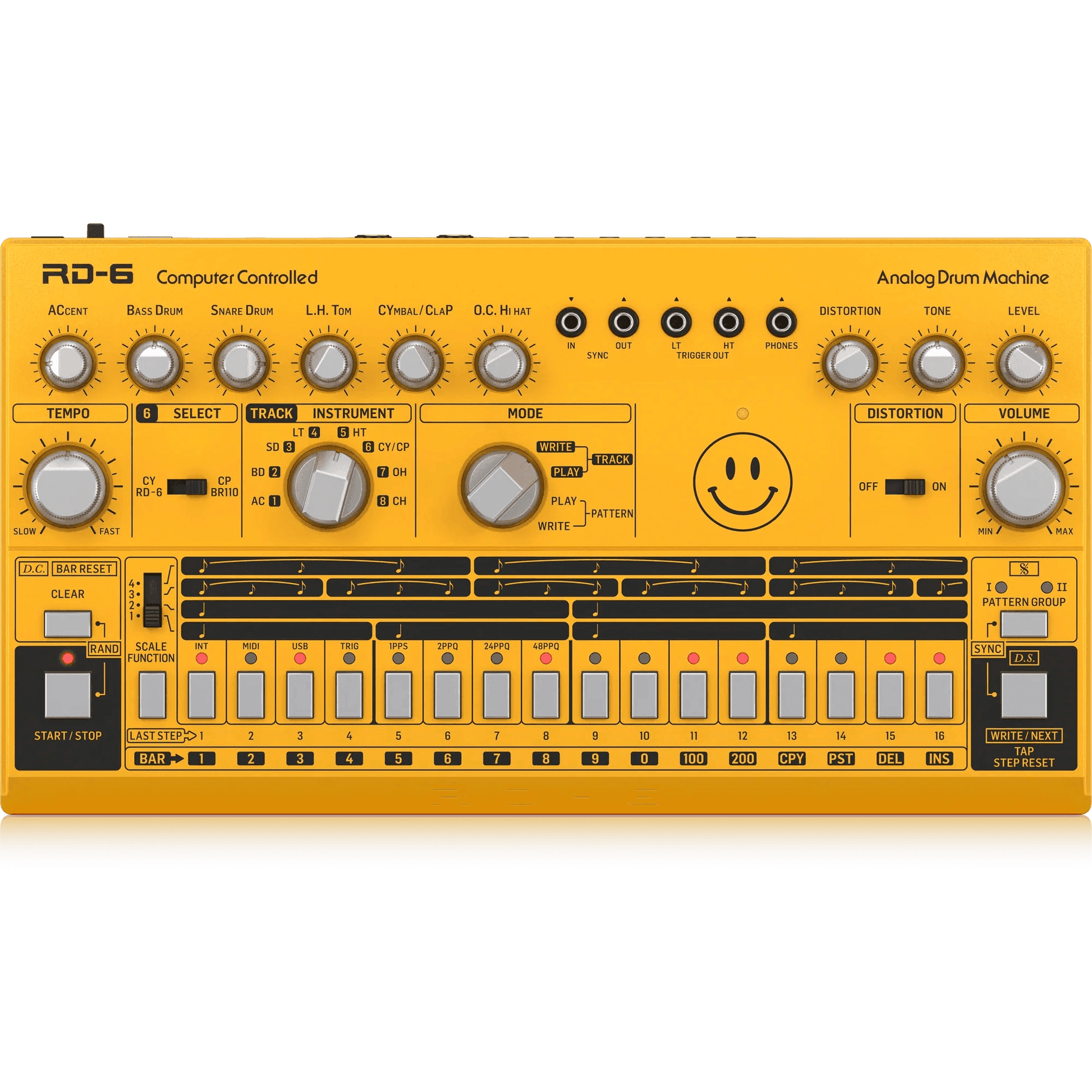

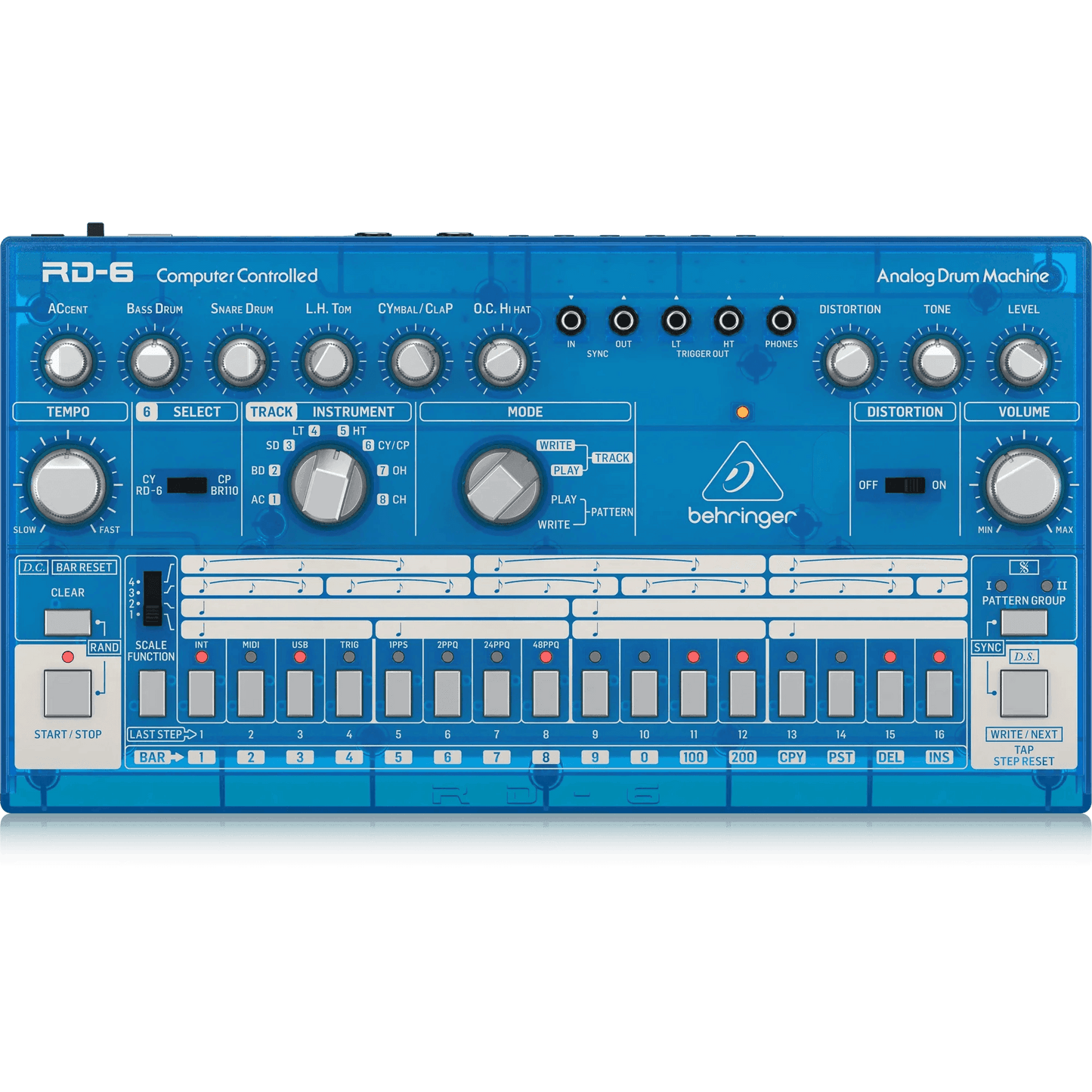

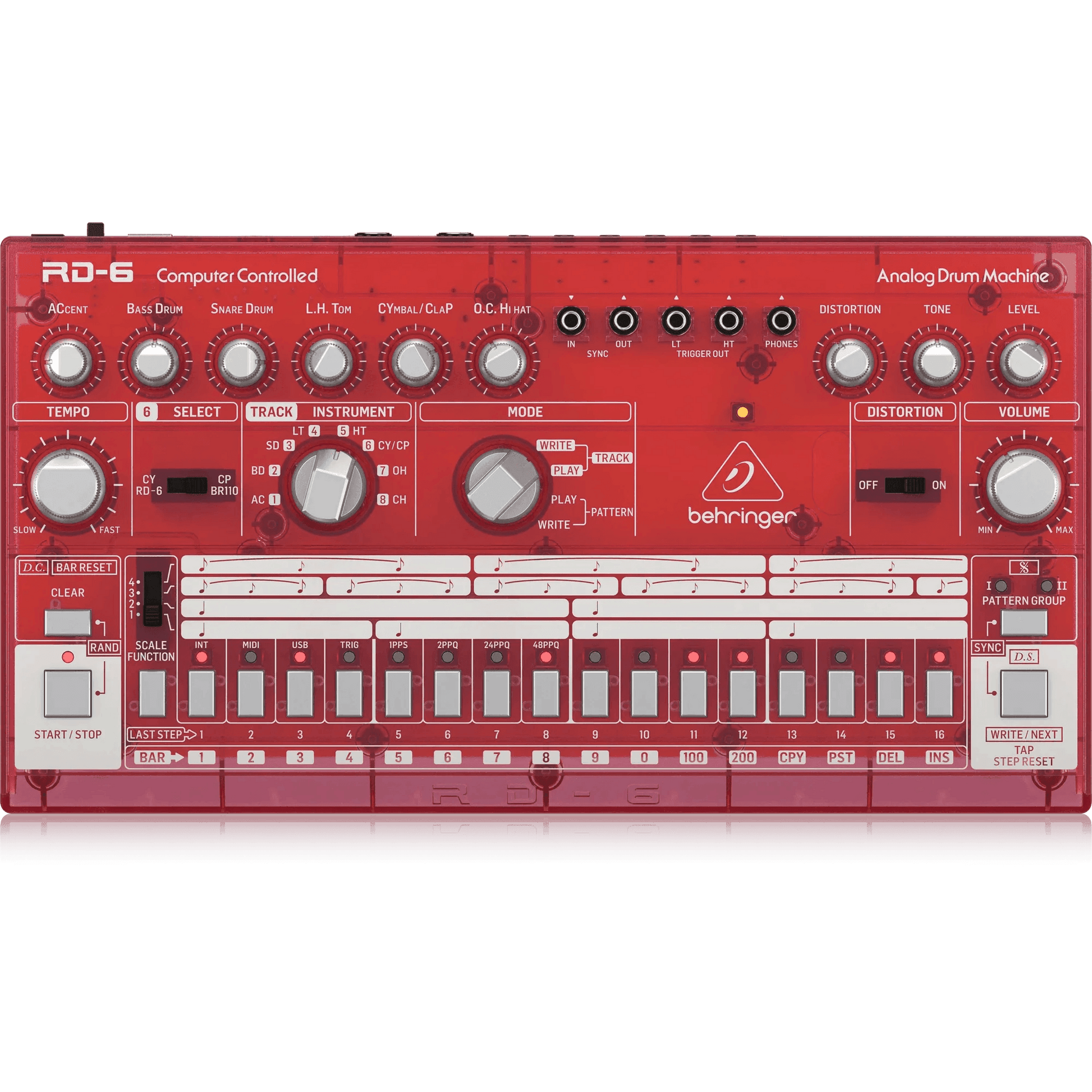

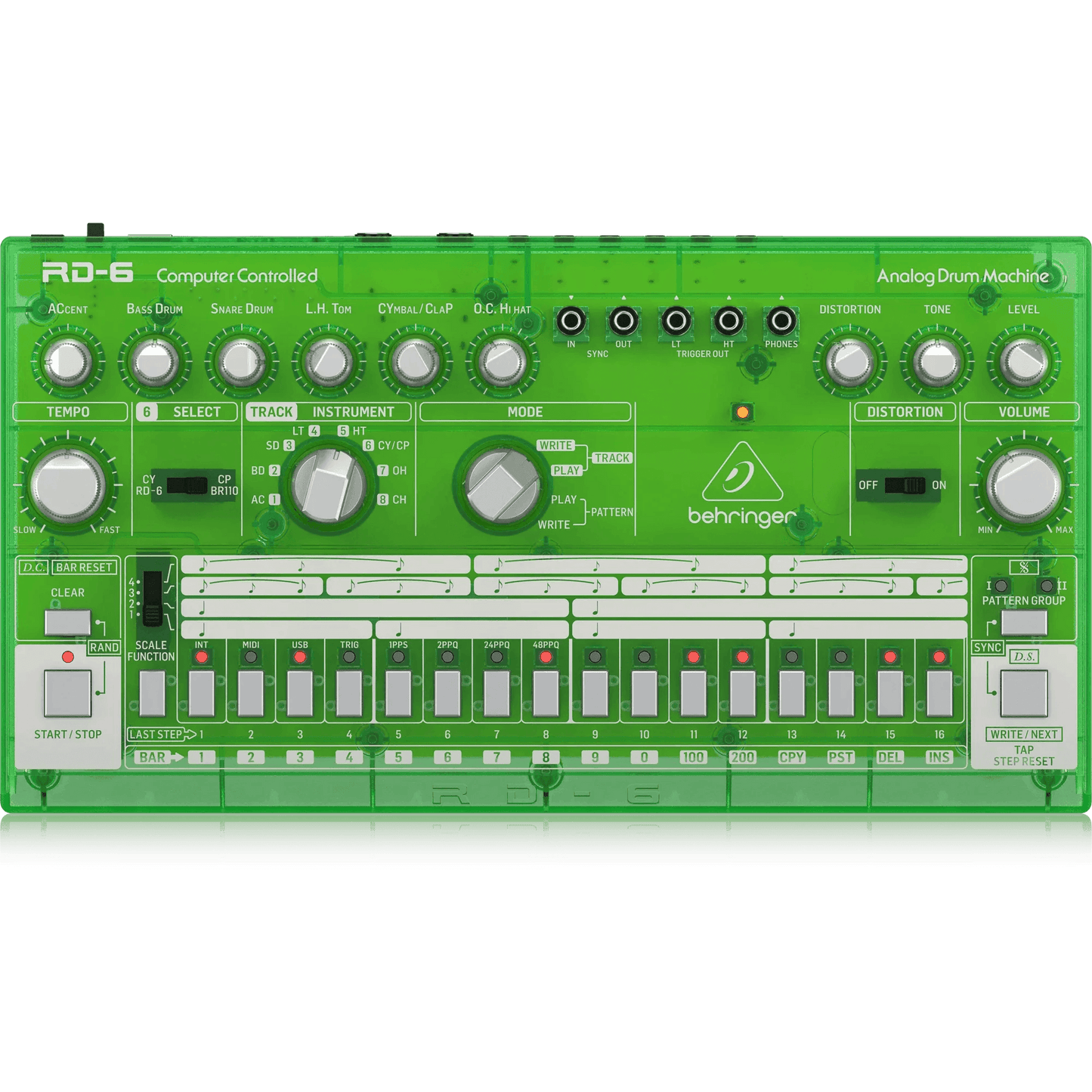

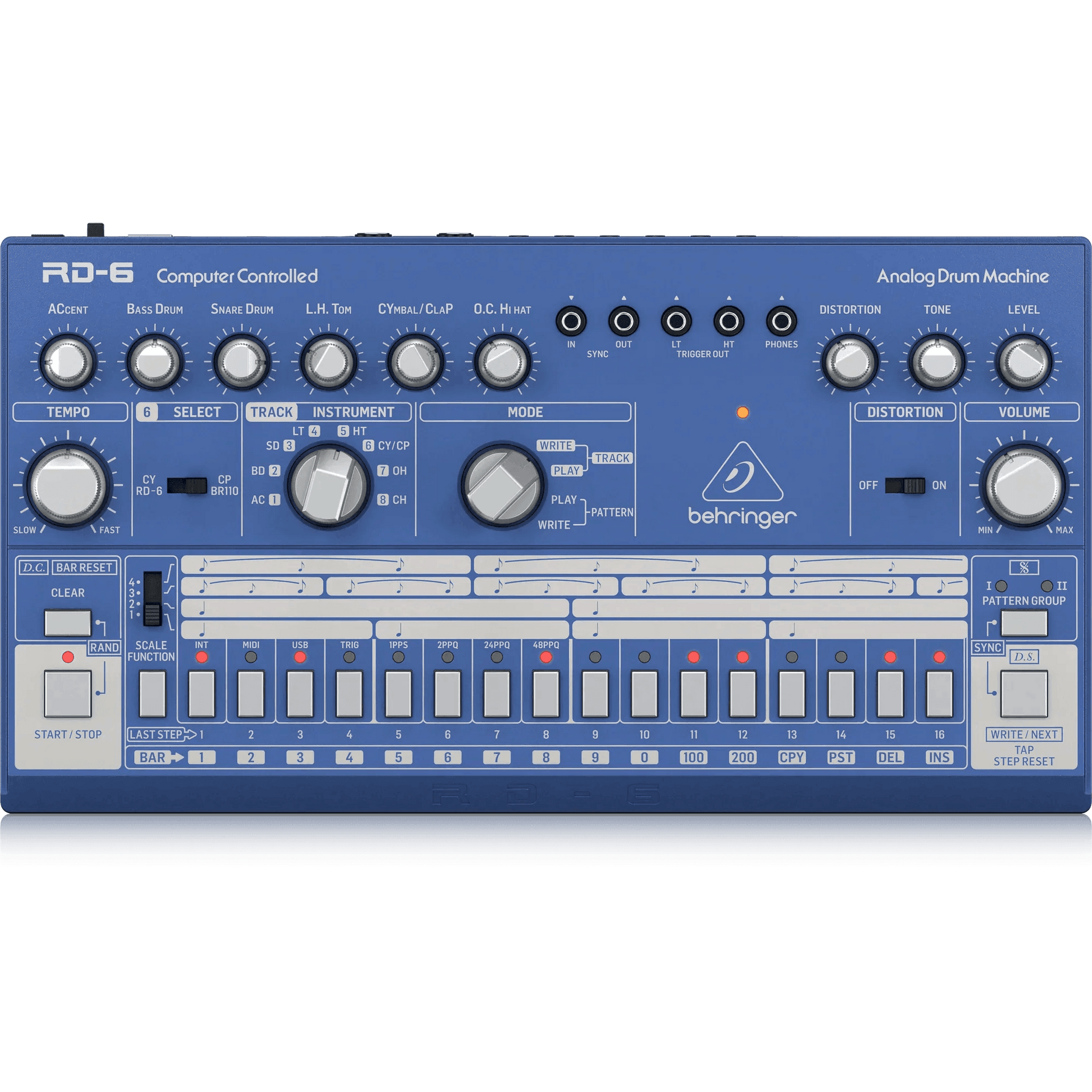

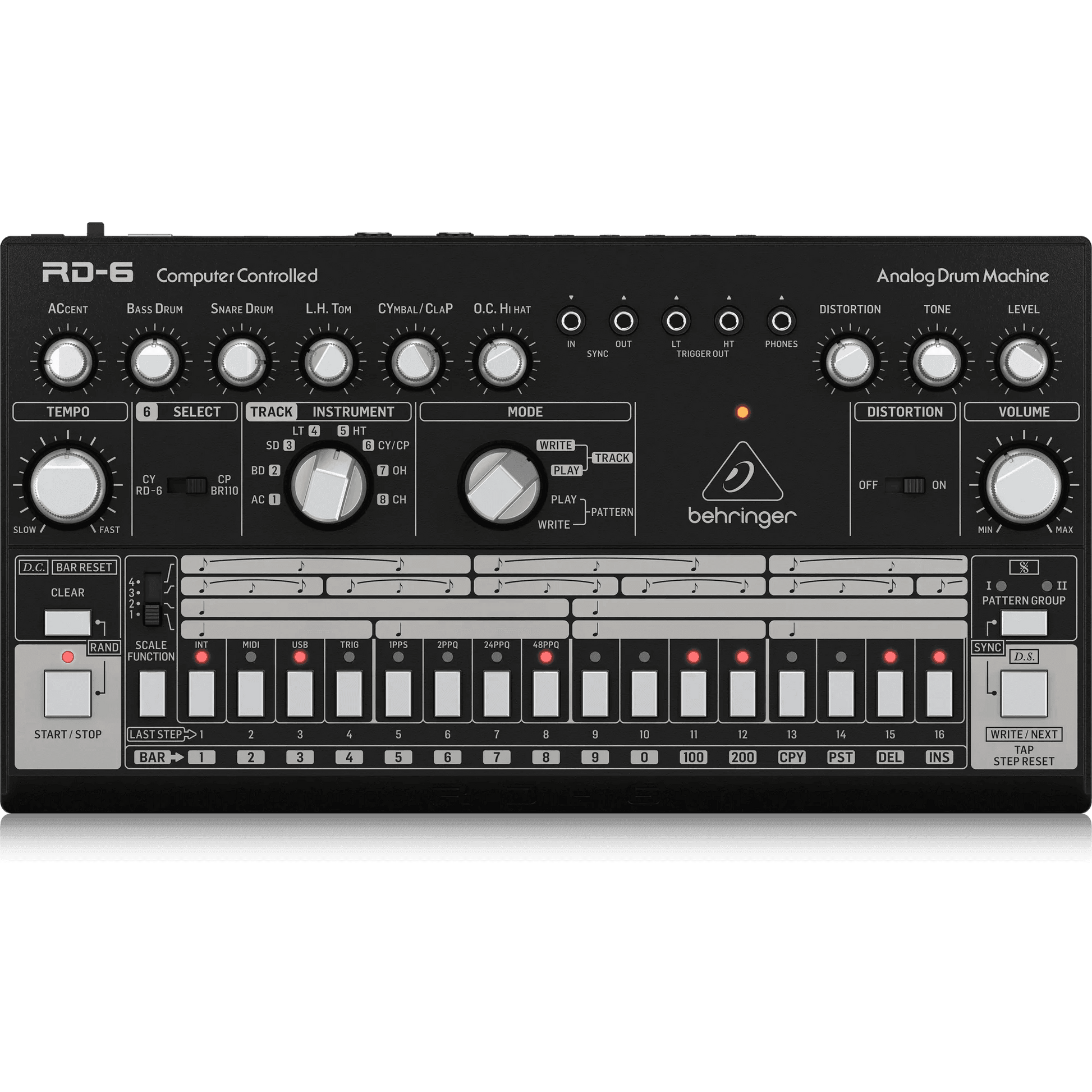

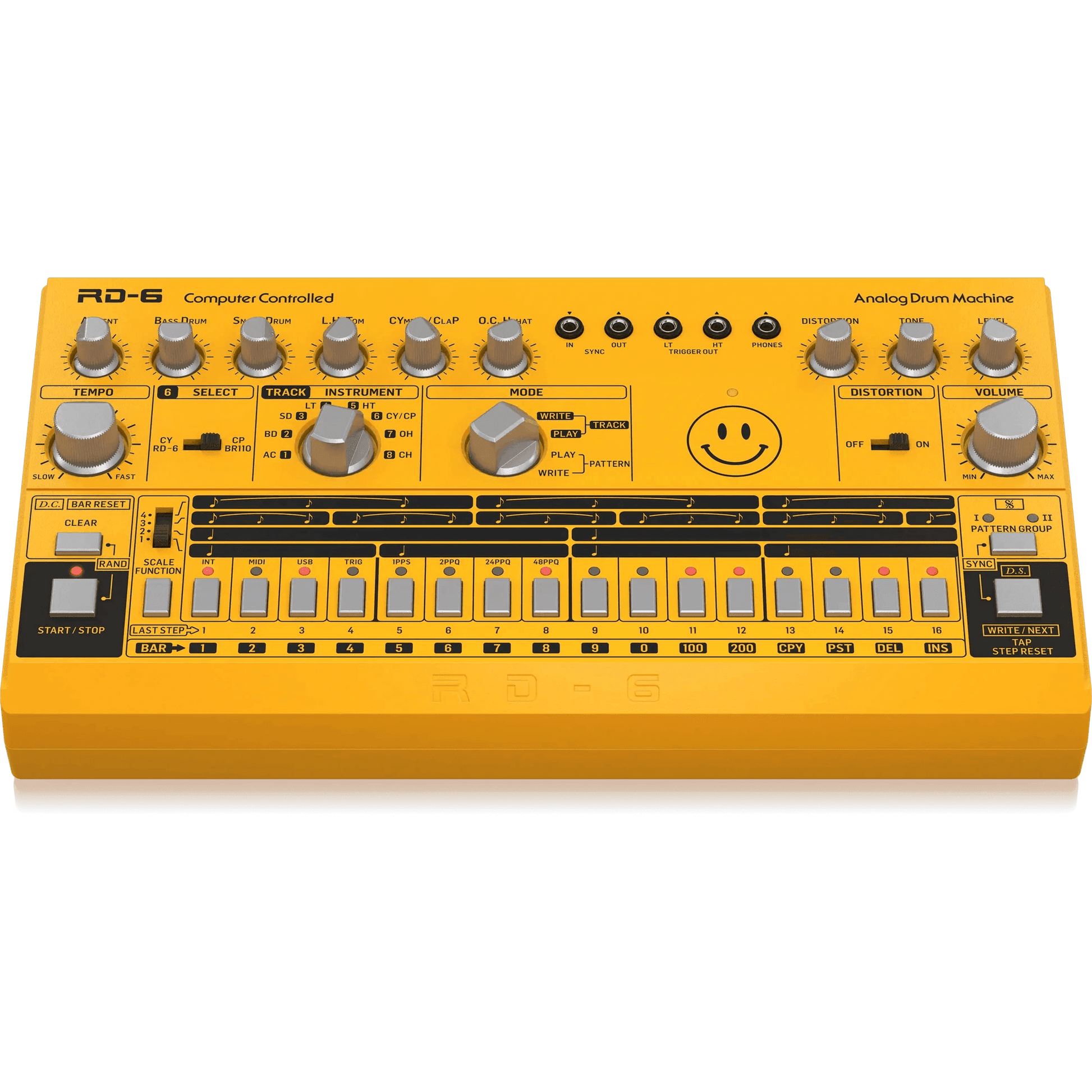

Behringer RD-6-AM Classic Analog Drum Machine
Log in to view price Trade pricing — AED / USD
Ask an AV specialist
-
Full Specifications
Please note: Since this is a back order product we cannot guarantee when it will be available, please also note that the price is indicative and subject to change. Please contact us for more information
KEY FEATURES
- Amazing Drum Machine with true analog circuitry for classic sound performanc
- Authentic reproduction of original circuitry with matched transistors
- 8 original drum sounds with mix parameters and global accent capability
- Highly acclaimed and authentic clap sound from the DR-110 drum machine
DESCRIPTION
The RHYTHM DESIGNER RD6-AM provides all the tools you need to become a master beat-maker, including: 8 drum sound and a 16-step sequencer – for a quick and easy-to-use drum machine that’ll shake the house! Whether you’re new to drum programming or a seasoned pro looking to enhance your setup, the RD-6-AM has everything you need to step up to the big leagues.
SPECIFICATIONS
Voices
Number of sounds
8
Type
Analog
Number of simultaneous voices
8
Voice Controls
Accent
Level
Bass drum
Level
Snare drum
Level
Low tom, hi tom
Level
Cymbal, clap
Level
Open hat, closed hat
Level

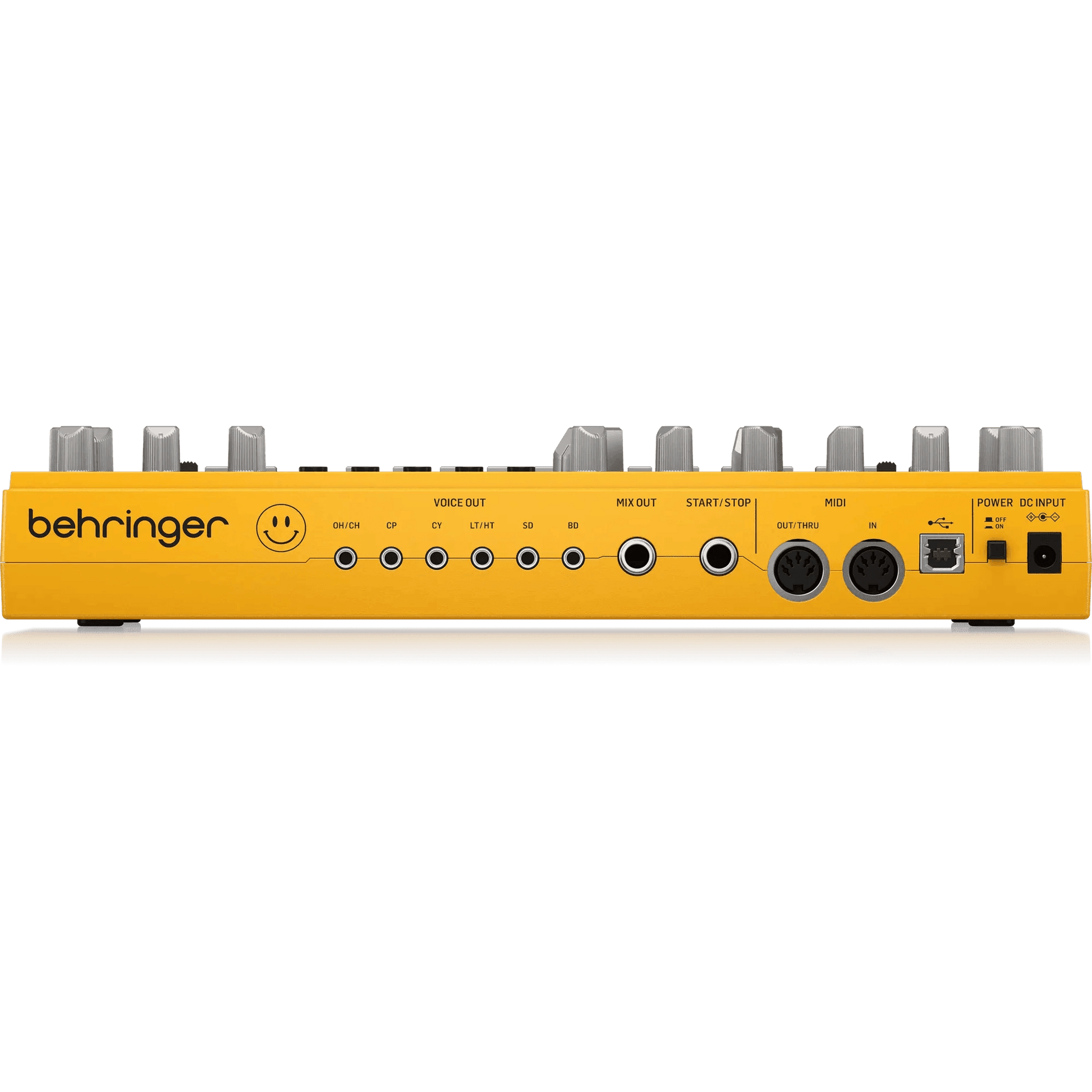

Connectivity
Power input
DC input connector
Power switch
Push button on/of
USB (MIDI)
USB 2.0, type B
MIDI In, Out / Thru
2 x 5-pin DIN
Start / stop
1 x 1/4" TS
Mix out
1 x 1/4" TS, unbalanced,
1 kΩ impedance
Voice out
6 x 1/8" TS, unbalanced,
100 Ω impedance
Sync in / out
2 x 1/8" TRS (Tip is clock and Ring is the start message) more than: 2.5 V
Trigger outs
LT and HT 2 x +15 V, 1PPS/24PPQ/48PPQ 50% pulse length, 2PPQ narrow pulse length.
Phones
1 x 1/8" TRS, stereo,
15 Ω impedance
USB
USB
Class compliant USB 2.0,
type B
Supported operating systems
Windows 7 or higher
Mac OS X 10.6.8 or higher
Power Requirements
External power adapter
9 V DC, 670 mA
Power consumption
2 W max.
Indicator
Power LED
Physical
Dimensions (H x W x D)
56 x 305 x 165 mm
(2.2 x 12 x 6.5")
Weight
0.9 kg (2.0 lbs)
Shipping Weight
1.6 kg (3.5 lbs)
Buy in bulk
| Variant | Quantity | Price | Total |
|---|---|---|---|
RD-6-AM
RD-6-AM
|
Out of stock
|
||
RD-6-BK
RD-6-BK
|
Out of stock
|
||
RD-6-BB
RD-6-BB
|
Out of stock
|
||

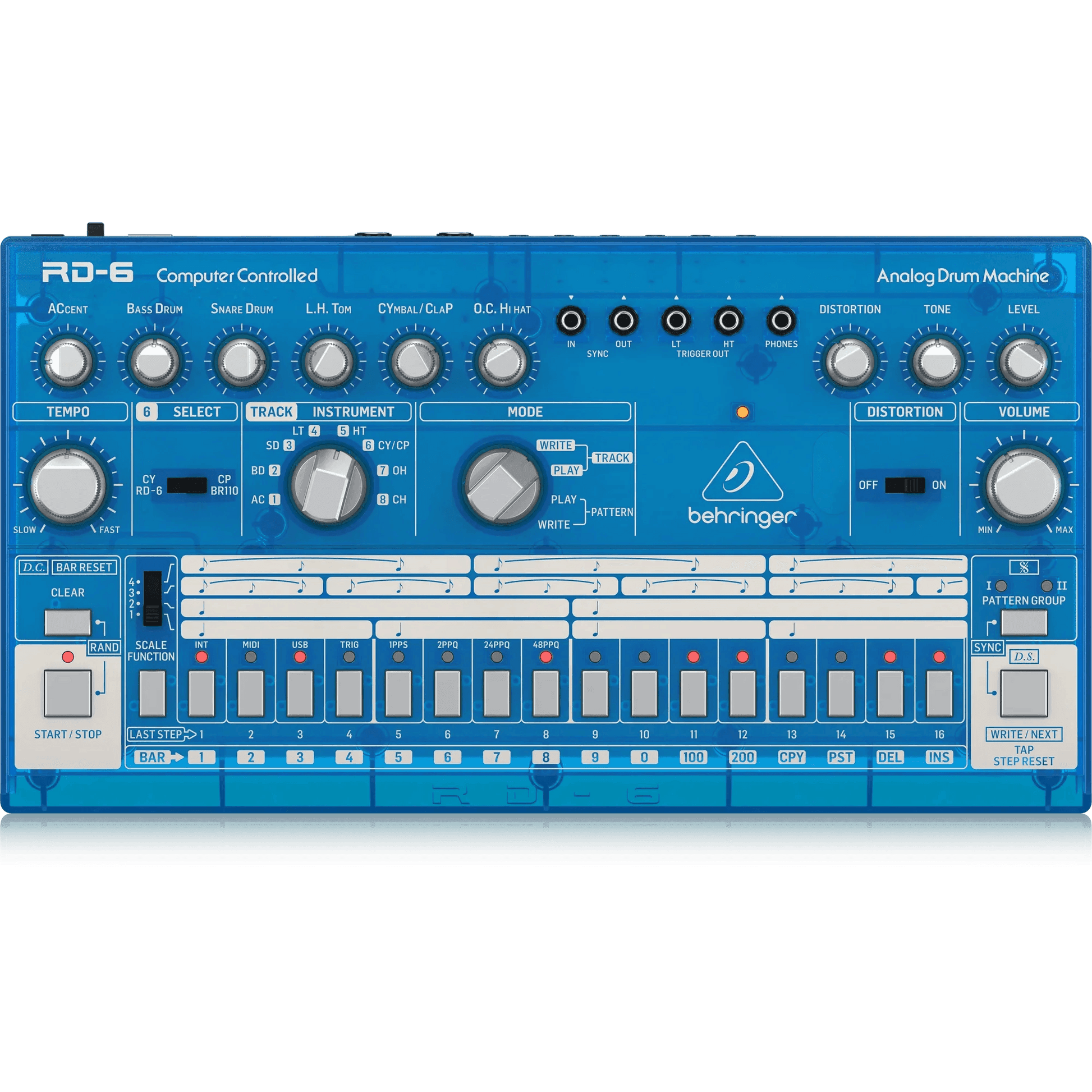

RD-6-BU
RD-6-BU
|
Out of stock
|
||

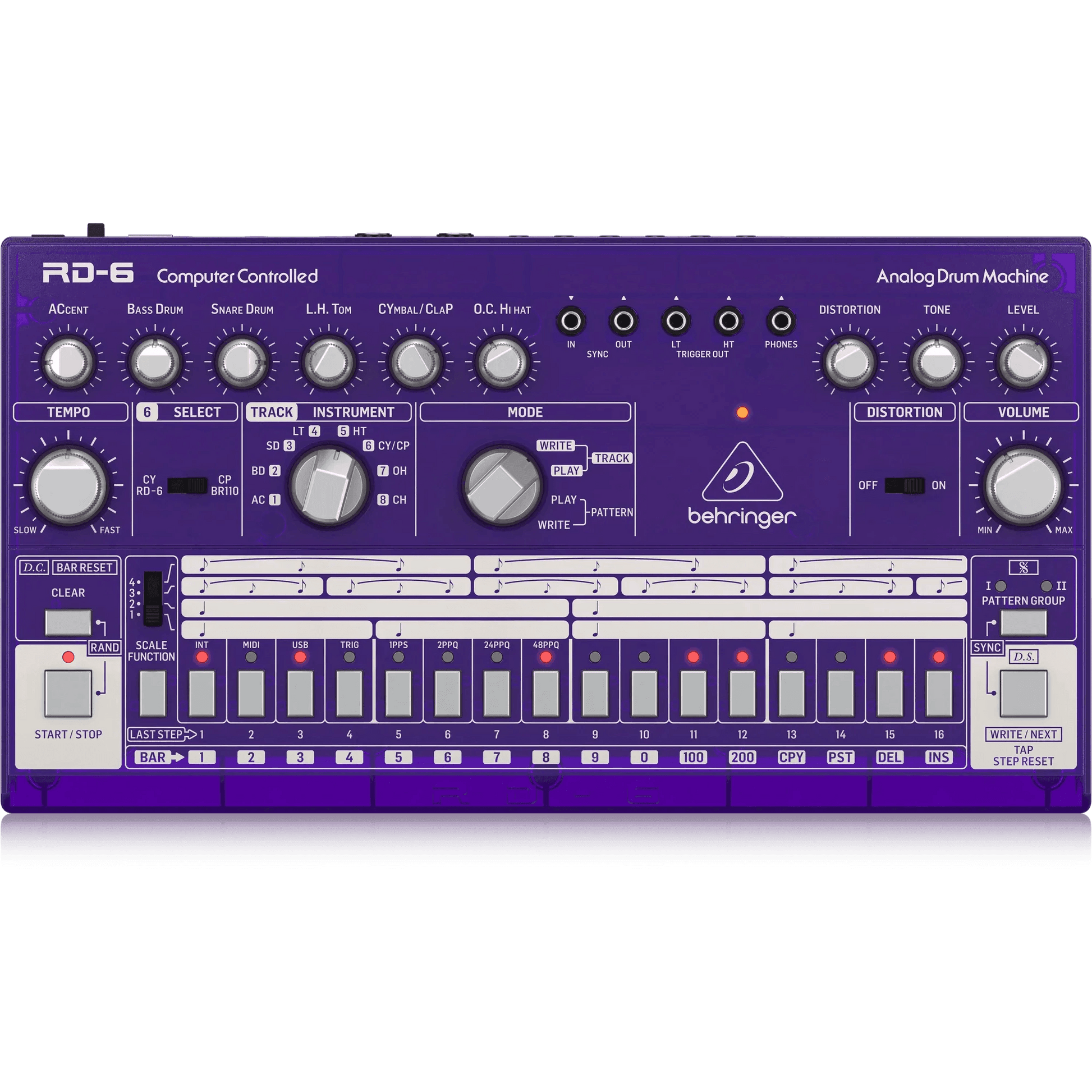

RD-6-GP
